Product Description

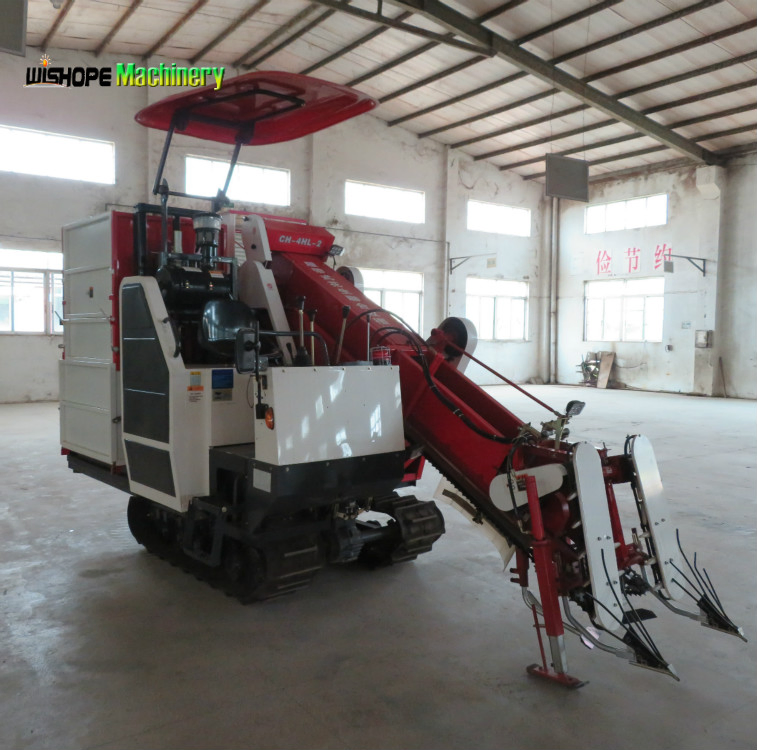

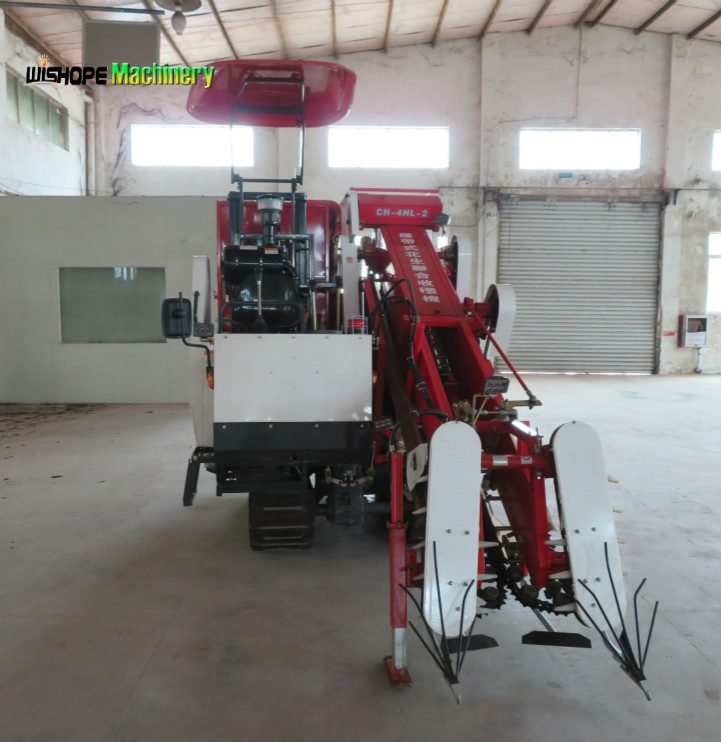

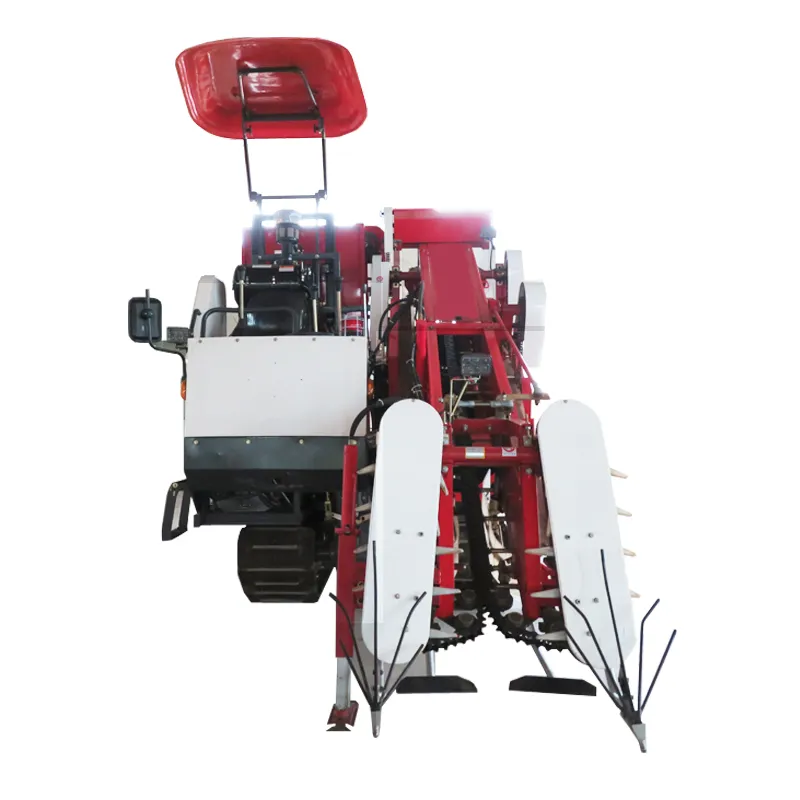

Two Row Rubber Crawler Peanut Combine Harvester

This CH-4HL-2 model peanut harvester is rubber crawler type, which can walk for different field conditions. And the rubber crawler can make it walk in straight. Moreover, it applies to different field and different crops. And this machine is easy for operation and maintenance.

Welcome !

Two Row Rubber Crawler Peanut Combine Harvester
Product Parameters

No.	Item		Unit	Specification
1	Dimension	Length	mm	4700
2		Width	mm	1980
3		Height	mm	2740
4	Engine	Model	/	YCD4K11T-61
5		Rated Power	HP	61
6		Rated Rotating Speed	r/min	2600
7	Rubber Track Size		mm	390
8	Ground Pressure		kPa	≤40
9	The Fastest Speed		km/h	≤10
10	Harvest Of Lines		line	2
11	Minimum Ground Clearance		mm	≥70
12	Cutting Bar Size		mm	625mm*590mm
13	Thresher	Quantity	pcs	2
14	Thresher	Size	mm	φ235×1006
15	Distance Between Two Crawler Tracks		mm	1000
16	Grain Tank Size		mm	110016001200
