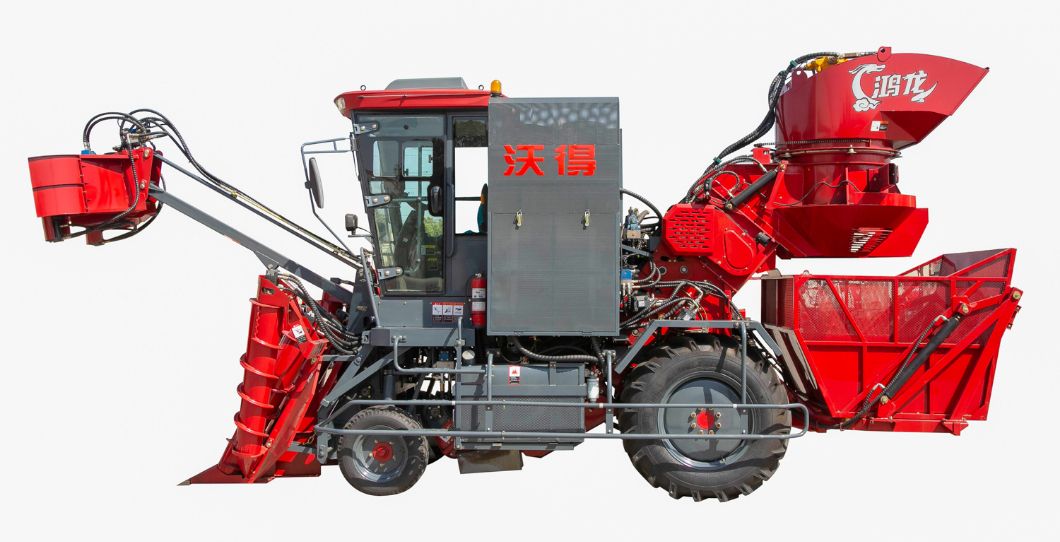

Hot Selling Hydrostatic Drive Cutting Sugarcane Harvester
Feature1. Equipped with Yuchai frequency conversion engine model YCA05190-T300 , the power is up to 190HP.2.Deluxe A/C cabin greatly increases comfort.3. Configured with 8 inch LCD display with integration of Beidou/GPS positioning and 4Gcommunication.4. The combination of hydraulic and electronic c......
Send Inquiry
Product Description
Feature
1. Equipped with Yuchai frequency conversion engine model YCA05190-T300 , the power is up to 190HP.
2.Deluxe A/C cabin greatly increases comfort.
3. Configured with 8 inch LCD display with integration of Beidou/GPS positioning and 4Gcommunication.
4. The combination of hydraulic and electronic control keys and the constant speed crise can alleviate fatigue driving, also improving comfort.
5. The cut- off sugarcane harvester can simultaneously complete the sugarcane lifting up, dividing, top and root cutting,feeding, conveying, cutting,separating, fruit unloading and so on, which has advantages of less auxiliary work and high workefficiency.
Parameter
1. Equipped with Yuchai frequency conversion engine model YCA05190-T300 , the power is up to 190HP.
2.Deluxe A/C cabin greatly increases comfort.
3. Configured with 8 inch LCD display with integration of Beidou/GPS positioning and 4Gcommunication.
4. The combination of hydraulic and electronic control keys and the constant speed crise can alleviate fatigue driving, also improving comfort.
5. The cut- off sugarcane harvester can simultaneously complete the sugarcane lifting up, dividing, top and root cutting,feeding, conveying, cutting,separating, fruit unloading and so on, which has advantages of less auxiliary work and high workefficiency.
Parameter
| Item | Unit | Specifications | ||
| Model | / | 4GQ-1 | ||
| Structure | / | Selfpropelled | ||
| Harvesting Type | / | Cutting | ||
| Number of Harvesting Rows | row | 1 | ||
| Row Spacing | m | >=1.2m | ||
| Engine | Manufacturer | / | Corn | |
| Model No | / | YCA05190-T300 | ||
| Rated Power | HP | 190 | ||
| Rotating Speed | r/min | 2200 | ||
| Dimension | Rotating Speed | mm | 8600x2120x4000 | |
| Transportation (LxWxH) | mm | 7100x2560x3660 | ||
| Tyre | Front | Tyre Model | / | 10 .5/65-16 |
| m | 1510 | |||
| pc | 2 | |||
| Rear | / | 14.9-28 | ||
| m | 1560 | |||
| pc | 2 | |||
| Wheelbase | mm | 2528 | ||
| Walk Drive Type | / | Hydrostatic Drive | ||
| Threoretical Walk Speed | km/h | 0~25 | ||
| Weight | kg | 8260 | ||
| Minimun Ground Clearance | mm | 260 | ||
| Feeding Capacity | kg/s | >=4.5 | ||
| Work Eficiency | hm2/h | >=0.24 | ||
