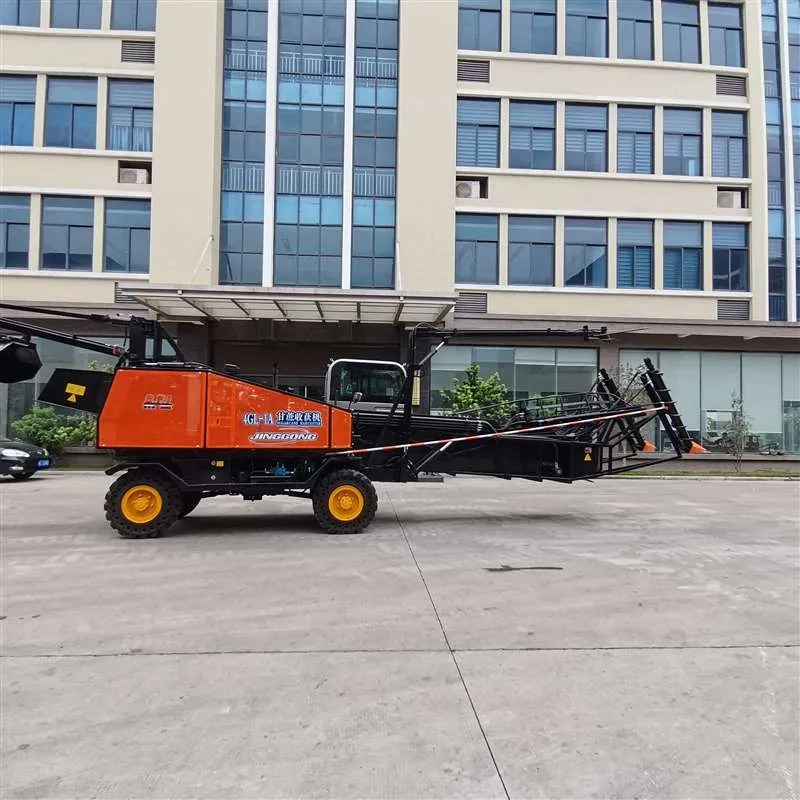

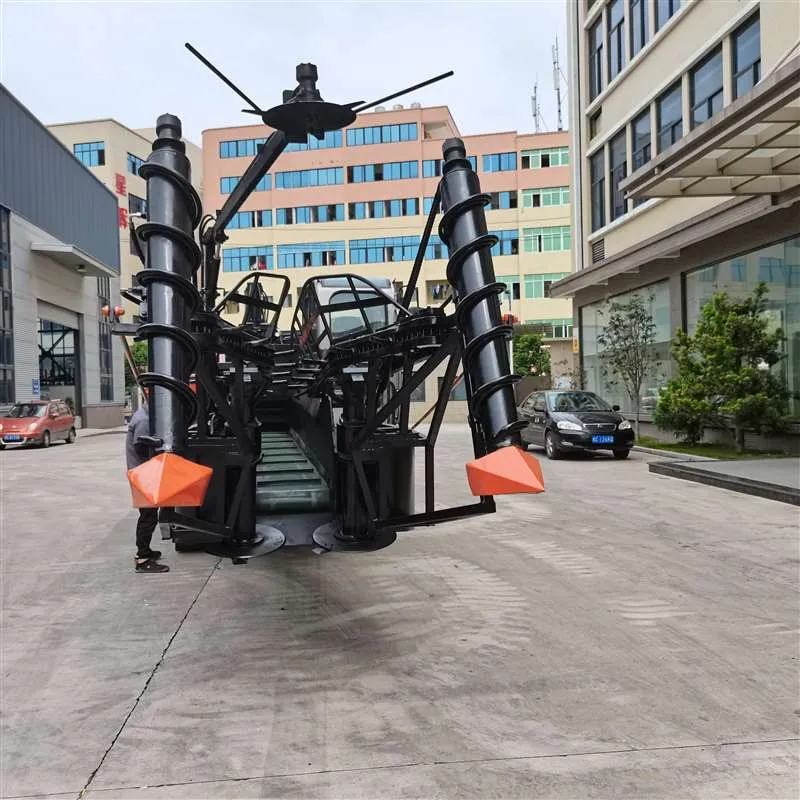

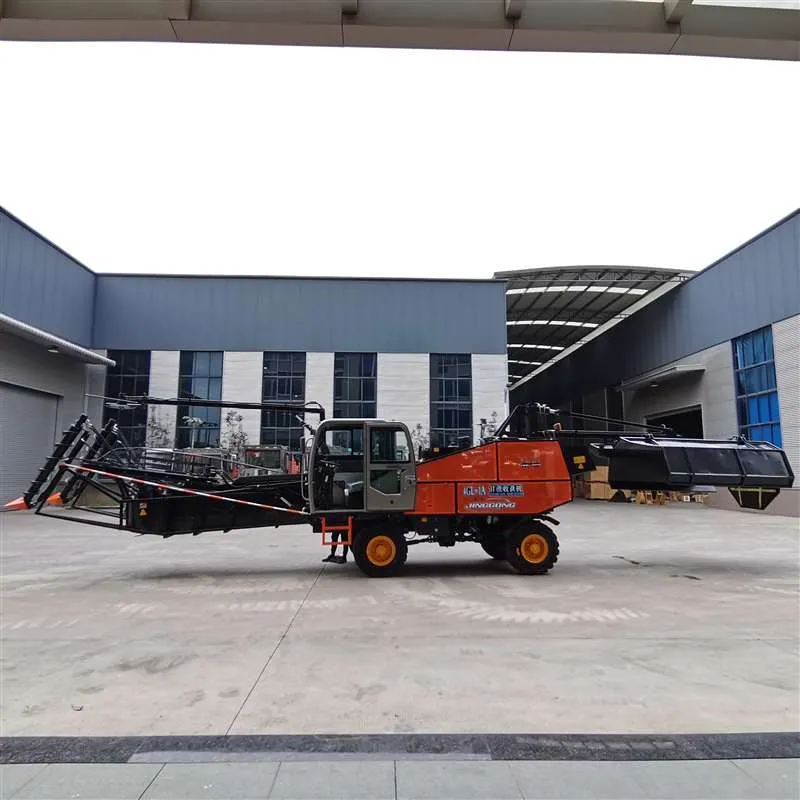

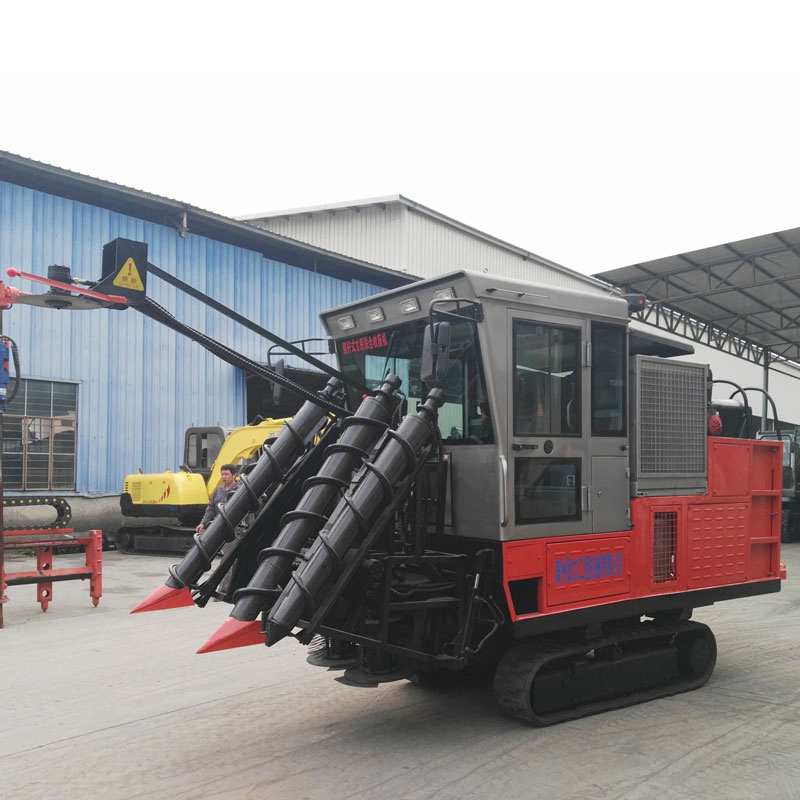

China Factory Directly Sugarcane Harvester for Sale Sugar Cane Harvester
Range of OperationModel4GL-1Structural PatternCrawler TpyeHarvest WayWhole bar typeRows of harvest1Adapted Row Spacing0.85-1.1 meterTravel Driving TpyeHydraulic driveTheoretical speed5.5 km/ hrsMachine Weight5900 kgMin. ground clearance320 mmAdjustable Range of cutting device400 mmMatched PowerEngin......
Send Inquiry
Product Description
| Range of Operation | |
| Model | 4GL-1 |
| Structural Pattern | Crawler Tpye |
| Harvest Way | Whole bar type |
| Rows of harvest | 1 |
| Adapted Row Spacing | 0.85-1.1 meter |
| Travel Driving Tpye | Hydraulic drive |
| Theoretical speed | 5.5 km/ hrs |
| Machine Weight | 5900 kg |
| Min. ground clearance | 320 mm |
| Adjustable Range of cutting device | 400 mm |
| Matched Power | |
| Engine model | 4M5LU23/ 0956E |
| Rated power | 95.6 |
| Rated rotation speed | 2300 |
| Dimensions ( length x width x height ) | |
| Operation condition | 6300 x 1930 x 2930 mm |
| Travel position | 6250 x 1930 x 2930 |
| Parameter of Crawler Type | |
| Spacing of crawler | 1120 mm |
| The vertical horizonal distance between the first wheel center to tension wheel | 1600mm |
| Averaged ground pressure | 6.2kpa |
| Pitch distance | 55mm |
| Pitch Number | 82mm |
| Width of Crawler | 300mm |
| Cutting Device | |
| Structural model | double disc cutting |
| Max. diameter of rotation | 555 mm |
| Rotated speed | 840 r/min |
| Drive type | hydraulic drive |
| Quantity | 2 |
| Blade | 150 x 80 x 3 |
| Quantity | 4 |
