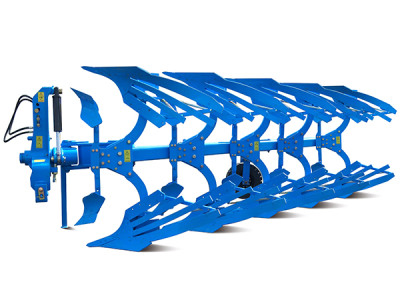

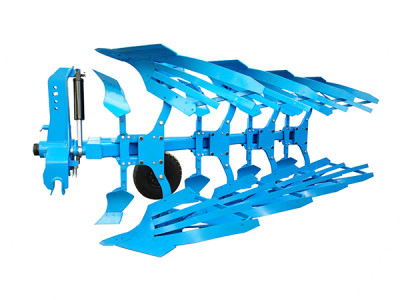

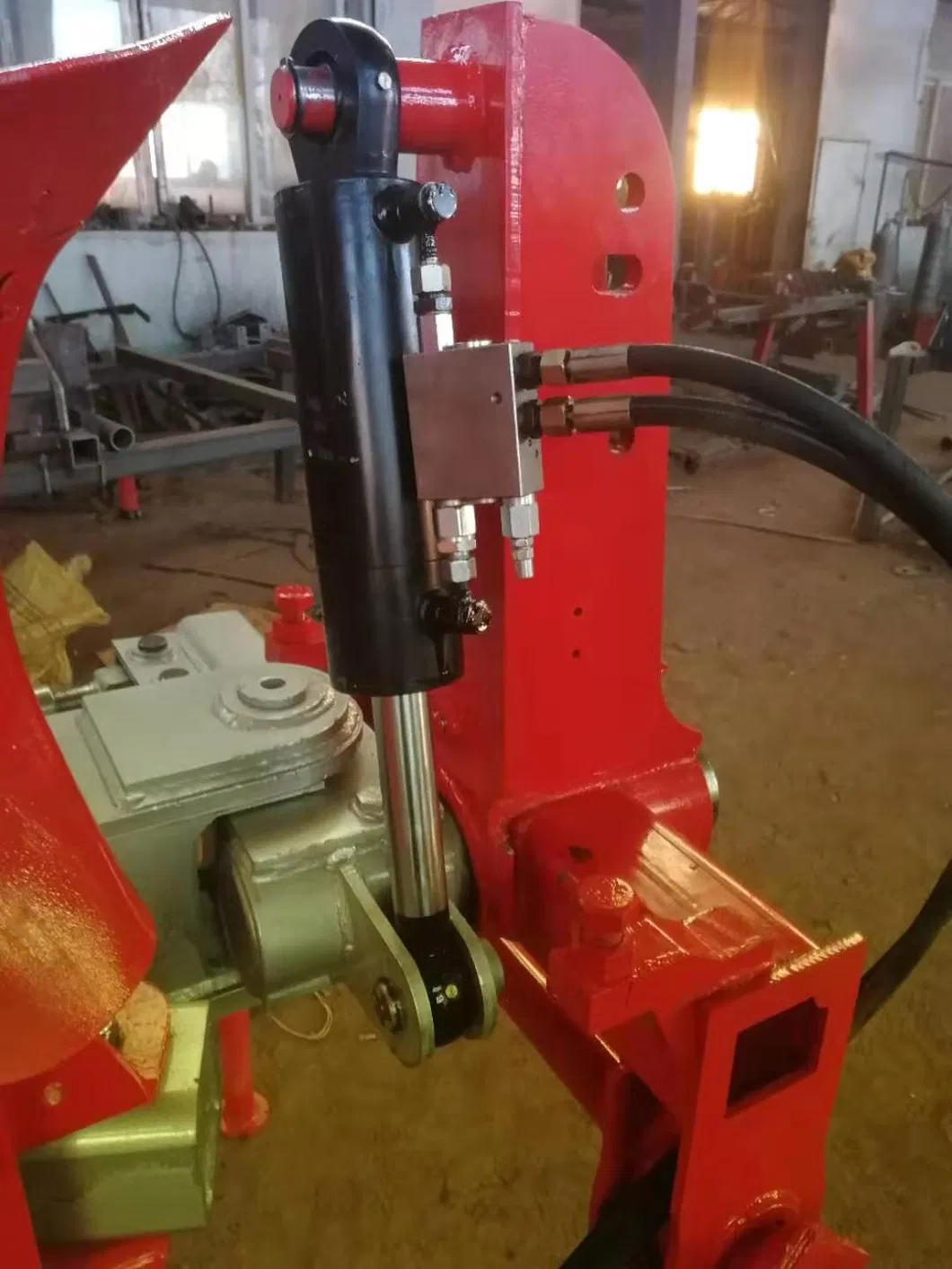

Tractor Tilting Plough /Hydraulic Tilting Plough /1lf-550 Plough
1LF Series Tractor Reversible Plow Hydraulic Reversible Plough1. About usShandong Euro Star Machinery Manufacture Co., Ltd.is one of the major suppliers and exporters of farm equipments and tractor implements in China, including various kind of tractor parts, implements and attachements. Fotma got t......
Send Inquiry
Product Description
1. About us
Shandong Euro Star Machinery Manufacture Co., Ltd.is one of the major suppliers and exporters of farm equipments and tractor implements in China, including various kind of tractor parts, implements and attachements.
Fotma got the certificate of ISO9001: 2000 and most of our farm implements are CE approved for USA and Europe respectively, which have been recognized by all countries in the world. We have business with over 100 countries in the world. We will be glad to work with the new partners worldwide. We will continue to keep to our strategic target of superior quality, low cost and globalized farm equipment, and adopt a management approach characterized by higher standards, full precision and itemization, and zero defects, endeavor to offer the world-class brand products and will build one of the most competent industrial bases in the world for Chinese engineering machinery, farm equipment and large industrial equipments.
2. Why choose us?
FOTMA is the leading and professional supplier in China for various kinds of agricultural implements!
FOTMA has over than 15 years experience with agricultural machines!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
3. Product description
The modern agriculture requirement is lower cast and higher volume. The cost for cultivation is paid more attention by the customers and meet this requirement. Our company developed the series of reversal plough. The plough camber is deeply prefer by the customer all over the country in recent years particularly, the working speed is 8-10km/h
Series of 1LF reversal plough can be mounted to 15-120HP tractors with 2 ways of reverse mechanical (J), and hydraulic(Y). Hydraulic reversed plough can be adjusted for the different tractors, the hydraulic a system is automatically and the operation is smooth without any troubles.
4. Features
It has compact structure and suitable for working on all various land. With the working performance of the machine, after cultivation, the land surface is leveling, the soil clods well crushed and turned over and the furrows is small.
5. Technical parameters
| Flip plow technical parameter | |||||||
| Number | Nape | symbol | specifications | ||||
| 1 | 1LY-445 | 1LF-540/ 1LF-550550 | 1LF-650/ 1LF-640 | 1LF-435 | |||
| 2 | Plough beam specification (Length × width × thickness) | 140×140×10 | 140×140×10 | 140×140×10 | 100×120×10 | ||
| 3 | appearance size(Length × width × thickness) | mm | 4900×2150×1850 | 5800×2150×1850 | 6700×2150×1850 | 6700×2150×1850 | |
| 4 | machinery weight | Kg | 1700 | 2050 | 2200 | 2200 | |
| 5 | Matching tractor's Power | PS | 120-140 | 160-180 | 200-240 | 200-240 | |
| KW | 88.2-103 | 17.6-132 | 147-176.4 | 147-176.4 | |||
| 6 | Matching connection with tractor | Three-point hinge | Three-point hinge | Three-point hinge | Three-point hinge | ||
| 7 | suspension type | suspension type | Semi-suspended type | Semi-suspended type | Semi-suspended type | ||
| 8 | Turnover mechanism type | 180° Hydraulic bidirectional 180 °flip | 180°Hydraulic bidirectional 180 °flip | 180°Hydraulic bidirectional 180 °flip | 180°Hydraulic bidirectional 180 °flip | ||
| 9 | Plough structure | Grid plough | Grid plough | Grid plough | Grid plough | ||
| 10 | Plough numbers | 4 | 5 | 6 | 6 | ||
| 11 | Plough working width | cm | 35 | 35 | 35 | 35 | |
| 12 | Amplitude-modulated plough range adjustment | mm | 350-500 | 350-500 | 350-500 | 350-500 | |
| 13 | Plough longitudinal distance | cm | 100 | 100 | 100 | 100 | |
| 14 | Ratio of working width of plough to longitudinal distance of plough | 1/2.285 | 1/2.285 | 1/2.285 | 1/2.285 | ||
| 15 | The height from a few sides of a plough to the floor of plough. | mm | 800 | 800 | 800 | 800 | |
| 16 | Auxiliary plough structure | Working height adjustable | Working height adjustable | Working height adjustable | Working height adjustable | ||
| 17 | Maximum tillage depth | cm | 35 | 35 | 35 | 35 | |
| 18 | Hydraulic system working pressure | Mpa | 16 | 16 | 16 | 16 | |
| 19 | Working width and mass per meter | Kg/m | 640 | 900 | 900 | 900 | |
| 20 | Transport gap | cm | 310 | 260 | 260 | 260 | |
| 22 | Plough wheel (limiting wheel, transport wheel, tail wheel) | type | Tyre type:10.0/80-12 Pattern number:IMP-01 | Tyre type:10.0/80-12 Pattern number:IMP-01 | Tyre type:10.0/80-12 Pattern number:IMP-01 | 700-12 | |
| 23 | quantity | unit | 1 | 1 | 1 | 1 | |
| 24 | Diameter x width (or specification) | mm | 710×264 | 710×264 | 710×264 | 710×265 | |
| 25 | Limiting wheel regulation range | cm | 25-35 | 20-40 | 20-40 | 20-40 | |
| 26 | working width | m | 2.4 | 2.25 | 2.65 | 2.65 | |
| 27 | Shallow turning depth | mm | 280 | 280 | 280 | 280 | |
| 28 | Working speed | KM/h | 6--8 | 6--8 | 6--8 | 6--8 | |

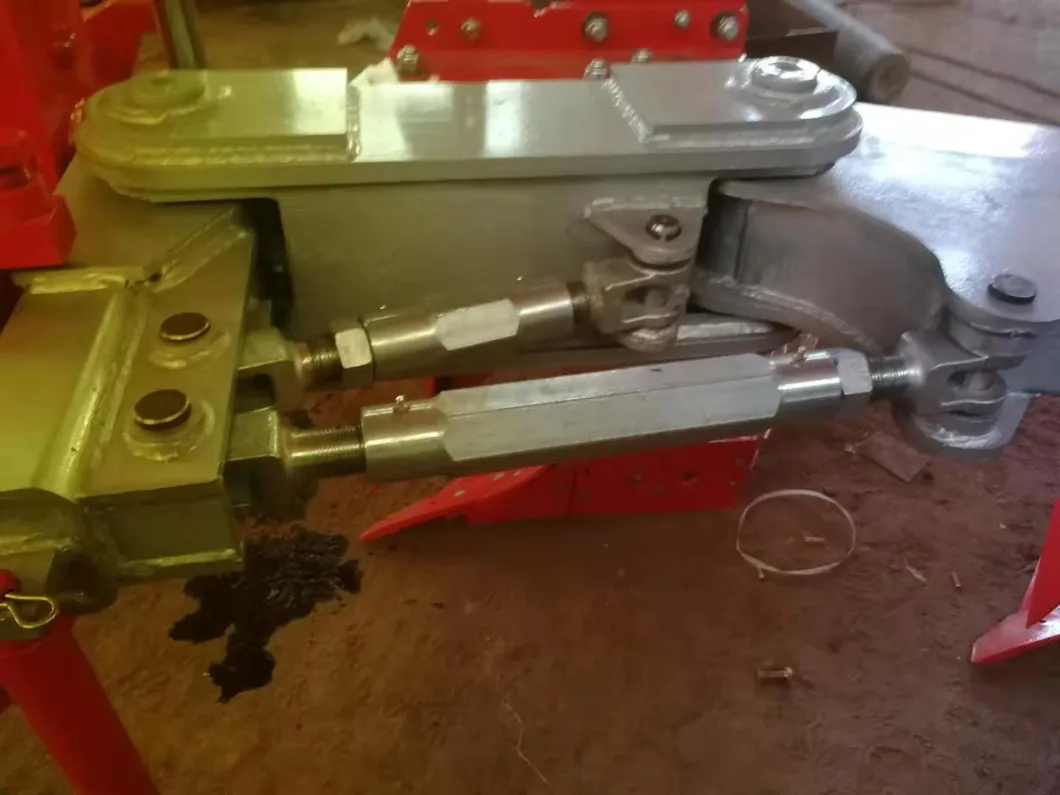

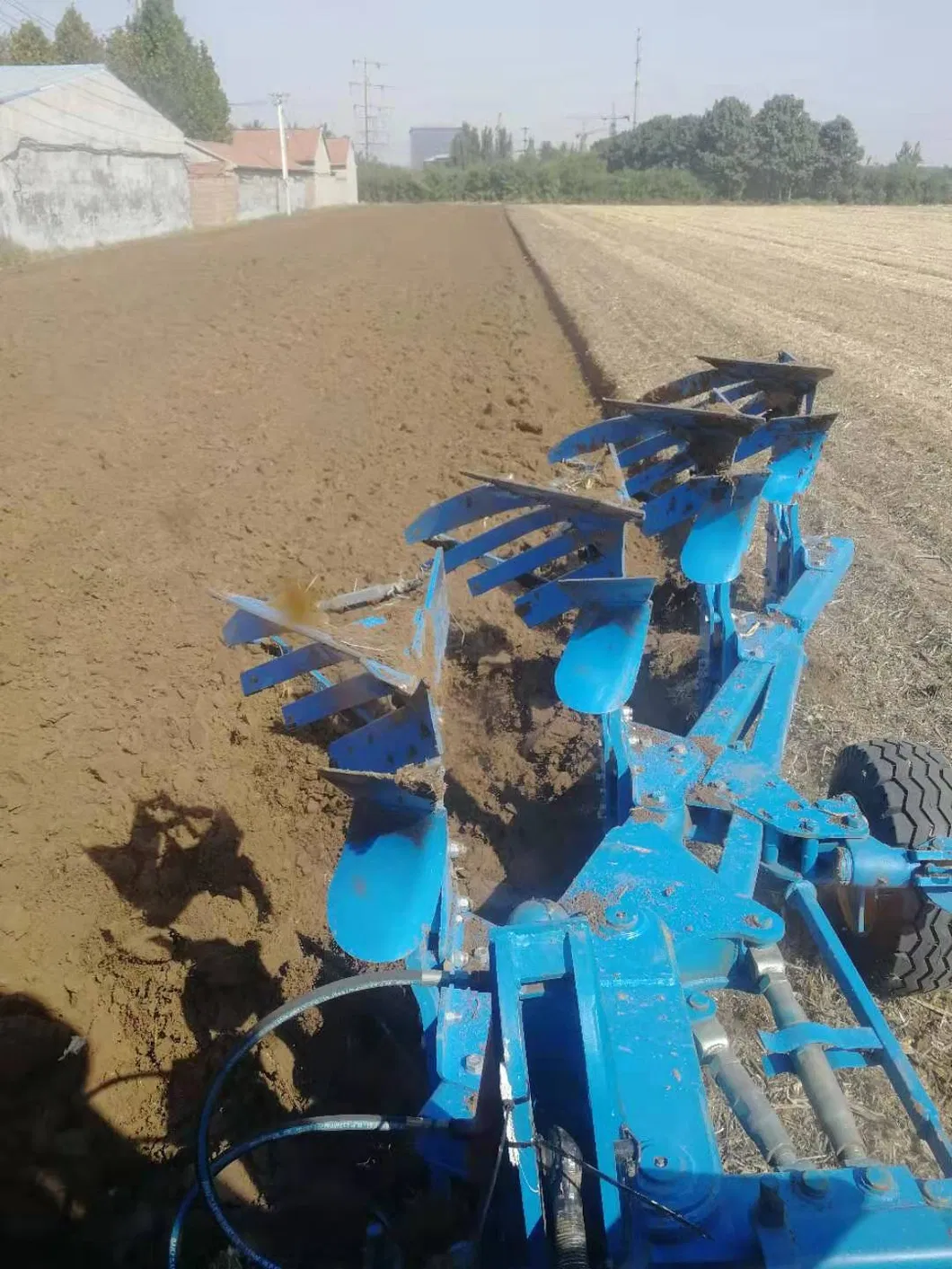

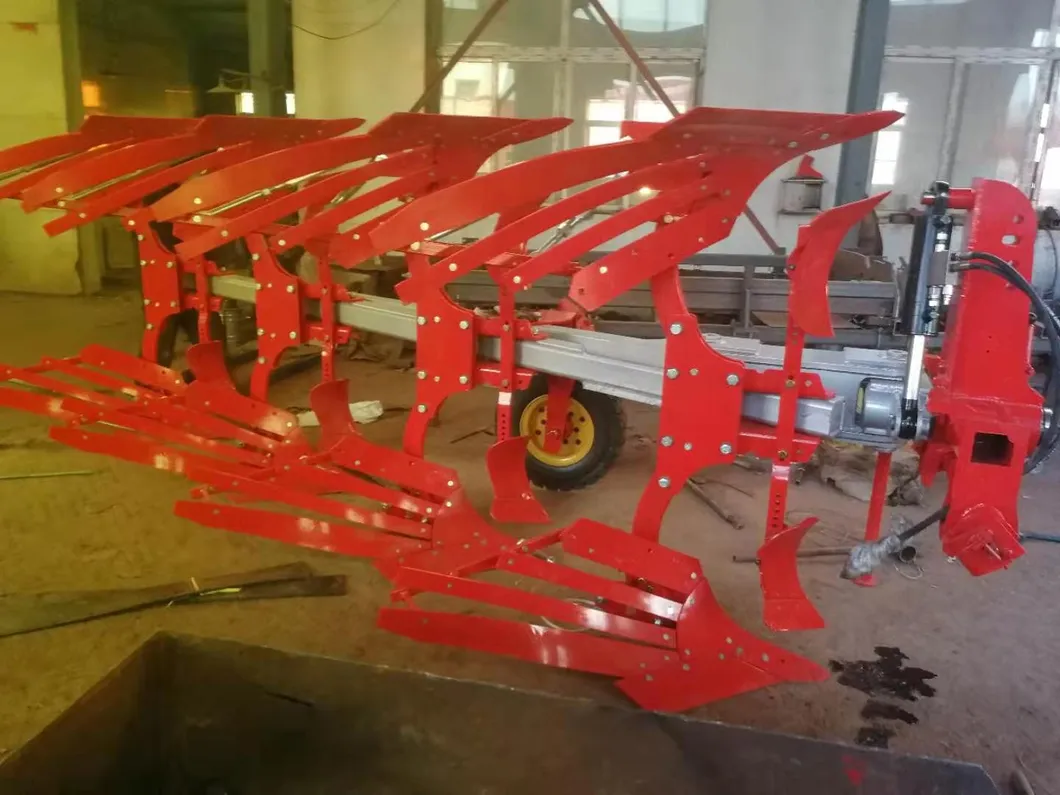

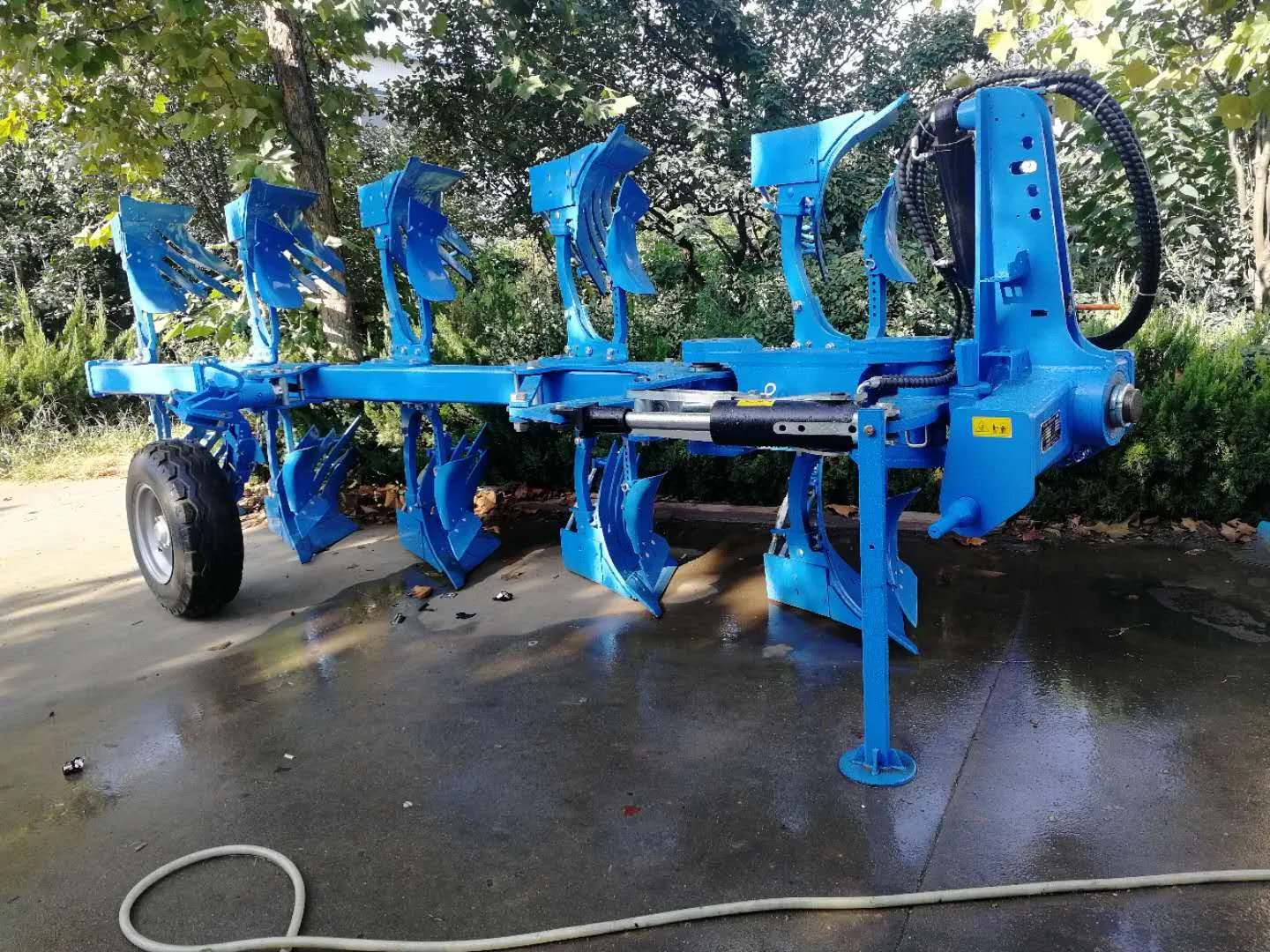

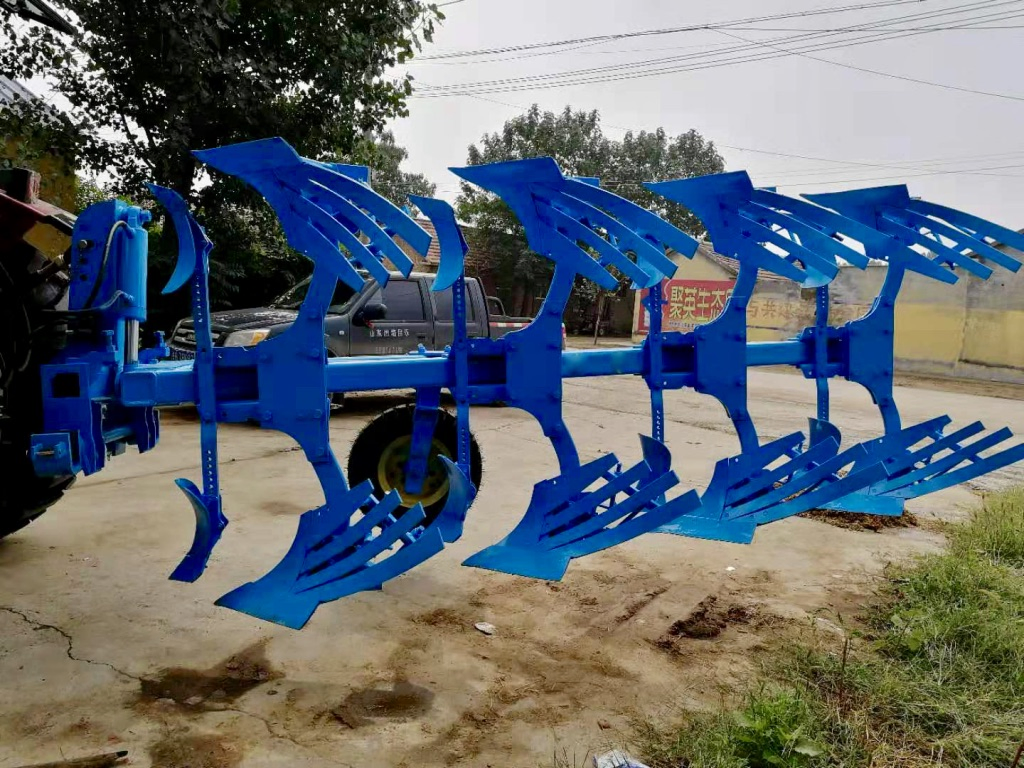

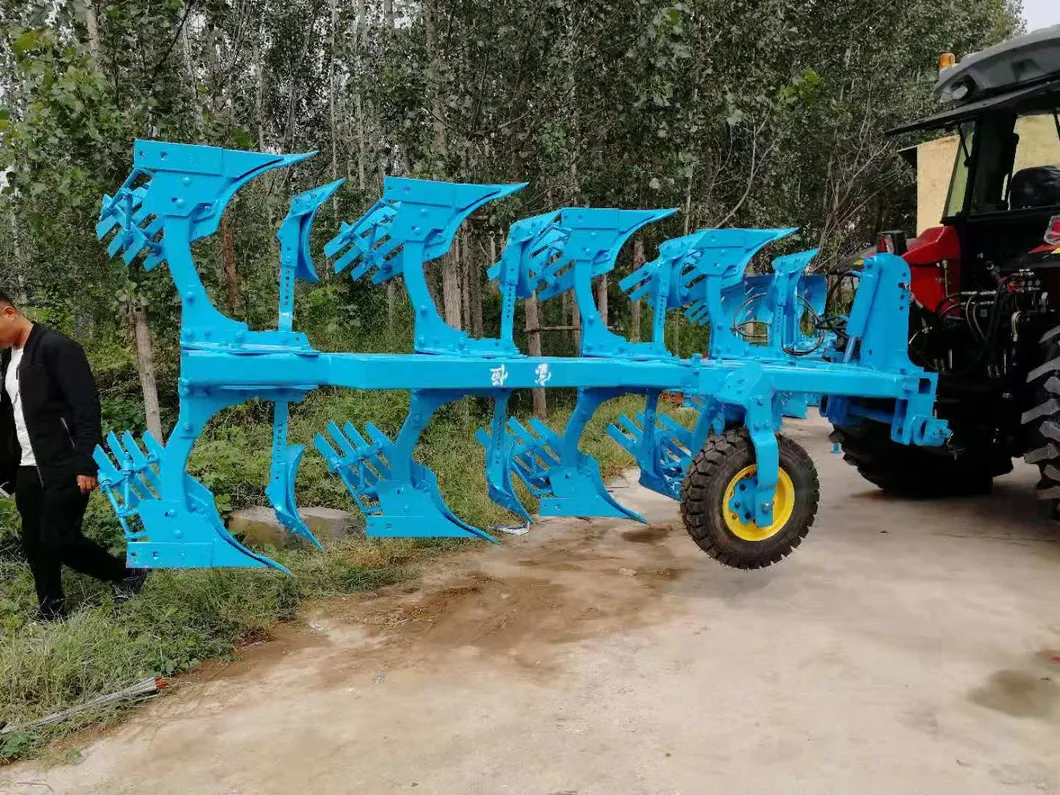

6. Photos
7. Payment
If you would like to get an offer or place an order, Contact us with the products name, model, quantity desired or a description if not listed in our website. All of our prices are for dealership based on wholesale purchase. We offer various payment options such as Wire Transfer (T/T), Letter of Credit at sight, Paypal, Westunion etc.
8. Shipment
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
9. Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: West of Chang Ning Street ,Fang zi District,Weifang City, Shandong, Province,P.R.C.
Tel: +86 18606366000, +86 536 7662277
