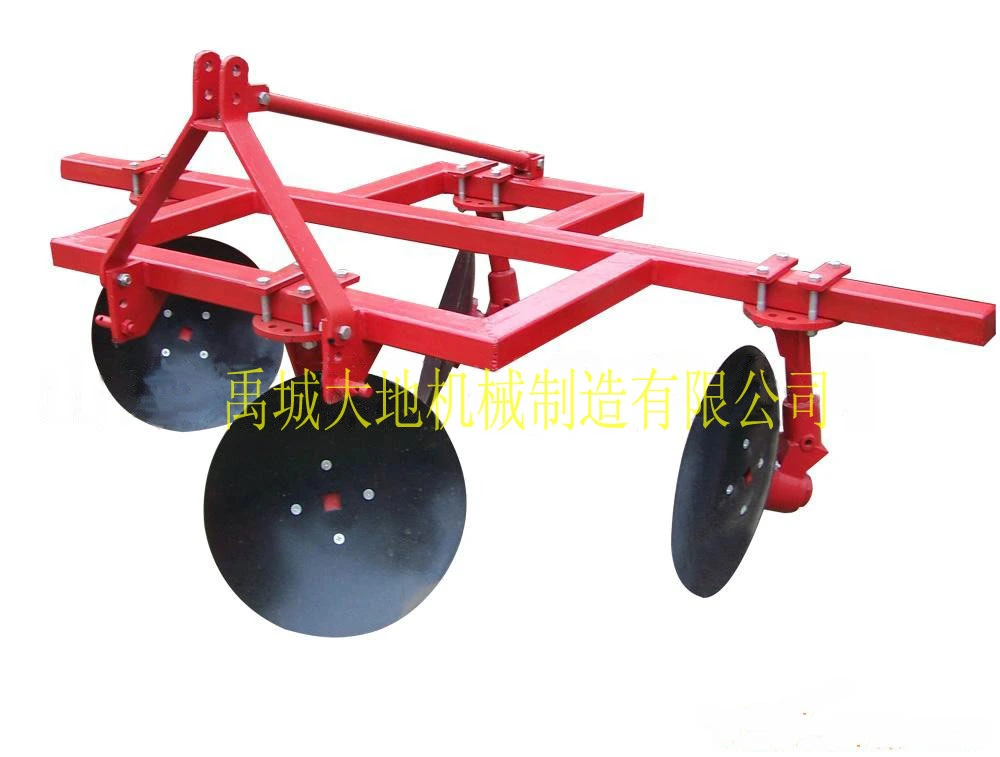

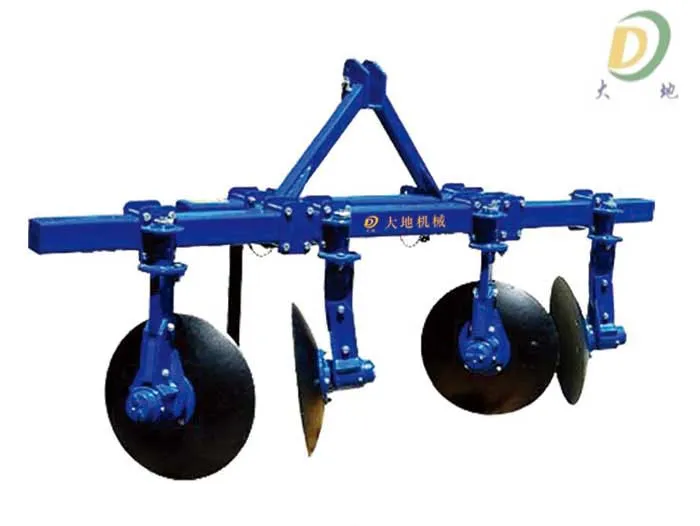

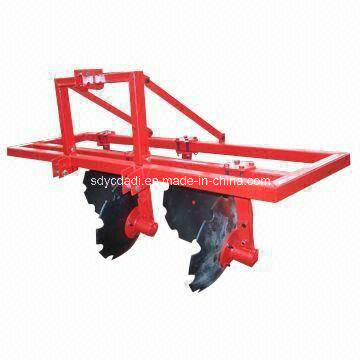

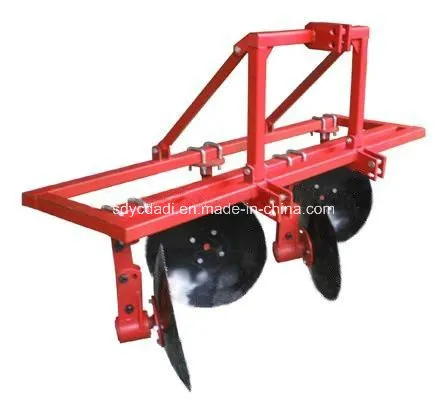

Ridger Plough /Disc Ridger (1QY-1/1QY-2/1QY-3)
Ridger Plough /Disc RidgerNo. Of discs: 1-3Ridge width: 100 cmRidge height: 25-30 cmMatched power: 25-100 hpAdjustable ridging plough is suitable for the ridging after the plowing. It can match the tractor. The structure is simple. The height and the width of the ridging can be adjusted, the frame i......
Send Inquiry
Product Description
Ridger Plough /Disc Ridger
No. Of discs: 1-3
Ridge width: 100 cm
Ridge height: 25-30 cm
Matched power: 25-100 hp
Adjustable ridging plough is suitable for the ridging after the plowing. It can match the tractor. The structure is simple. The height and the width of the ridging can be adjusted, the frame is consisted of square Steel pipe, Ridge disk device can adjust the angle of the ridging.
The material of the disc is superior 65Mn, the products are made of heat-treatment processing. It has the reasonable structure, rugged, transportation convenience, easy to adjusted, facilitate the use of maintenance, match a wide range of characteristics, and it can complete the breaking crop, ridge operation one-time.
No. Of discs: 1-3
Ridge width: 100 cm
Ridge height: 25-30 cm
Matched power: 25-100 hp
Adjustable ridging plough is suitable for the ridging after the plowing. It can match the tractor. The structure is simple. The height and the width of the ridging can be adjusted, the frame is consisted of square Steel pipe, Ridge disk device can adjust the angle of the ridging.
The material of the disc is superior 65Mn, the products are made of heat-treatment processing. It has the reasonable structure, rugged, transportation convenience, easy to adjusted, facilitate the use of maintenance, match a wide range of characteristics, and it can complete the breaking crop, ridge operation one-time.
| Model | 1QY-1 | 1QY-2 | 1QY-3 | |
| Ridge NO. | 1 | 2 | 3 | |
| NO. Of discs | 2 | 4 | 6 | |
| Max. ridge width(cm) | 100 | |||
| Max. ridge height(cm) | 25 | 30 | ||
| Diameter of disc(cm) | 510 | 560 | ||
| Overall dimensions(LxWxH)(cm) | 139× 90× 118 | 280× 112× 132 | 380× 112× 135 | |
| Weight(kg) | 200 | 380 | 500 | |
| Trans. Clearance(mm) | ≥ 260 | |||
| Linkage | Three -point mounted | |||
| Matched Power(hp) | 25-40 | 50-65 | 80-100 | |
