Product Description
4WD Agricultural Wheeled Farm Tractor Graden 200HP/180HP Tractors Accessories Attachments
Technical Parameters:
SC2004/SC1804 AUMAHR series heavy tractor Characteristics:
1. Strong power and advanced structure
| Model | SC2004 | SC1804 | Model | SC2004 | SC1804 |
| Power (kw) | 147 | 132.4 | Driven Type | 4WD | 4WD |
| Length(mm) | 5220 | 5220 | Wheel Base(mm) | 2690 | 2690 |
| Width(mm) | 2235 | 2235 | Shifts | 16+8 | 16+8 |
| Height (mm) | 3170 | 3170 | Forward speed range | 1.52-30.77 | 1.52-30.77 |
| Tread of Front Wheel(mm) | 1860 | 1860 | Reverse speed range(km/h) | 2.37-28.41 | 2.37-28.41 |
| Tread of Rear Wheel(mm) | 1760 | 1760 | PTO(r/min) | 760/850 | 760/850 |
SC2004/SC1804 AUMAHR series heavy tractor Characteristics:
1. Strong power and advanced structure
(1) It is equipped with famous and high-pressure common-rail Eur engines, with large torque reserve, strong power and lower fuel consumption.
(2)It adopts 16F+8R synchronizer to shift gears, with reasonable gear distribution, higher working efficiency and better fuel economy.
(3)Optional electro-hydraulic integrated control hydraulic lifting system, field work is more efficient and lighter.
2. Optimized and upgraded, strong reliability(1)Integral ductile iron bridge shell, gearbox synchronizer shift, full helical gear transmission, operation is more flexible, lighter and more reliable.
(2)The original LUK clutch imported from Germany, the PEER bearing from the United States, and the KOYO release bearing are optional, which have the characteristics of long service life, high load and high speed.
(3)New structure cooling system, light weight, adopting reversible mechanism, convenient maintenance and cleaning, and strong heat dissipation capacity;
(4)The hydraulic system has independent oil supply and the clutch is hydraulically assisted, which is easy to operate and highly reliable.
(5)Using double-cylinder strong pressure lifting device, the lifting force is increased and the matching is stronger.
(6)Independently control the double-acting clutch, which is easy to operate and reliable in performance; the enhanced transmission system and towing are more reliable.
(7)Equipped with 350L super large fuel tank, continuous operation time is longer.
3. Comfortable and safe, driving easier(1)The whole machine has superior performance, hydraulic steering, adjustable seat and steering wheel, and easier operation.
(2)The brand-new hood appearance design is beautiful and generous, and the field of vision is wider.
(3) The fully enclosed new cab can be equipped with air conditioning, heater, fan, audio, rear view system, etc., making driving more comfortable.

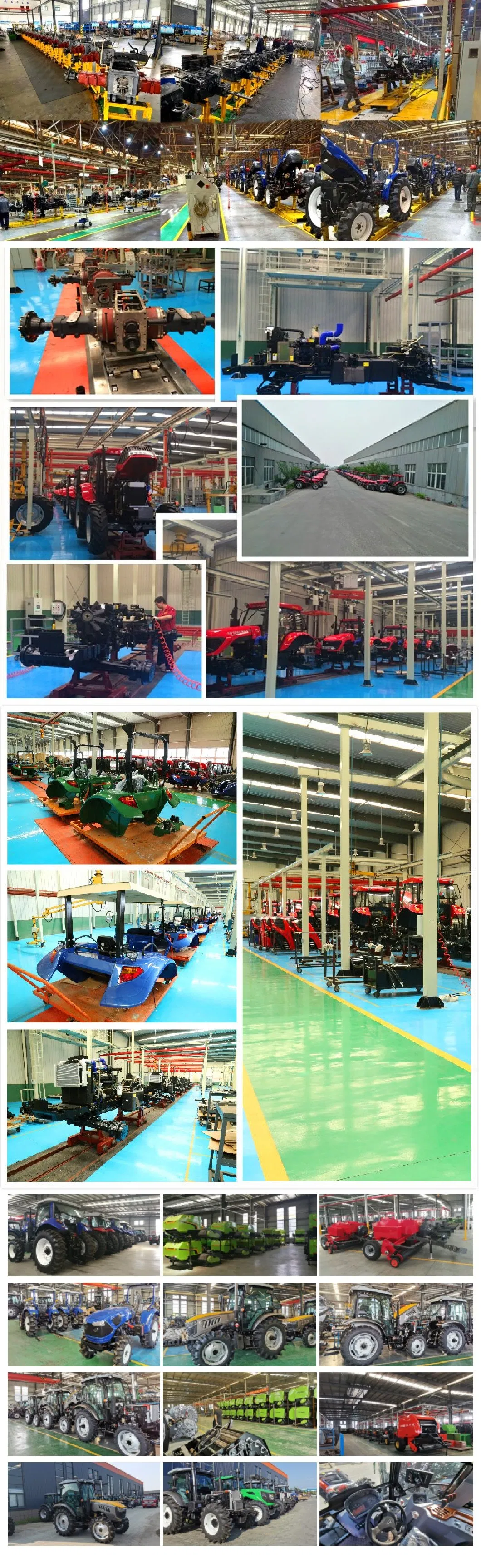

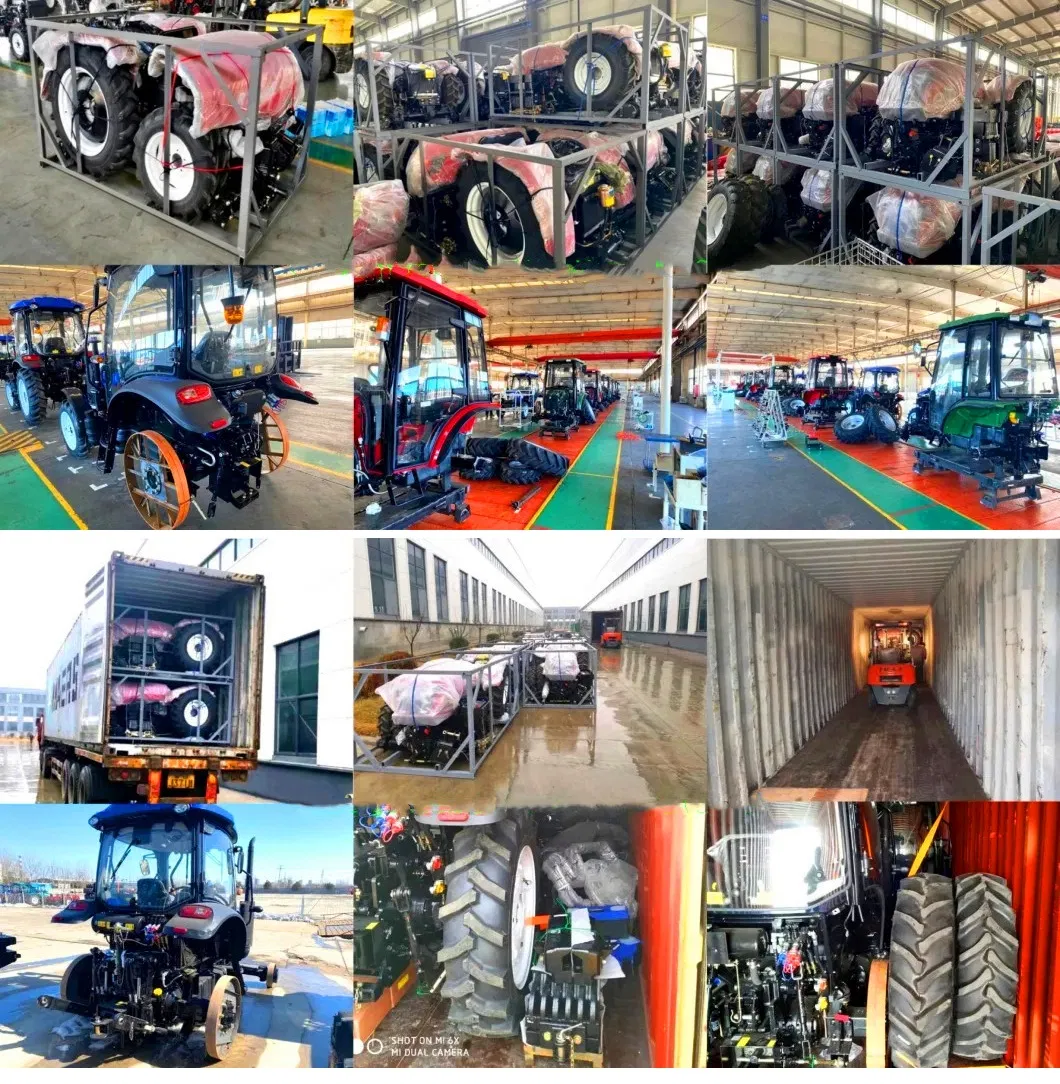

Workshop view:

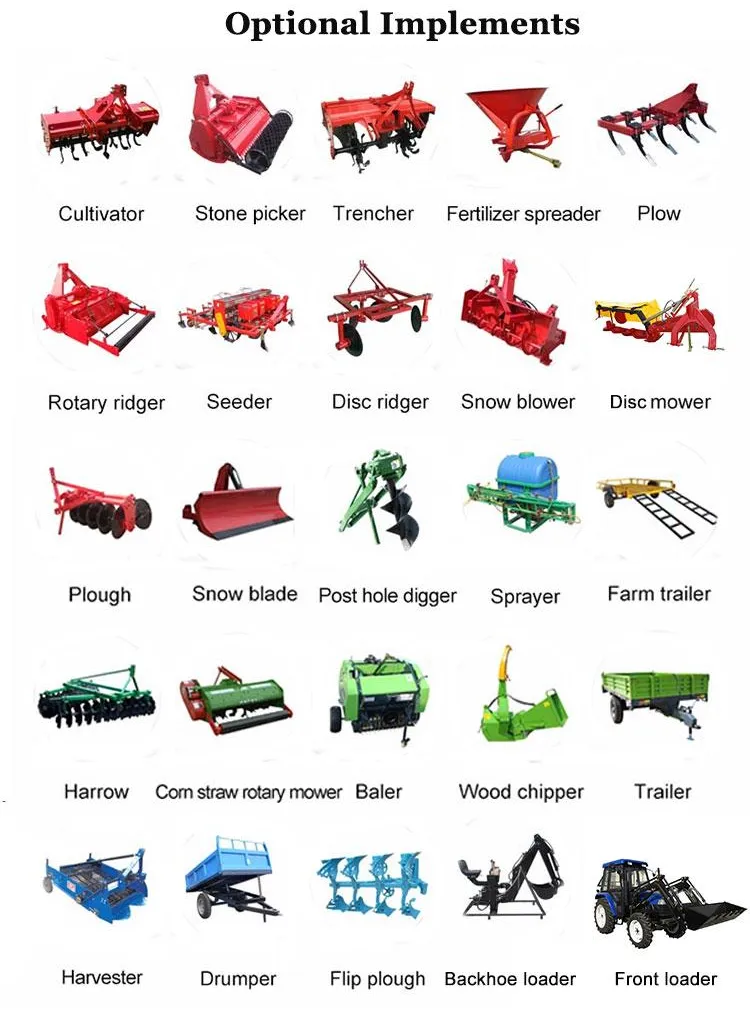

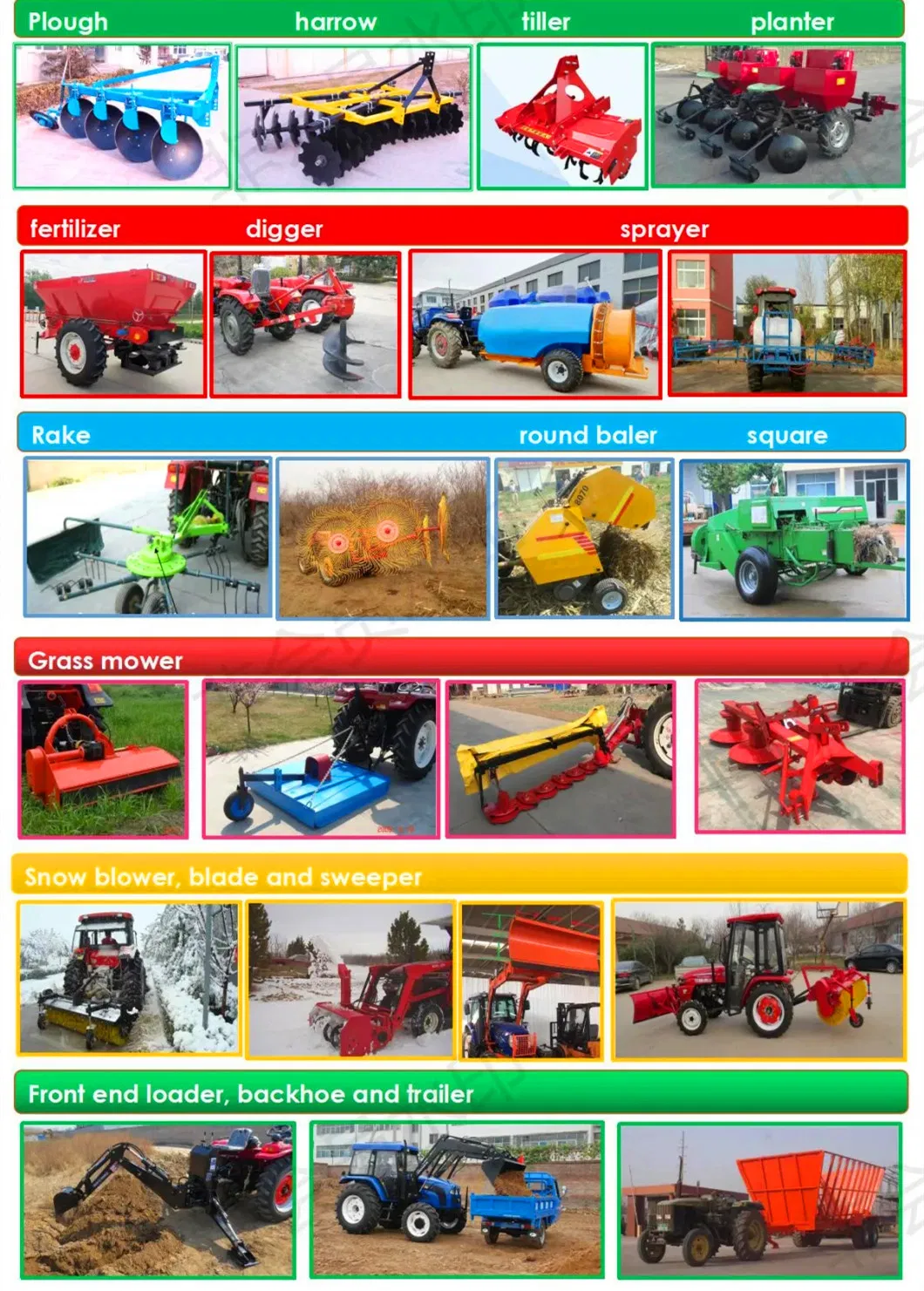

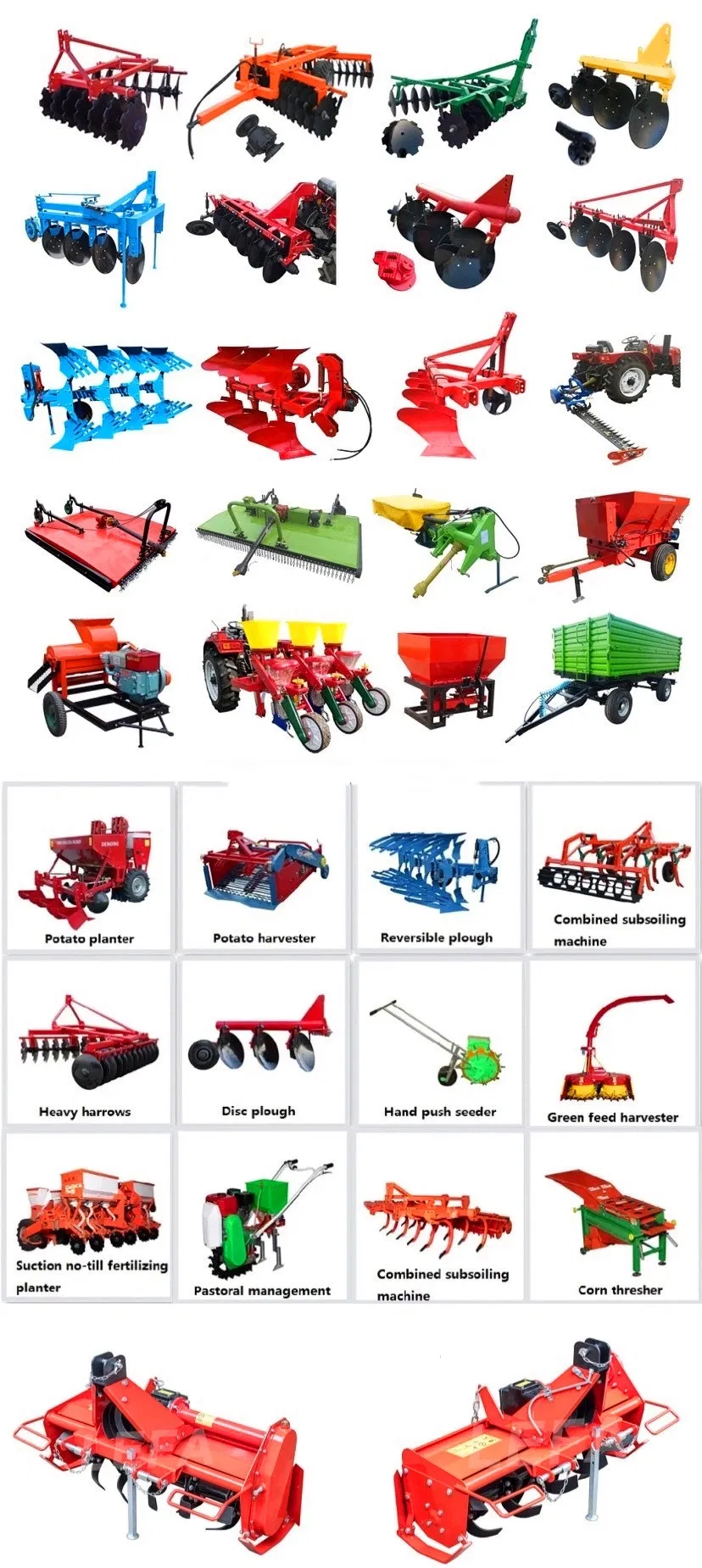

Tractor implement:
Pakage and delivery:

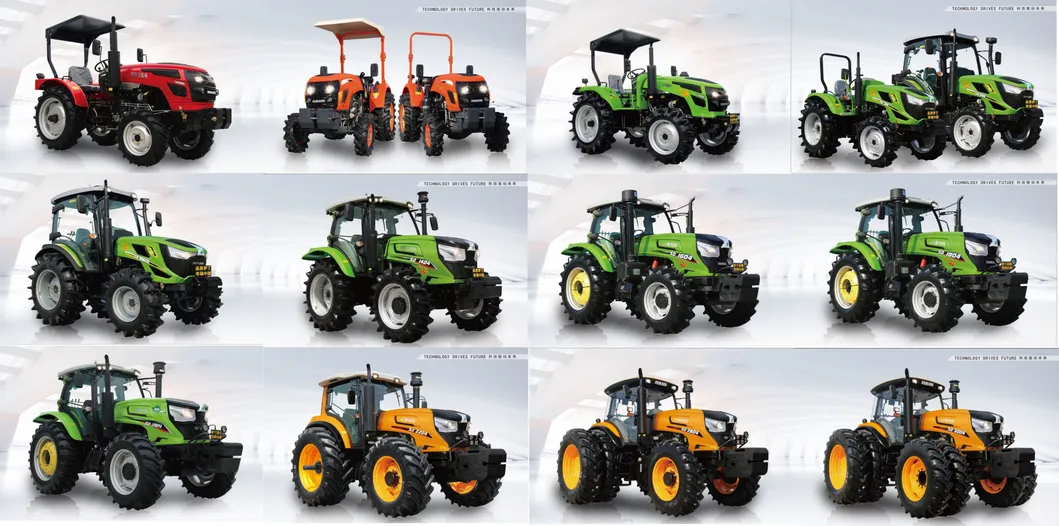

Tractor series:
SD254/304/354/404/454/504/604/704/804/904/1004D/1204/1404/1604/1804/2104/2004/2204/2604/3004Warmly Welcome to visit us and do business together!
Speicification:
Model | Power (kw) | Length (mm) | Width (mm) | Height (mm) | Tread of Front Wheel(mm) | Tread of Rear Wheel(mm) | Driven Type | Wheel Base(mm) | Shifts | Forward speed range (km/h) | Reverse speed range(km/h) | PTO(r/min) |
| SD3004 | 221 | 5755 | 2980/3700 | 3200 | 1900(2550) | 1900(2550) | 4WD | 3010 | 18+6 | 3.41-32.48 | 5.49-31.42 | 540/1000 |
| SD2604 | 191.5 | 5755 | 2980/3700 | 3200 | 1900(2550) | 1900(2550) | 4WD | 3010 | 18+6 | 3.41-32.48 | 5.49-31.42 | 540/1000 |
| SD2404 | 177 | 5545 | 2740 | 3210 | 2050 | 1850 | 4WD | 2830 | 16+16 | 3.14-30.53 | 2.74-25.66 | 540/1000 |
| SD2204 | 162 | 5500 | 2740 | 3210 | 2050 | 1850 | 4WD | 2830 | 16+16 | 3.14-30.53 | 2.74-25.66 | 540/1000 |
| SG2104 | 154.4 | 5500 | 2740 | 3210 | 2050 | 1850 | 4WD | 2830 | 16+16 | 3.14-30.53 | 2.74-25.66 | 540/1000 |
| SC2004 | 147 | 5220 | 2235 | 3170 | 1860 | 1760 | 4WD | 2690 | 16+8 | 1.52-30.77 | 2.37-28.41 | 760/850 |
| SC1804 | 132.4 | 5220 | 2235 | 3170 | 1860 | 1760 | 4WD | 2690 | 16+8 | 1.52-30.77 | 2.37-28.41 | 760/850 |
| SD1604 | 118 | 5180 | 2300 | 3000 | 1750 | 1770 | 4WD | 2680 | 16+8 | 1.6-33.7 | 2.4-34.6 | 760/850 |
| LF1604 | 117.6 | 4750 | 2300 | 3000 | 1750 | 1770 | 4WD | 2350 | 16+8 | 1.6-33.7 | 2.4-34.6 | 760/850 |
| SD1404 | 103 | 5130 | 2250 | 2840 | 1685 | 1745 | 4WD | 2620 | 16+8 | 1.6-35.1 | 2.4-34.7 | 760/850 |
| LF1404 | 103 | 4550 | 2250 | 2840 | 1685 | 1745 | 4WD | 2350 | 16+8 | 1.6-35.1 | 2.4-34.7 | 760/850 |
| SD1204 | 88.2 | 4450 | 2220 | 2840 | 1685 | 1745 | 4WD | 2210 | 16+8 | 1.6-35.1 | 2.4-34.7 | 760/850 |
| LB1004 | 73.5 | 4000 | 1860 | 2750 | 1450 | 1450 | 4WD | 1990 | 12+12 | 2.46-32.73 | 2.15-28.69 | 540/760 |
| SD904-D | 66.2 | 3900 | 1705 | 2750 | 1400 | 1400 | 4WD | 1990 | 8+2/8+8 | 2.18-30.01 | 2.07-8.51 | 540/720 |
| LB904 | 66.2 | 4000 | 1860 | 2750 (2700) | 1370 | 1400 | 4WD | 2010 | 12+12 | 2.46-32.73 | 2.15-28.69 | 540/760 |
| SD804A | 59 | 4000 | 1860 | 2750 (2700) | 1370 | 1400 | 4WD | 2010 | 12+12 | 2.46-32.73 | 2.15-28.69 | 540/760 |
| SD704 | 51.5 | 4000 | 1860 | 2750 (2700) | 1370 | 1400 | 4WD | 2010 | 12+12 | 2.46-32.73 | 2.15-28.69 | 540/760 |
| SD704-D | 52 | 3670 | 1620 | 2410 | 1300 | 1300 | 4WD | 1860 | 8+2 | 2.06-28.64 | 2.22-9.43 | 540/720 |
| SD504D | 36.8 | 3530 | 1590 | 2400 | 1300 | 1300 | 1860 | 8+2 | 2.06-28.64 | 2.22-9.43 | 540/720 | |
| SD704-X | 51.5 | 3570 | 1620 | 2300 | 1300(adjusted) | 1300(adjusted) | 4WD | 1900 | 8+2/8+8 | 2.26-34.21 | 2.10-31.86 | 540/720 |
| SD604-X | 44.2 | 3570 | 1620 | 2300 | 1300(adjusted) | 1300(adjusted) | 4WD | 1900 | 8+2/8+8 | 2.26-34.21 | 2.10-31.86 | 540/720 |
| SD504 | 36.8 | 3570 | 1620 | 2300 | 1300(adjusted) | 1300(adjusted) | 4WD | 1900 | 8+2/8+8 | 2.26-34.21 | 2.10-31.86 | 540/720 |
| SD504G | 36.8 | 2780 | 1260 | 2050 | 960 | 1000 | 4WD | 1460 | 8+2 | 1.62-24.48 | 2.11-9.77 | 540/720 |
| SD404/ | 29.5 | 3300-3550 | 1430-1460 | 2000-2100 | 1100 | 1030 | 4WD | 1810 | 8+2 | 1.78-26.93 | 2.41-11.60 | 540/720 |
| SD454 | 33.1 | 3300-3550 | 1430-1460 | 2000-2100 | 1100 | 1230 | 4WD | 1810 | 8+2 | 1.78-26.93 | 2.41-11.60 | 540/720 |
| SD504 | 36.8 | 3300-3550 | 1430-1460 | 2000-2100 | 1100 | 1200 | 4WD | 1810 | 8+2 | 1.78-26.93 | 2.41-11.60 | 540/720 |
FAQ:
1.Are you a manufacture or trading company?
We are a professional manufacturer and we can provide tractors from 25Hp-220Hp and implements. .
2.what's your MOQ? 1 unit.
3.How about the spare parts?
We can provide free toolbox and easy damaged parts.
4.Where is the loading port?
Qingdao port, or to meet client's requirement.
5.How long is the lead time?
Usually 15-25 days. Depands on the quantity of your order.
6.How long is the warranty time?
18 months after the goods delivery to destination port.
7.what's your payment terms?
Normally we use T/T We also accept other payment terms, such as Western Union, PayPal and L/C.

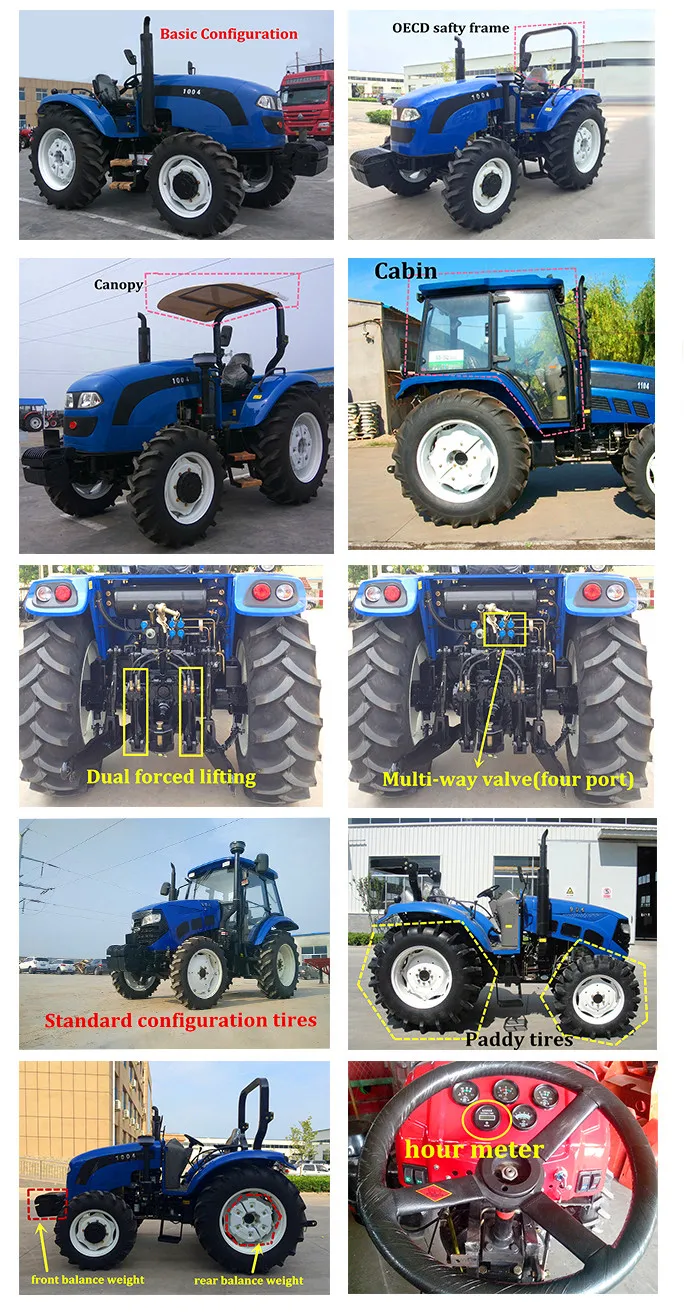

8.what's the tractor optional parts?
Can be equipped with ROPS, Canopy, Fan cabin, Heater cabin, AC cabin, Air Brakes, Hydraulic valve out, Paddy tire, Turf tire or as per your requirements.
9.Can we use our own logo or design?
Yes.OEM is welcome any time. We can also provide whole tractor model design.
10. Can be used for which implements?
Loader, Backhoe, Harrow, Mower, Plough, Planter, Trailer, Slasher, Snow blower or as per your requirements.
