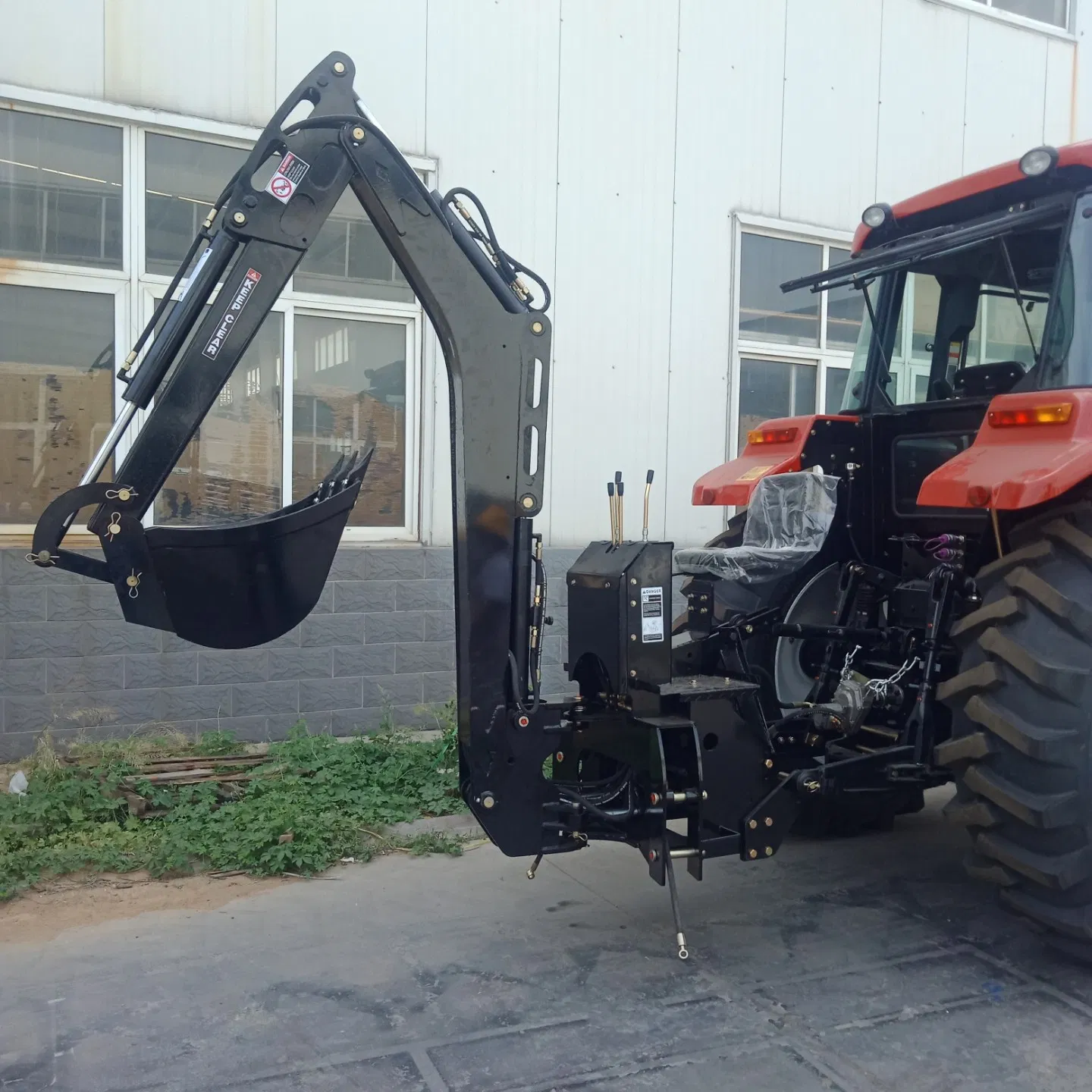

High Quality Factory Supply Lw-8 Backhoe Loader Matched 45HP -60HP Small Tractor
Company profileWeifang YiSen Machinery Co., Ltd. Founded in 2005, we located in the Chinese largest tractor manufacturing zone of Weifang. We are a specialized large-sized agricultural equipment manufacturer. We have convenient transportation, favorable geographical location. The company covers an a......
Send Inquiry
Product Description
Company profile
Weifang YiSen Machinery Co., Ltd. Founded in 2005, we located in the Chinese largest tractor manufacturing zone of Weifang. We are a specialized large-sized agricultural equipment manufacturer. We have convenient transportation, favorable geographical location. The company covers an area of 72, 000 square meters, over 400 employees, in which 26 of them are above the intermediate level engineering and technical personnel. Company's main products are tractor, rice transplanter, harvester and farming implements, which have generated a very high reputation by high quality, good service, reasonable price. Distribution network is covering 20 provinces in China. We have independent right of importing and exporting. Company products have exported to India, Pakistan, Mongolia, Africa, Thailand, Burma, Vietnam, DPRK and South America more than 20 countries. The company produces "Yi-Sen" branded agricultural equipment under international quality system ISO9001: 2008. Products have meet 3C certification requirements, CE certification. Company has won the "International Blue Sky, Gold Cup", "Internationally Appointed High-Class production Unit", "China Quality Miles Honor Unit "and "Shandong Famous Brand" awards. Our independent research and development of new products have won 15 national patents. Each one patent can be reflected in the use of its strengths and uniqueness, which has attracted wide users. Companies come adhere to the "building first-class company, manufacturing first-class product, providing first-class service" business philosophy, to the strict management and continuous improvement to develop ourselves, sincere customer service and contributing to society, to promoting agricultural mechanization. We sincerely welcome customers and friends from all over the world come visit and cooperate with us. Good quality Towable 3-point suspension 45hp -60hp 4wd tractor backhoe loader LW-8

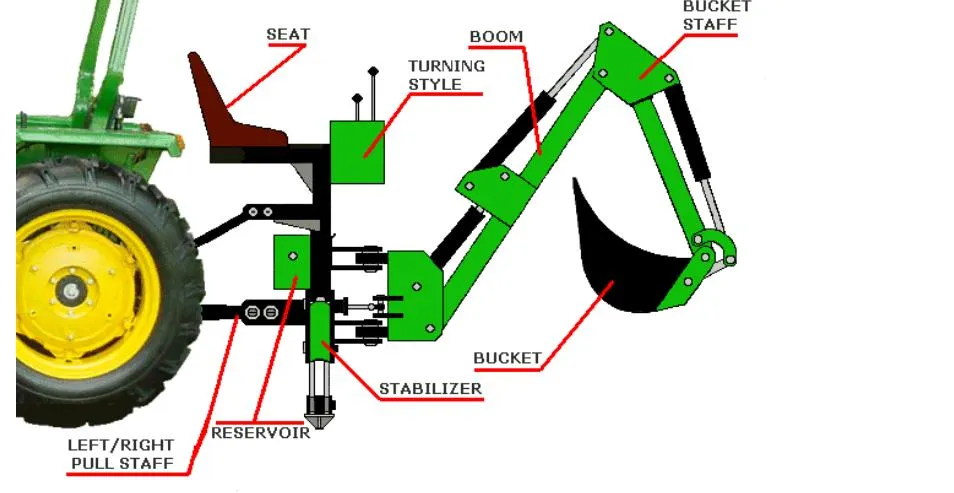

LW SERIES BACKHOE LOADER SEPECIFICATION

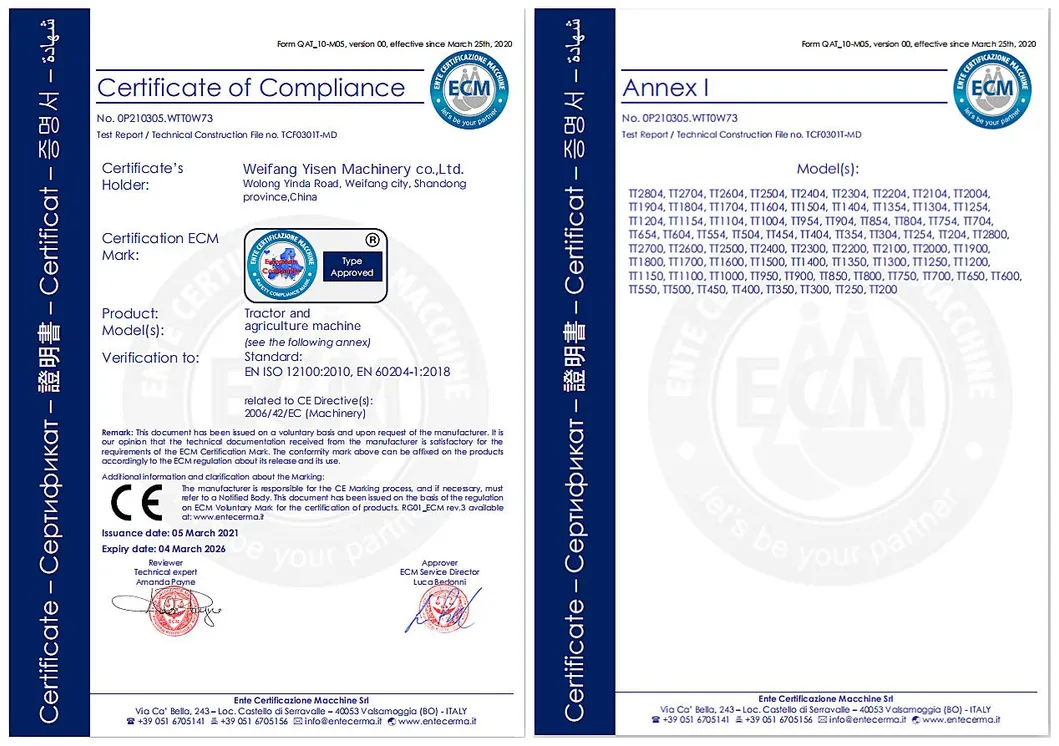

Certification
FAQ
1. who are we?
We are based in Shandong, China, start from 2005,sell to Africa(50.00%),Southeast Asia(10.00%),South Asia(10.00%),North America(5.00%),South America(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tractor,Tractor parts,Front end loader,backhoe loader, mower,Rotary,Plough,Harrow and others
4. why should you buy from us not from other suppliers?
The company produces "Yi-Sen" branded agricultural equipment under international quality system ISO9001:2008. Products have meet 3C certification requirements, CE certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
LW SERIES BACKHOE LOADER SEPECIFICATION
| Main technical data of LW series tractor backhoe | |||||||
| Model | LW-6 | LW-7 | LW-8 | LW-9 | LW-10 | LW-12 | |
| Specification | Metric | Metric | Metric | Metric | Metric | Metric | |
| Tractor HP | 25-30HP | 30-45HP | 45-60HP | 70-100HP | 120-150HP | 160-210HP | |
| 3-point Linkage | Cat-1 | Cat-1 | CAT-1&2 | CAT-2 | CAT-1&2 | CAT-2 | |
| Structure Weight(kg) | 480 | 500 | 580 | 620 | 660 | 700 | |
| A | Digging Depth(two foot flat bottom)/mm | 1850 | 2150 | 2640 | 2900 | 3000 | 3500 |
| B | Excavation depth flat bottom(mm) | 1600 | 2000 | 2500 | 2760 | 2800 | 3550 |
| C | Max Digging Height(mm) | 2500 | 3400 | 3510 | 3900 | 4000 | 4300 |
| D | Max Unloading Height(mm) | 1400 | 1760 | 2000 | 2327 | 2362 | 2700 |
| E | Unloading height(mm) | 1733 | 1878 | 1952 | 2413 | 2540 | 2770 |
| F | Max Digging Radius( mm) | 2800 | 3360 | 3930 | 3977 | 3986 | 4300 |
| G | Bucket force(kg) | 1300 | 1200 | 1600 | 1900 | 2600 | 2700 |
| H | Digging force of digging rod(kg) | 790 | 950 | 1000 | 1270 | 1720 | 1900 |
| I | Bucket rotation angle (°) | 160° | 160° | 160° | 150° | 150° | 172° |
| J | Swing Angle For Boom(°) | 140° | 140° | 140° | 160° | 160° | 180° |
| K | Operating pressure | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa |
| L | Bucket width(mm) | 300 | 400 | 450 | 480 | 500 | 550 |
| M | Bucket cubage(cbm) | 0.03 | 0.036 | 0.048 | 0.054 | 0.06 | 0.07 |

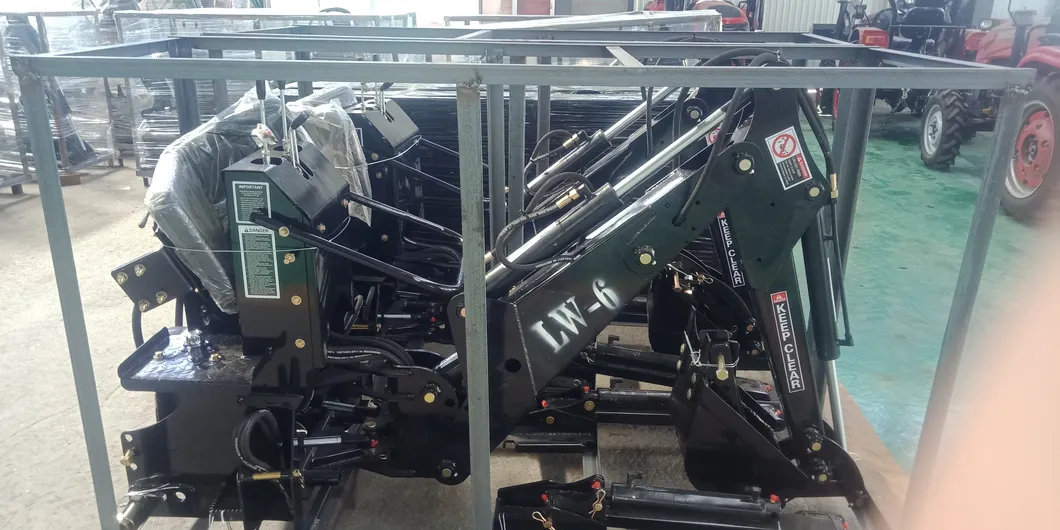

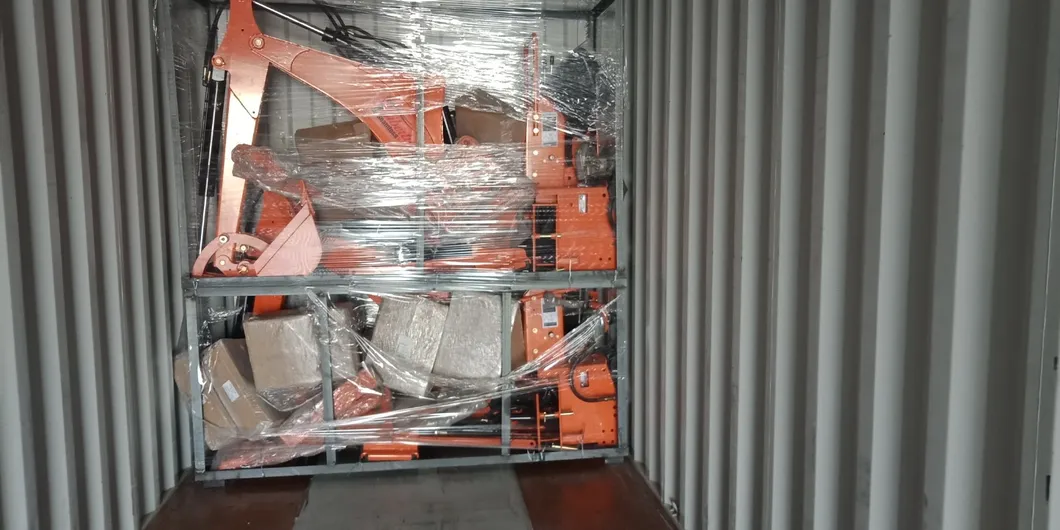

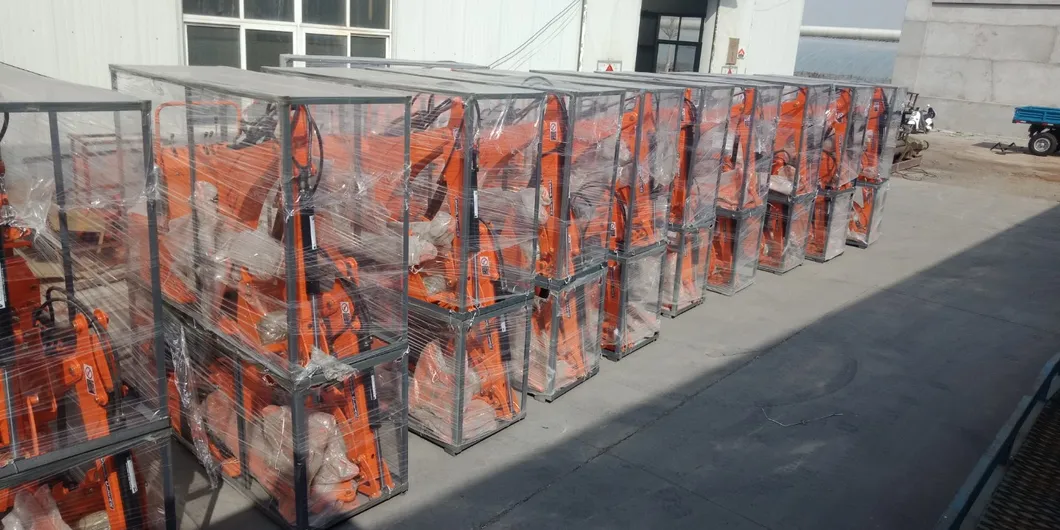

Package and container loader
Certification
FAQ
1. who are we?
We are based in Shandong, China, start from 2005,sell to Africa(50.00%),Southeast Asia(10.00%),South Asia(10.00%),North America(5.00%),South America(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tractor,Tractor parts,Front end loader,backhoe loader, mower,Rotary,Plough,Harrow and others
4. why should you buy from us not from other suppliers?
The company produces "Yi-Sen" branded agricultural equipment under international quality system ISO9001:2008. Products have meet 3C certification requirements, CE certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
Welcome to contact us
