Hay Raker for Small Wheel Agriculture Tractor
Product DescriptionHay rake for small four wheel tractorProduct description9GL hay rake, matching with a small four-wheel tractor, is mainly used for the hay collecting operations after mowing. The implement adopts a hydraulic overturning mechanism and spring steel rake fingers. During the working p......
Send Inquiry
Product Description
Product Description

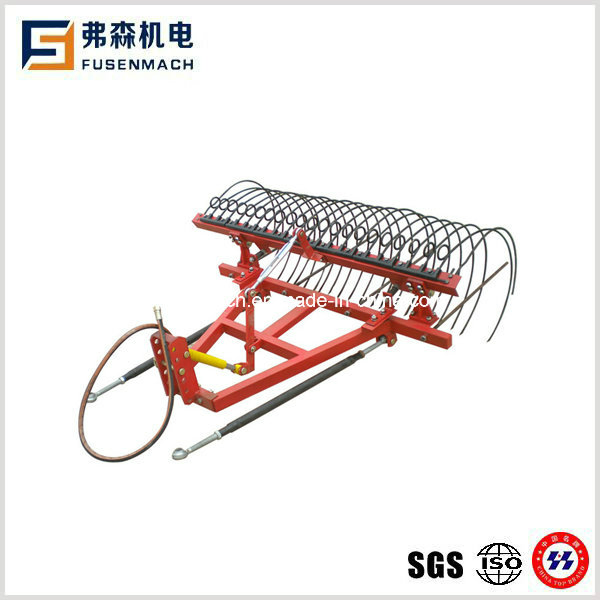

Hay rake for small four wheel tractor
Product description
9GL hay rake, matching with a small four-wheel tractor, is mainly used for the hay collecting operations after mowing. The implement adopts a hydraulic overturning mechanism and spring steel rake fingers. During the working process, the rake fingers can be overturned by the hydraulic overturning mechanism so as to realize the offloading of the hay.
Advantages:
1) It is a tractor mounted hay rake.
2) This farm hay rake is collecting the pasture,alfalfa etc.
3) The tractor hay rake has own hydraulic system to realize the lift and rise.
4) The tine is for 65Mn spring steel, the diameter could be 7mm-8mm
Hay rake for small four wheel tractor
Product description
9GL hay rake, matching with a small four-wheel tractor, is mainly used for the hay collecting operations after mowing. The implement adopts a hydraulic overturning mechanism and spring steel rake fingers. During the working process, the rake fingers can be overturned by the hydraulic overturning mechanism so as to realize the offloading of the hay.
Advantages:
1) It is a tractor mounted hay rake.
2) This farm hay rake is collecting the pasture,alfalfa etc.
3) The tractor hay rake has own hydraulic system to realize the lift and rise.
4) The tine is for 65Mn spring steel, the diameter could be 7mm-8mm
| Model | Unit | 9GL-1.4 | 9GL-1.6 | 9GL-1.8 | 9GL-2.1 |
| Working width | mm | 1400 | 1600 | 1800 | 2100 |
| Total weight | kg | 90 | 95 | 100 | 110 |
| Matched power | hp | 15-30 | 15-30 | 15-30 | 15-30 |
| Linkage | 2 point to support , tipping single action oil cylinder,oil connection in 1/2"thread | ||||
| The items selectable | oil connection(M20*1.5;M18*1.5;M22*1.5) | ||||
| Price | |||||
