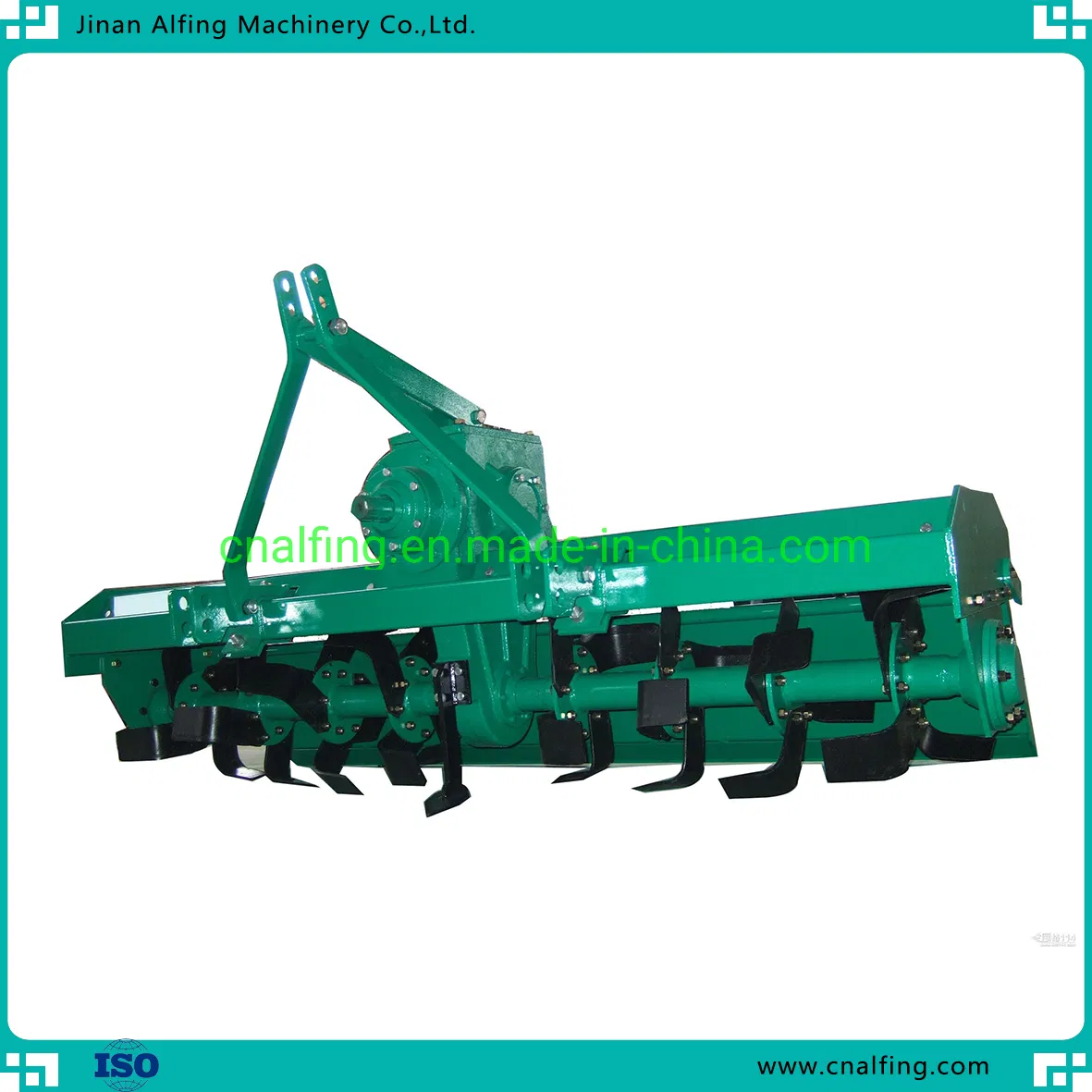

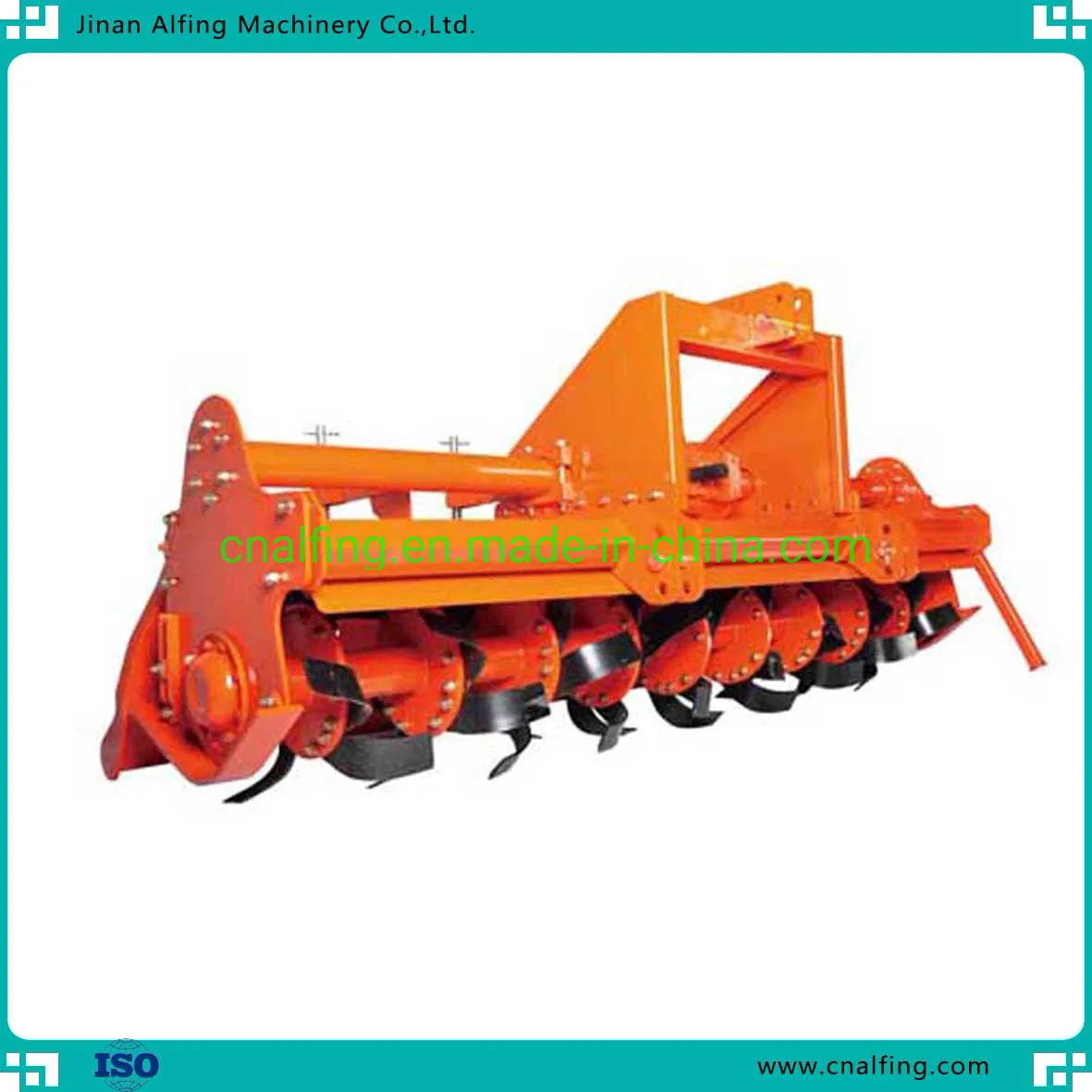

Farm Rotary Tilling Machine with Hard Blades
Rotary cultivatorRotary tiller driven by the tractor's out-put shaft. During operation, the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft. It also can be used as shallow tilling and covering on the Stalinized soil to prevent the salt in the soil.Themachine will......
Send Inquiry
Product Description

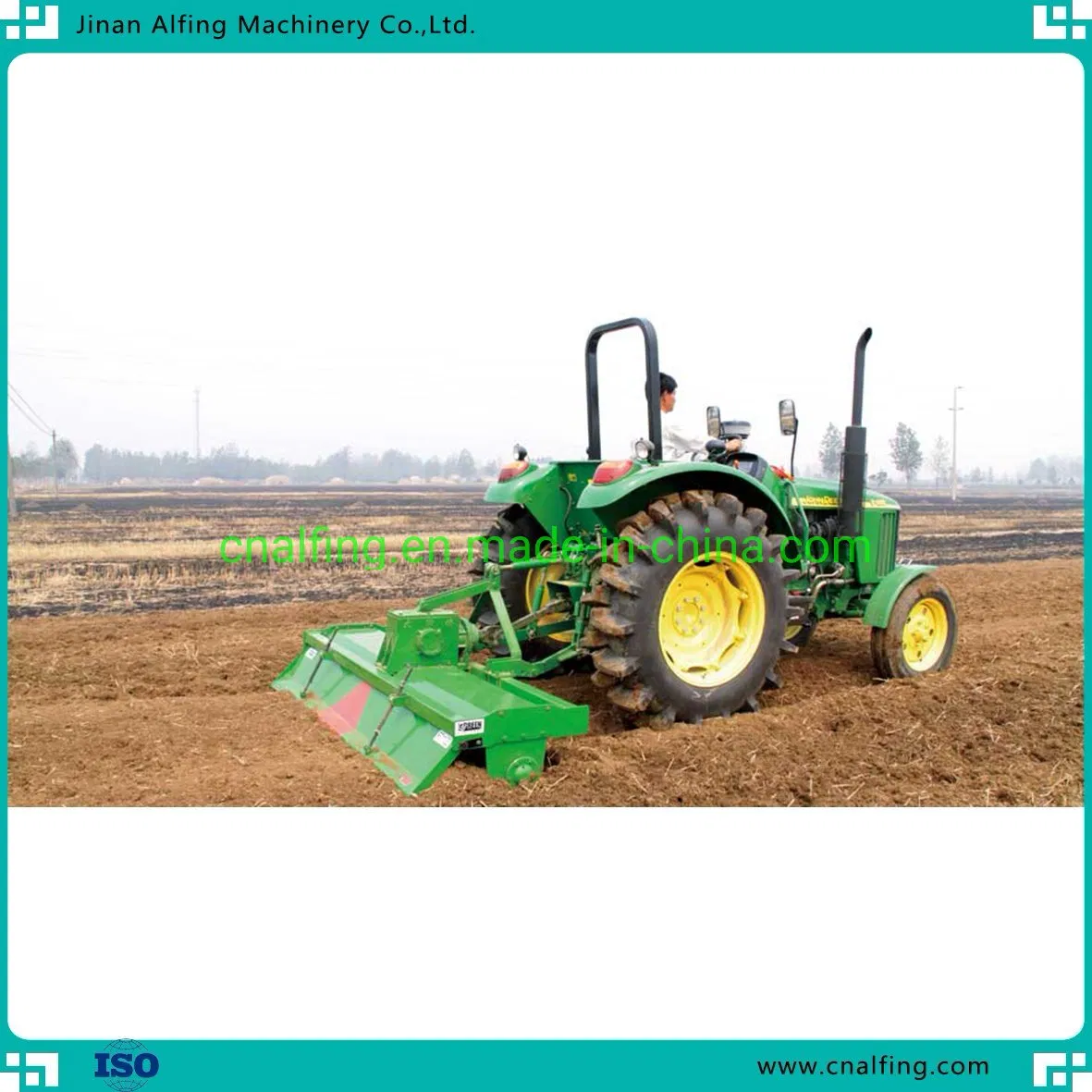

Rotary tiller driven by the tractor's out-put shaft. During operation, the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft. It also can be used as shallow tilling and covering on the Stalinized soil to prevent the salt in the soil.Themachine will fulfill the working of cleaning stubbles and weeds, turning and covering green fertilizer vegetable fields, etc. After tillage, the land surface is leveling and smooth, the cover burden is closely, working efficiency is high and oil consumption is lower.
Technical parameters:

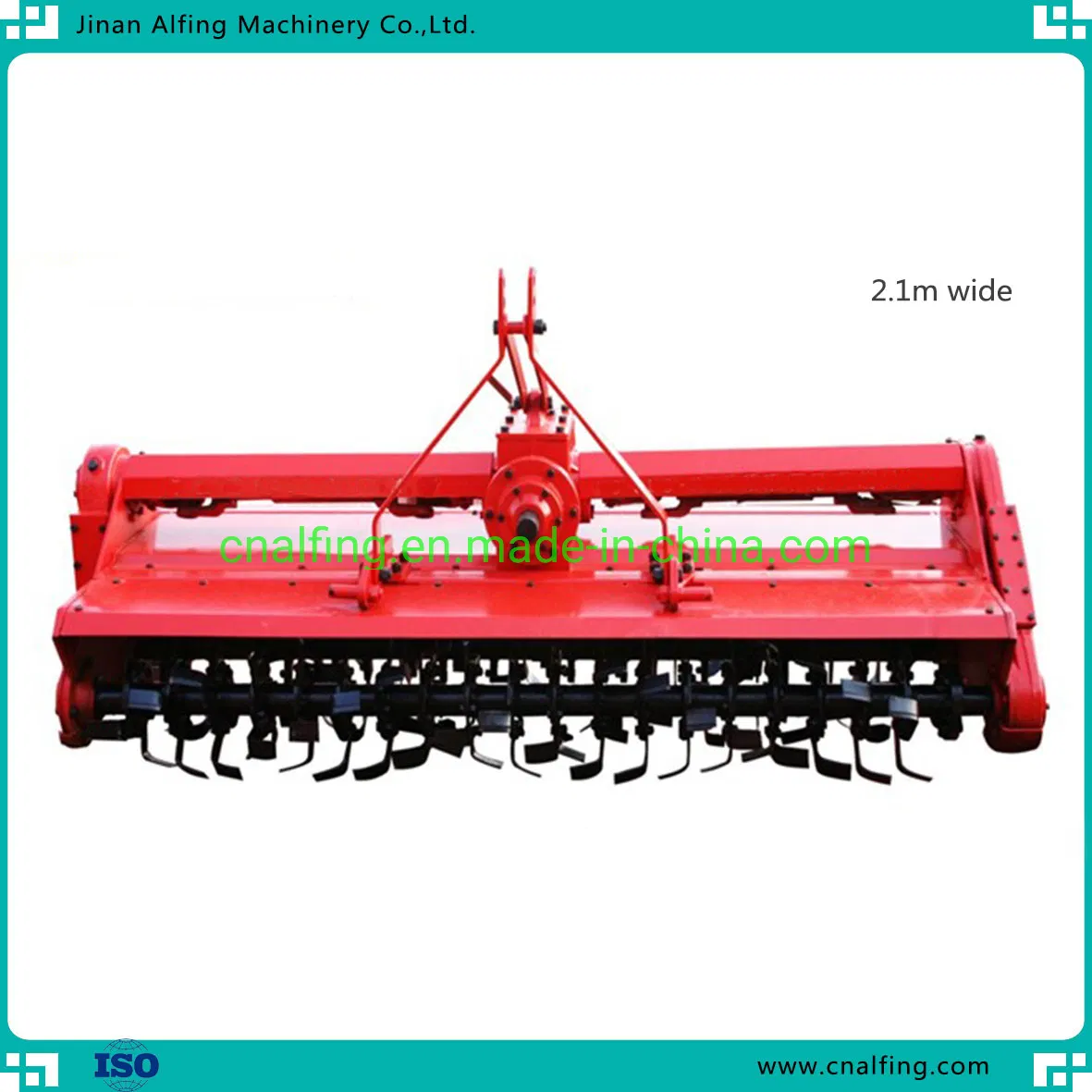

Heavy rotary tiller
| Model | 1GQNK-105 | 1GQNK -125 | 1GQNK -135 | 1GQNK -150 | 1GQNK -160 |
| Dimensions(L*W*H) | 1250*800*1000mm | 1450*800*1000mm | 1550*800*1000mm | 1700*800*1000mm | 1800*800*1000mm |
| Weight | 235 kg | 260 kg | 280 kg | 300 kg | 320 kg |
| NO. of blades | 24 | 30 | 30 | 36 | 42/48 |
| Working width | 1045mm | 1245mm | 1345mm | 1495mm | 1595mm |
| Working depth | 120mm | 120mm | 120mm | 120mm | 120mm |
| PTO Input speed | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
| Power required | 20-30 HP | 25-35 HP | 30-40 HP | 30-45 HP | 40-50 HP |
Our Services
Prompt attention to all of your inquiries and positive attitude;
Most competitive cost and superior quality;
We win good reputation because adhering to "Survival by Quality, Development by Technology & Credit".
Welcome OEM.
Provide complete technical guide after-sale services.
FAQ

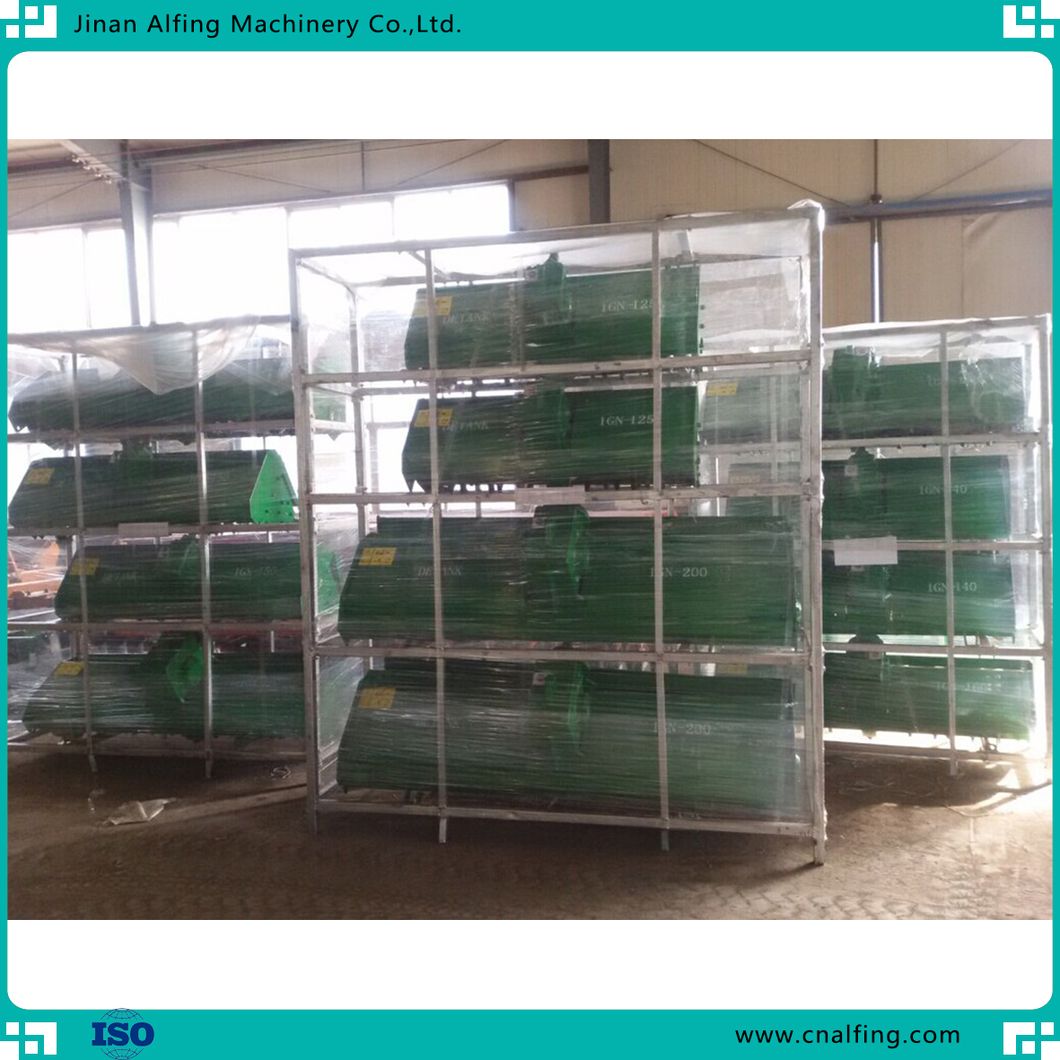

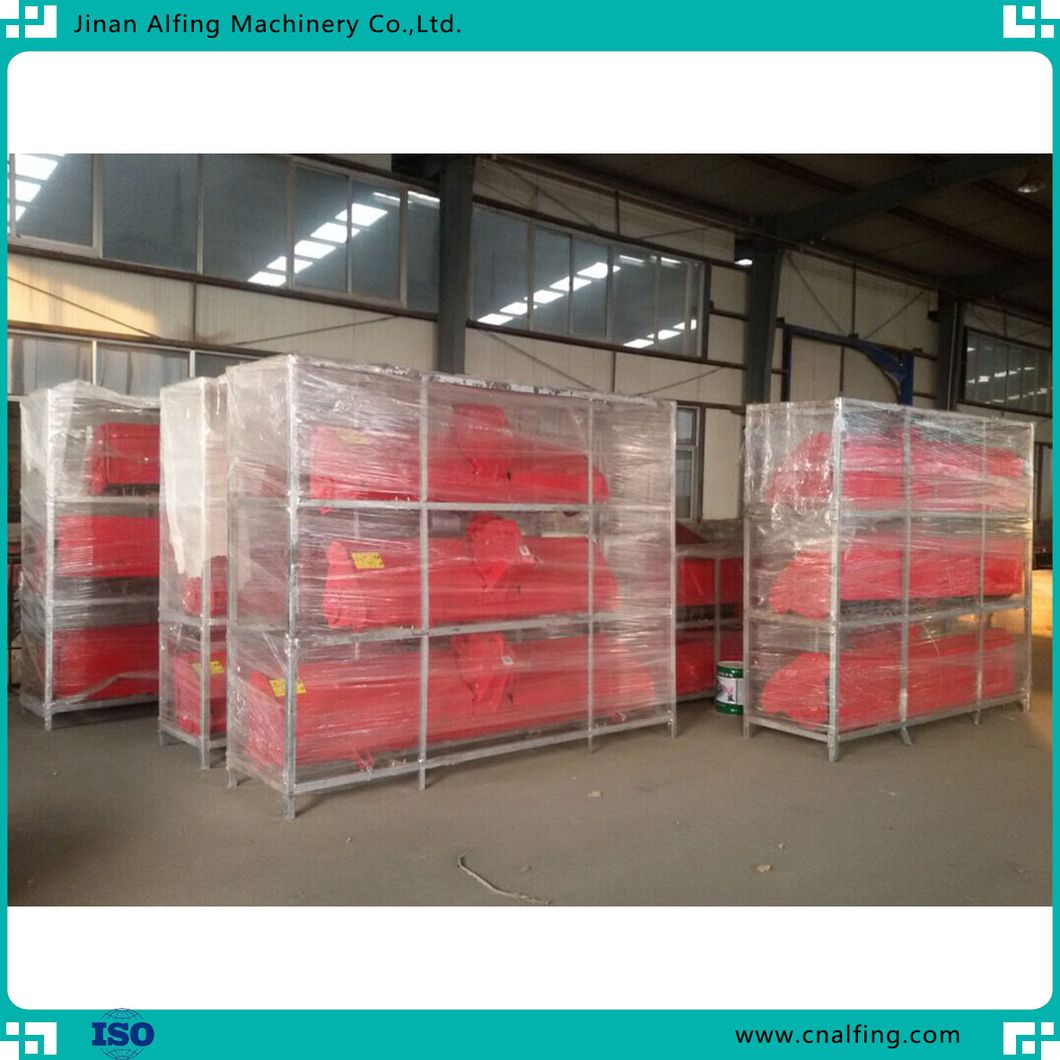

About the package: Iron frame or iron frame box. We try to save a space, and ensure easy installation after the arrival of the goods.
About MOQ: The machine MOQ is one set. The spare part MOQ is 500 pieces.
About customize service:We welcome OEM, processing with supplied drawings and samples.
About shipping: We ship the goods by sea in Qingdao port. If you have no a shipper, we will choose a reliable and cheap one to ship.
About payment: 1.T/T 30% deposit, 70% before shippment ( after inspection); 2.L/C at sight; FOB Qingdao price, because the different goods so different weight, volume, for saving time to calculate.
What We Ensure

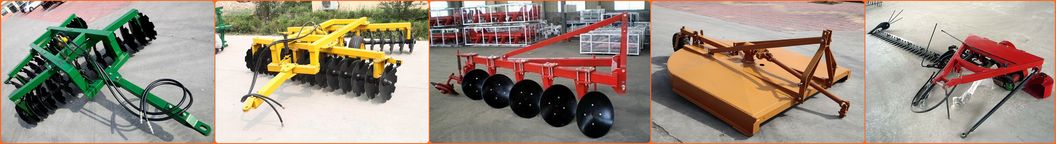

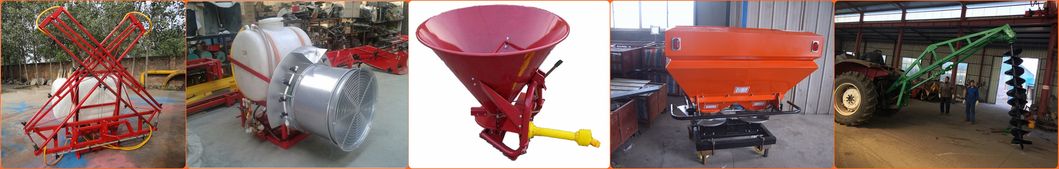

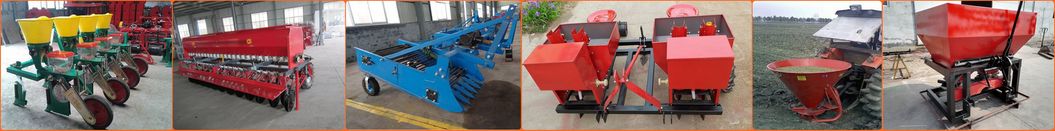

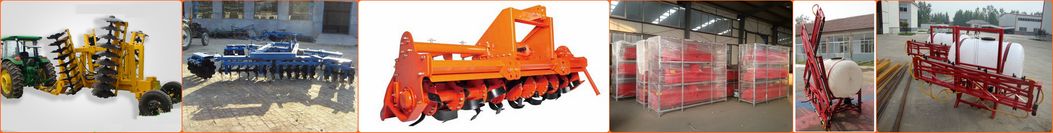

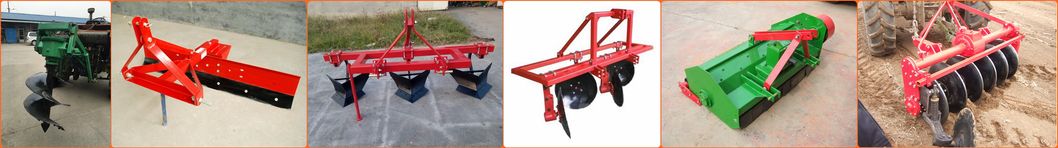

Other Agricultural Machinery
