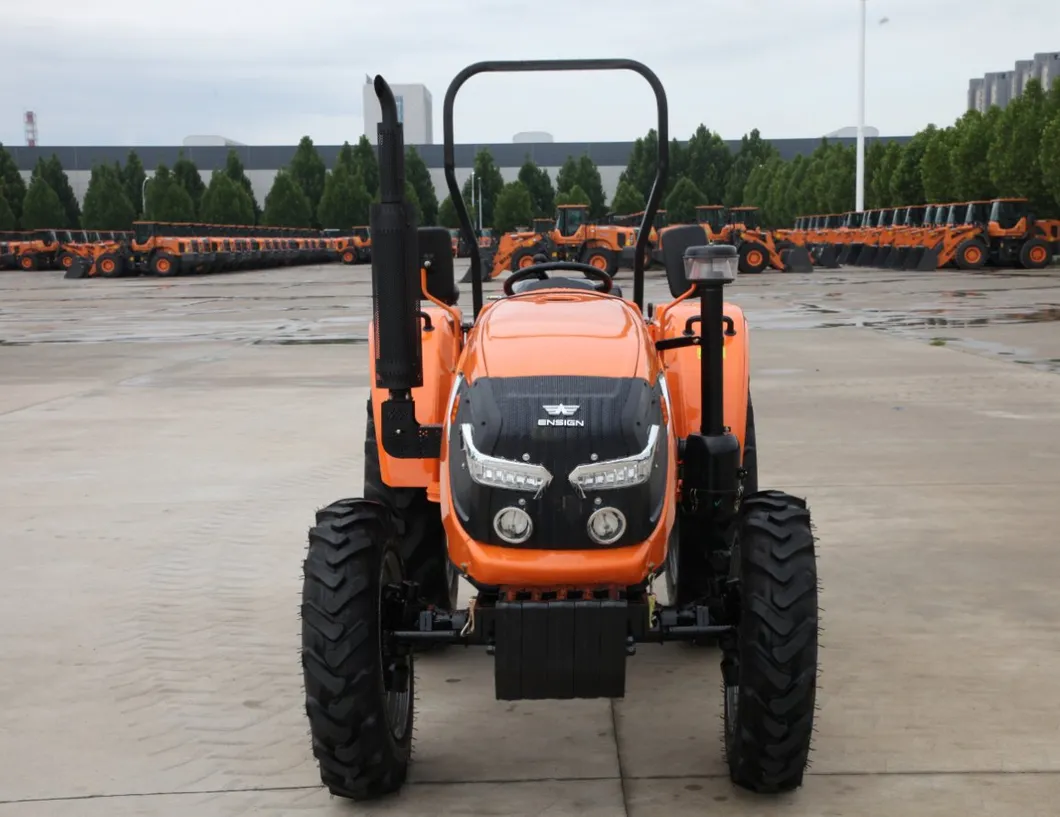

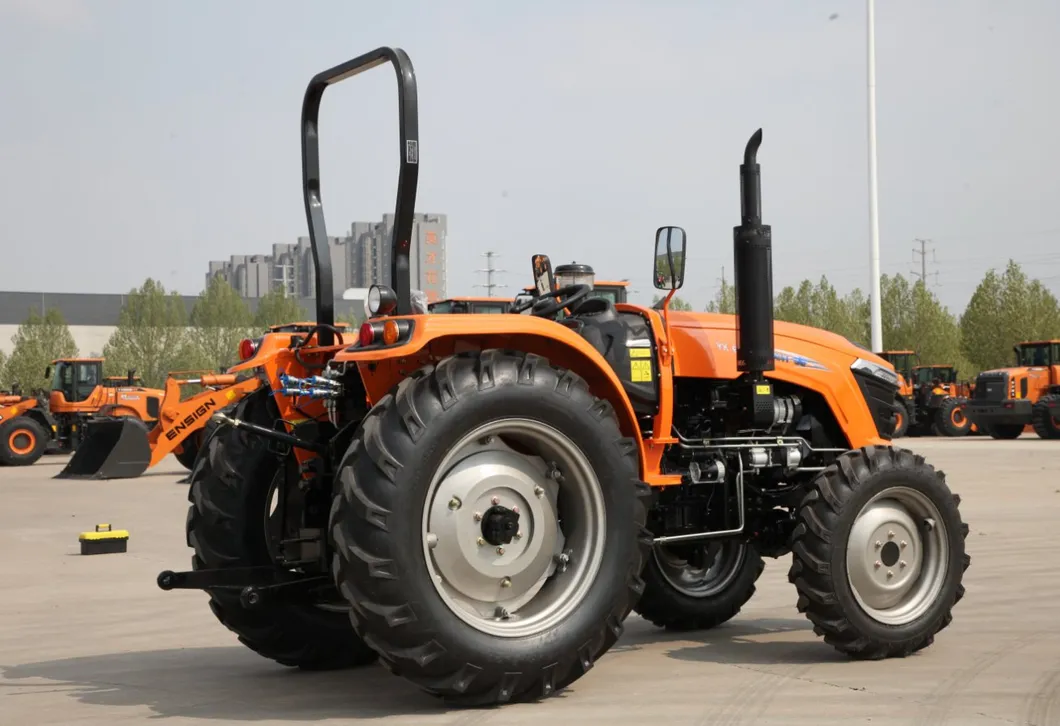

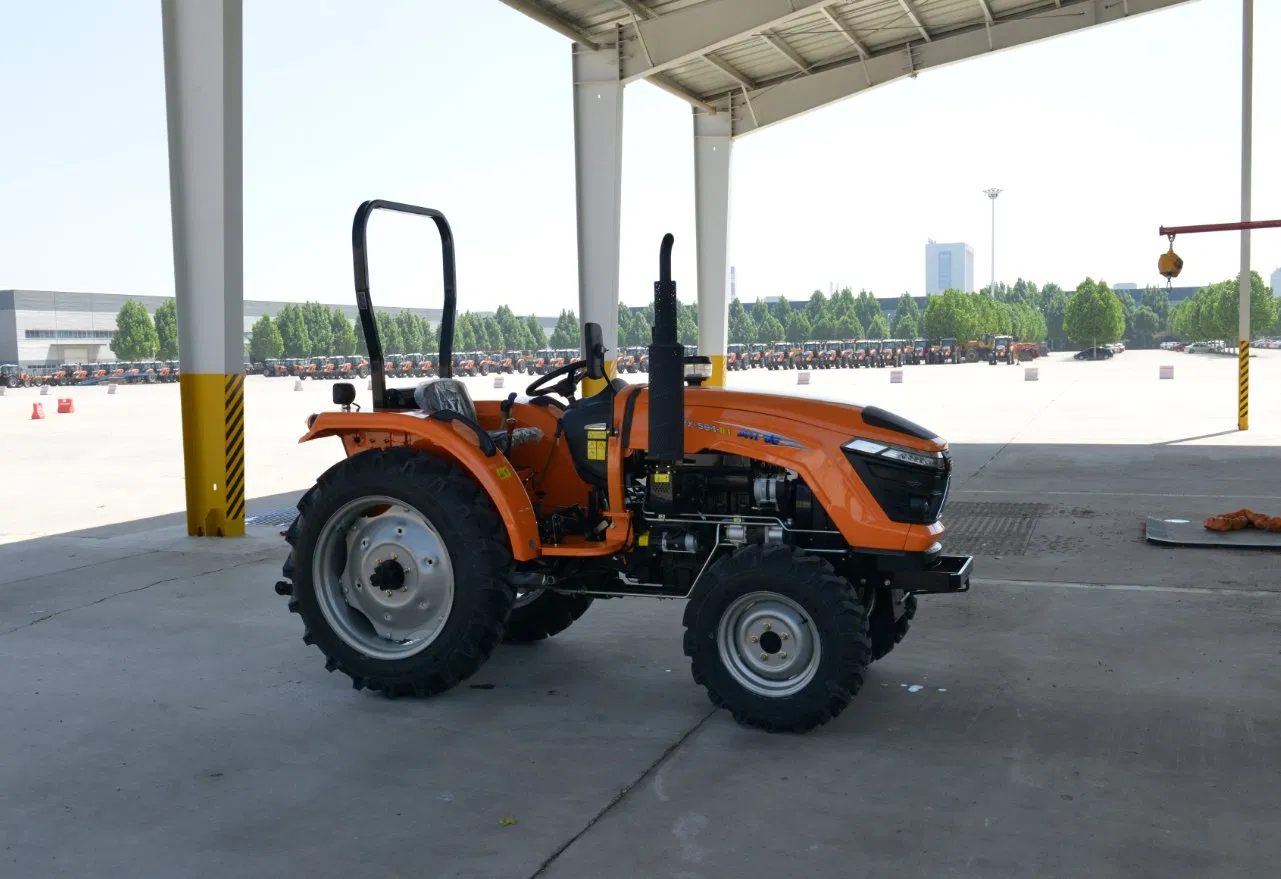

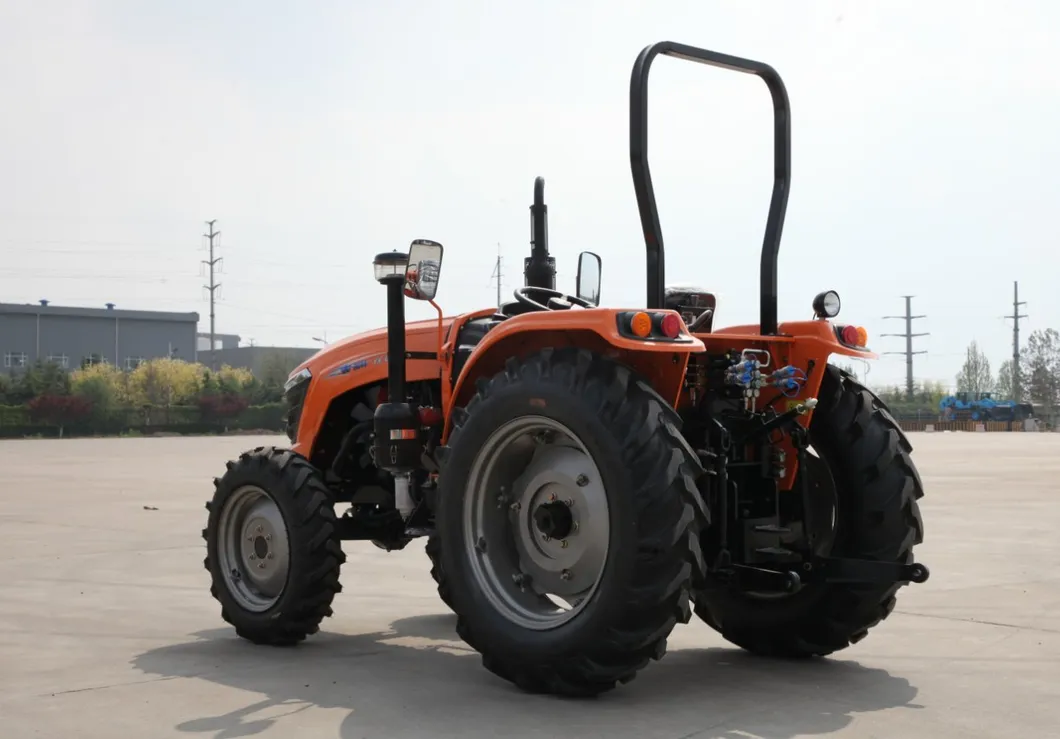

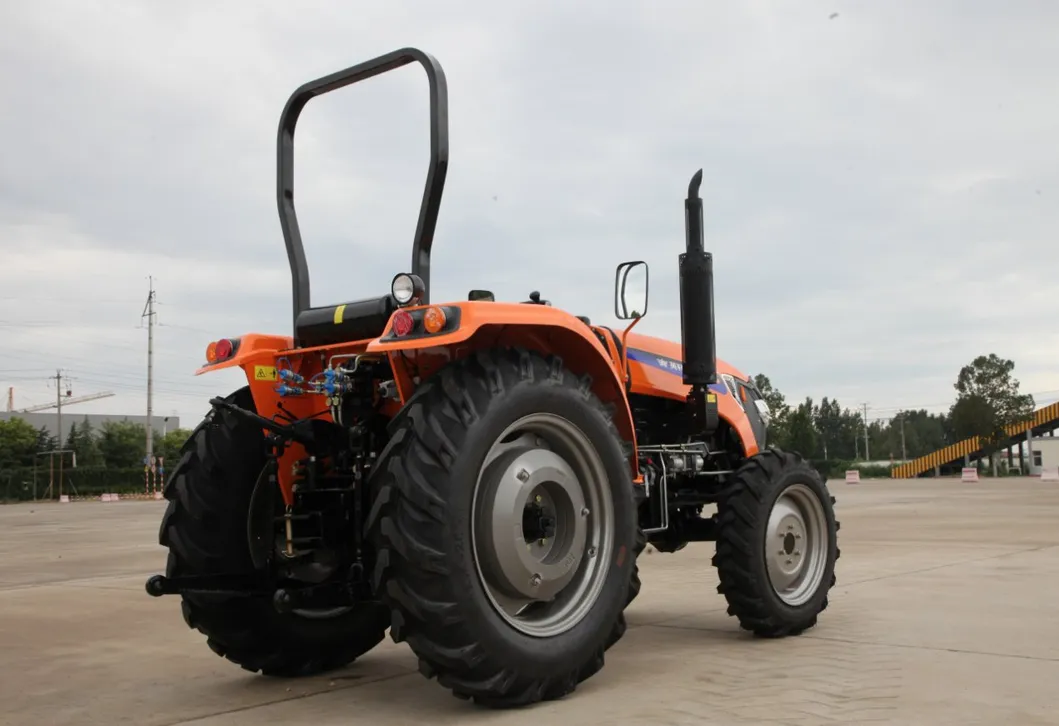

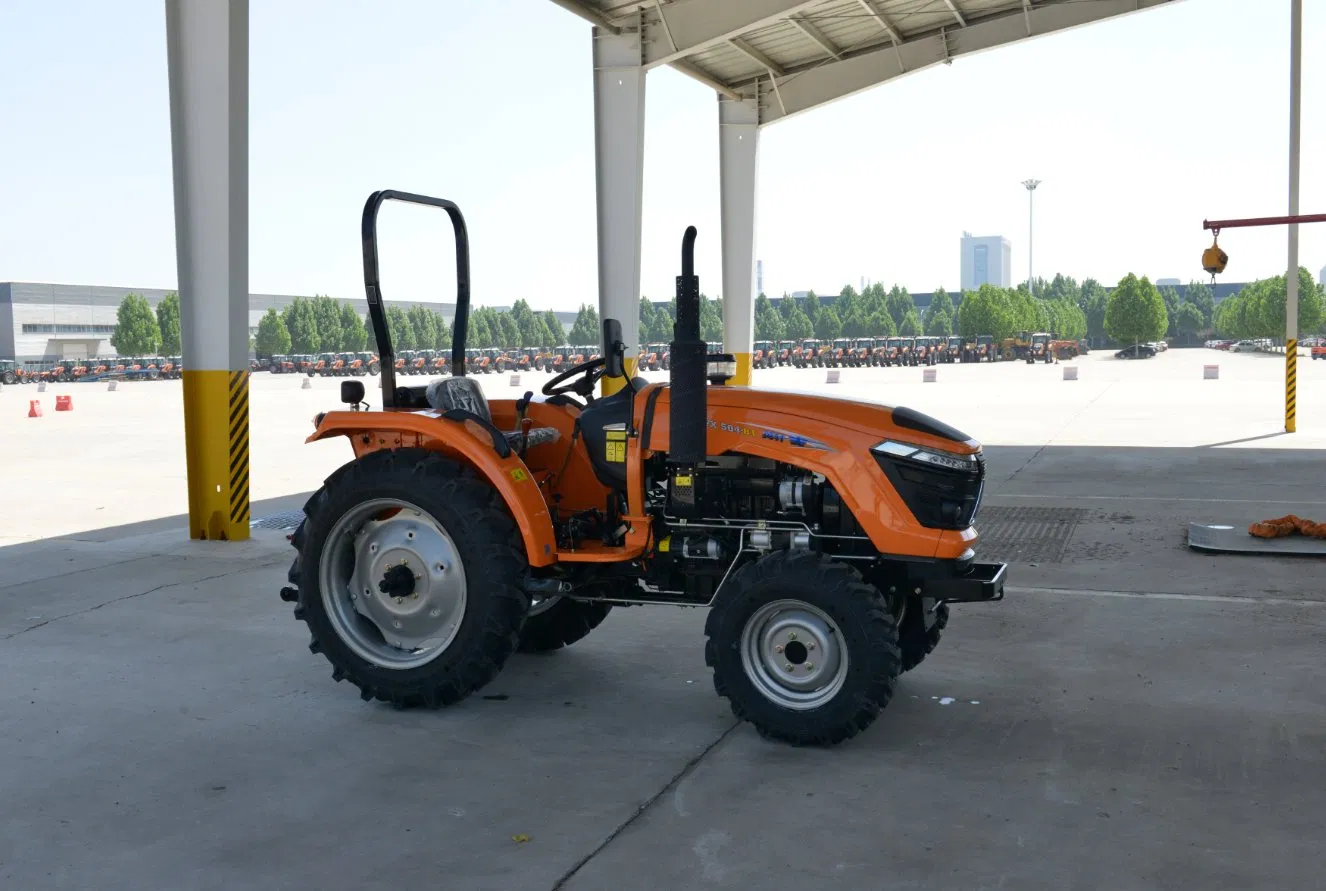

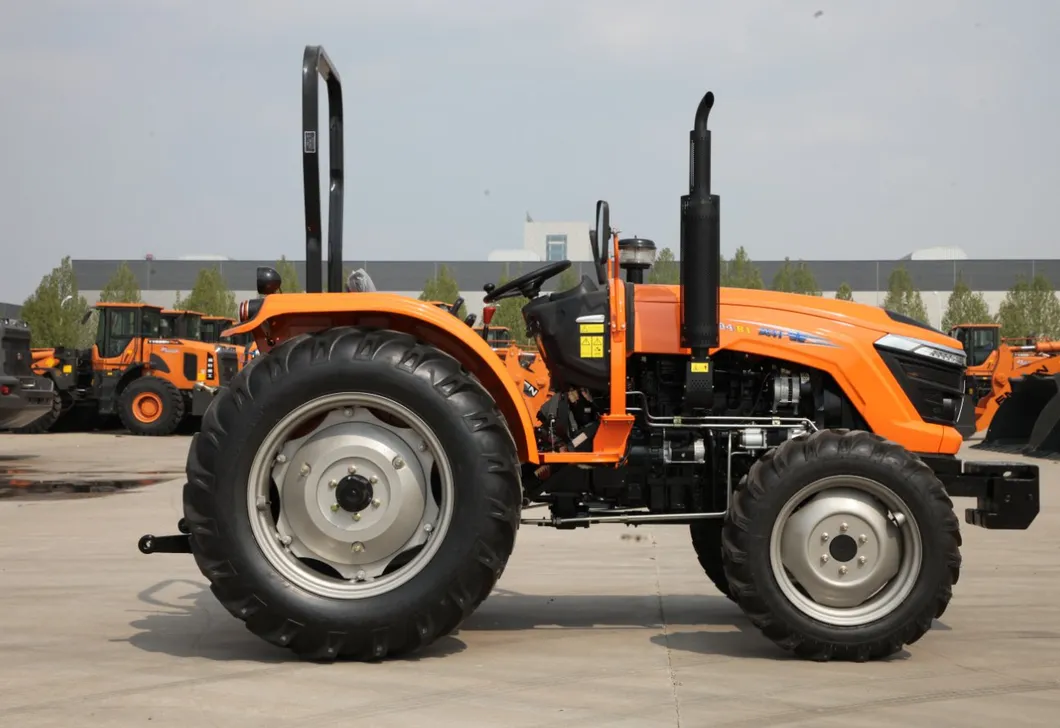

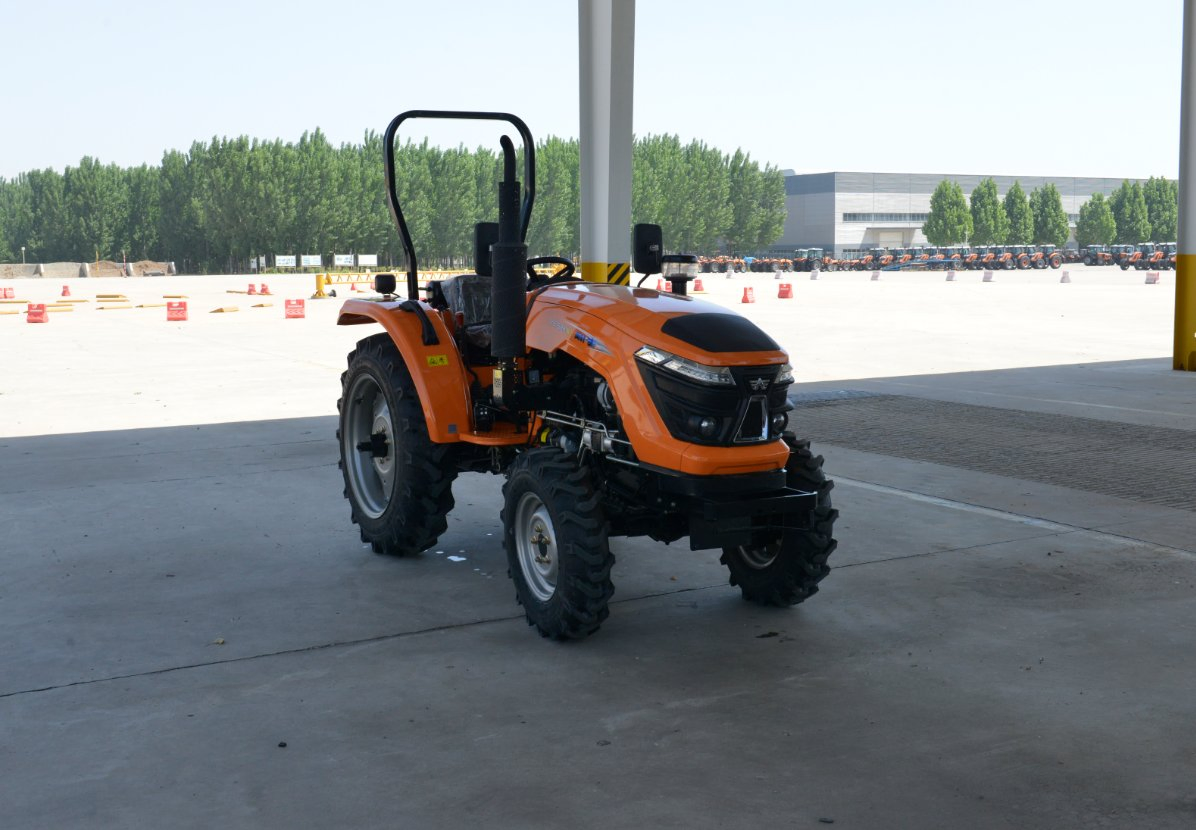

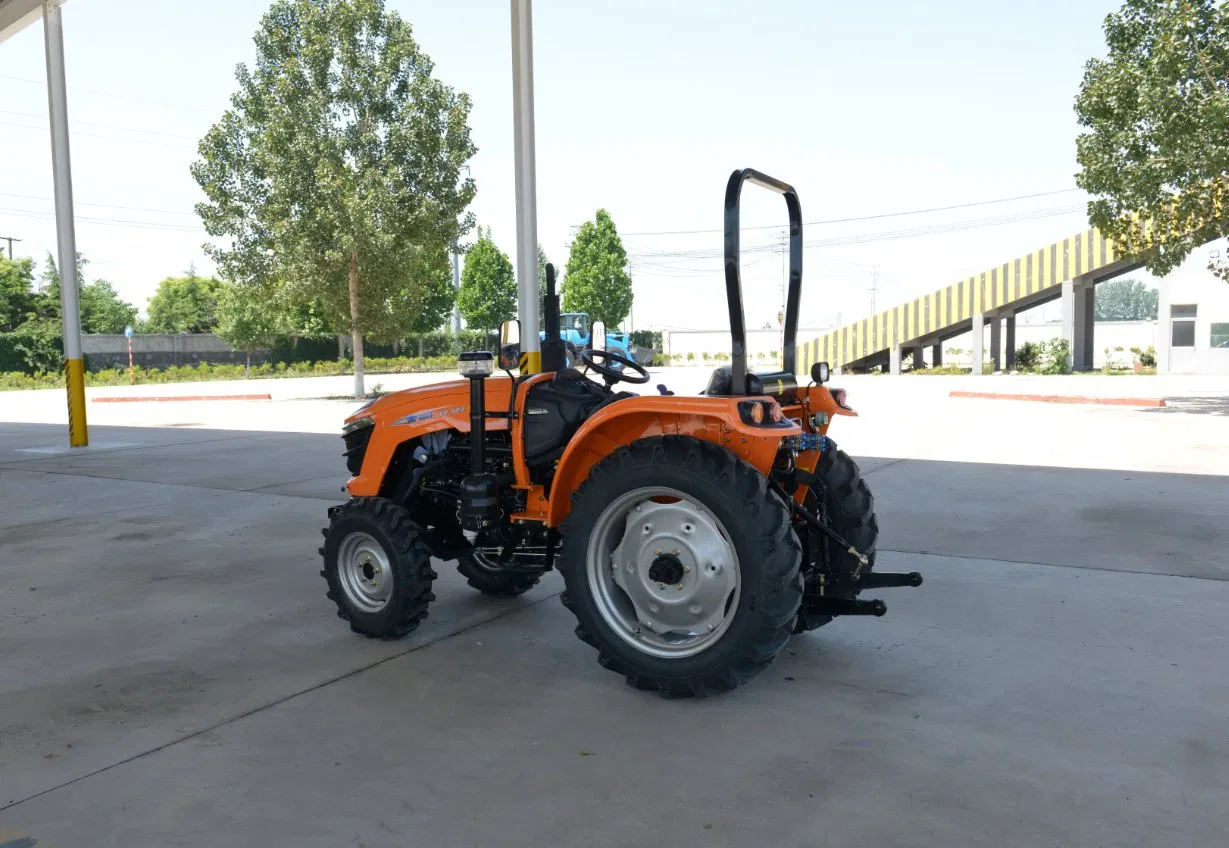

Ensign Sell 40HP Tractor with Tiller
Ensign Heavy Industries CO.Ltd. Factory Sell 4WD 50HP FarmTractors Made in China Model :YX404-BStrong PowerQuanchai engine is adopted for advanced performance, strong power and high economic benefits.Power emission and performance are upgraded constantly with lower fuel consumption, high reliability......
Send Inquiry
Product Description
Ensign Heavy Industries CO.Ltd. Factory Sell 4WD 50HP FarmTractors Made in China Model :YX404-B
Strong Power
Quanchai engine is adopted for advanced performance, strong power and high economic benefits.
Power emission and performance are upgraded constantly with lower fuel consumption, high reliability and advanced technology.
High Reliability
Strengthened independent control double-action clutch is adopted as standard configuration, contributing to high reliability.
High pressure individual power position lifter is equipped as standard configuration, contributes to higher reliability
Enlarged and incorruptible plastic fuel tank, new type of dry air filter, longer service time
The hydraulic system uses oil separately and adopts 24° cone seal, ensuring the cleanliness, low fault and high reliability.
Dry air filter is equipped, which has good filtering effect, convenient maintenance, high cleanliness of the air intake system, and avoids the abrasion of engine inner parts.
Combined instruments equipped which have more accurate data and more obvious functions. The performance of the whole machine can be monitored in time during operation
High Adaptability
Two groups hydraulic output is adopted as standard, and one group as optional, enabling the tractors to adapt to various work sites.
Semi-detached two-speed power output with three combinations of 540/760rpm, 540/1000rpm and 760/1000rpm enable the tractors to work with kinds of implements.
There are many choices of tires. Paddy tires with specifications of 9.5-24/14.9-30 can be equipped as optional, increasing the passing ability.
Rear wheel tread adopts stepless and step-adjustable methods, suitable for any ridge distance operation, and has a wide range of uses.
Air brakes can be equipped as optional to meet the demand of hooking up the trailer.
Comfortable Driving
Sliding sleeve gearbox with shift gears of 12F & 12R features reasonable speed match. Synchronizer as optional, easy to operate.
The clutch adopts the hanging pedal type, which is convenient and free to step on. The main and auxiliary transmissions are operated on the side, and the operation is flexible and light.
Full hydraulic steering system is adopted for easy driving and flexible steering.
Adjustable steering wheel contributes to comfort.
Streamlined design of the tractor body improves heat balance and contributes to aesthetic appearance.
Adopting vibration-damping flat floor and optional sealed cab, which has good sealing performance, low vibration and low noise of the whole machine. Rear-view camera and GPS can be equipped as optional.

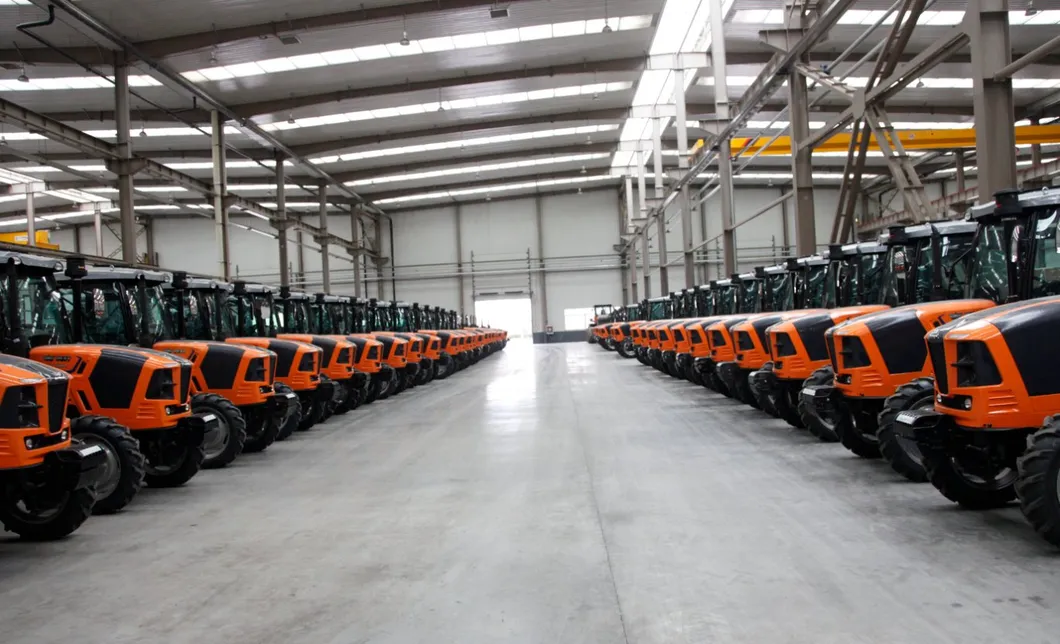

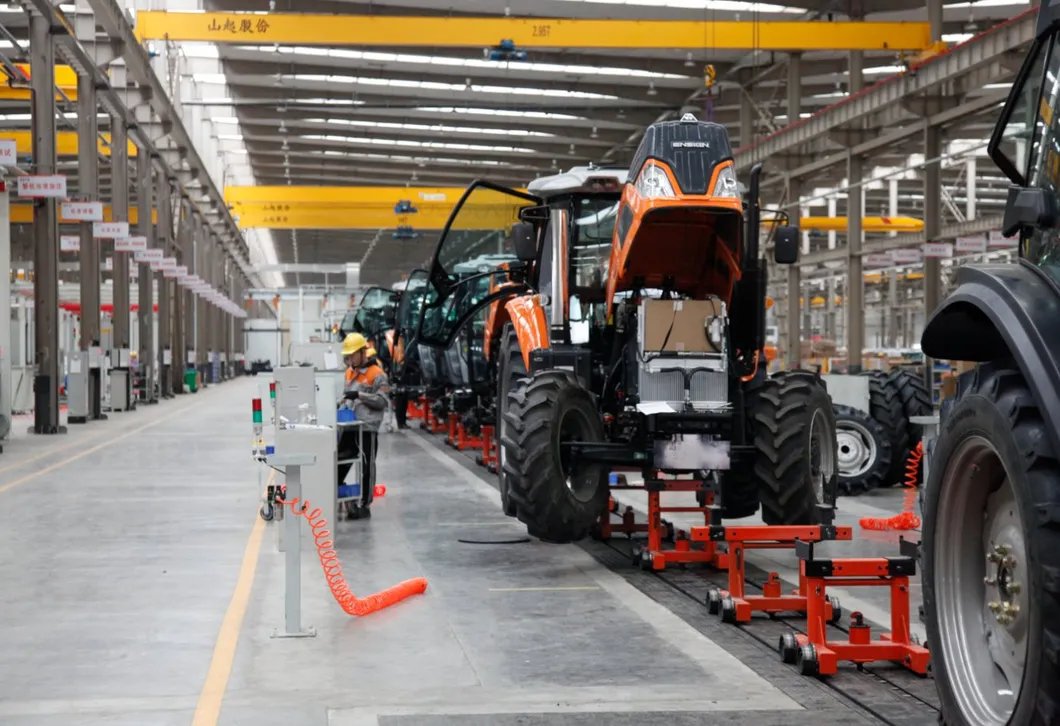

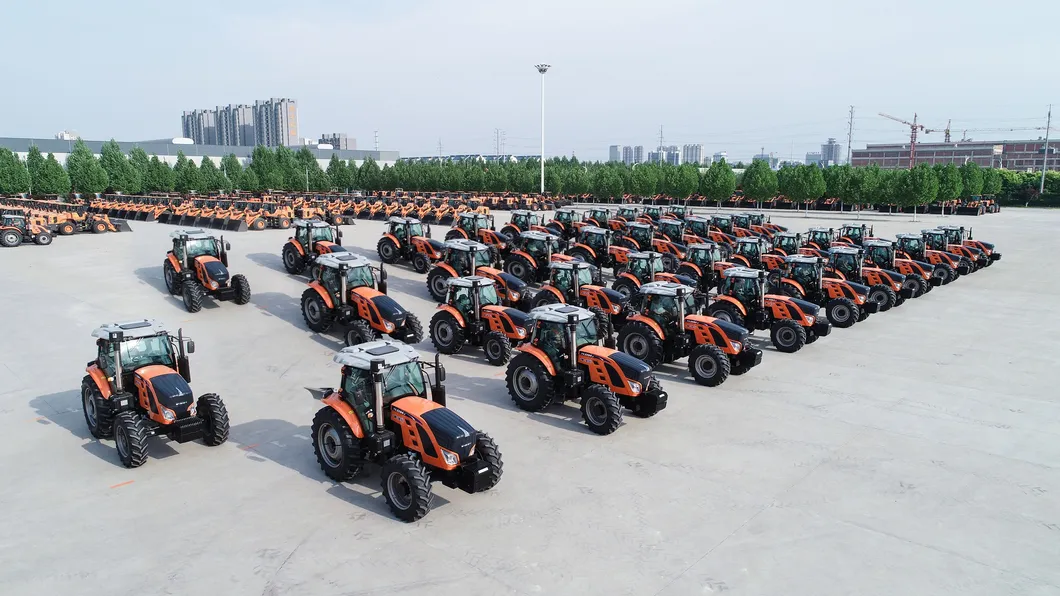

Ensign Heavy Industries Co., Ltd. It is a large machinery manufacturing enterprise, professional in the R&D and production of agricultural machinery tractors, construction machinery wheel loaders and industrial vehicles forklift trucks. The company has world-leading technology R&D centers, fully functional manufacturing centers and also has built a supporting industrial park with complete facilities. The company has ISO9001 Quality Management System, ISO45001 Occupational Health and Safety Management System, ISO14001 Environmental Management System and other qualification certification.
Specification of ENSIGN Tractors, YX404-B
Strong Power
Quanchai engine is adopted for advanced performance, strong power and high economic benefits.
Power emission and performance are upgraded constantly with lower fuel consumption, high reliability and advanced technology.
High Reliability
Strengthened independent control double-action clutch is adopted as standard configuration, contributing to high reliability.
High pressure individual power position lifter is equipped as standard configuration, contributes to higher reliability
Enlarged and incorruptible plastic fuel tank, new type of dry air filter, longer service time
The hydraulic system uses oil separately and adopts 24° cone seal, ensuring the cleanliness, low fault and high reliability.
Dry air filter is equipped, which has good filtering effect, convenient maintenance, high cleanliness of the air intake system, and avoids the abrasion of engine inner parts.
Combined instruments equipped which have more accurate data and more obvious functions. The performance of the whole machine can be monitored in time during operation
High Adaptability
Two groups hydraulic output is adopted as standard, and one group as optional, enabling the tractors to adapt to various work sites.
Semi-detached two-speed power output with three combinations of 540/760rpm, 540/1000rpm and 760/1000rpm enable the tractors to work with kinds of implements.
There are many choices of tires. Paddy tires with specifications of 9.5-24/14.9-30 can be equipped as optional, increasing the passing ability.
Rear wheel tread adopts stepless and step-adjustable methods, suitable for any ridge distance operation, and has a wide range of uses.
Air brakes can be equipped as optional to meet the demand of hooking up the trailer.
Comfortable Driving
Sliding sleeve gearbox with shift gears of 12F & 12R features reasonable speed match. Synchronizer as optional, easy to operate.
The clutch adopts the hanging pedal type, which is convenient and free to step on. The main and auxiliary transmissions are operated on the side, and the operation is flexible and light.
Full hydraulic steering system is adopted for easy driving and flexible steering.
Adjustable steering wheel contributes to comfort.
Streamlined design of the tractor body improves heat balance and contributes to aesthetic appearance.
Adopting vibration-damping flat floor and optional sealed cab, which has good sealing performance, low vibration and low noise of the whole machine. Rear-view camera and GPS can be equipped as optional.
Ensign Heavy Industries Co., Ltd. It is a large machinery manufacturing enterprise, professional in the R&D and production of agricultural machinery tractors, construction machinery wheel loaders and industrial vehicles forklift trucks. The company has world-leading technology R&D centers, fully functional manufacturing centers and also has built a supporting industrial park with complete facilities. The company has ISO9001 Quality Management System, ISO45001 Occupational Health and Safety Management System, ISO14001 Environmental Management System and other qualification certification.
Specification of ENSIGN Tractors, YX404-B
| Item | Measurement | Remark | |
| Model No. | / | YX404-B | |
| Drive Type | / | 4WD | |
| Safety Type | / | With safety frame | |
| Open Canopy | Optional | ||
| Function | / | General Farming | |
| Overall Size(L×W×H) | mm | 3600×1500×2400 | |
| Wheel base | mm | 1850 | |
| Front Wheel Tread | mm | 960/1100/1200/1300 | |
| Rear Wheel Tread | mm | 960-1300 | |
| Min ground clearance | mm | 360 | |
| Min operating Mass | kg | 1770 | |
| Standard Front counter weight | kg | 60 | |
| Standard rear counter weight | kg | 56 | |
| Gear shift(F/R) | / | 8/8 | |
| Max.speed | km/h | 29 | |
| Ground speed | km/h | Forward Low:1.87/2.82/4.43/6.11 High:8.66/13.05/20.5/28.26 Reverse low:1.74/2.63/4.13/5.69 high:8.06/12.16/19.09/26.32 |
| ENGINE Number | / | 4B2-40V32 | ||
| Engine type | / | Vertical,Direct injection,four -stroke, water cooled | ||
| Brand | / |
| ||
| Air entering type | / | Normally Aspirated | ||
| No.of cylinders | / | 4 | ||
| Rated power | kW | 29.5 | ||
| Rated speed | r/min | 2400 | ||
| Air filter model | / | KY250 | ||
| Air filter Type | / | Wet | ||
| Steering system | / | Total Hydraulic | ||
| Transmission | / | Two axis type, straight way (4+2)x2composition | ||
| Tire size(F/R) | / | 8.3-20/12.4-28 | Normal tire | |
| 7.5-16/11.2-24 | Optional Normal tire | |||
| 7.5-16/11.2-28 | ||||
| 7.5-16/9.5-28 | ||||
| 6.0-16/9.5-24 | ||||
| 6.5-16/9.5-24 | ||||
| 6.5-16/9.5-28 | ||||
| 7.5-16/11.2-24 | Paddy Tire optional | |||
| 8.3-20/11.2-28 | ||||
| Brake | Dry type, double disc brake with mechanical control | |||
| Airbrake | With or without | optional | ||
| Clutch | Dry ,Dual action | |||
| Dry, Single action | Optional | |||
| 3 point linkage | / | Cat.1 | ||
| Hydraulic output | / | 1set | ||
| 2sets | optional | |||
| PTO spline | / | 8 | ||
| / | 6 | optional | ||
| PTO speed | r/min | 540/720 | ||
| 540/1000 | Optional |
