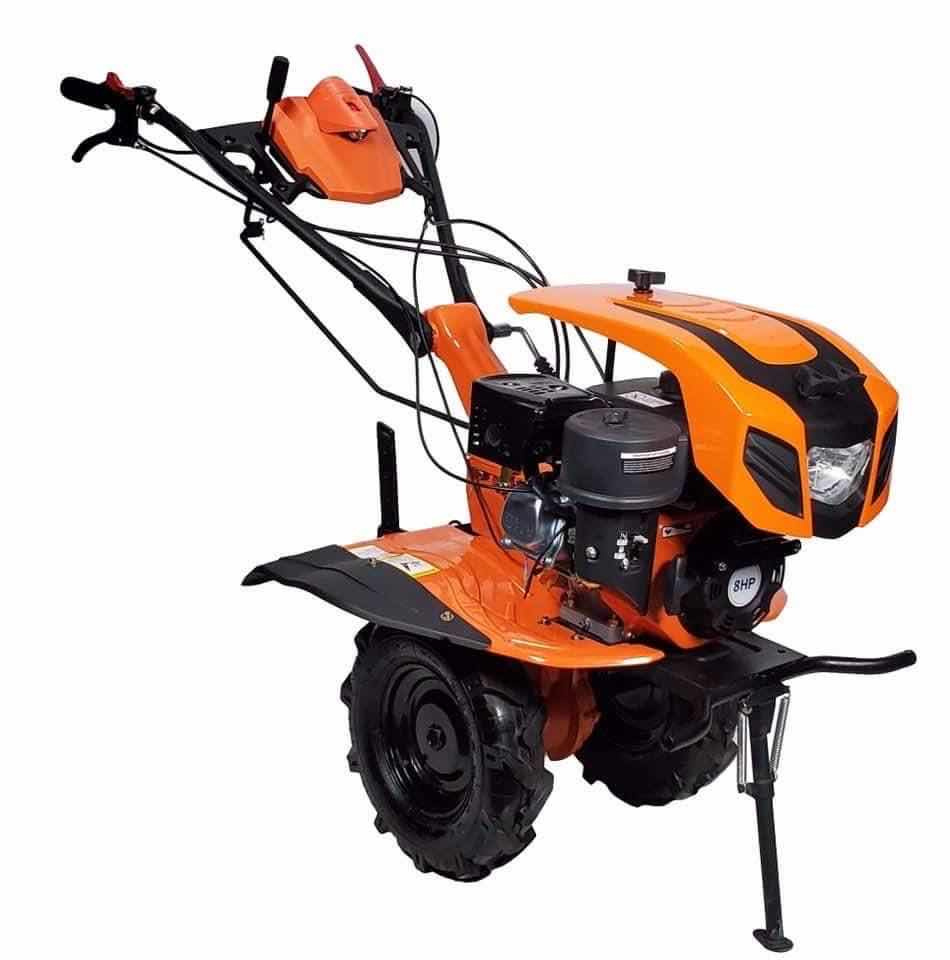

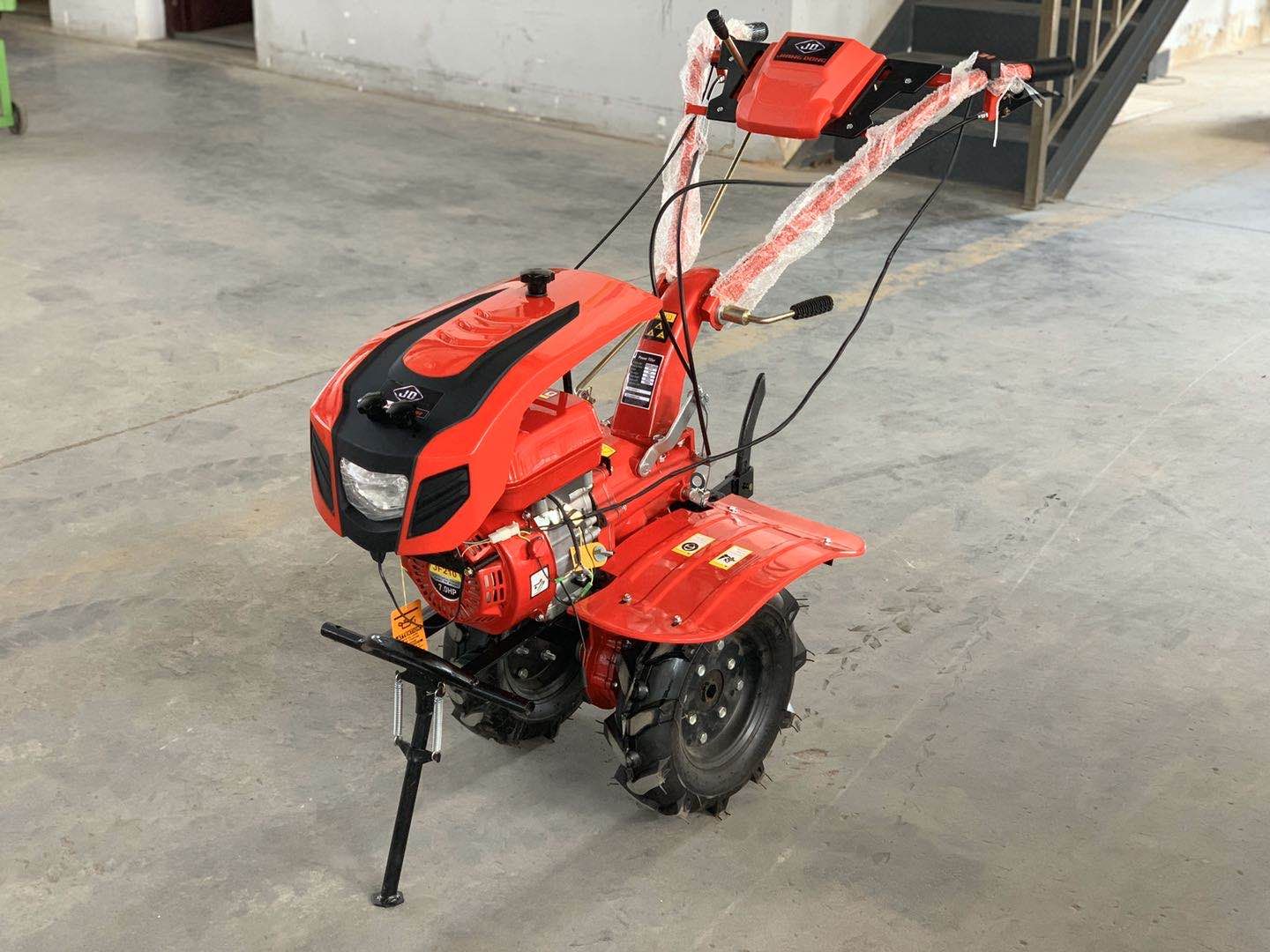

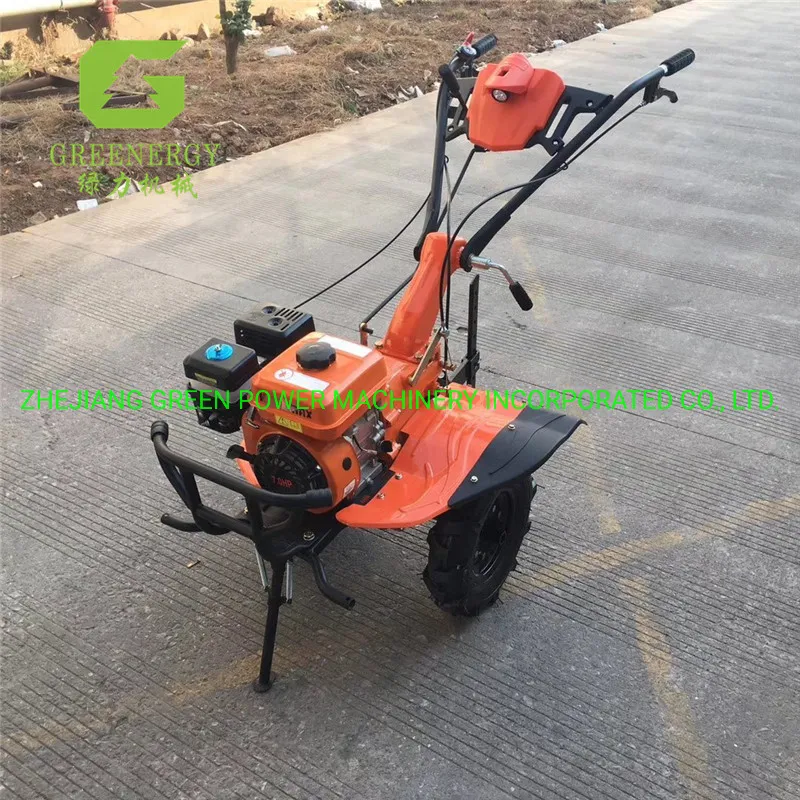

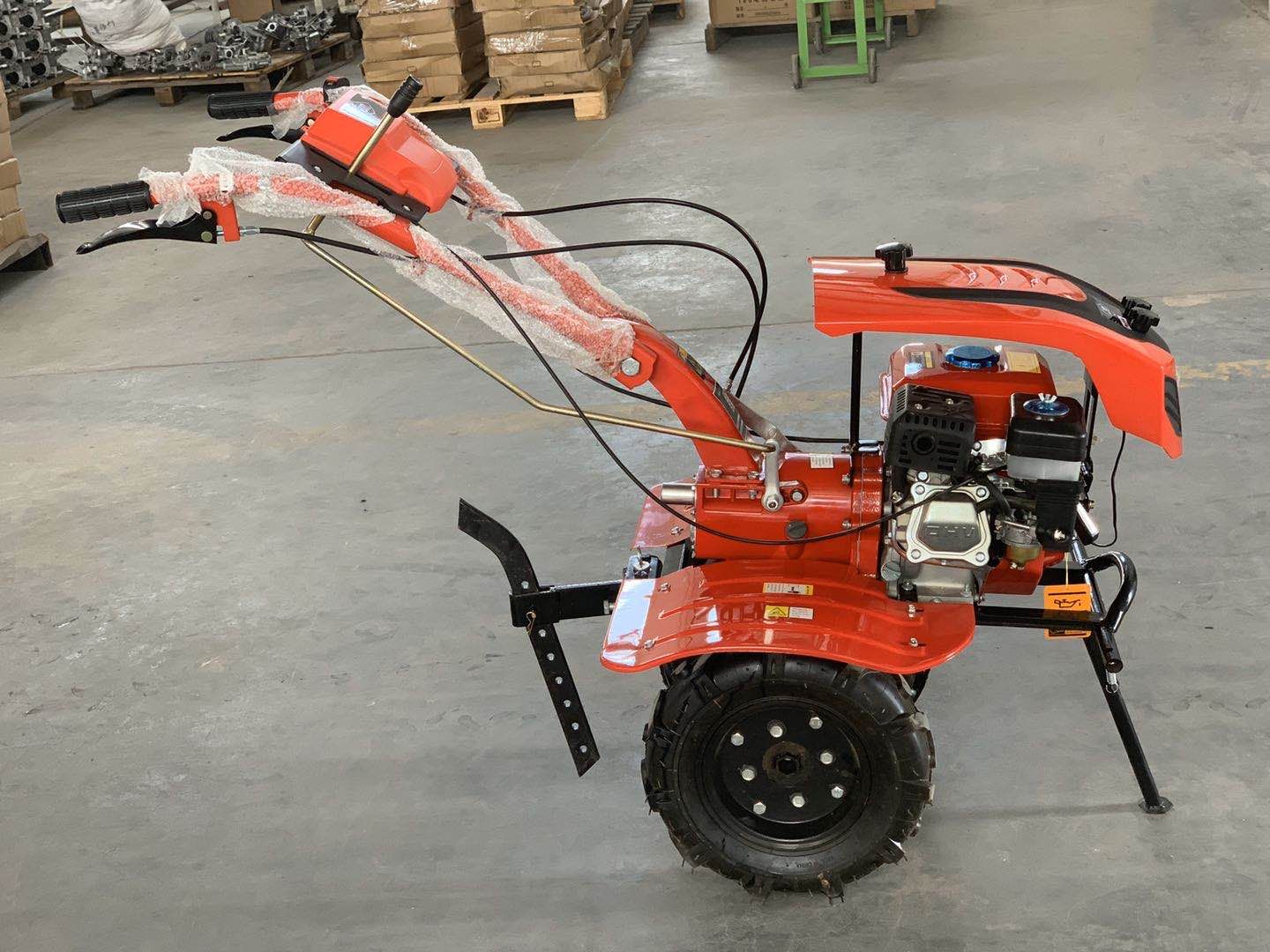

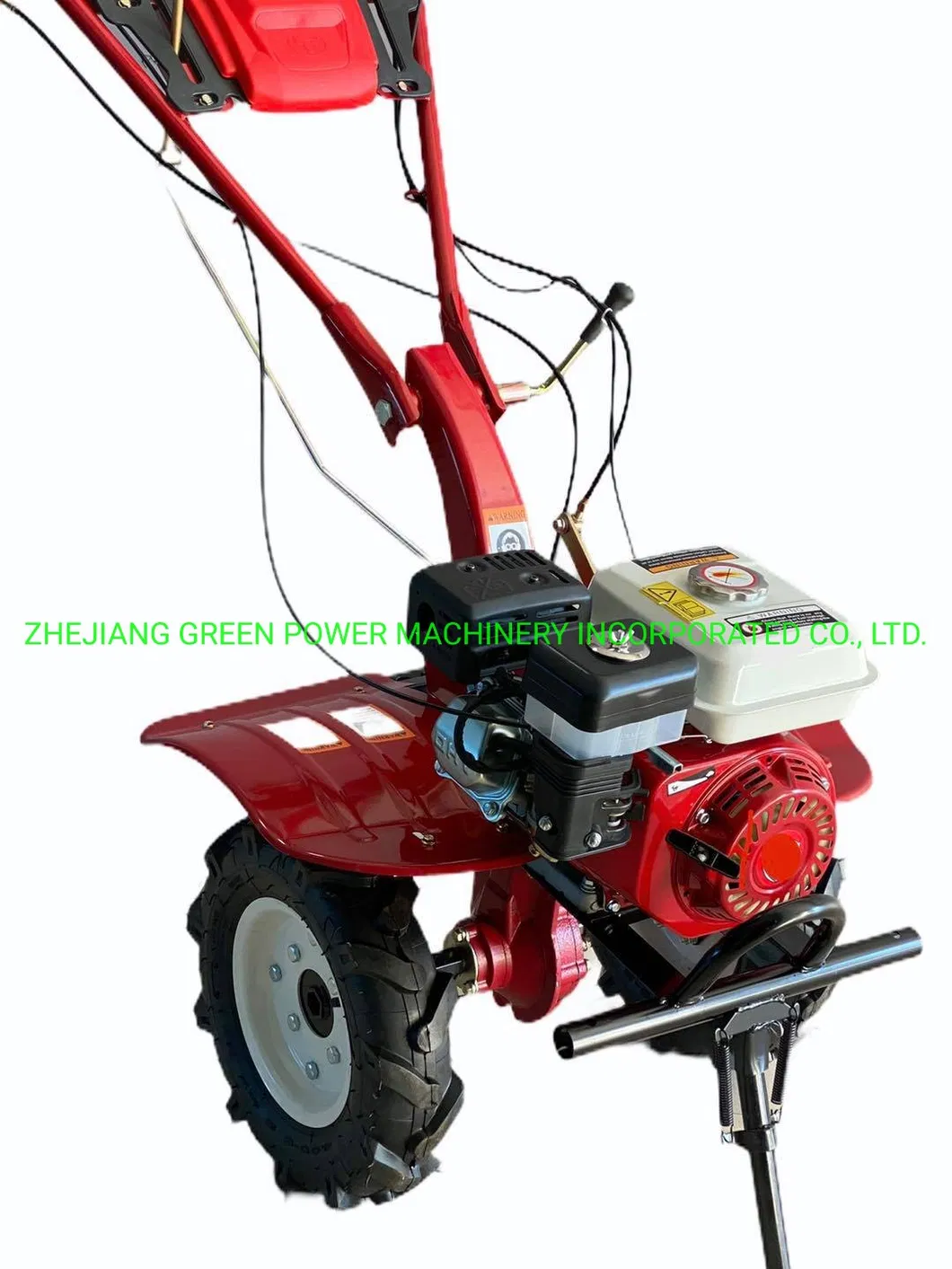

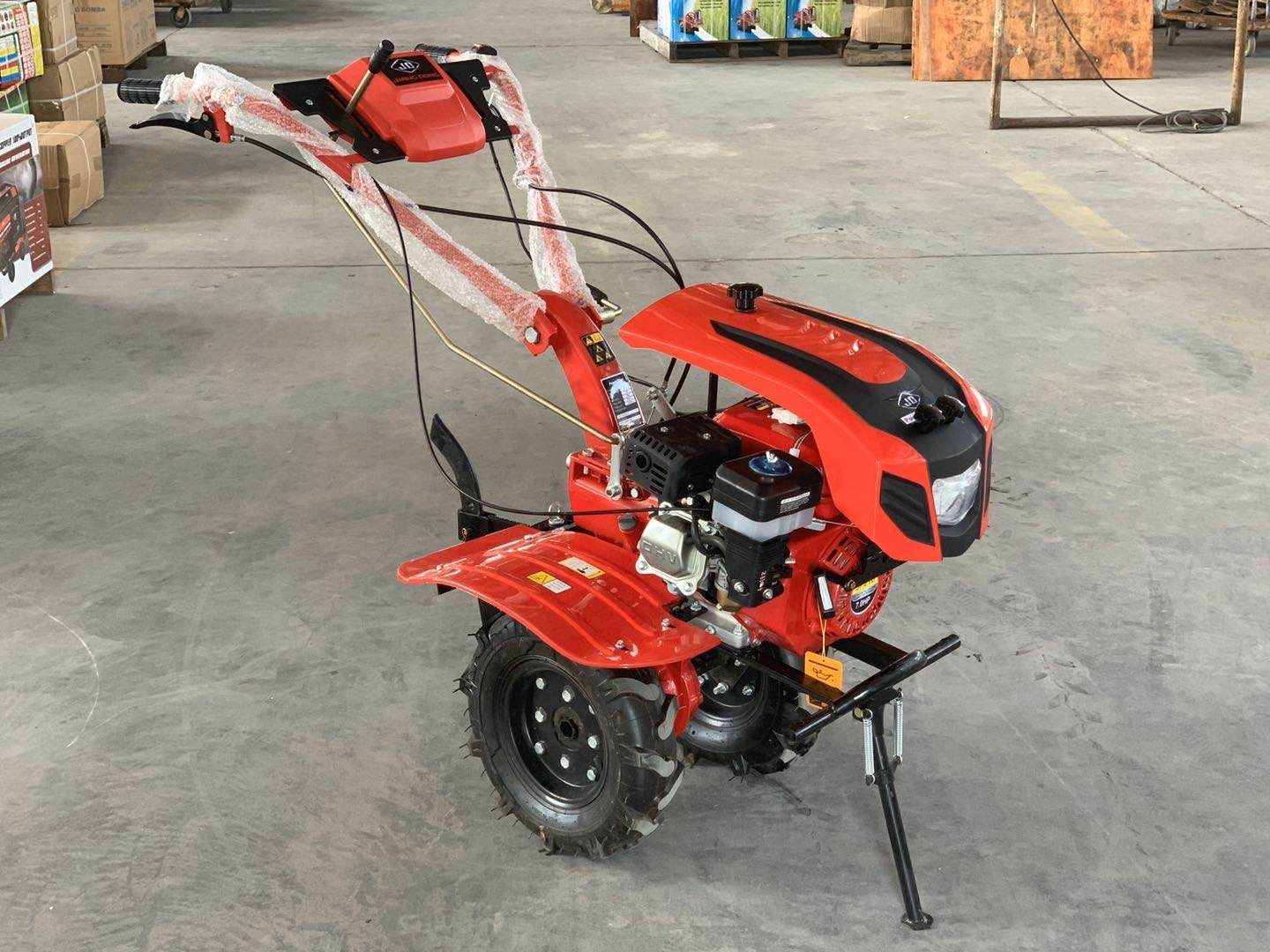

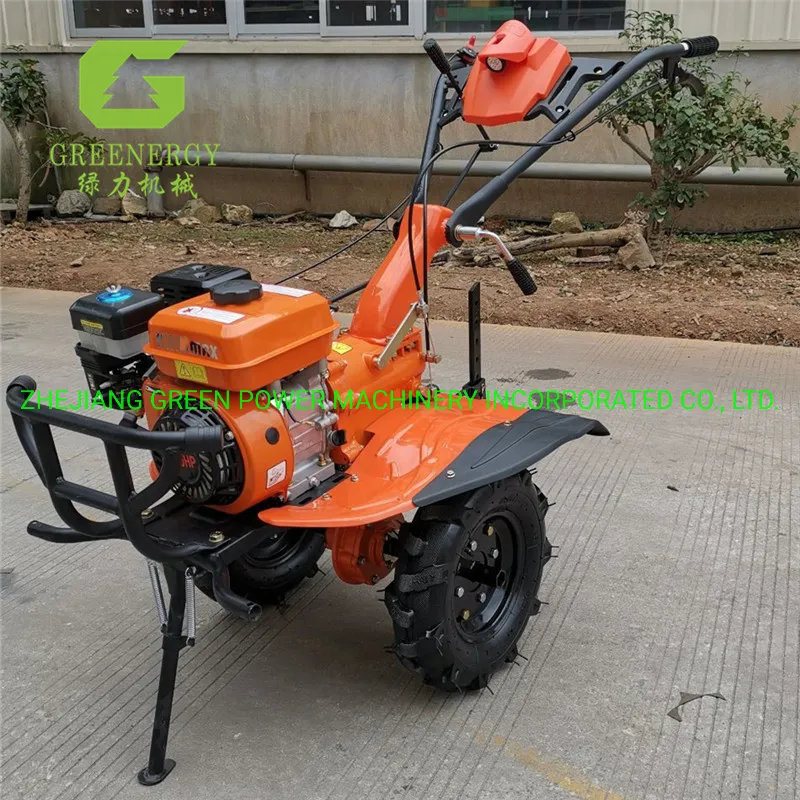

Customizable Commercial Garden Tiller Cultivator Agricultural Machinery Rotary Triller Cultivator Rotary Cultivator
Advantage:1 Gear transimission2 samll size,ligiht weight,conpact structure,easy to opertate3 automatic clutch,variable speed,4 three levels air filter,long life engine5 match varity of equiment for tiller,finished more function in field6 170F gasoline Engine made by ou selfsevles Optional configu......
Send Inquiry
Product Description
Advantage:
1 Gear transimission
2 samll size,ligiht weight,conpact structure,easy to opertate
3 automatic clutch,variable speed,
4 three levels air filter,long life engine
5 match varity of equiment for tiller,finished more function in field
6 170F gasoline Engine made by ou selfsevles

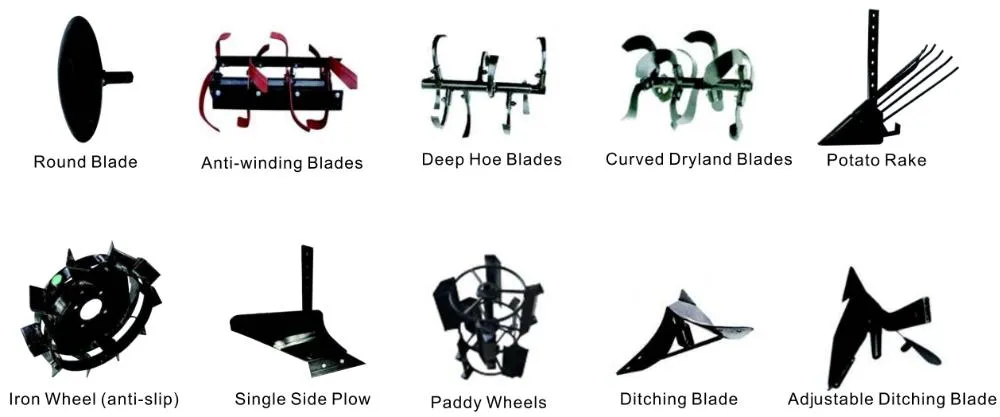

Optional configuration:
A.Water pump
B.Sprayer
C.Ridger
D.Plough
E.ditching blade
F.4-4blades
G. Potato ditching blade
Parameter:
| Tilling | Tilling scope (mm) | 800-1000 |
| Tilling depth (mm) | 150-300 | |
| Transmission type | Gear | |
| Transmission oil (L) | 1.8L | |
| Transmission Material | Cast iron | |
| Gear Shifting | 0,1,2,-1 | |
| Engine | Engine model | 170F |
| Displacement (cc) | 212 | |
| Bore×Stroke(mm) | 70x56 | |
| Max power output(HP/rpm) | 7.0/3000 | |
| Max torque(N·m/rpm) | 11.5/3000 | |
| Fuel tank capacity (L) | 6 | |
| Oil capacity (L) | 0.6 | |
| Dimension(mm3) | 720×390×860 | |
| N/G·W(kg) | 77/87 | |
| 20Q | 86 | |
| 40HQ | 288 |
how to choose tiller and cultivator:
1.Currently on the market Tiller drive chassis has two kinds, one is axes and gear, the other is the belt driven. The former is more suitable for large specific resistance of soil, farming terraces compacted areas.
2.It suggest mountains, hilly areas supporting power users to buy air-cooled diesel engine rotary tillers, because of its small size, small, to facilitate the transfer; supporting transport, it is recommended to choose a differential Tiller
