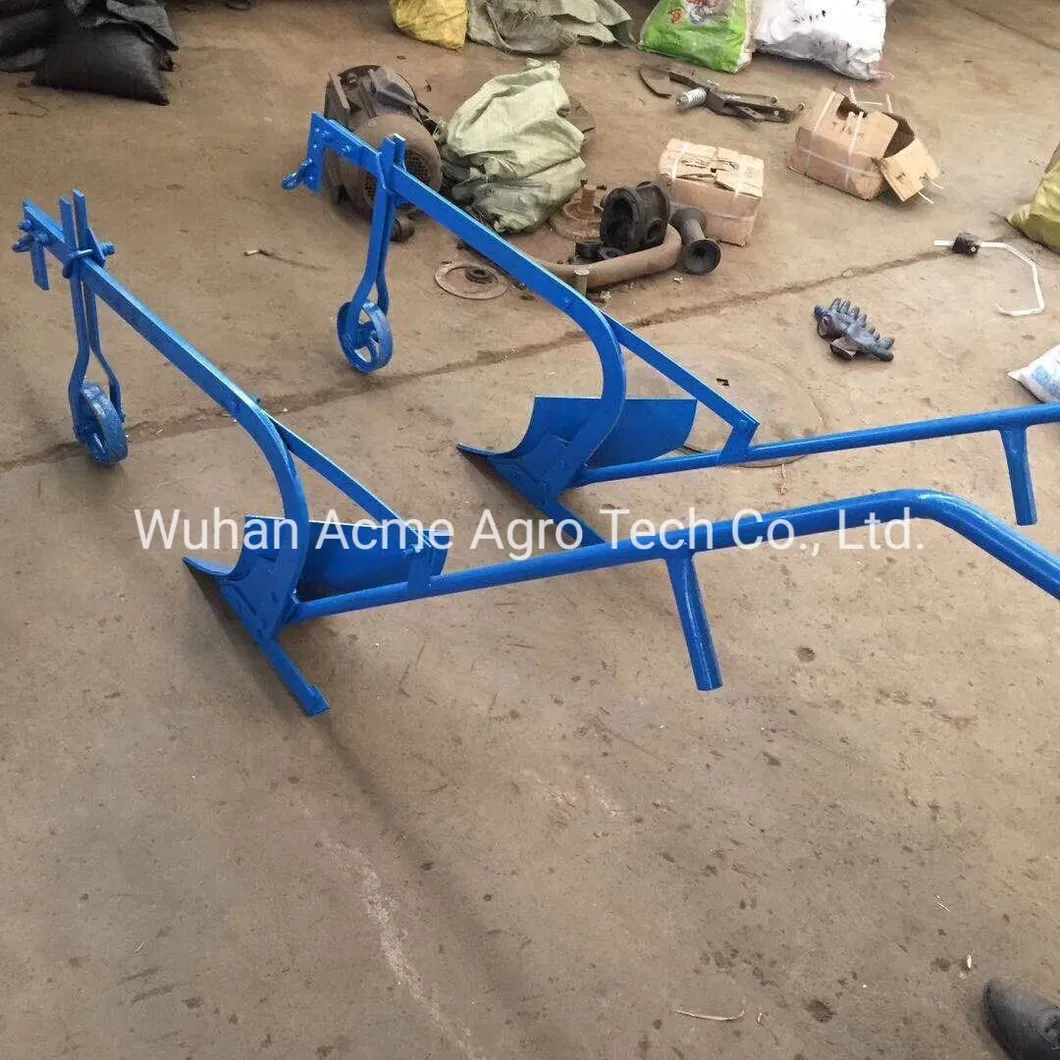

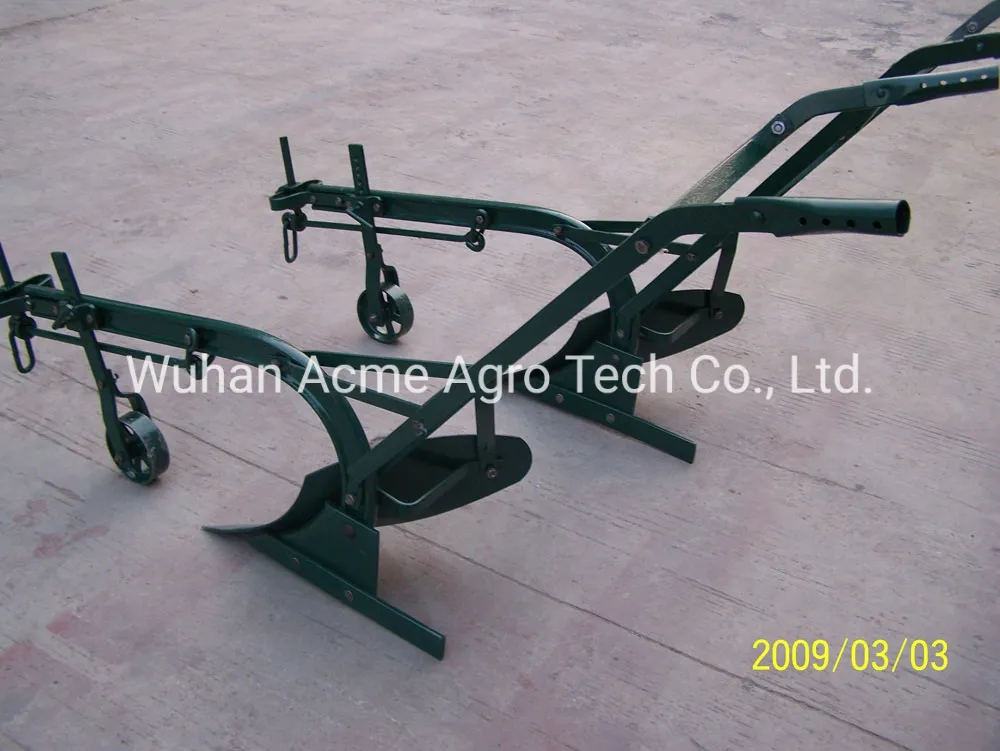

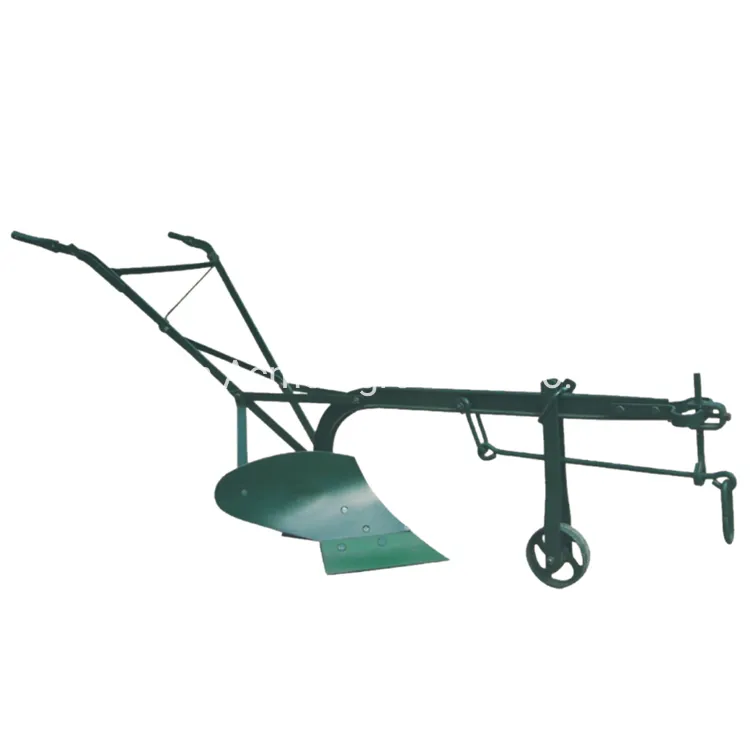

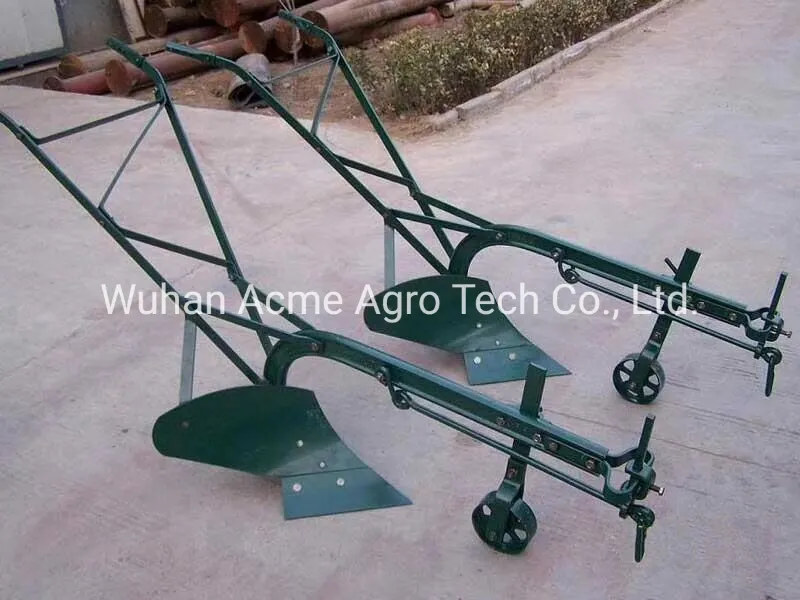

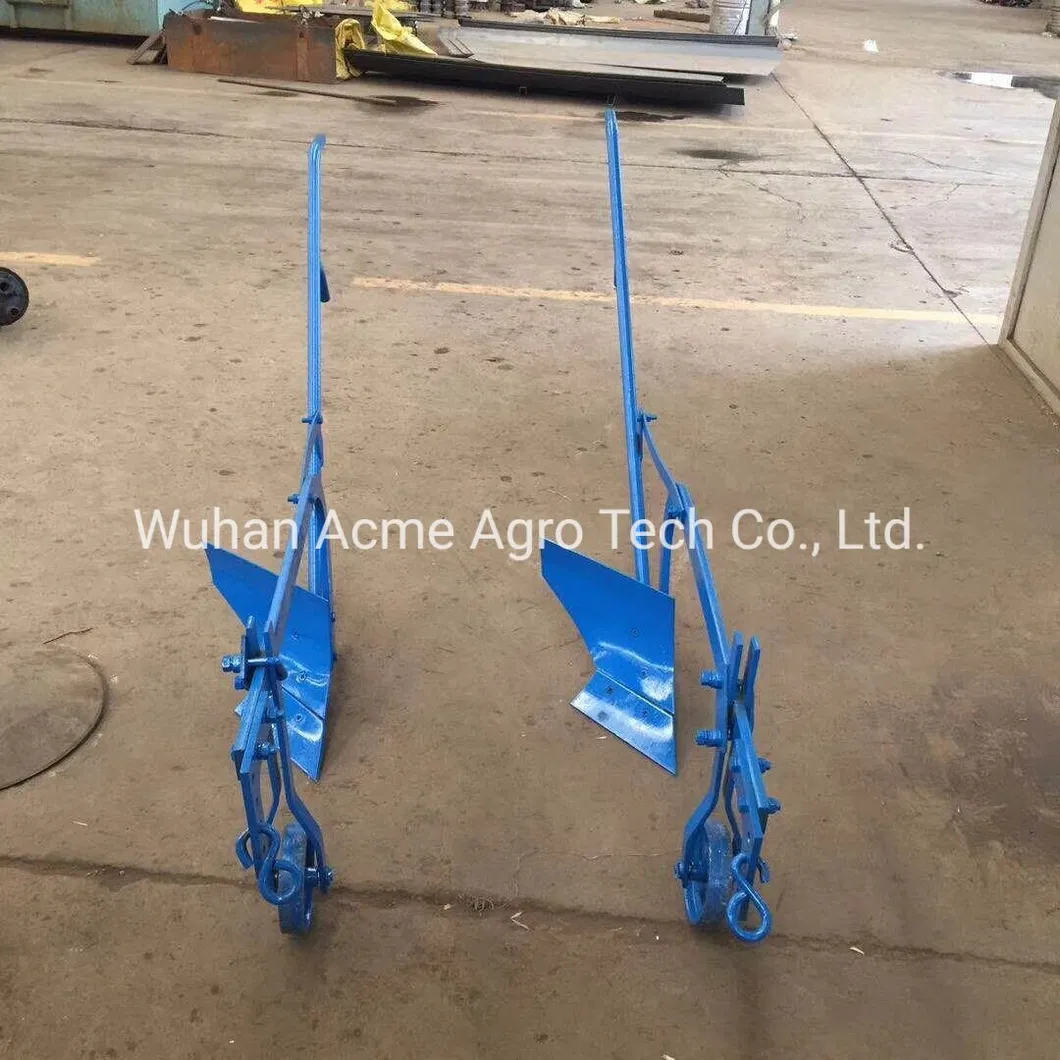

Animal Drawn Plough

Product Description

animal drawn plough

model	ACME-30N
item name	animal Ox traction plough
suitable animal	Ox, donkey
function	traction by animal, for farm land tillage and plouging
plough type	mouldboard type
mouldboard	6mm
share	upset
share thickness	10mm
share material	high carbon steel, heat treated HRC46
forg thickness	5.5mm
landside thickness	6mm
beam	with section 30mm by 60mm
hitch assembly	with 3 holes on front of beam
beam length	830mm
vertical handle	1000mm connecting land side of beam
other features	sub-frame bolted to the main beam, stablizing wheel with fully adjustable height, stablizing wheel diameter of 160mm

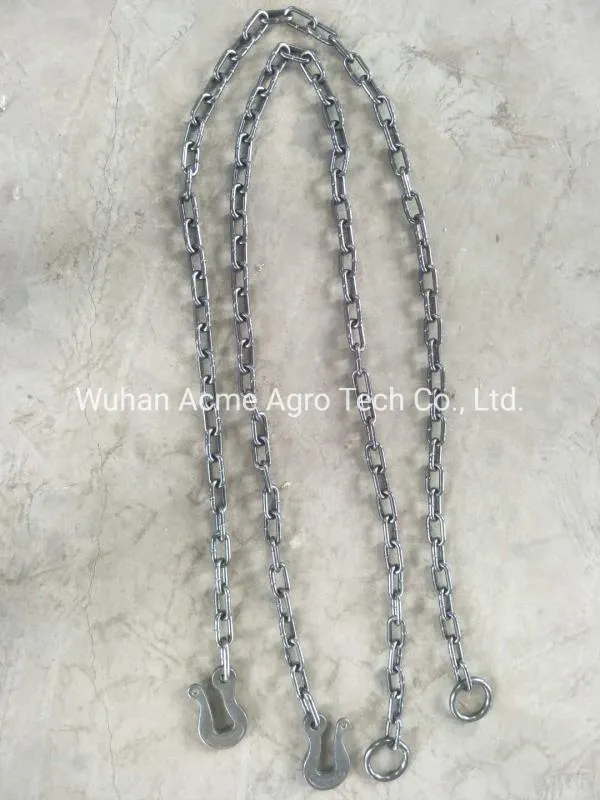

total weight with chain	30kg
construction advantages	beam and handles made of steel with smooth finished, all metallic parts are free from flaws, with fins and flashes dressed off. beam and handles are painted all over
container load qty	600pcs/20GP
overall dimension	*20002001200mm*
working depth	20-25cm
working width	18cm
