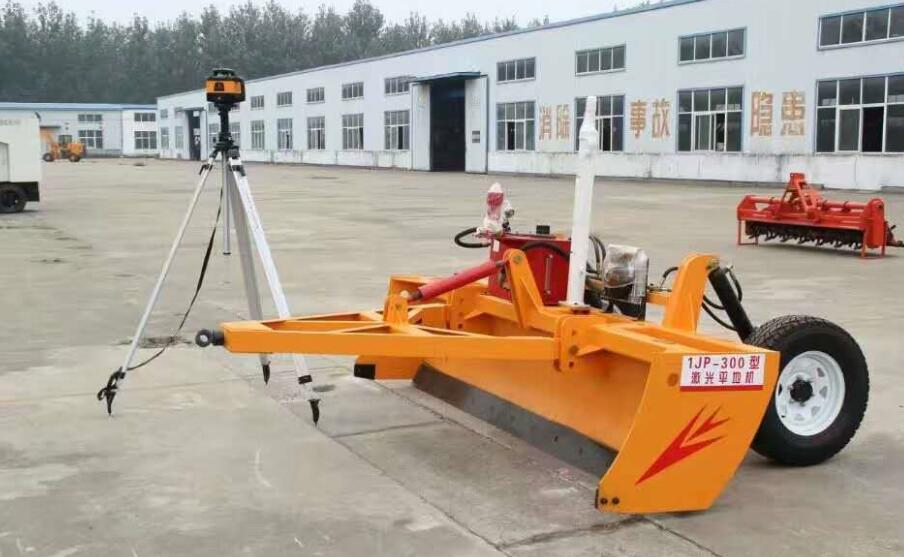

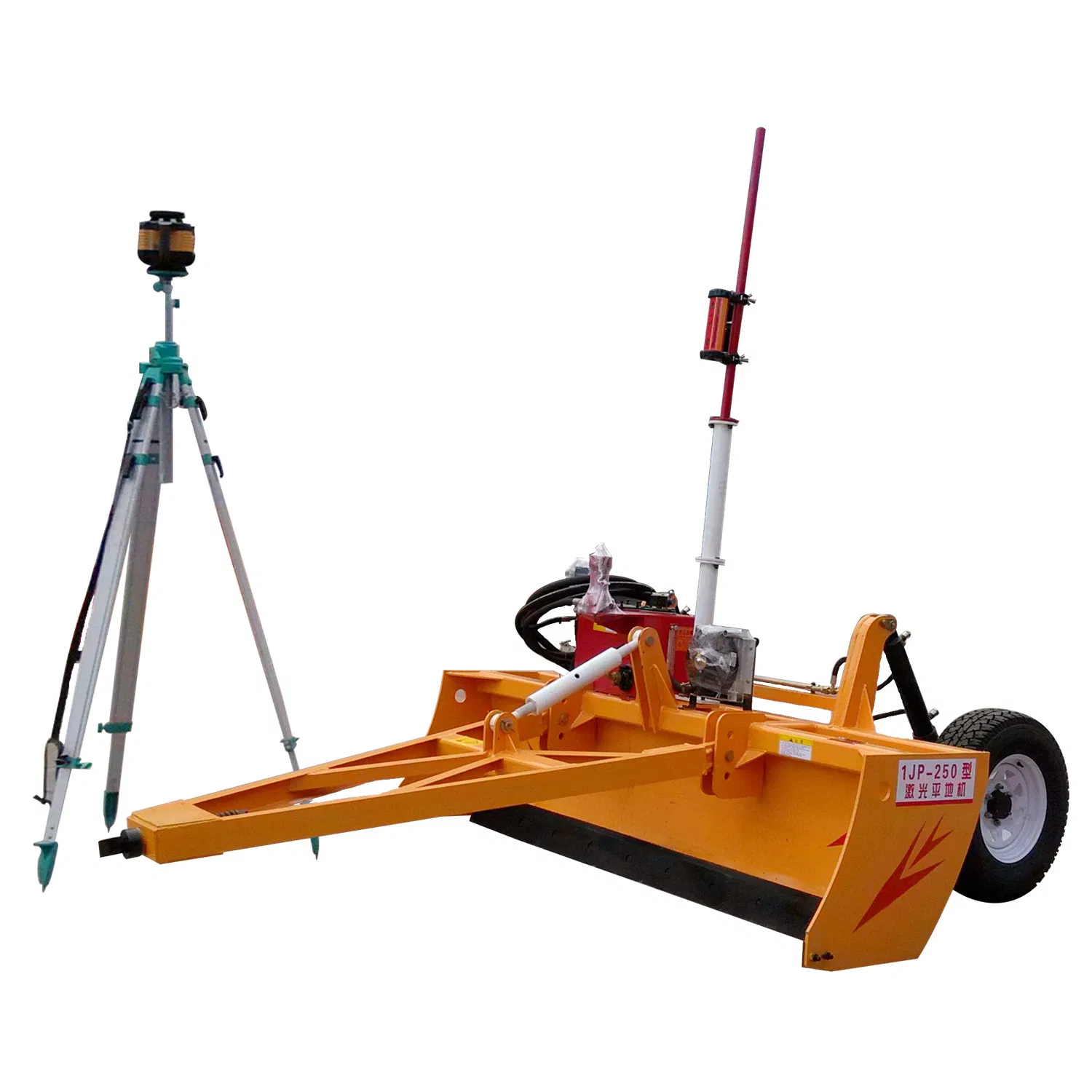

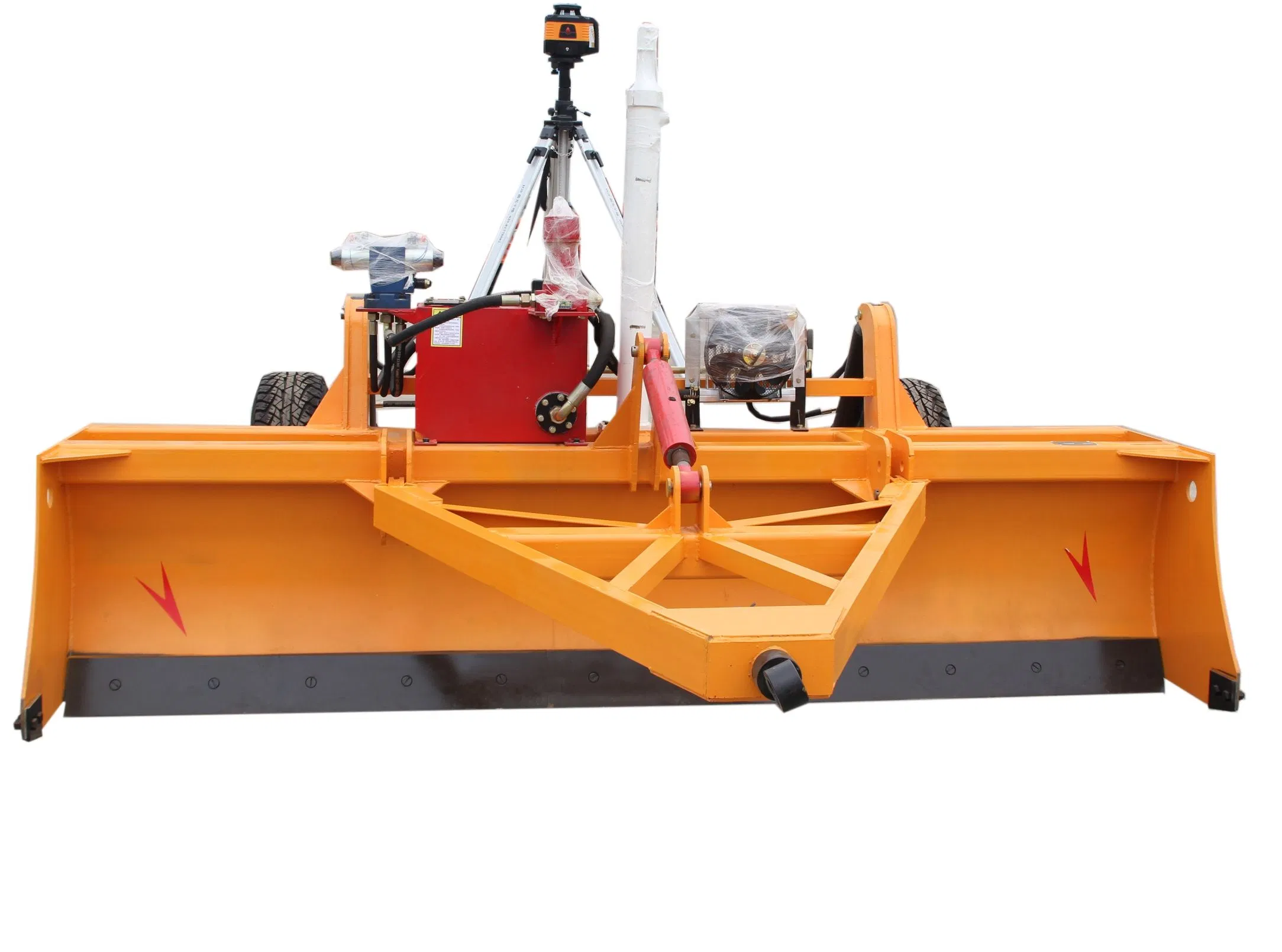

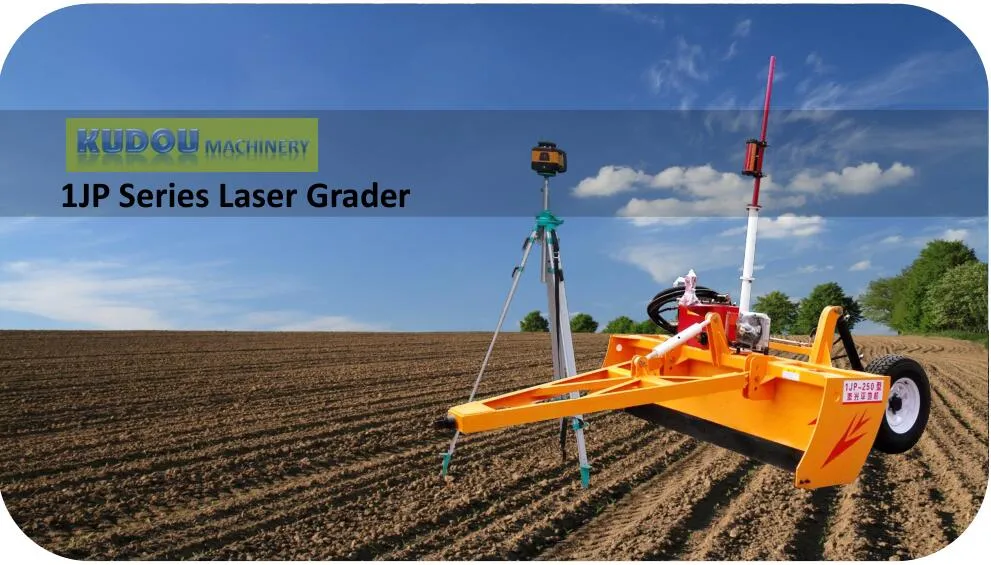

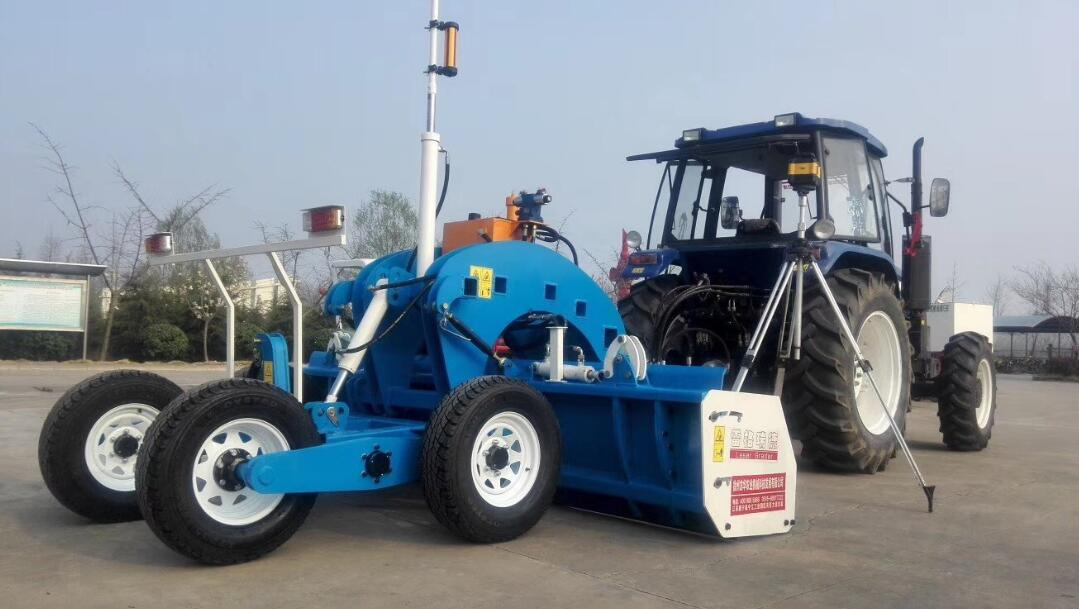

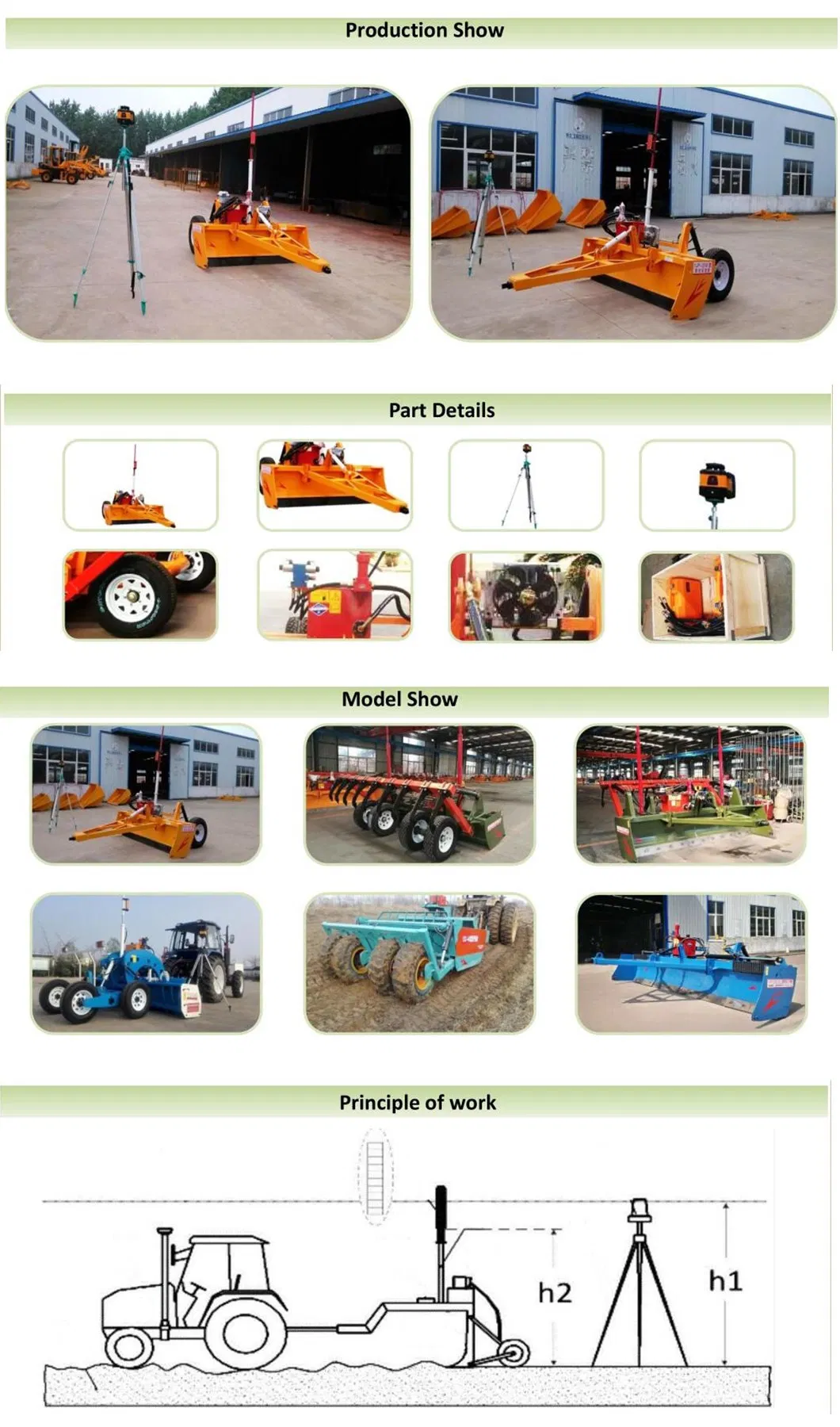

Agriculture Laser Grader/ Laser Land Leveling Machine/Laser Flat Ground Machine for Farm

Product Description

Agriculture Laser grader/ Laser Land Leveling Machine/Laser flat ground machine for farm

Agriculture Laser grader/ Laser Land Leveling Machine/Laser flat ground machine for farm has the following characteristics:

Save water, laser land leveling can make the ground flatness error reaches ±2cm, which than ordinary irrigation and can save 20% or more.

Save the land with the precision of laser technology plains, which can reduce water ridge area of 3% -5%, so that the land can be fully utilized.

Since the formation of land well, very uniform distribution of fertilizer, fertilizer loss less, so fertilizer use efficiency can be increased by 20%.

Reduce costs, the implementation of this technology can reduce the cost of crop production by

Model	Unit	1JP200	1JP250	1JP300	1JP350
Working width	mm	2000	2500	3000	3500
Matched power	KW	45-55	55-65	65-88	88-120
Efficiency	hm2/h	1.1-1.6	1.3-1.8	1.6-2.0	1.9-2.3
Working speed	Km/h	5-15
Working distance	mm	500
Max buried depth	mm	240
Ejector/acceptor		NEDO/YD
Receiving controller operating voltage	V	11-30DC
Automatic leveling angle	°	±5
Signal reception angle	°	360
Flatness	Mm/100m2	±15
Moldboard lift speed	mm/s	LIFT≥50, Down≥60
Cylinder settlement	mm/h	≤12
Working dip angle	°	10±2
Hydraulic oil pressure	Mpa	16±0.5
Wheel-base	mm	1590	1790	1990	2190
Wheel Type		235/85R16
Pressure	kPa	200-250
Structural style		Traction
Ambient temperature	ºC	5-40
Dimensions	(L)mm	3000	3000	3000	3000
	(W)mm	2050	2650	3050	3550
	(H)mm	3650	3650	3650	3650
Weight	kg	600	800	1000	1500
