36inch Heavy Duty Disc Harrow 4.9m Wide
Product DescriptionLishi 910 Extra-heavy-duty disc harrow Product descriptionLishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped w......
Send Inquiry
Product Description
Product Description
Lishi 910 Extra-heavy-duty disc harrow Product description
Lishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped with four sets of 10-15 tires for transport.The φ910*12mm heavy duty blade is used on this procuct for the first time in china,which makes the maxium working depth up to 30cm.This product is mainly used for land plowing and preparation before seeding and stubble cleaning after harvest in the sugar cane fields.
Product characteristics
Matching power:200-300 horsepower tractor,working width 3m-5m
It is used for stubble cleaning and land prepatation before seeding in higher stub lands such as sugar cane fields.
With the maximum working depth up to 30cm, it can replace the plough to perfrm the first cultivation on the light soil and cultivated land.
Two-row notched blades,with the diameter of 910mm, thickness of 12mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Technical parameter
Product show
Lishi 910 Extra-heavy-duty disc harrow Product description
Lishi910 extra-heavy-duty disc harrow is a new-type extra-heavy-duty wide disc harrow recently developed by our company.Its main body is made of high-strength alloy steel,with sturdy structure and good designing, equipped with four sets of 10-15 tires for transport.The φ910*12mm heavy duty blade is used on this procuct for the first time in china,which makes the maxium working depth up to 30cm.This product is mainly used for land plowing and preparation before seeding and stubble cleaning after harvest in the sugar cane fields.
Product characteristics
Matching power:200-300 horsepower tractor,working width 3m-5m
It is used for stubble cleaning and land prepatation before seeding in higher stub lands such as sugar cane fields.
With the maximum working depth up to 30cm, it can replace the plough to perfrm the first cultivation on the light soil and cultivated land.
Two-row notched blades,with the diameter of 910mm, thickness of 12mm
High-strength steel with sturdy structure.
Double-row tapered roller bearing with four seals utilizedmakes the service life 4-5times longer than that of the ordinary agricultural bearings.
Technical parameter
Item | unit | |||
| Mode | 910-3.0 | 910-4.0 | 910-5.0 | |
| Disc No. | pcs | 12 | 16 | 20 |
| Working wideth | mm | 3000 | 4000 | 4900 |
| Space | mm | 495 | 495 | 495 |
Disc Size | mm | 36''χ12 | 36''χ12 | 36''χ12 |
Approx. net wetgth | kg | 4760 | 5660 | 6750 |
| Matched power | hp | 185-240 | 240-280 | >300 |

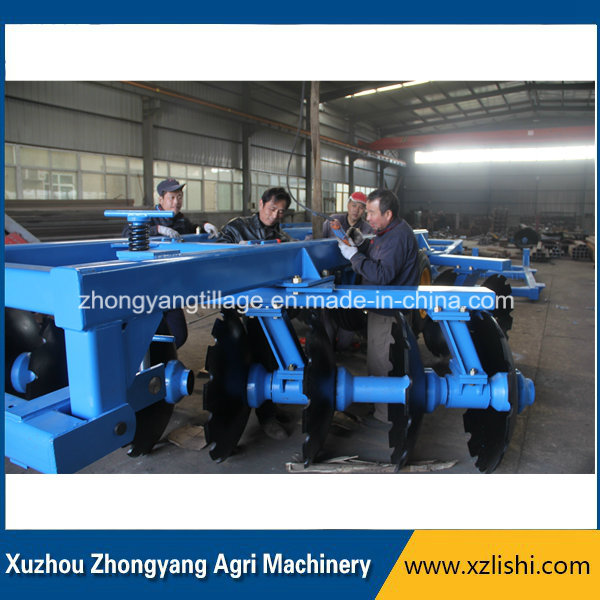

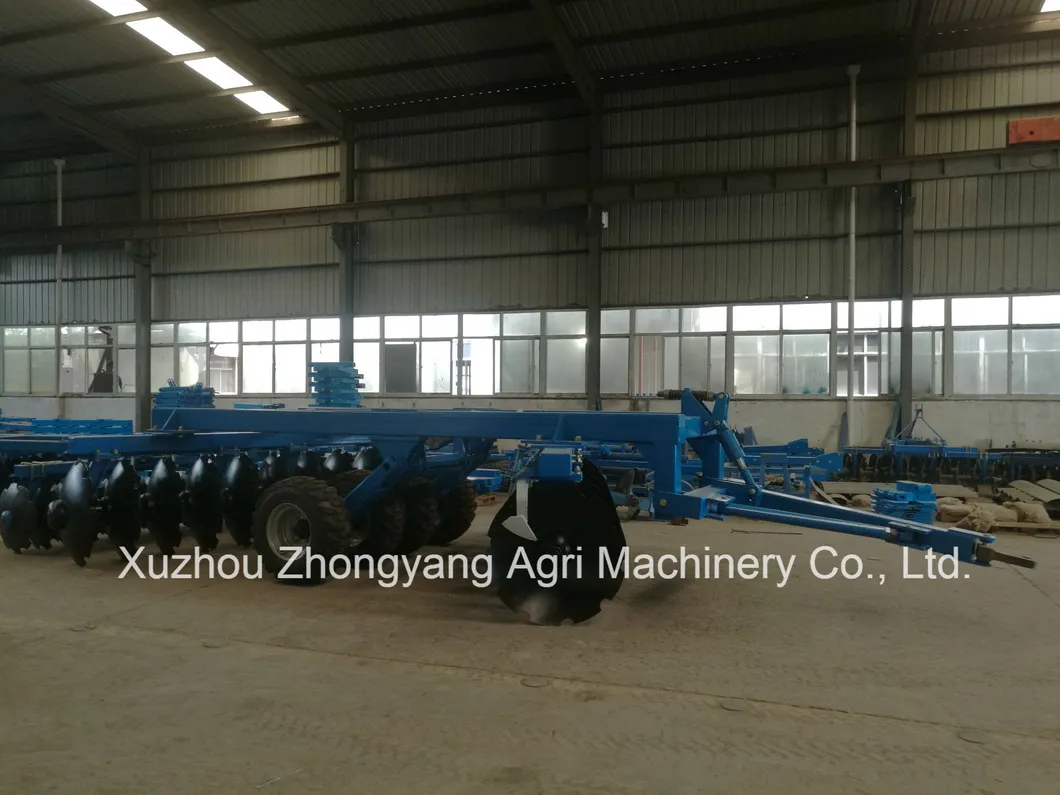

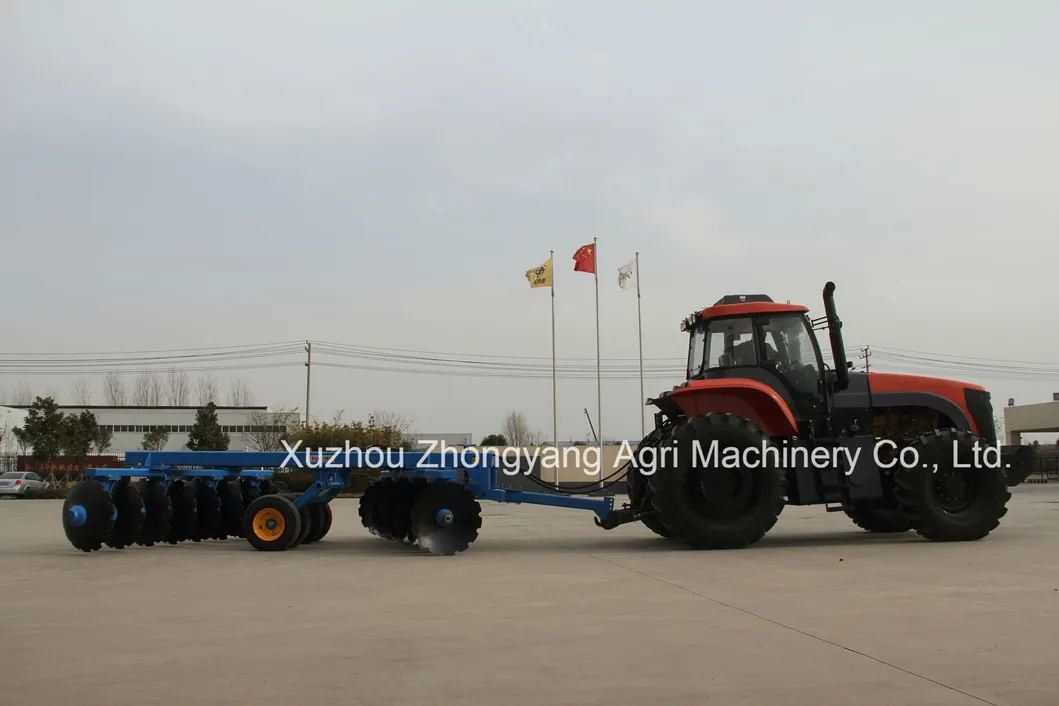

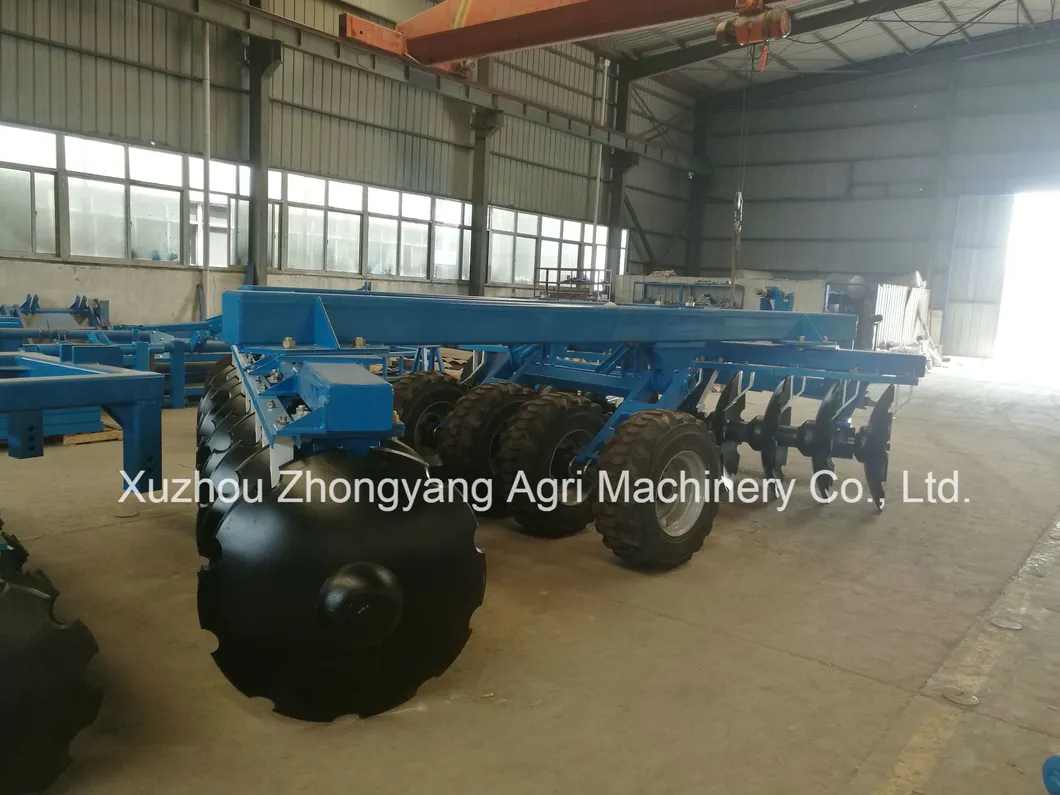

Product show
