Pipe Straightening Machine's Pipe Straightening Principle

The pipe straightening machine is an essential piece of equipment used in industrial applications to correct the deformation of pipes, ensuring they meet quality and design standards. The primary principle behind pipe straightening lies in applying mechanical force to eliminate the bending or warping that occurs during production, storage, or transport.

Mechanics of Pipe Straightening:

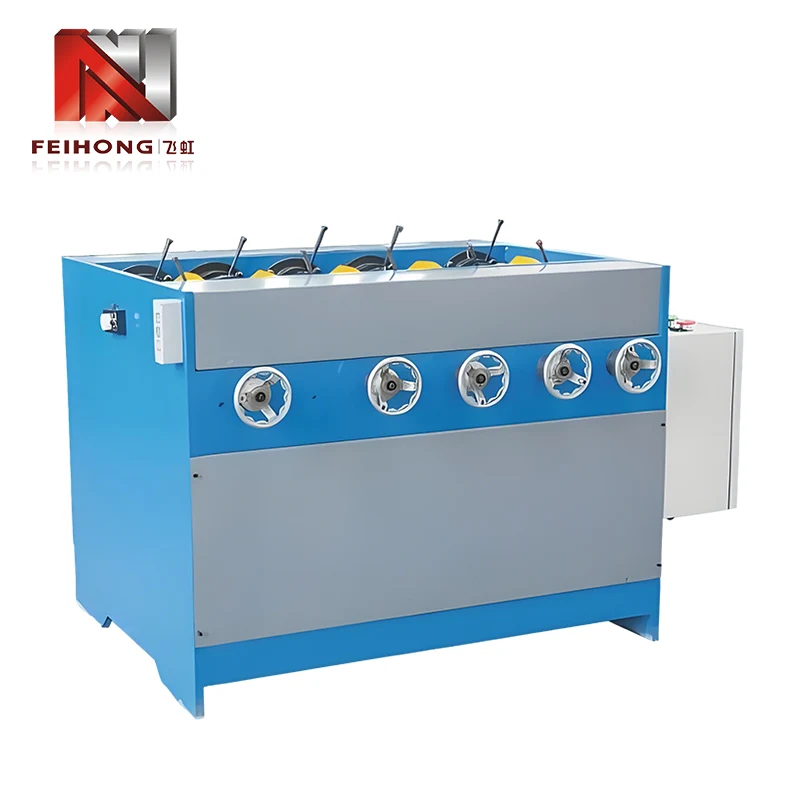

The process starts with the pipe being fed into the machine, where it is passed through a set of rollers or wheels arranged in a specific configuration. These rollers apply controlled pressure to specific points along the pipe. The machine typically consists of several sets of straightening rollers, each set progressively applying force at different angles to gradually straighten the pipe.

Radial and Axial Forces:

Straightening is achieved through a combination of radial and axial forces. Radial forces work by pushing against the pipe's external surface, while axial forces are applied along the pipe's length. By carefully adjusting the pressure and angles, the machine compensates for both local and overall distortions in the pipe's shape, gradually returning it to a straight form.

Control Systems:

Modern straightening machines are equipped with digital control systems that ensure precise adjustments during the process. The machine can be calibrated based on the pipe's material, thickness, and degree of deformation, allowing it to deliver uniform straightening results without causing further damage.

In summary, the pipe straightening machine’s principle is rooted in the mechanical application of force through rollers, which progressively corrects the deformation by combining radial and axial pressures. This ensures that the pipes achieve the necessary straightness for further processing or use in various industrial applications.
