Israel Agrologic Controlled Broiler House Poultry Shed Farm Equipment
Good Service for Project1. Chicken Equipment: produce and supply first-class Quality poultry equipment with Good Price;2. Poultry Farm: select location, design and construction preparation guidance;3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment......
Send Inquiry
Product Description
1. Chicken Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Poultry Farm: select location, design and construction preparation guidance;

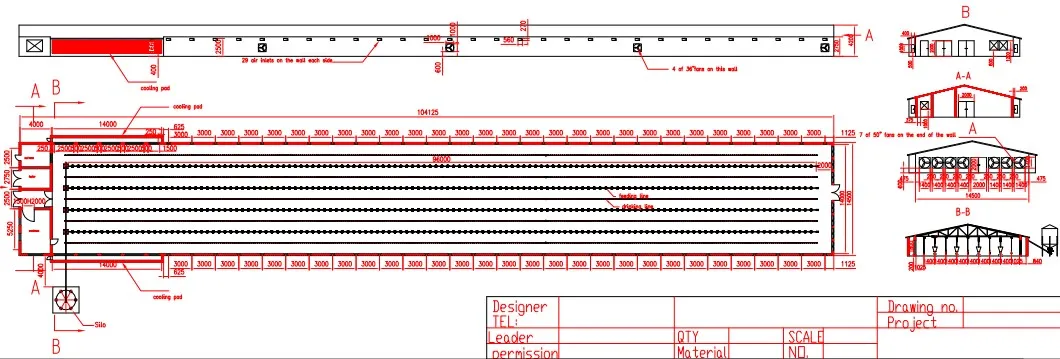

3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipment and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.

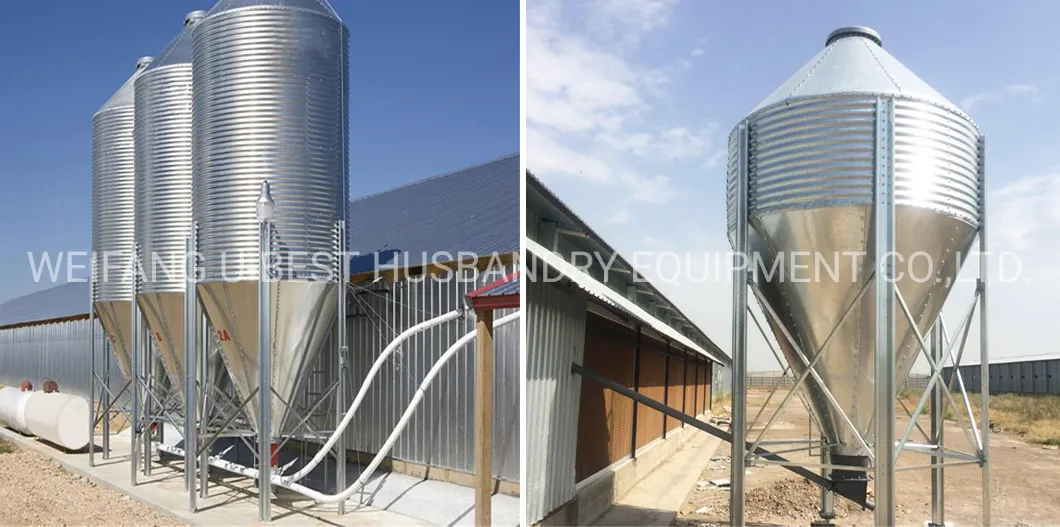

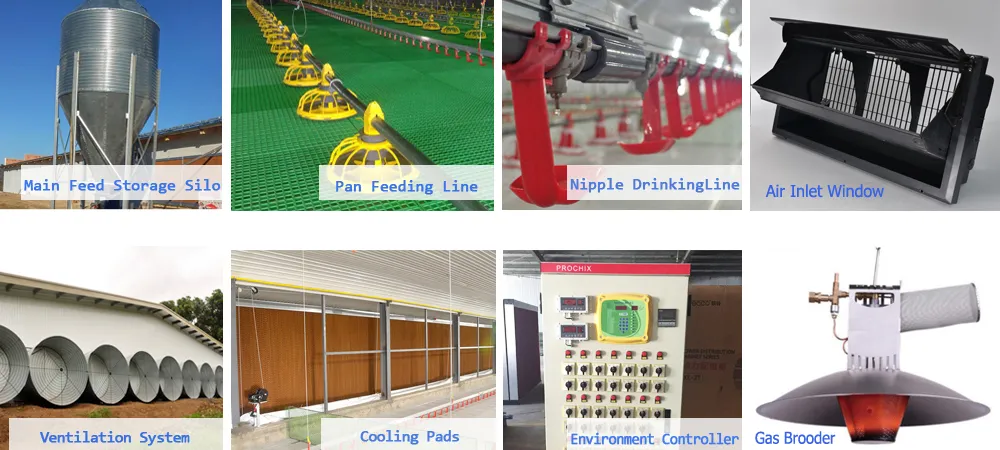

1. Main feed line system (Silo or Manpower Hopper)
By this system, chicken feed can be conveyed from the silo or manpower hopper into each feeding line in your chicken farms.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.
Feeding capacity: 1400KG / h, Maximum feeding length:60m.
Radius of bending pipe: R1500 (inclinable angle: 30 degrees).
Main feed line auger: Import from South Africa
Feed level Sensor: Import form Germany IFM.

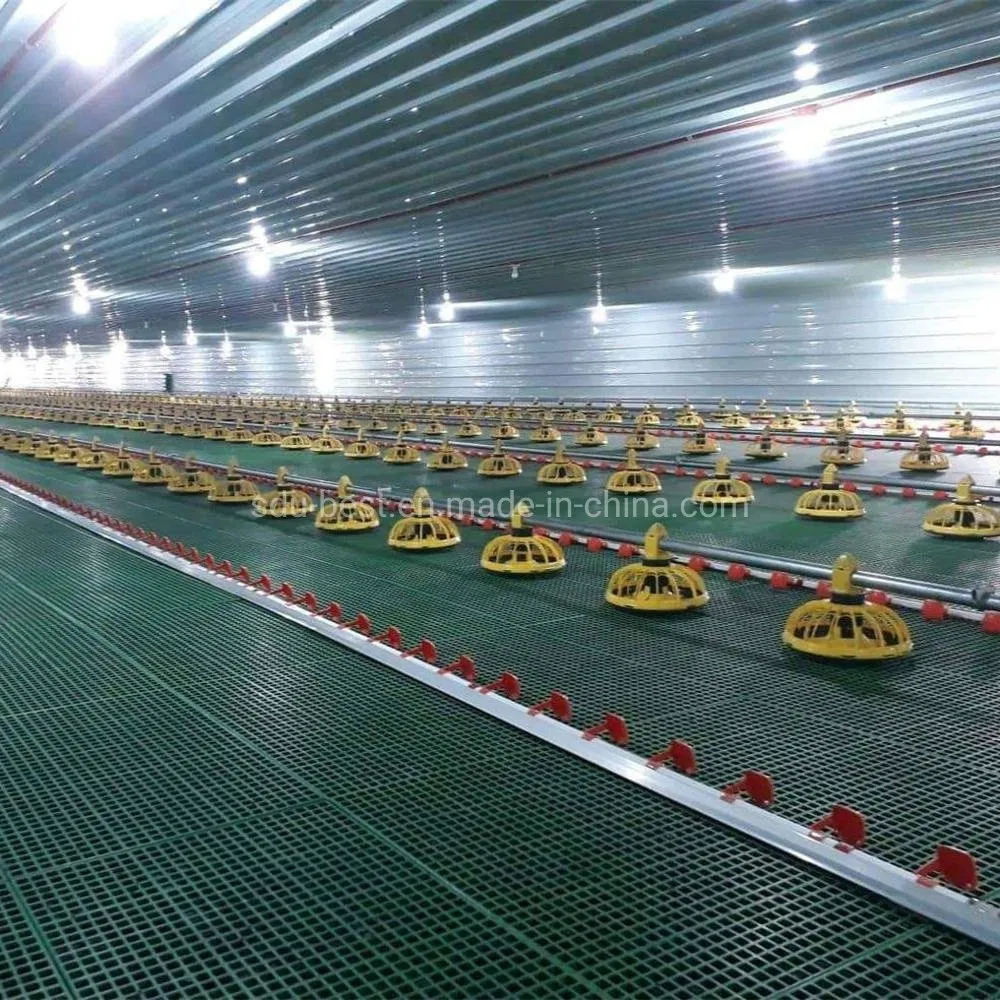

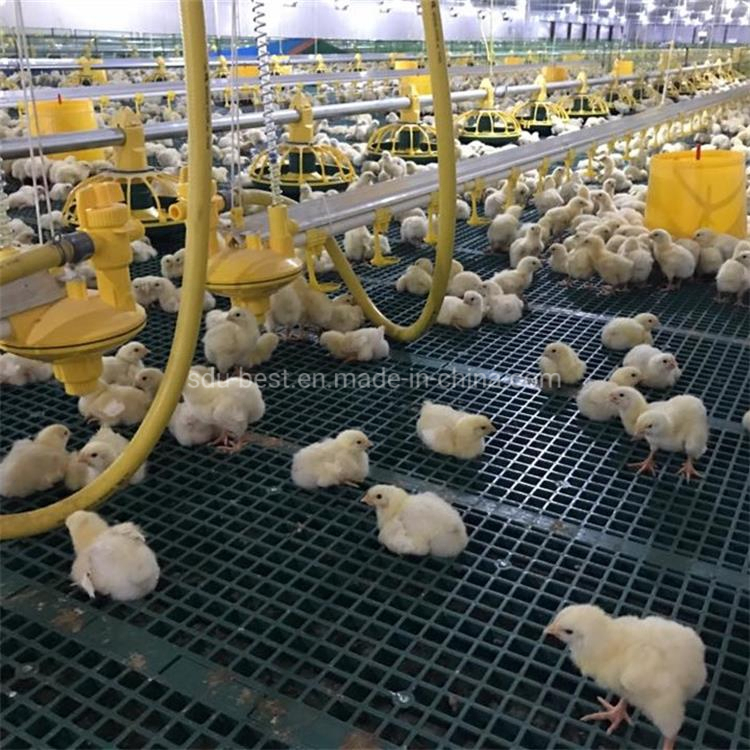

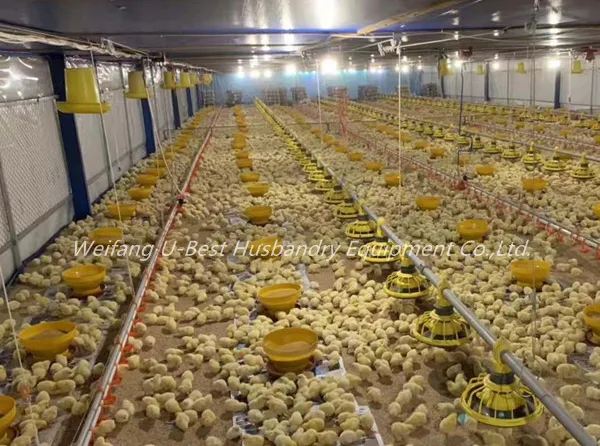

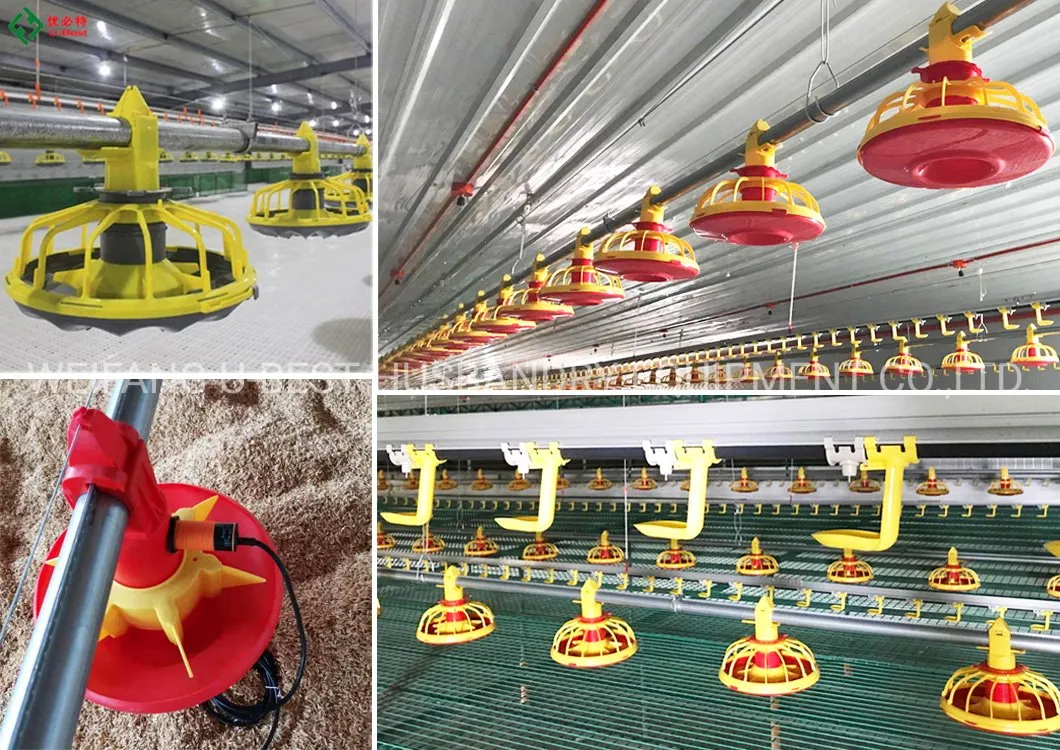

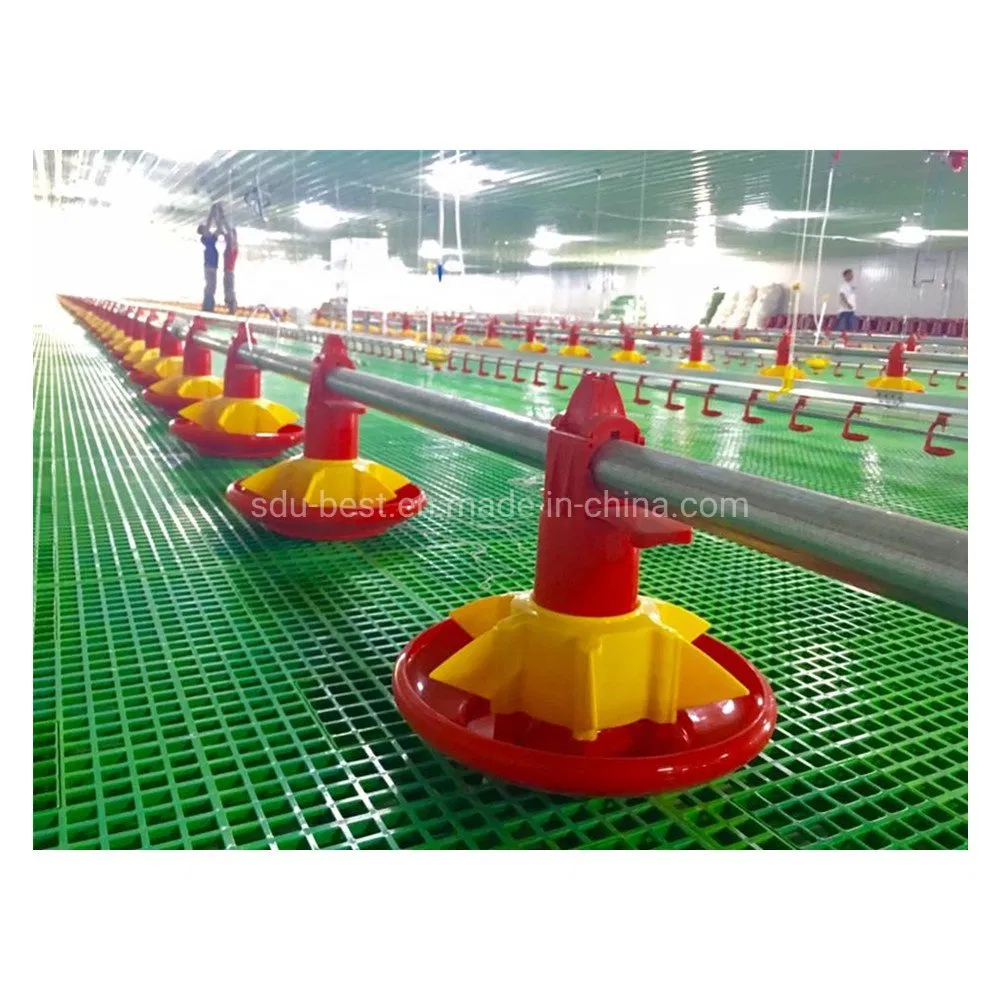

2. Pan feed line system
Convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve automatic feeding.
Pan feed system consists of:
Special driving reduction motor, V-shape hopper, Feed pipe with South Africa Auger,
Suspension lifting device, Anti-perching device, Germany IFM Feed Sensor.

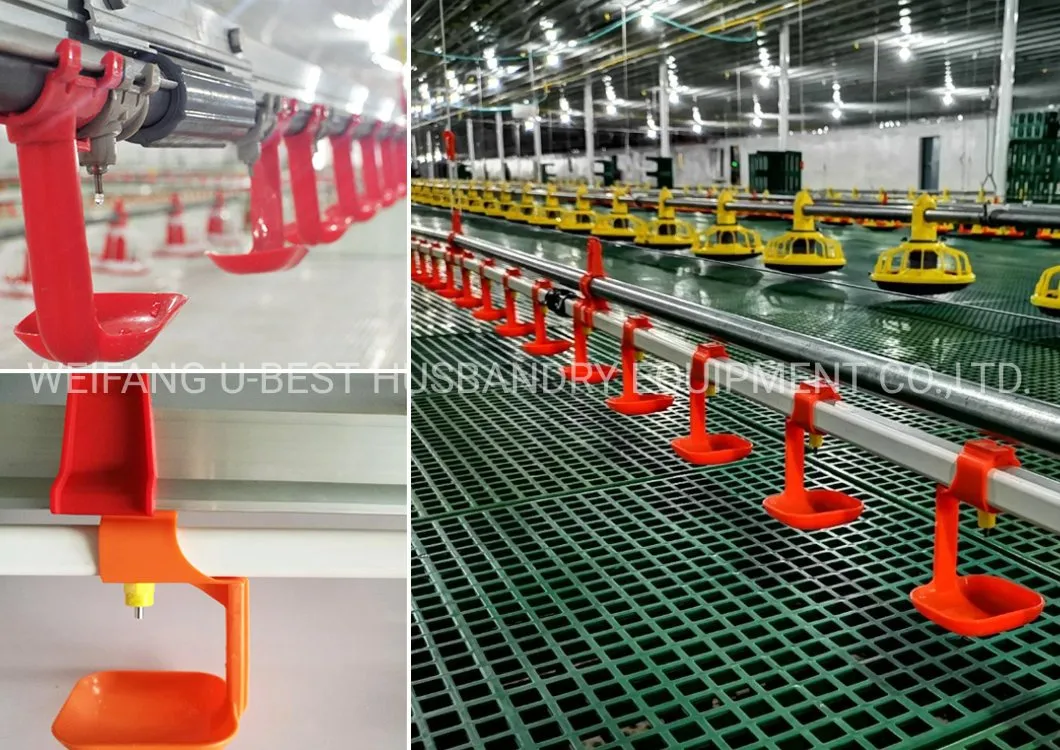

3. Nipple drinking line system
Provide clean and fresh water to broiler chicken steadily, the water will be out when birds touch nipples.
Our nipple's rod can be movable in 360 degrees, easy to drink.
We have many types of nipple drinking system inlcuding:
Plasson type drinking system,
Lubing type drinking system,
Big Herdsman type nippledrinking system.

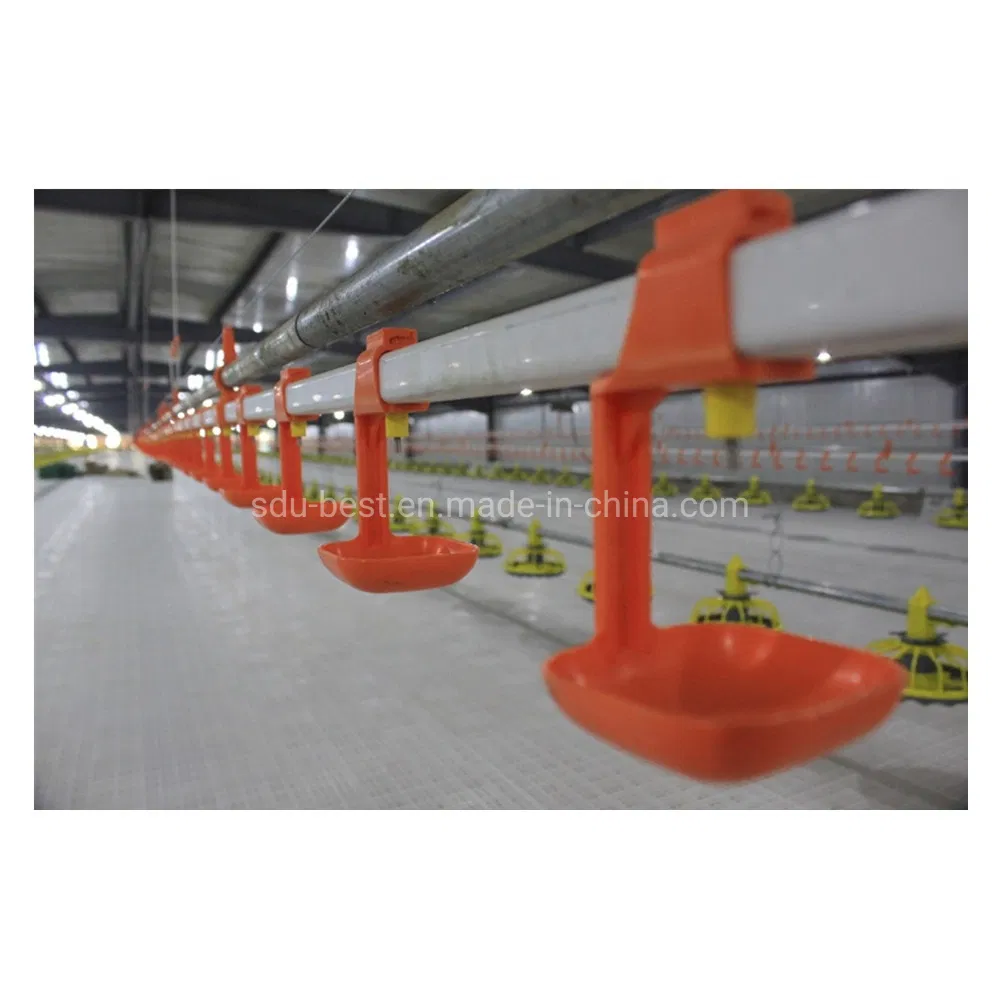

This system will deliver water to each drip cup steady.

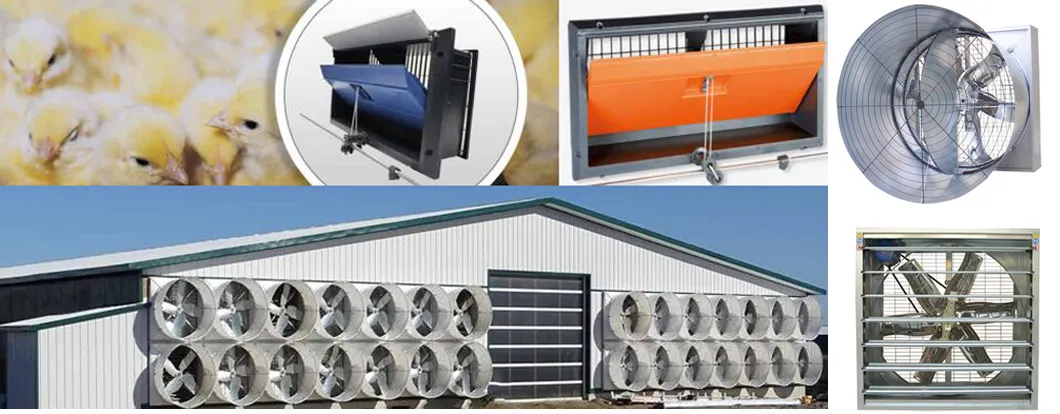

4. Automatic Ventilation System
This system Controls climate conditions, fresh air, humidity and temperature in poultry shed.
It is vital for growing birds. Including air inlets and ventilation fan.
Galvanized Steel Fan/Fiberglass Cone Fan for Your Choice
| Model | Blade Diameter (mm) | Air Flow (M3/h) | Power (W) | Size (mm) | Voltage |
| UBT-1000 | 910 | 21000 | 550 | 1000x1000x450 | 380V, 50Hz |
| UBT-1380 | 1250 | 44000 | 1100 | 1380x1380x450 | 380V, 50Hz |

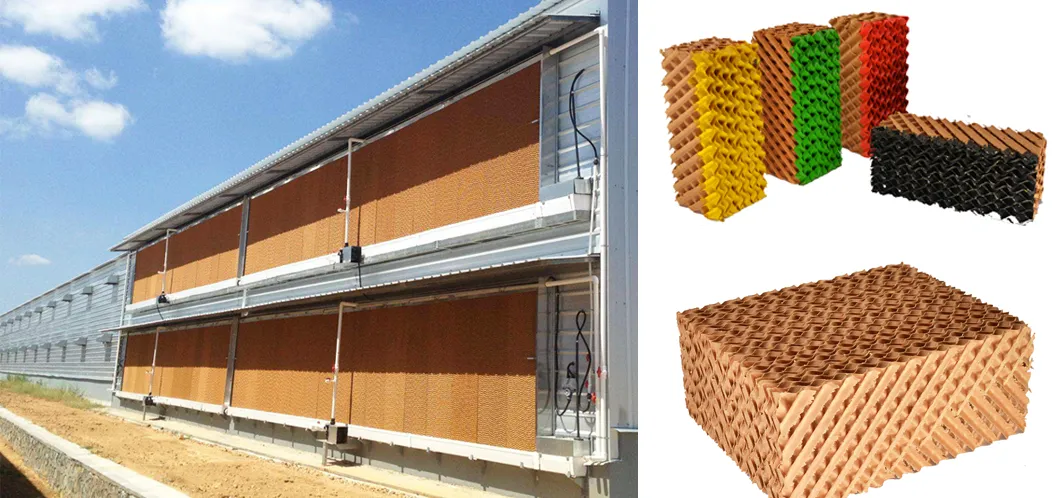

5. Cooling pads
The longitudinal way of cooling-fan ventilation is the most economical and effective way to reduce temperature of chicken house in summer.
Advantages: Hygroscopicity, Dry solution, Non-porous surfaces.
Color: Brown, black, yellow, green, red, etc
Thickness: 100mm, 150mm Height: 1660mm, 1960mm, 2160mm (with frame)
Aluminium frame: high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical.

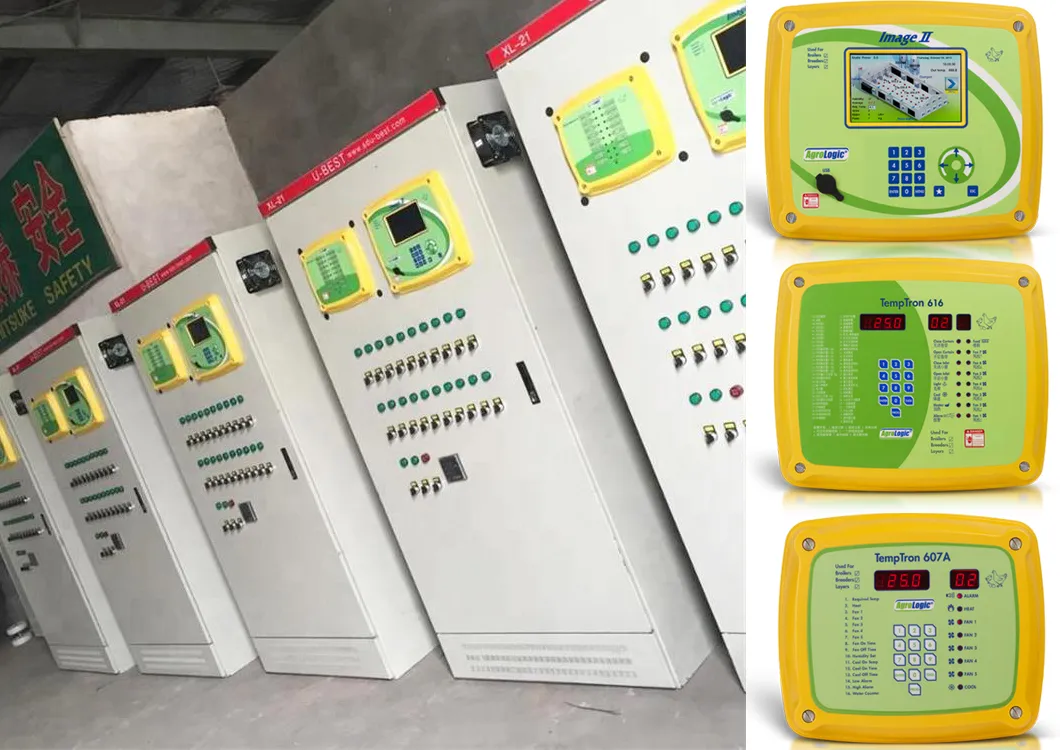

6. Environment control system
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens.
Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.
The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.

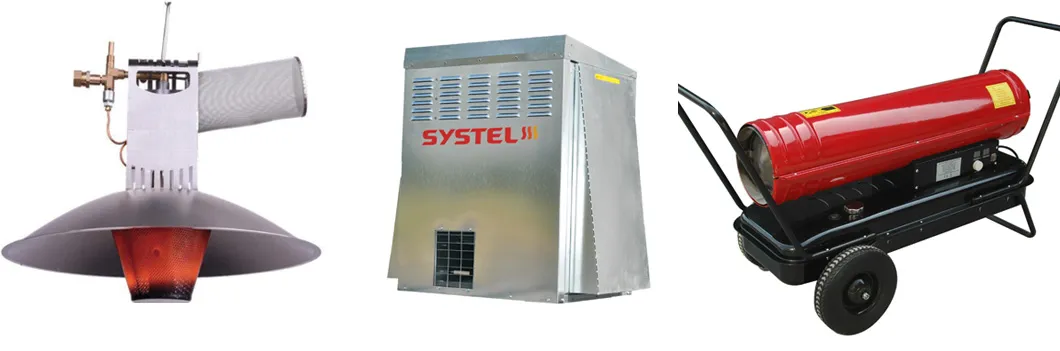

7.Heating system (Heaters)
Function: Warm poultry shed to satisfy the temperature demand of baby chicks or whole chicken house.
Optional heaters
1). Poultry infrared gas brooder
2). Poultry gas space heater
3). Poultry Tank-Heater with fuel of diesel.
1. Q: I need a complete set chicken farm and also need a best price, what should I do?
A: pls let us know:
1) Chicken Poultry Farm Size (length x width x height).
2) If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
3) If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
4) Maximum and Minimum Temperature of Farm Location.
5) House Type: Close type of two side bricks building wall with 36" fans and air inlets,
or Open type of using curtain in two sides.
2. Q: What's the material of feeding pan and feeding pipe?
A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.
3. Q: How long is the life of your products?
A: more than 15 Years.

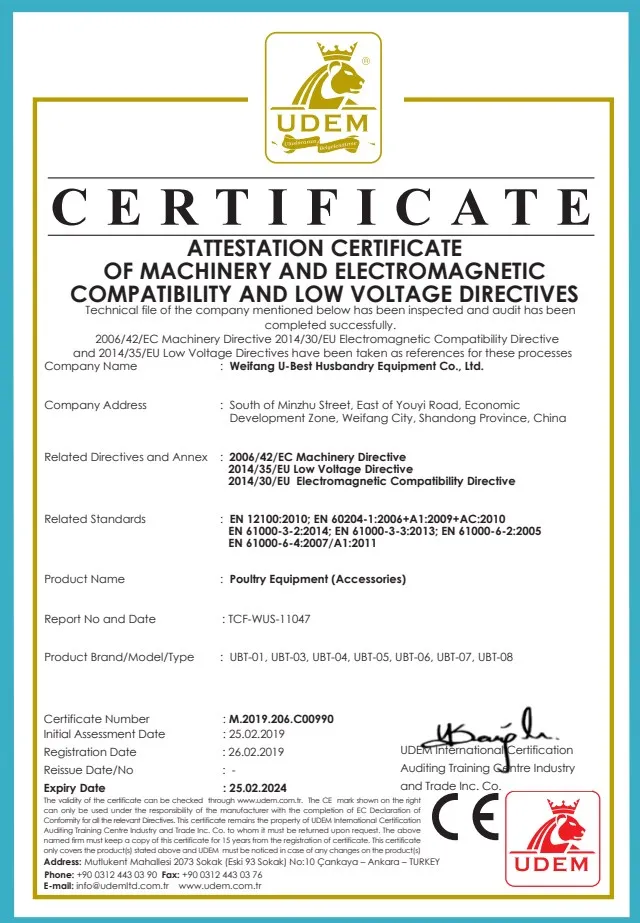

4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.
5. Q: Sample available?
A: Yes. but the client pay for the freight fee.
