Product Description
AUTOMATIC BROILER FEEDING SYSTEM
Suitable for broilers requirement during any period
A .This feeding system deliver feed through auger, including main feed line and feed line.
B.Main feed line: deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control drive motor on and off to realize automatic delivery feed
C. Advantage: Reduce labour intensity. One person is enough for one house.
D.Feed line: This system can deliver feed automatically by feed sensor at the end of feed line to control drive motor on-off.
Automatic pan feeding system consists of driving motor, hopper, delivery pipe, auger ,feed pan , hanging and lifting device , anti-roost system , and fee sensor .

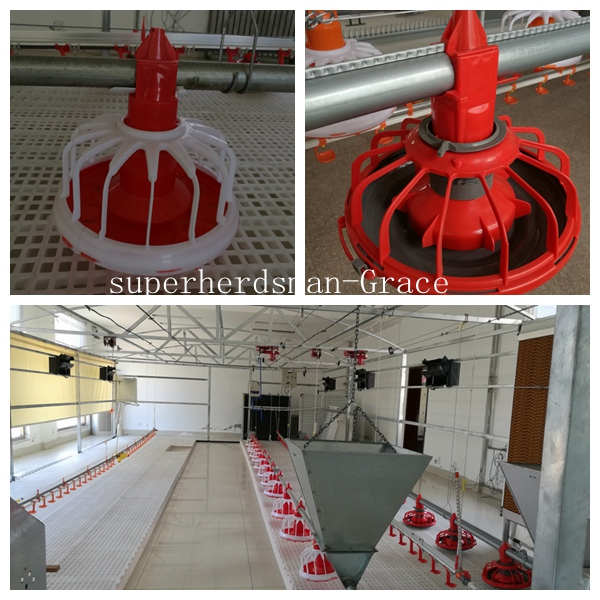

Automatic Pan feeding system

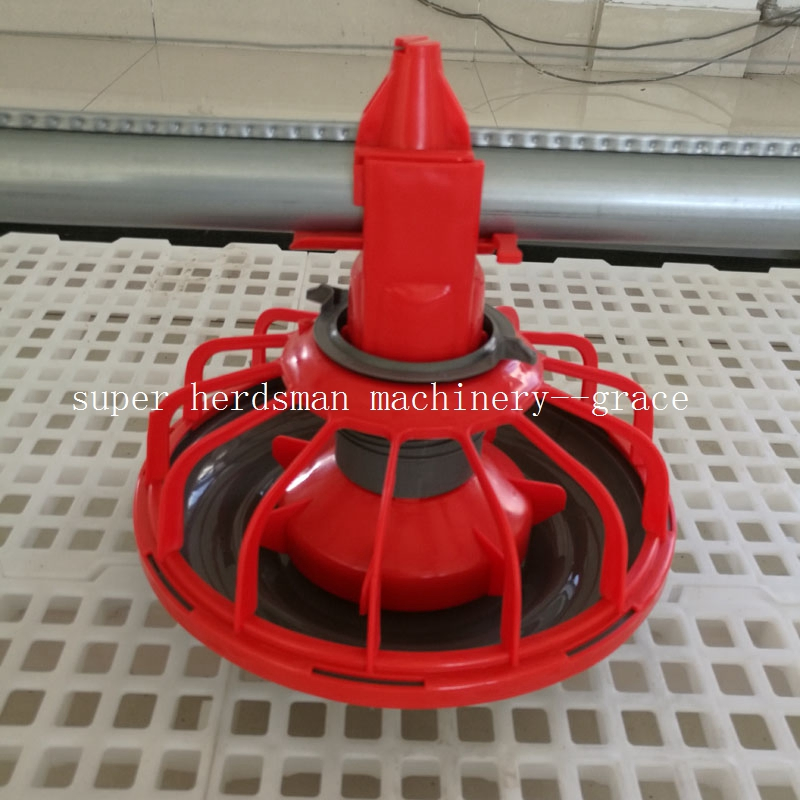

Feed pan feature
1.Slide shutter-off can adjust feed amount from the complete open to complete close .
2. Pan plate can be disassembled on the ground working as chick feed pan for 0-7 days old chicken .
3. V-shaped pan plate can reduce feed storage at pan bottom . Bird can have fresh feed every day . this design can also prevent bird form staying on the plate too long.
4. There are 14 grills , pan feed capacity is 40-55birds/pan .
5. There are 6 grades to adjust feed level and it is only need to rotate the cylinder to adjust feed level.
6. Edge of pan plate tilt towards the center which can avoid the waste of feed.
Feed pan feature
Material : polypropylene material , Anti-UV, and Anti-corrosion as well as Oxidation resistance
Size : 330*330mm
V.Certification :
1. Iso 9001 quality control system .
2. Steel Structure Construction Qualification Certificate Grade II.
VI. About us
1. Professional steel structure manufacturer since 2003.
2. Professional poultry equipment manufacturer since 2009
3. 2, 0000 sqare meters workshop for steel structure
Qingdao Hapy Poultry & Livestock Farm Construction Co., Ltd. , is the professional poultry farm equipment manufacturer with more than 10 years experience in poultry&livestock product development, project designing, installation, the poultry equipment have been sold under the brand "superherdsman" in more than 30 countries .
Warranty
1. all the plastic products such as the feed pan ,water drip cup , clips ,water pipes and air inlet and so on all are made of Virgn PP .
the warranty time is 15 years
2. nipple: never leak , warranty time 15 years
3. the accessories such as the bolts and nuts and pulley , steel rope clips are made of stainless steel
4. motor : from Italy Transtechno.
5. Auger: from South Africa
6. Feed sensor : From Germany
Common FAQ for our poultry equipment quotation
1. What information you are supposed to provide to get a good price?
a. Chicken farm size (Length*width*height);
b. Quantity of chickens in one farm;
c. Weight of chickens when they're for sale in market;
d. Chicken farm location and local climate condition (temperature, humidity...);
2. payment details:
we can accept T.T ,30% Down payment and the balance Paid by T/T OR L/C before Shipment
3. Delivery time :
20days after deposite
4. what service we can offer :
Suitable for broilers requirement during any period
A .This feeding system deliver feed through auger, including main feed line and feed line.
B.Main feed line: deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control drive motor on and off to realize automatic delivery feed
C. Advantage: Reduce labour intensity. One person is enough for one house.
D.Feed line: This system can deliver feed automatically by feed sensor at the end of feed line to control drive motor on-off.
Automatic pan feeding system consists of driving motor, hopper, delivery pipe, auger ,feed pan , hanging and lifting device , anti-roost system , and fee sensor .
| Hopper |
|
| Driving motor |
|
| Delivery pipe | a. Diameter of pipe: 45mm b. Material: hot-dip galvanized steel |
| Auger | a. Imported from south Africa Feeding ability:450kg/h b. Maximum conveying length:140m |
| Feed pan | a. Material : PP Diameter:360mm×360mm b. Pan distance: 4 pans/3 meters, 3 pans/3 meters |
| Hanging and lifting device | Driven by winch to adjust the height of the whole feeding line through pushing or pulling the steel wire according to the chicken day's age. |
| Anti-roost system | prevents birds staying on the feeding line for too long. |
| Feed senor | Imported from Germany; time delay range 0 to 2 hours. |

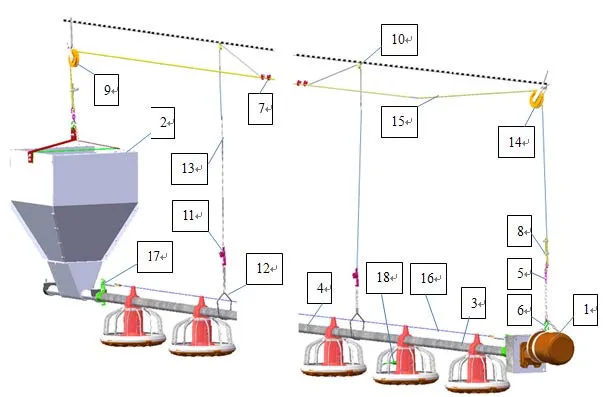

Automatic Pan feeding system
| 1.Driving motor | 2.Sub hopper | 3.The end of Delivery pipe | 4. Delivery pipe |
| 5.Hot galvanized chain | 6.S hook | 7.Φ5 Steel rope cramp | 8.Φ5steel rope cramp |
| 9.105 pulley | 10. 45 pulley | 11.Rope adjuster | 12.Lifting hook for delivery pipe |
| 13.Φ1.5 steel rope | 14. 90 pulley | 15. Φ5 steel rope | 16. Ф1.5 steel rope |
| 17. End clamp |

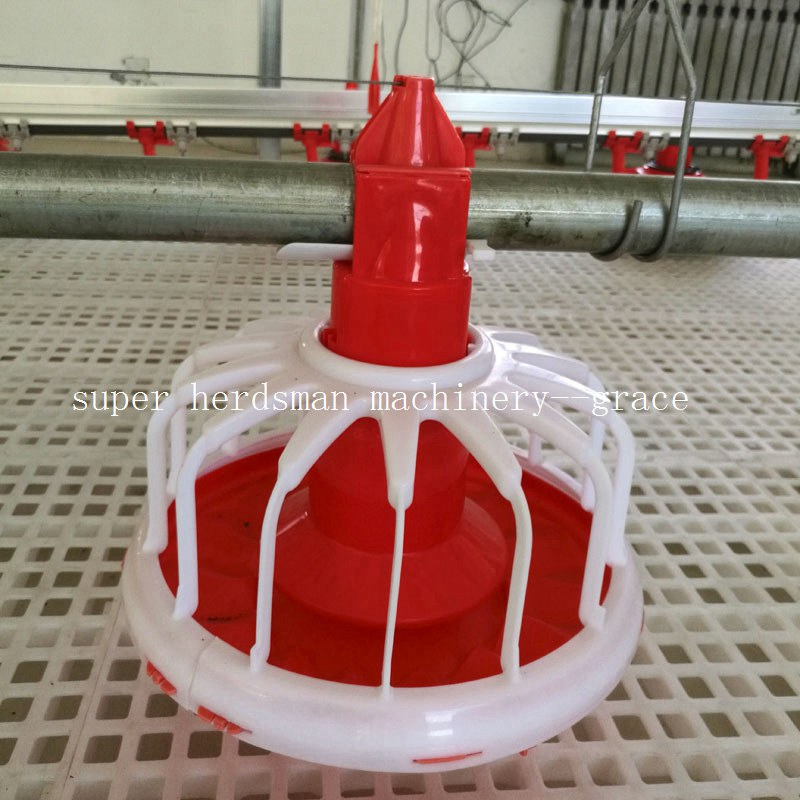

Feed pan feature
1.Slide shutter-off can adjust feed amount from the complete open to complete close .
2. Pan plate can be disassembled on the ground working as chick feed pan for 0-7 days old chicken .
3. V-shaped pan plate can reduce feed storage at pan bottom . Bird can have fresh feed every day . this design can also prevent bird form staying on the plate too long.
4. There are 14 grills , pan feed capacity is 40-55birds/pan .
5. There are 6 grades to adjust feed level and it is only need to rotate the cylinder to adjust feed level.
6. Edge of pan plate tilt towards the center which can avoid the waste of feed.
Feed pan feature
Material : polypropylene material , Anti-UV, and Anti-corrosion as well as Oxidation resistance
Size : 330*330mm
| Details of broiler feeding pan | ||
| No. of grilles per pan | 14 | |
| No. of birds per pan could feed | 40-55 | |
| Distance per grille | 70mm | |
| Density of broiler | 13-18 birds/M2 | |
| Dimension | 330mm×330mm |
V.Certification :
1. Iso 9001 quality control system .
2. Steel Structure Construction Qualification Certificate Grade II.

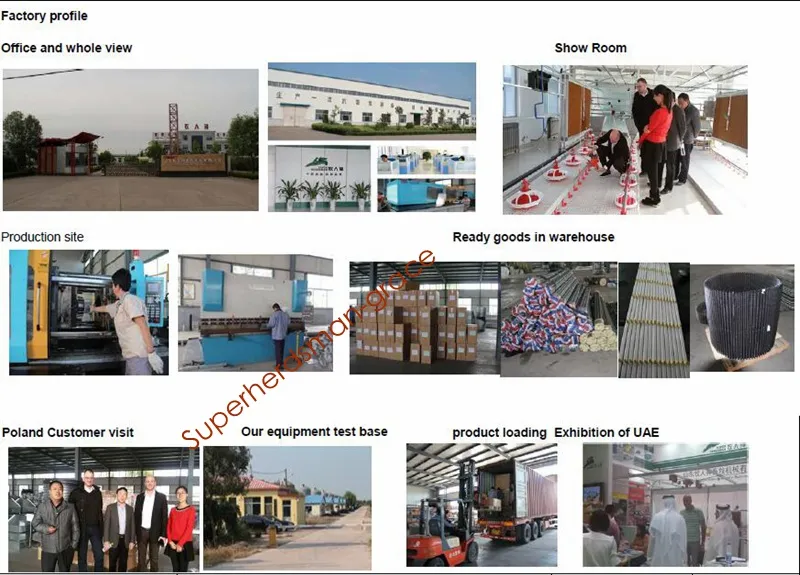

VI. About us
1. Professional steel structure manufacturer since 2003.
2. Professional poultry equipment manufacturer since 2009
3. 2, 0000 sqare meters workshop for steel structure
Qingdao Hapy Poultry & Livestock Farm Construction Co., Ltd. , is the professional poultry farm equipment manufacturer with more than 10 years experience in poultry&livestock product development, project designing, installation, the poultry equipment have been sold under the brand "superherdsman" in more than 30 countries .
Warranty
1. all the plastic products such as the feed pan ,water drip cup , clips ,water pipes and air inlet and so on all are made of Virgn PP .
the warranty time is 15 years
2. nipple: never leak , warranty time 15 years
3. the accessories such as the bolts and nuts and pulley , steel rope clips are made of stainless steel
4. motor : from Italy Transtechno.
5. Auger: from South Africa
6. Feed sensor : From Germany
Common FAQ for our poultry equipment quotation
1. What information you are supposed to provide to get a good price?
a. Chicken farm size (Length*width*height);
b. Quantity of chickens in one farm;
c. Weight of chickens when they're for sale in market;
d. Chicken farm location and local climate condition (temperature, humidity...);
2. payment details:
we can accept T.T ,30% Down payment and the balance Paid by T/T OR L/C before Shipment
3. Delivery time :
20days after deposite
4. what service we can offer :
- Poultry house design and construction
- Equipemnt production and installation on site
- Offer Turn-key farm project construction
