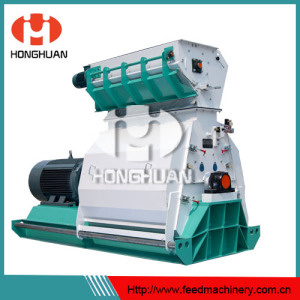

Widen Feed Hammer Mill (HHSP60)
Product DescriptionFeature:1. Widen chamber enlarges screen area, when granularity is less 1.5mm, the capacity is higher than normal one.2. Special frequency impeller feeder can ensure steady running.3. W......
Send Inquiry
Product Description
Product Description
Feature:
1. Widen chamber enlarges screen area, when granularity is less 1.5mm, the capacity is higher than normal one.
2. Special frequency impeller feeder can ensure steady running.
3. With impact structure, lower power consumption and high capacity.
4. It is widely used in producing high-grade poultry feed, aqua feed, and porket feed.
Technical Parameter
Model | HHFSP60×38 | HHFSP60×45 | HHFSP60×60 | HHFSP60×75 |
| Rotor Dia(mm) | 600 | 600 | 600 | 600 |
| Rotate Speed(r/min) | 2970 | 2970 | 2970 | 2970 |
| Chamber Width(mm) | 380 | 450 | 600 | 750 |
| Number of Hammers | 96 | 96 | 112 | 112 |
| Power(kw) | 30/37 | 45/55 | 55/75/90 | 90/110 |
| Capacity | 1-5 | 1.2-10 | 1.5-15 | 2-20 |
