CE Approved Industrial Use Chicken Feed Mills

1. SZLH series CE Approved Industrial Use Chicken Feed Mills For Sale :

Widely applied product with mature technology .
The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.

Raw Materials( all kinds of grains) :

Animal Feed Pellet Mill With Ring Die Pick-up Device and oil cooling device

2. CE Approved Industrial Use Chicken Feed MillsTechnical Parameter:

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Roller outer diameter	140mm	165mm	190mm	206mm	/
Dimension	230010002100 mm	320011001700 mm	320013001900 mm	350013002800 mm	350015002900mm

Pellets  diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate:    ≥95%
Pellets stability in water:    ≥20Min
Noise:    ≤86dB(A)    ≤90dB(A)
Roller working temperature:    ≤85ºC
Steam working pressure:    0.1-0.4Mpa
Steam temperature:    130-150ºC

3. CE Approved Industrial Use Chicken Feed Mills Photos:

Inner Parts Photos:

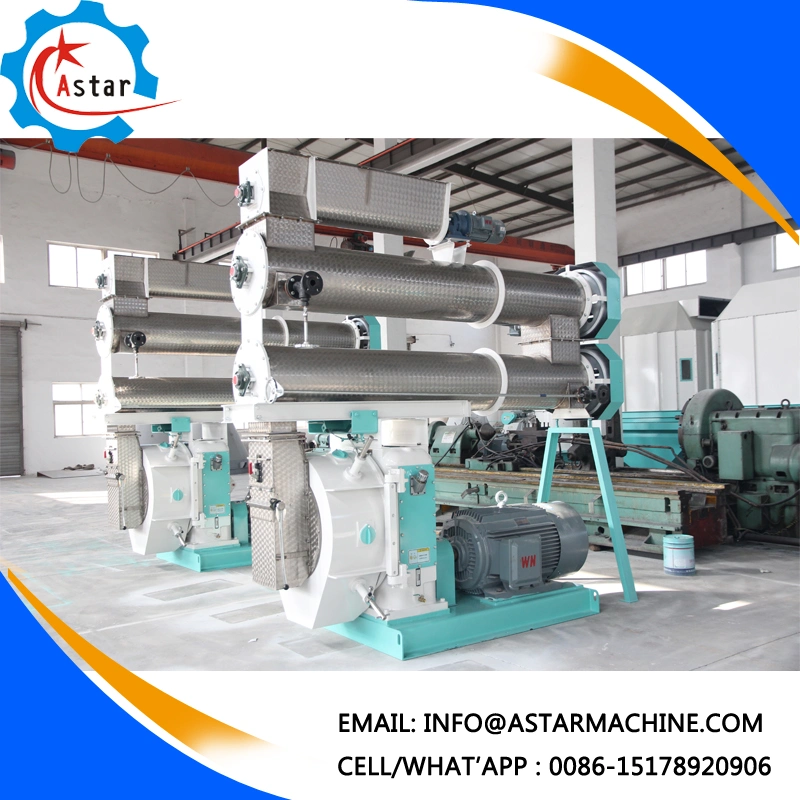

Machine In Workshop :

More Details of Animal Feed Pellet Mill:

Final Feed Photos:

Any more information you need CE Approved Industrial Use Chicken Feed Mills, please feel free to contact with us.
