Product Description

Multifunctional Biomass Wood Hammer Mill, Feed Hammer Crushing Machine

9fq Wheat Straw Hammer Mill Crusher for Wood Chips Corn Grain

Introduction:

The 9FQ series hammer mill are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the particle size. If the size is larger than screen, the bigger particles will be sent back to be grinded again until they can get though the screen.

Our 9FQ series hammer mill crusher is the special milling equipment for materials of < 50 mm (diameter),< 300 mm (length), such as tree trimmings, wood pieces, crop stalks, rice husk, cotton stalk, cottonseed skins and so on. This hammer mill contains some rotors which are mounted by many hammers.

The size of the grinded material depends on the size of screen and the rotation speed.

Specification of Feed Hammer Mill:

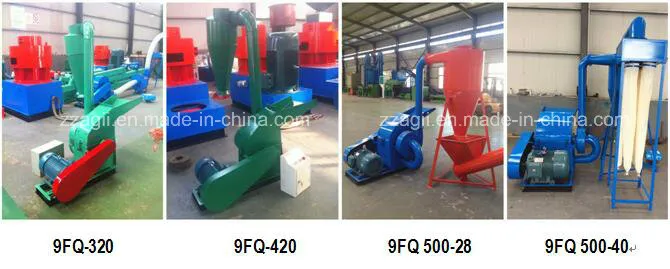

Model	Power (kw)	Capacity (straw grinding)	Weight (kg)	Dimension (mm)
9FQ-320	5.5 kw	300 -350	260	900 x 500 x 800
9FQ-420	7.5 kw	400 -500	350	1100 x 550 x 850
9FQ-500-28	15 kw	600 -800	450	1250 x 650 x 1000
9FQ-500-40	22 kw	900 -1000	750	1400 x 780 x 1250
9FQ-500-50	30 kw	1000- 1500	900	1600 x 850 x 1350
9FQ-500-60	37 kw	1500- 2000	1300	1750 x 900 x 1550

Features of hammer crusher:

1. Compact structure, small size, light weight; with steel structure,
2. Safety and reliable: special device to stop the feeding knife accidents,
3. Support various power devices: electric motor, diesel engine, and tractor
4. High quality steel Blades, super wear resistant
5. Adjustable output sizes: accordingly by manual method
6. Better feeding device: new design feeding roller added before pressing roller

Raw Material Range:

Grain, straw, corn, rice husk, wheat, corn straw, corn stalk, corncob, beans, maize, spice, herb, wood chips, tree branch and various biomass etc

9fq Wheat Straw Hammer Mill Crusher for Wood Chips Corn Grain

Applied field of Hammer Mill Crusher:

1. Ideal helper of the family farmed cattle, sheep, poultry, horse, rabbit and etc
2. This series of feed hammer grinder have advantage of strong and durable, safe and reliable, easy operation.
3. Low noise & vibration, high Efficiency and low energy consumption, etc.
With double discharge to connect material and more convenient to use
4. The spare part of hamm mill machine completely adopt high quality material, outsourcing parts adopt domestic optimal products, the whole machine quality is reliable, long-lived.
