Halal Slaughter of Pigs, Cattle, Sheep and Poultry
live cattle in slaughtering shed feed deprivation for 24 hours weighing shower stun the cattle with head fixed lift by tying one hind leg bloodletting blood draining for 5-6 mins electrical stimulation cut forelegs and horns / head pre-dehiding seal the anus cut hind leg / change rail stret......
Send Inquiry
Product Description

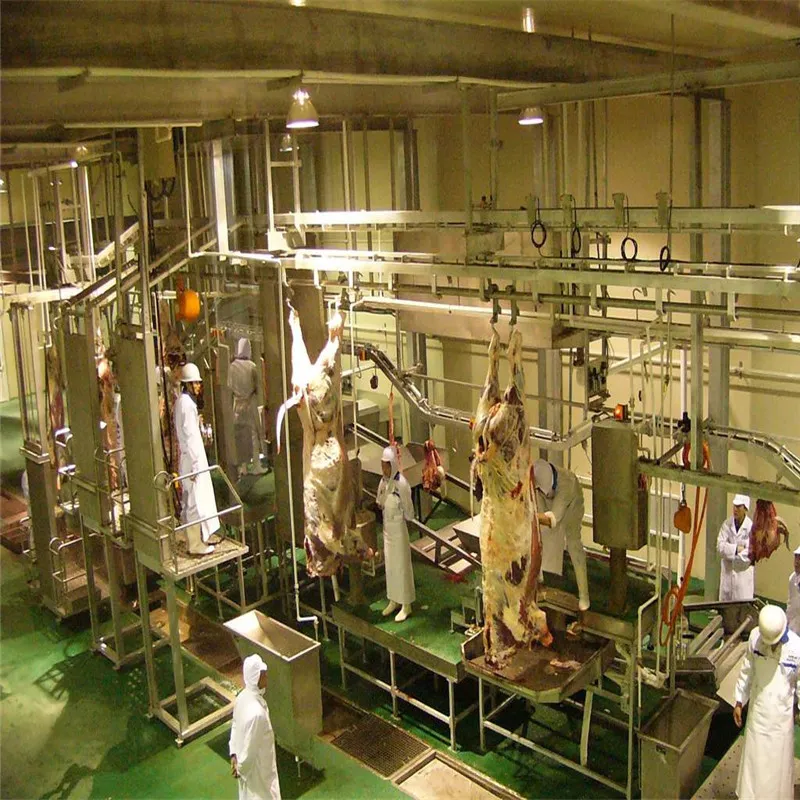

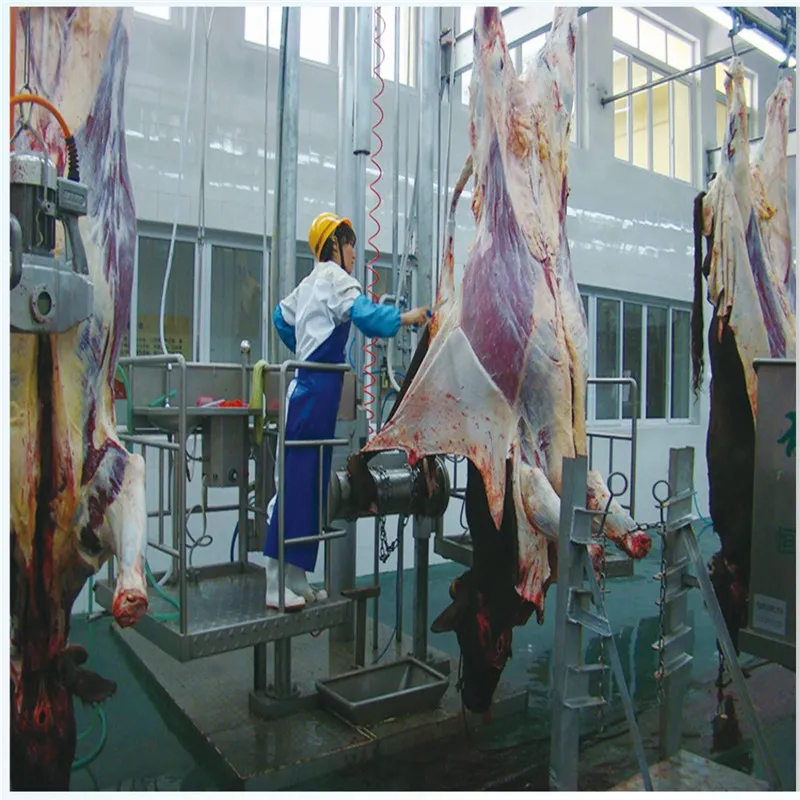

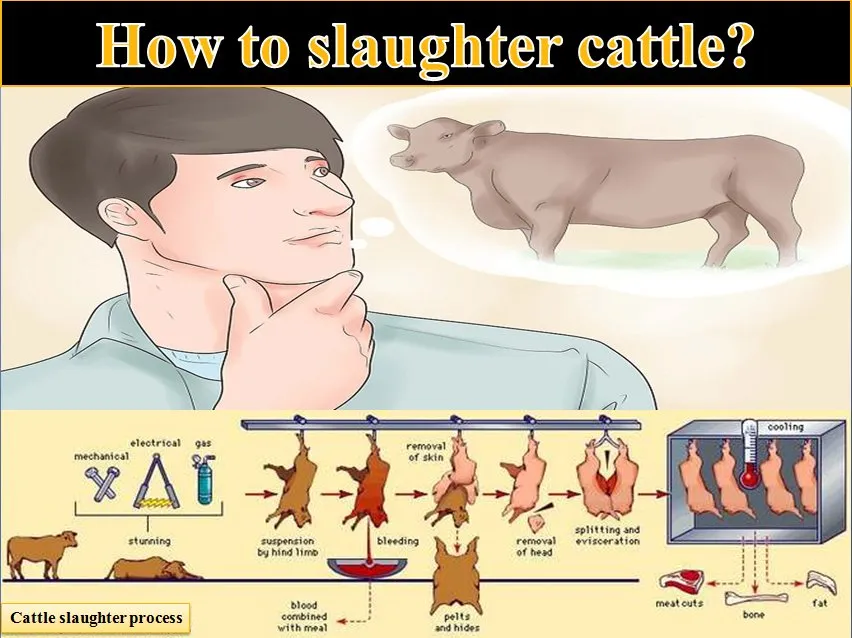

live cattle in slaughtering shed →feed deprivation for 24 hours →weighing → shower → stun the cattle with head fixed → lift by tying one hind leg → bloodletting → blood draining for 5-6 mins → electrical stimulation → cut forelegs and horns / head pre-dehiding → seal the anus →cut hind leg / change rail → stretch legs after entering the carcass automatic processing conveyor → pre-stripping →machinery mechanical peeling→cattle held in temporary storage room→
↓
→ Cut the head / cleaning → second time leg stretching / tie esophagus →cut apart chest → take white viscera
↓
qualified white visceral into the processing room
↓
Stomach residue were transported to waste temporary storage room through pneumatic conveying system
→ Take red viscera →
↓
qualified red viscera and cattle head put in storage after cleaning
→ split the carcass in half→inspection → carcass trimming→
↓
Unqualified carcass, red/white viscera, head processed under high temperature
↓
Carcass weighing → washing →acid discharge (0-4 ºC) → quarter the carcass →
Remove the bone → split → sorting, weighing, packing → freezing → packing →refrigeration → for sale

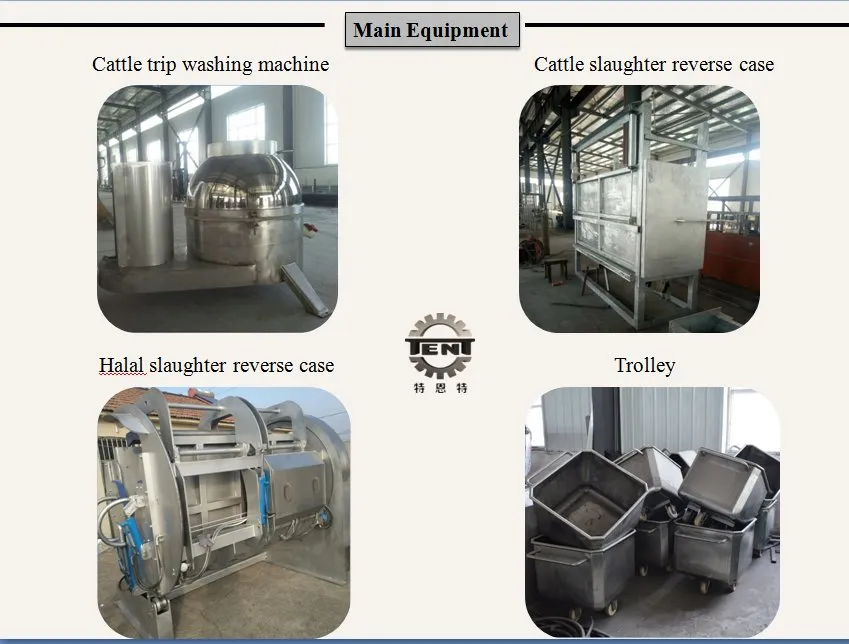

Cattle Slaughtering processing Main Equipments
| Driving cattle road,cattle dragger |
| Pneumatic reverse case |
| Pneumatic stunning device |
| Automatic bloodletting line |
| Automatic rail changing and elevator |
| Cattle carcass automatic processing line(step-type conveyor) |

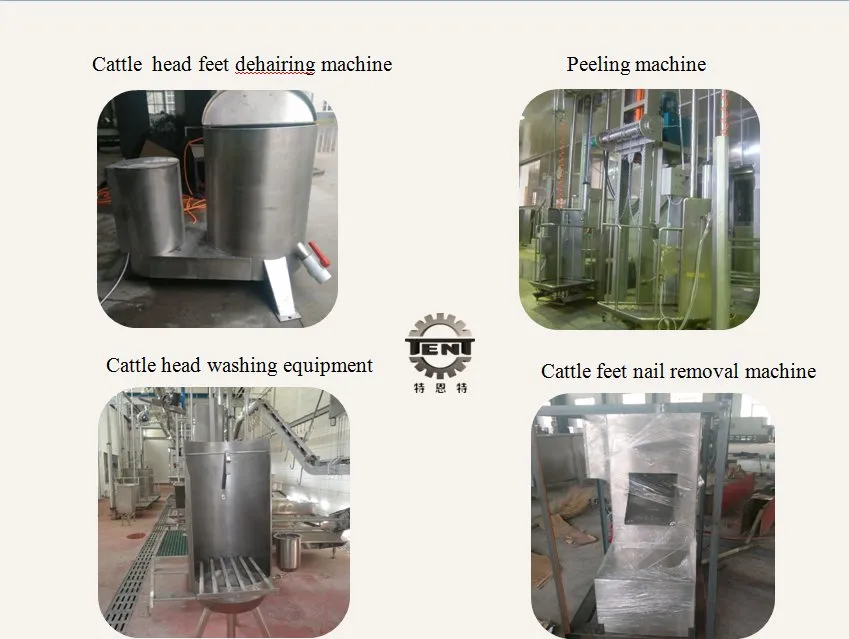

| Hydraulic peeling machine |

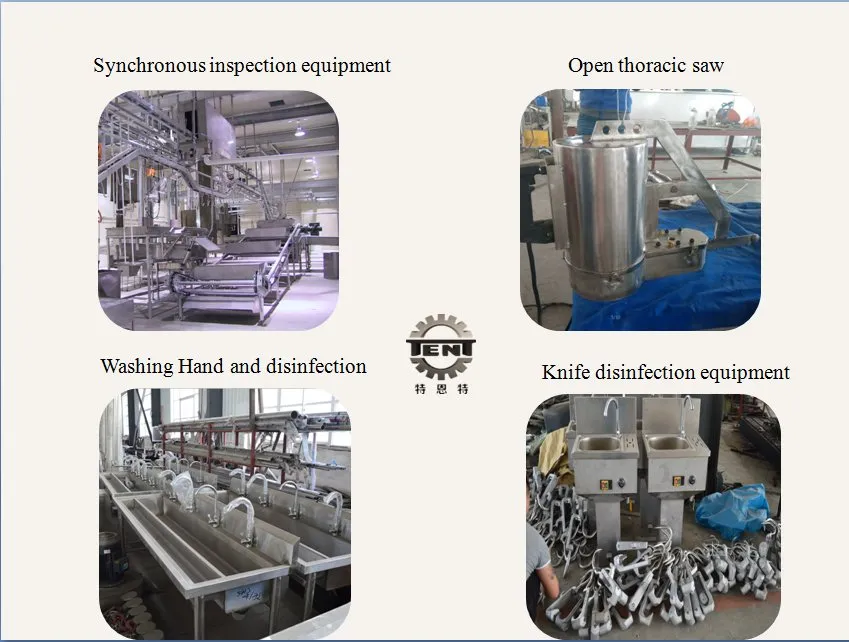

| White viscera synchronous quarantine |
| Red viscera synchronous quarantine conveyor |
| Open chest saw |
| Single,double column lifting platform |

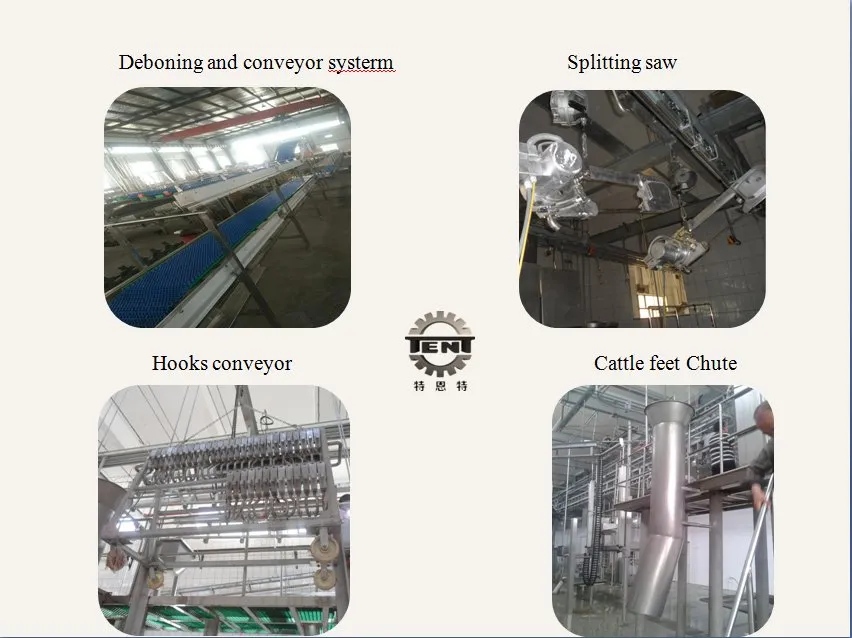

| Splitting saw |
| cattle head washing device and apron washer |
| Tripe washer |
| Acid discharge unit |
| platform |
| cattle hide air conveying system |
| Electric control cabinet |
