Product Description

Wheat Barley Corn Oat Bean Paddy Rice Sesame Seed Gravity Table

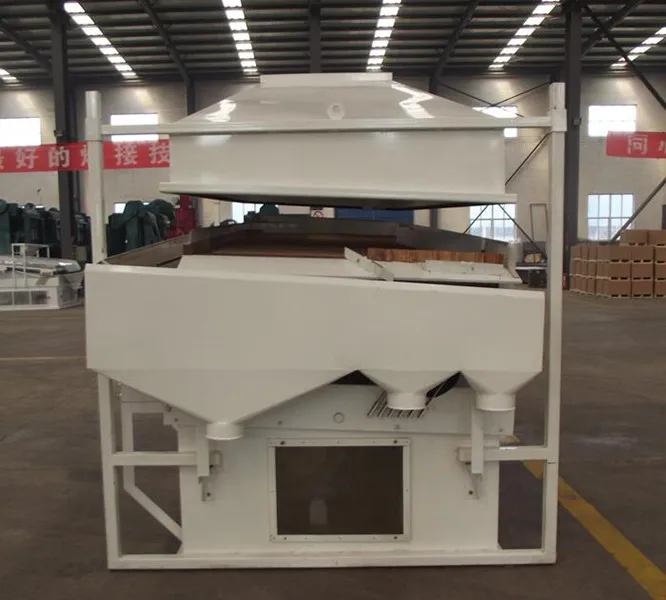

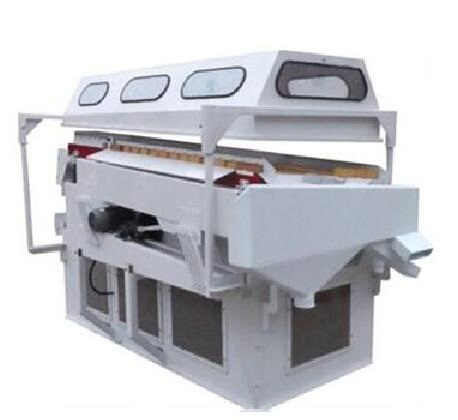

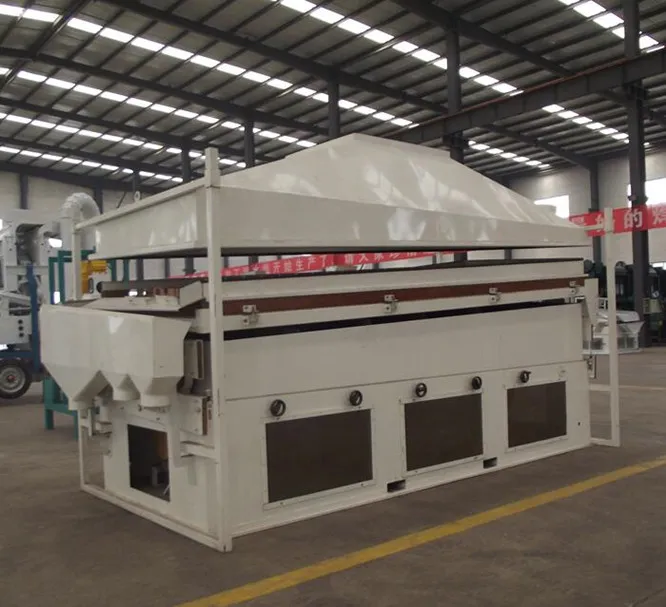

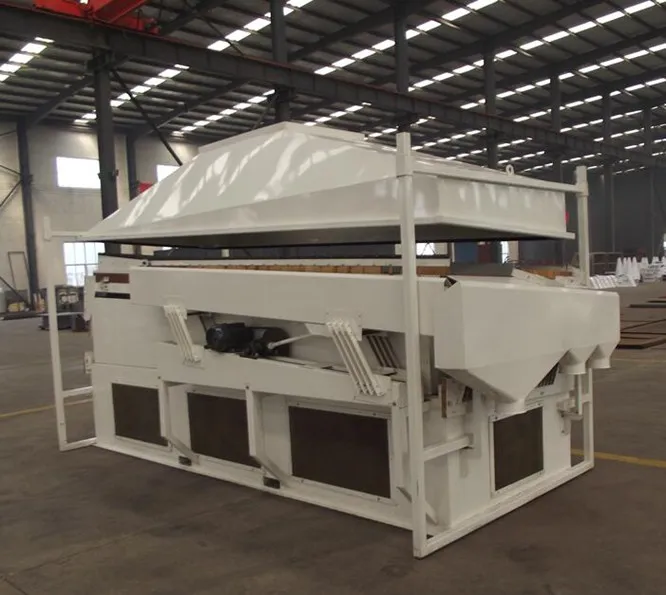

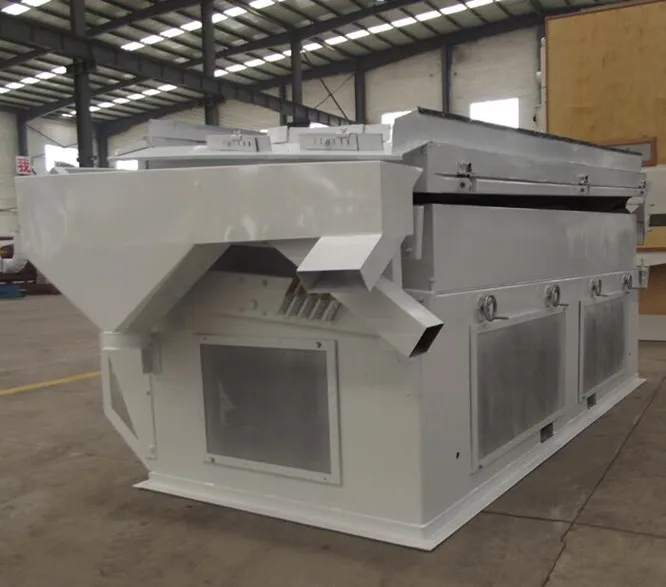

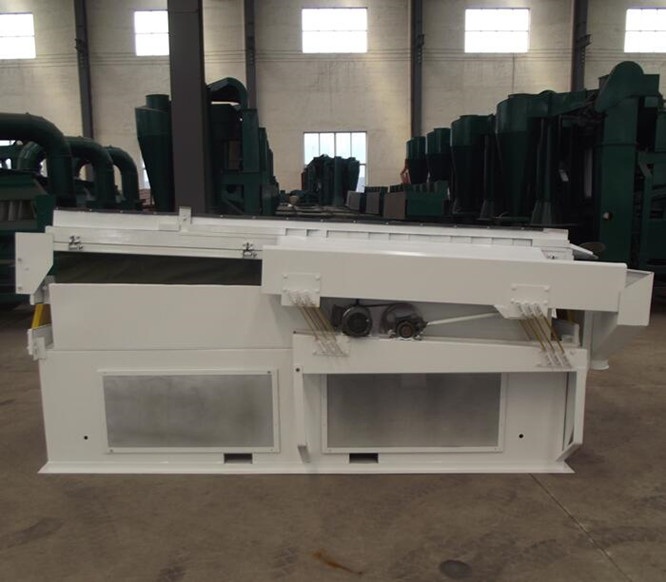

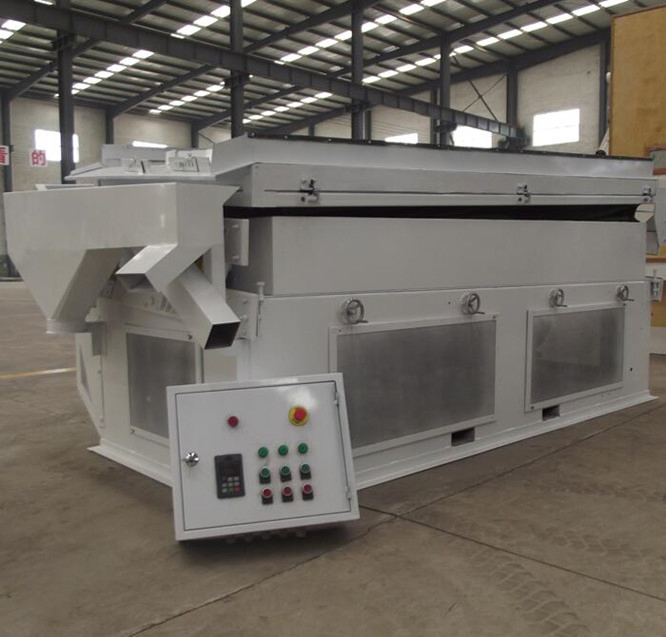

Introduction of 5XZ-6 Gravity Separator
5XZ-6 Gravity Separator is the blowing type Gravity Separator used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
The Gravity Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Gravity Separator   can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.

Working Principle of 5XZ-6 Gravity Separator
The Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Specification of Gravity Separator

Model No.	Capacity(T/H)	Power(KW)	Dimensions(MM)	Remarks
5XZ-5B	5	9	4000×2050×3100	Suction Type
5XZ-5A	5	9.75	4000×1900×3100	Suction Type with Dust Cylone Separator
5XZ-6	5	8.95	3900×1700×1750	Blow Type
