New Sesame Chickpea Lentil Bean Cleaning Machine

Product Description

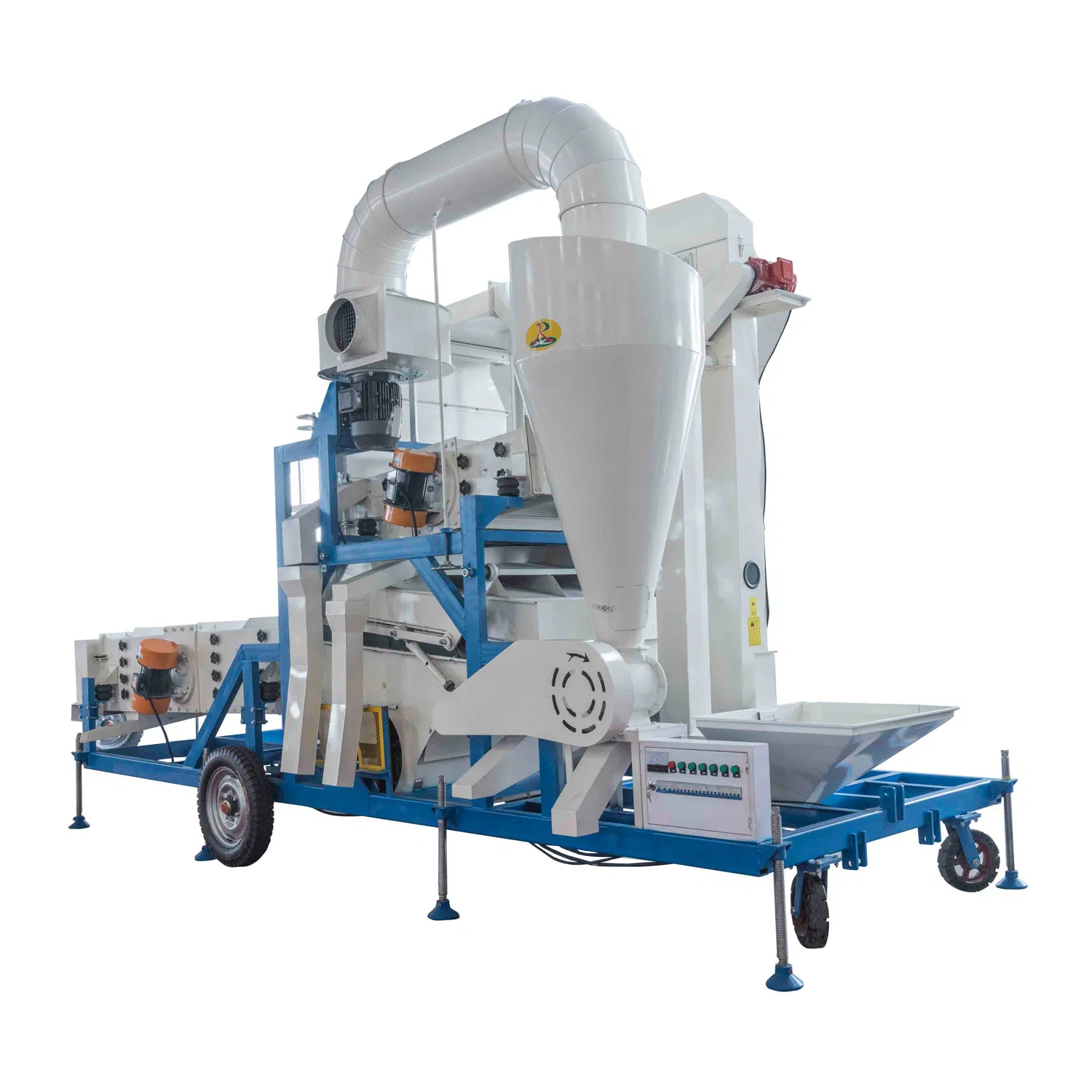

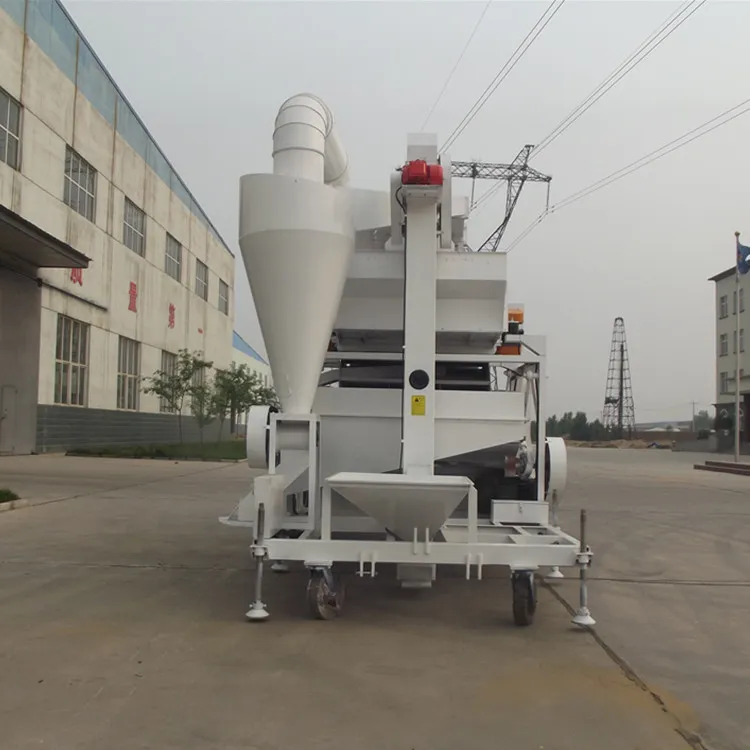

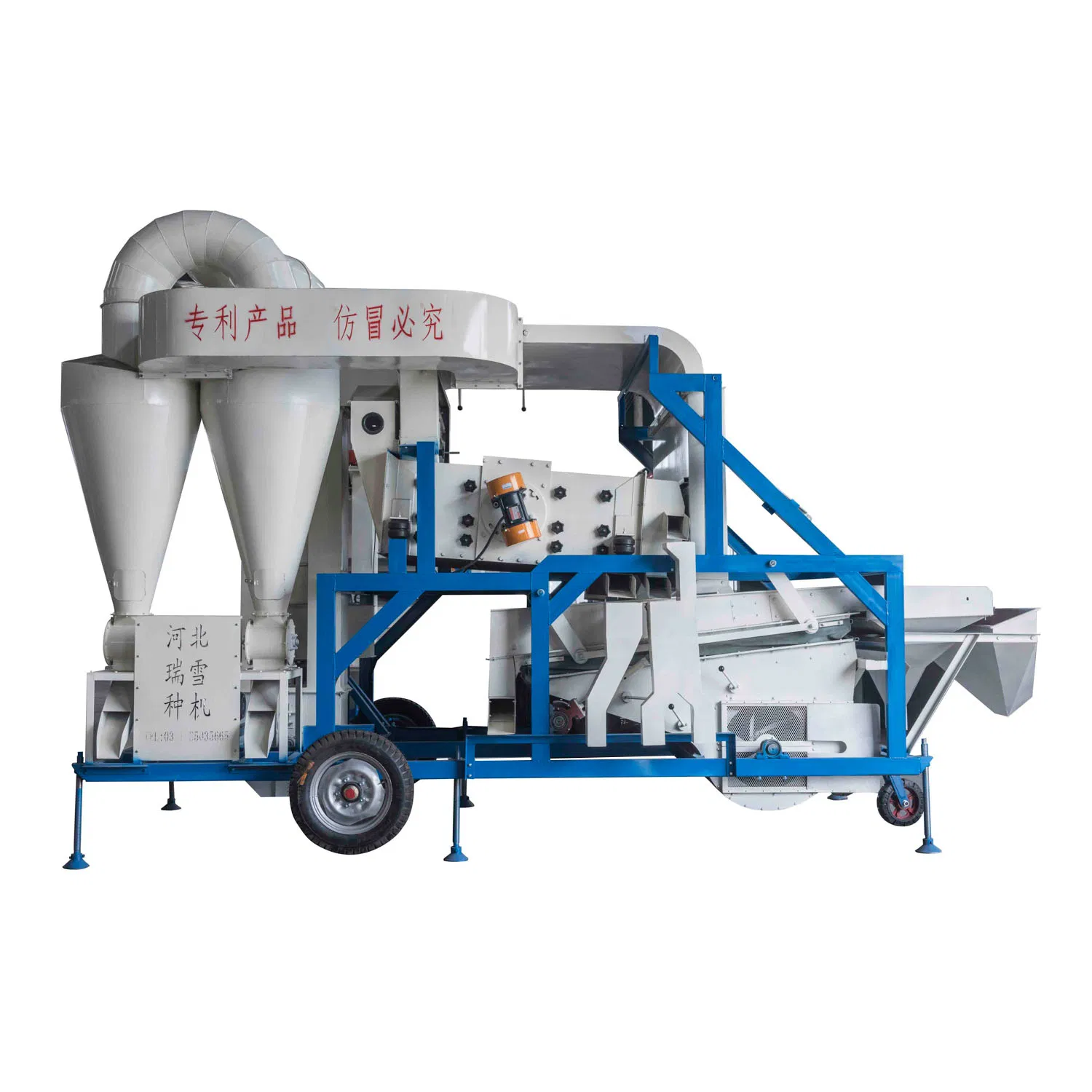

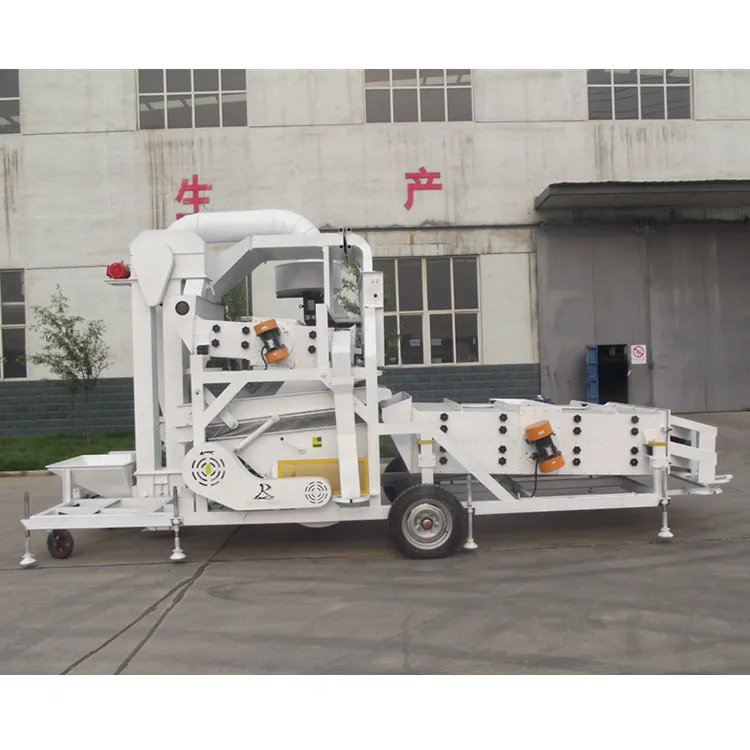

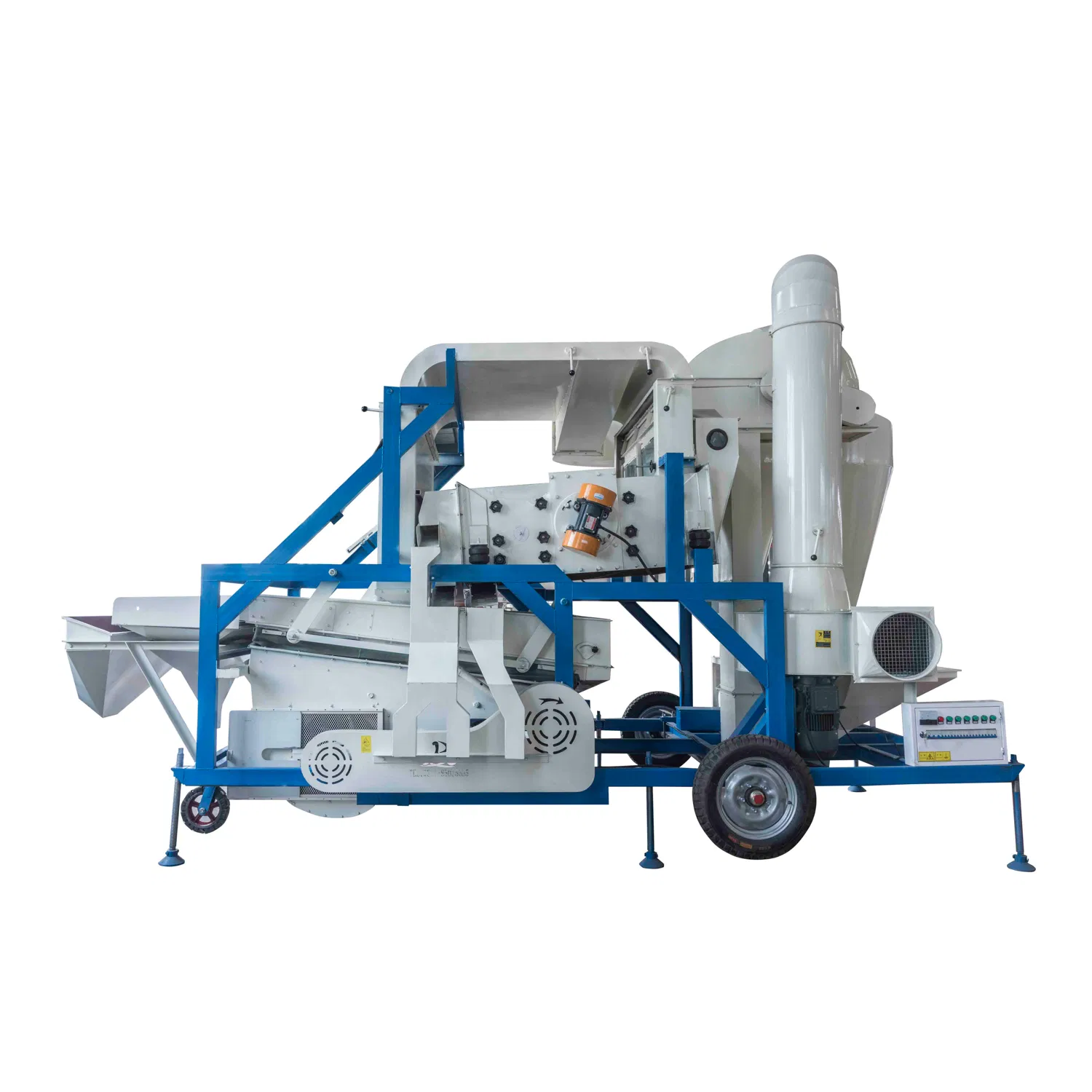

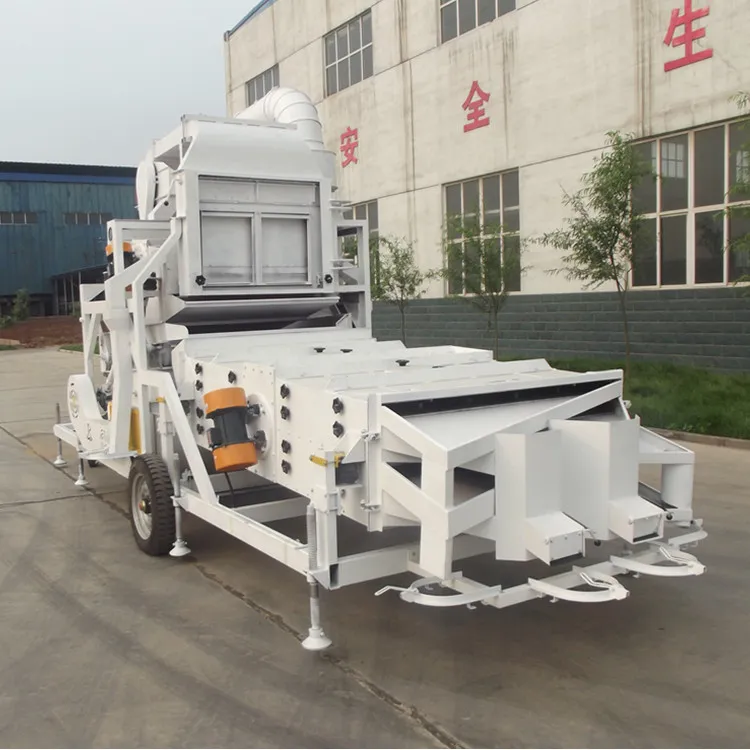

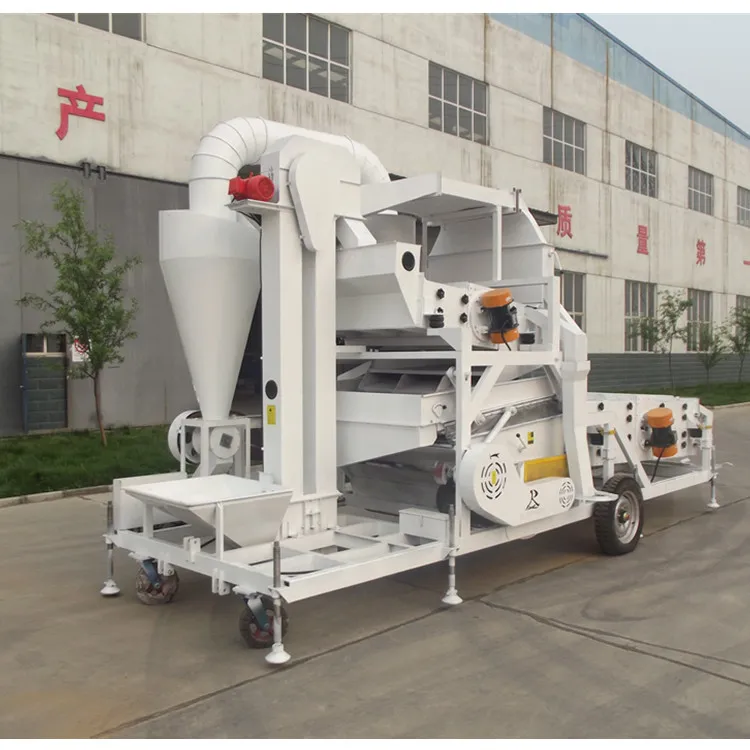

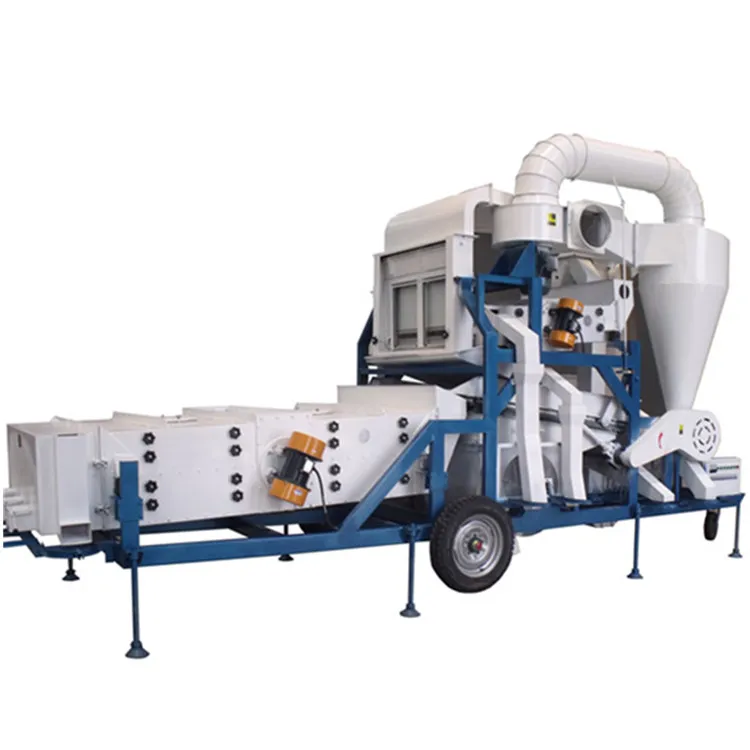

5XZS-10CDS Seed Cleaning & Processing Machine

INTRODUCTION

The 5XZS-10CDS Seed Cleaning & processing machine is uniquely designed with wheat hulling, air cleaning,gravity separating, double vibratory sieve separating and grading maximizing the cleaning efficiency, minimizing the wear and tear and ease of removability & changeability.

Working Principle

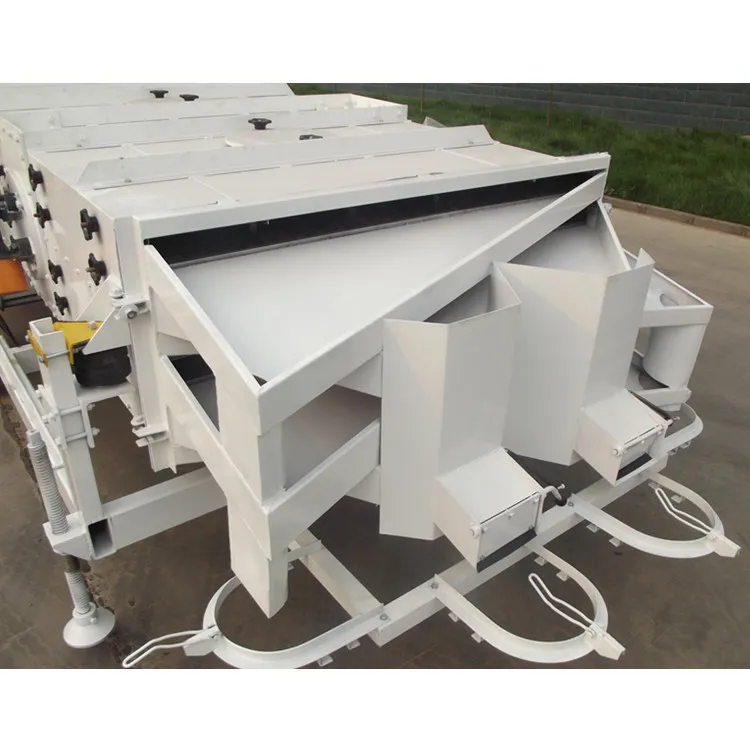

The intake hopper enables wheat filling into the wheat huller to hulling the wheat, following lifting up by the bucket elevator to enter to the vibratory air cleaning chamber, which is design and lead to the best air cleaning efficiency, then the air cleaned wheat enter to the gravity separator for remove the bad seed (partially eaten, immature, insect damaged, sick seed,, etc), then enter to the vibratory sieve for remove the large and small impurity, also grading your seed to different levels by size. The grain after processed by that machine, it will become seed which can be sowing.

Note: .When you process other grains (not wheat), you can put the grain into the hopper of bucket elevator straight way, and turn off the wheat huller. We also have other model available which without wheat huller such as 5XZS-10DS Seed Cleaning & Processing Machine.
SPECIFICATION of 5XZS-10CDS Seed Cleaning & Processing Machine

MODEL	5XZS-10CDS	5XZS-10DS
Capacity (KG)	10000	10000
Power(KW)	24.4	15.6
Weight (KG)	3200	2900
Dimension(LWHmm)	*600022003300*	600022003300
Dimension of sieves(mm)	*24001500**	2400*1500
Remarks	With wheat huller
