China Machine Lq928 Mini Loader Quality Construction Machinery with Rated Load 2.8t with Weichai/Cummins Engine with Standard Bucket
Performance and characteristics1. Fully hydraulic steering system,power shift transmission ,easier operation2.Torque converter and counter-shaft transmission gearbox ,higher reliability and maintenance3. The working device bucket can be set level automatically, computer is adopted to optimize desi......
Send Inquiry
Product Description
Performance and characteristics
1. Fully hydraulic steering system,power shift transmission ,easier operation
2.Torque converter and counter-shaft transmission gearbox ,higher reliability and maintenance
3. The working device bucket can be set level automatically, computer is adopted to optimize design, high efficiency

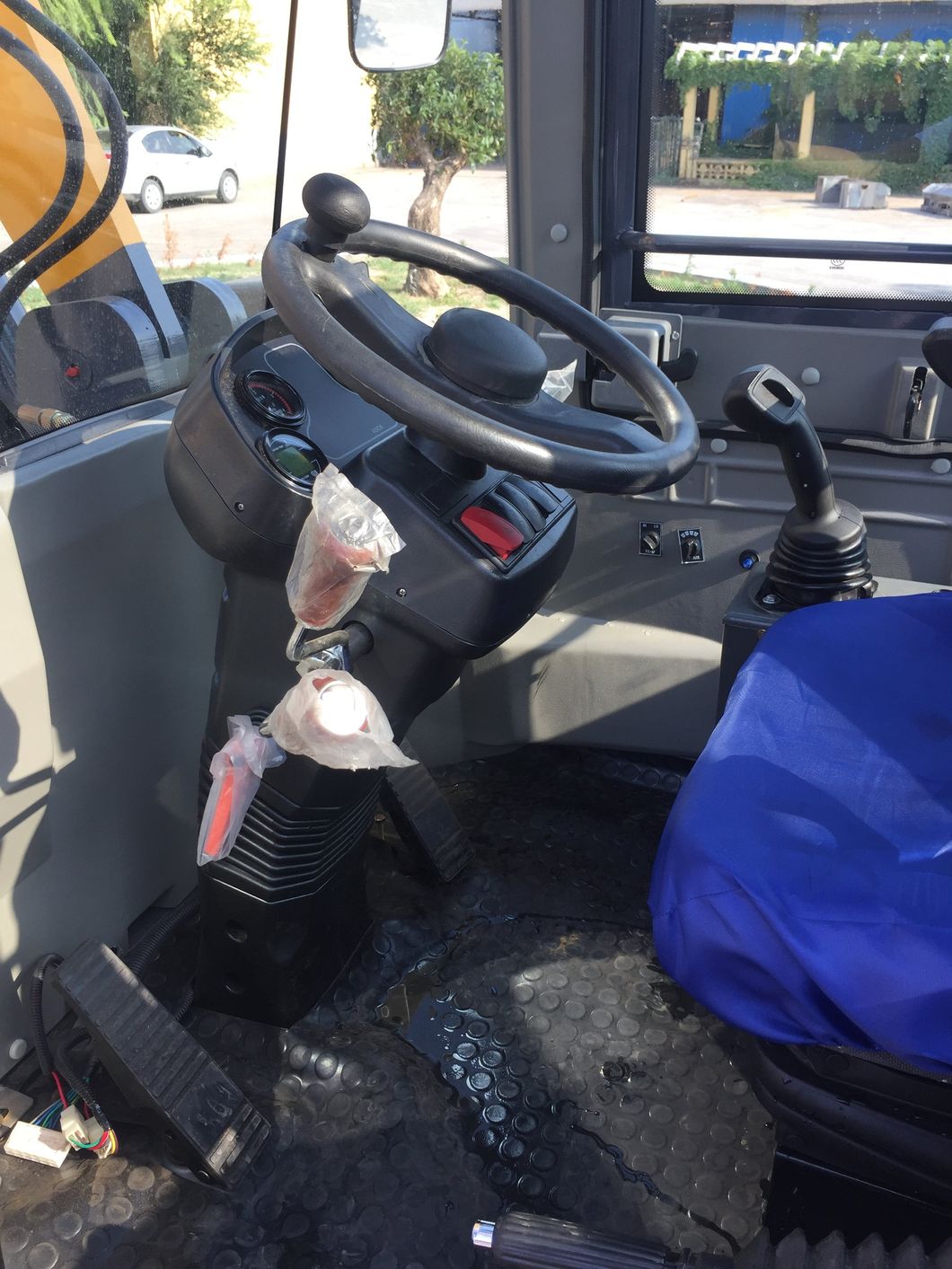

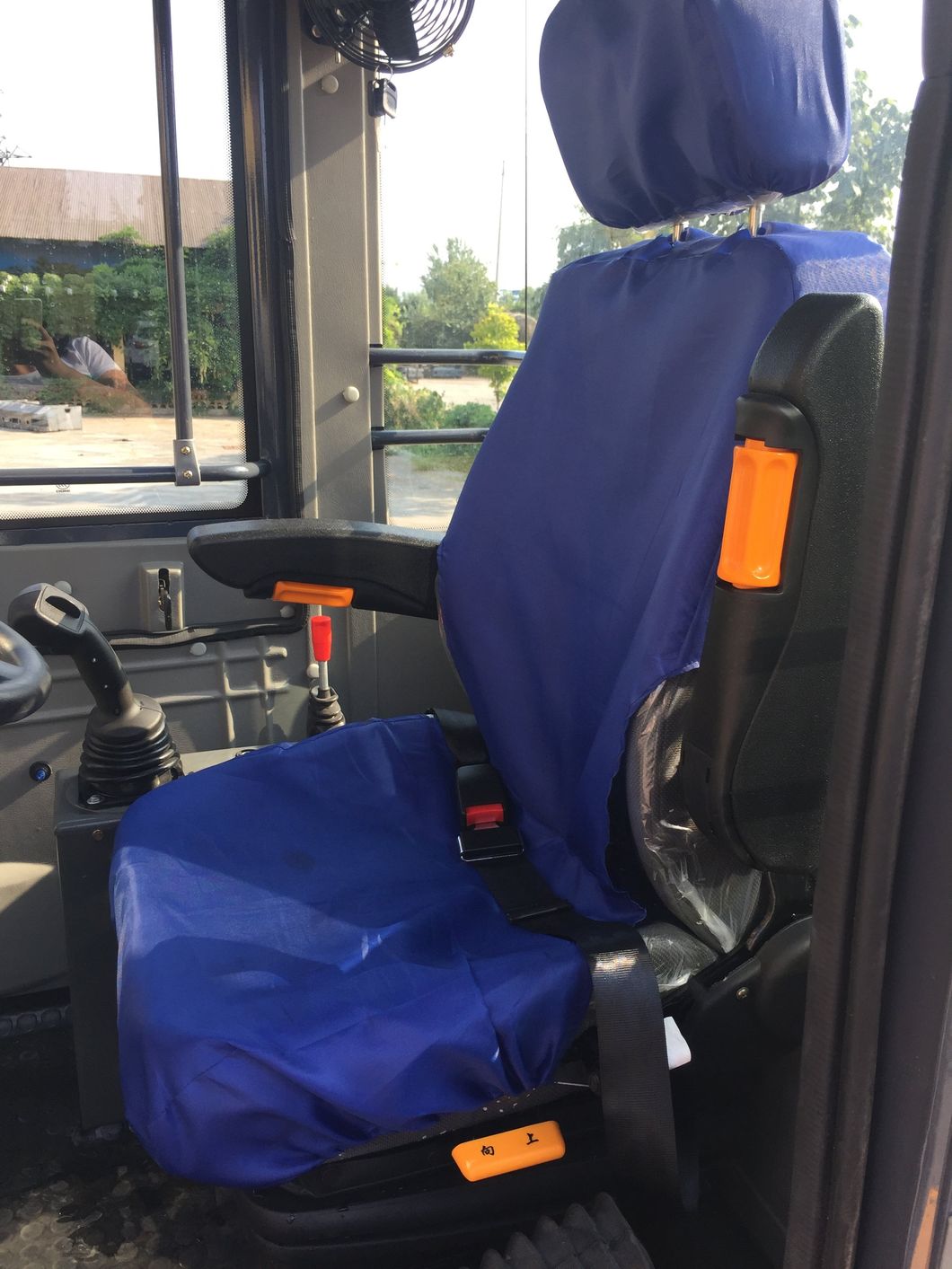

4. New sealing cab, Grammer seat, the operating environment is more comfortable
5. Can allocate many kinds of selectante assembly such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet the needs of various working states..
| Specification LQ928 | |
| Rated bucket capacity | 1.3-1.5 |
| Rated load | 2800kg |
| Operating weight | 6000kg |
| Performance of bucket being set level | Yes |
| Max. breakout force | 70KN |
| Max. drawbar pull | 45KN |
| Max. grade ability | 38° |
| Total of three time:lifting dumping lowering | 9.7m |
| Max.dump height | 3.2m/3.5m |
| Max.dump reach | 1084mm |
| Min. ground clearance | 310mm |
| Wheel base | 2470mm |
| Tread | 1380mm |
| Overall dimensions (length*width*height) | 6710*2010*2980mm |

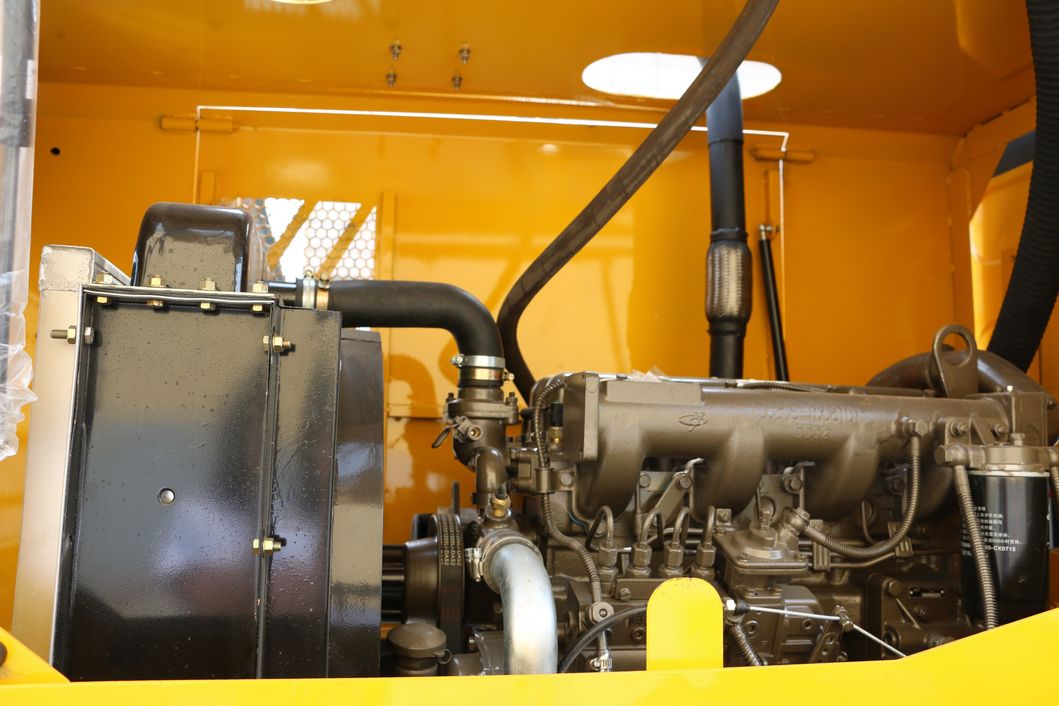

| Engine | YTO |
| Model | YTO4108 |
| Pattern | inline,water cooled,dir.inject,fourstrokees |
| Number of cylinders- internal diameter*strokes | 4-108*120 |
| Max.torsion | 261Nm |
| Rated power | 55KW |
| Min.fuel consuming rate | 216g/kw.h |
| Specified rotational speed | 2400r/min |
| Transmission | Gearbox seperated from torque converter |
| Model of torque device | YJ280 |
| Pattern | 3-element,single stage |
| Pattern of gearboxes | FULL-powershift,countersaft type |
| Number of great shift | 4forward,4reverse |
| Max.travel speed | 30km/h |
| Main reducer type | arc taper gear moderation of first grade |
| Pattern of wheelside moderation | planet gear moderation of single |

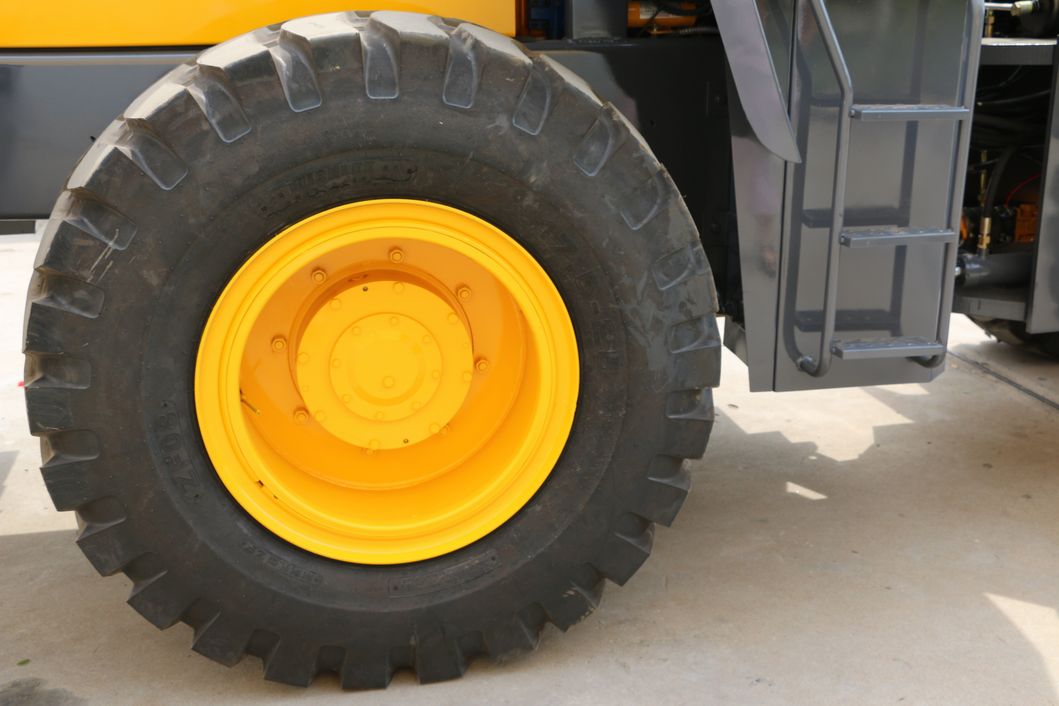

| Type size | 16/70-20 |
| Front type pressure | 220KPa |
| Rear type pressure | 180KPa |
| Steering angle(each direction) | 35°±1 |
| Min.turning radius(outside of bucket | 4500mm |
| Valve distributing working | ZL20E-04T.QW |
| Working pumps | CBG2063 |
| Parking brake | Soft axle control,outside bunch drum type |
| Fuel capacity | 80L |
| Pressure of working hydraulic system | 160kgf/cm 2 |

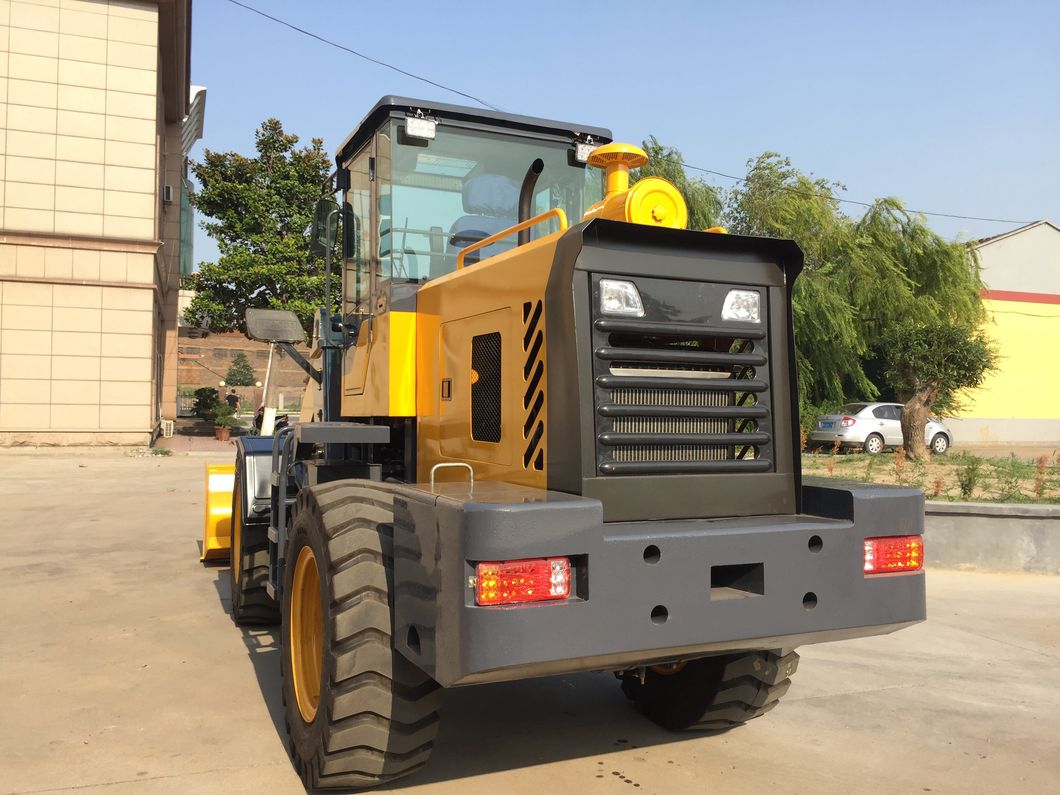

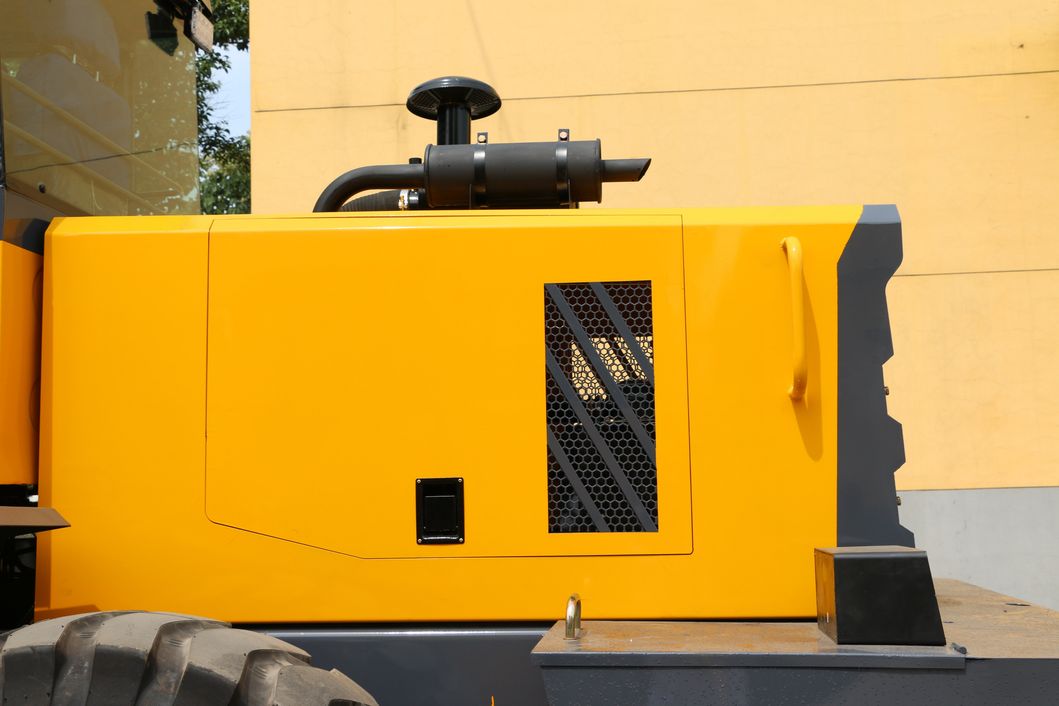

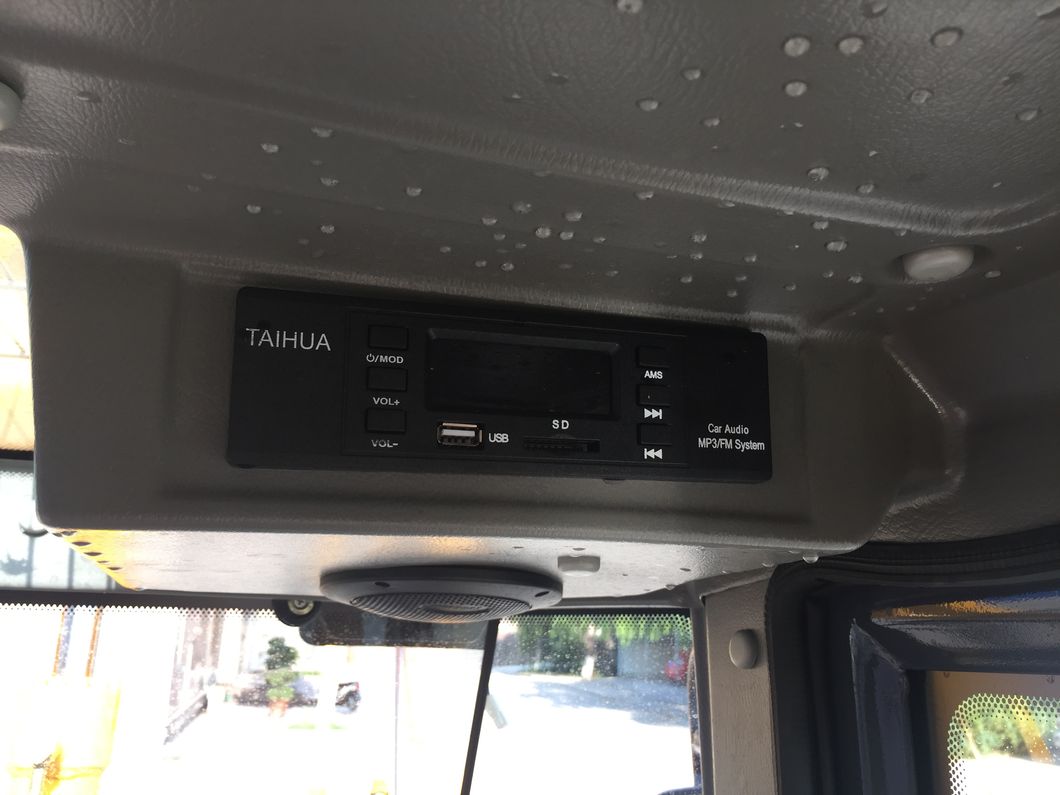

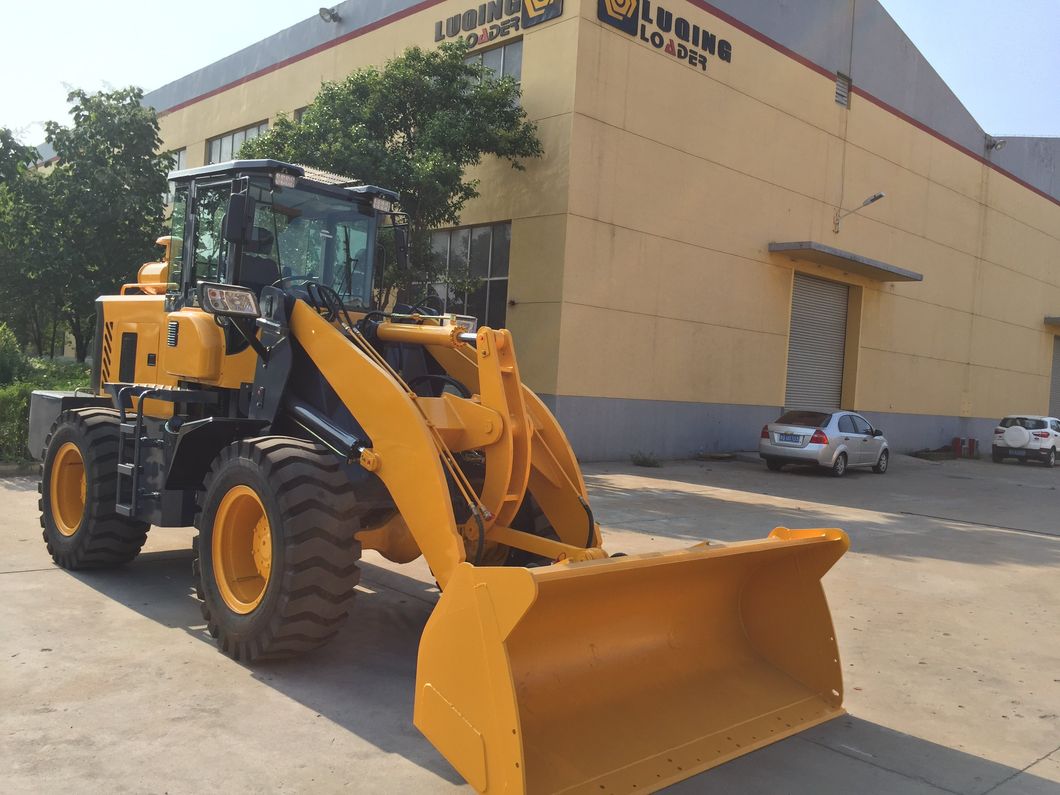

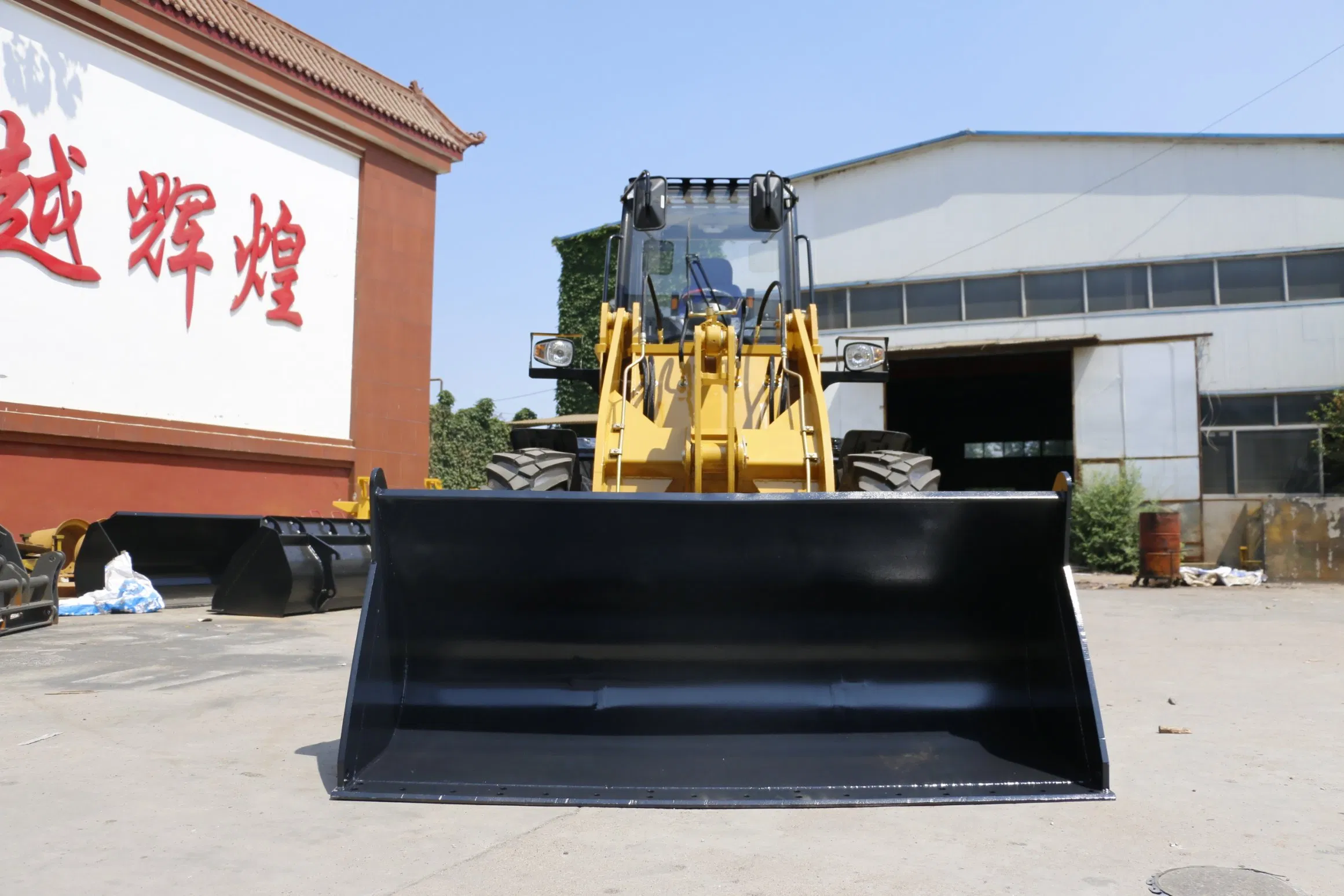

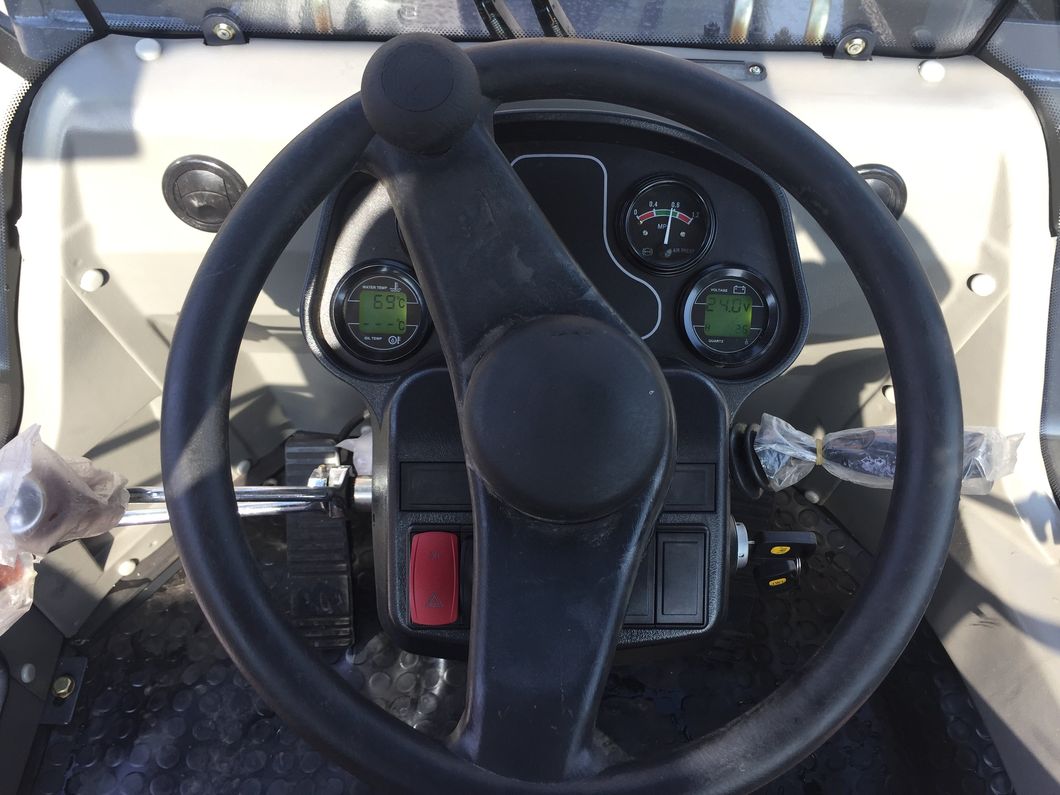

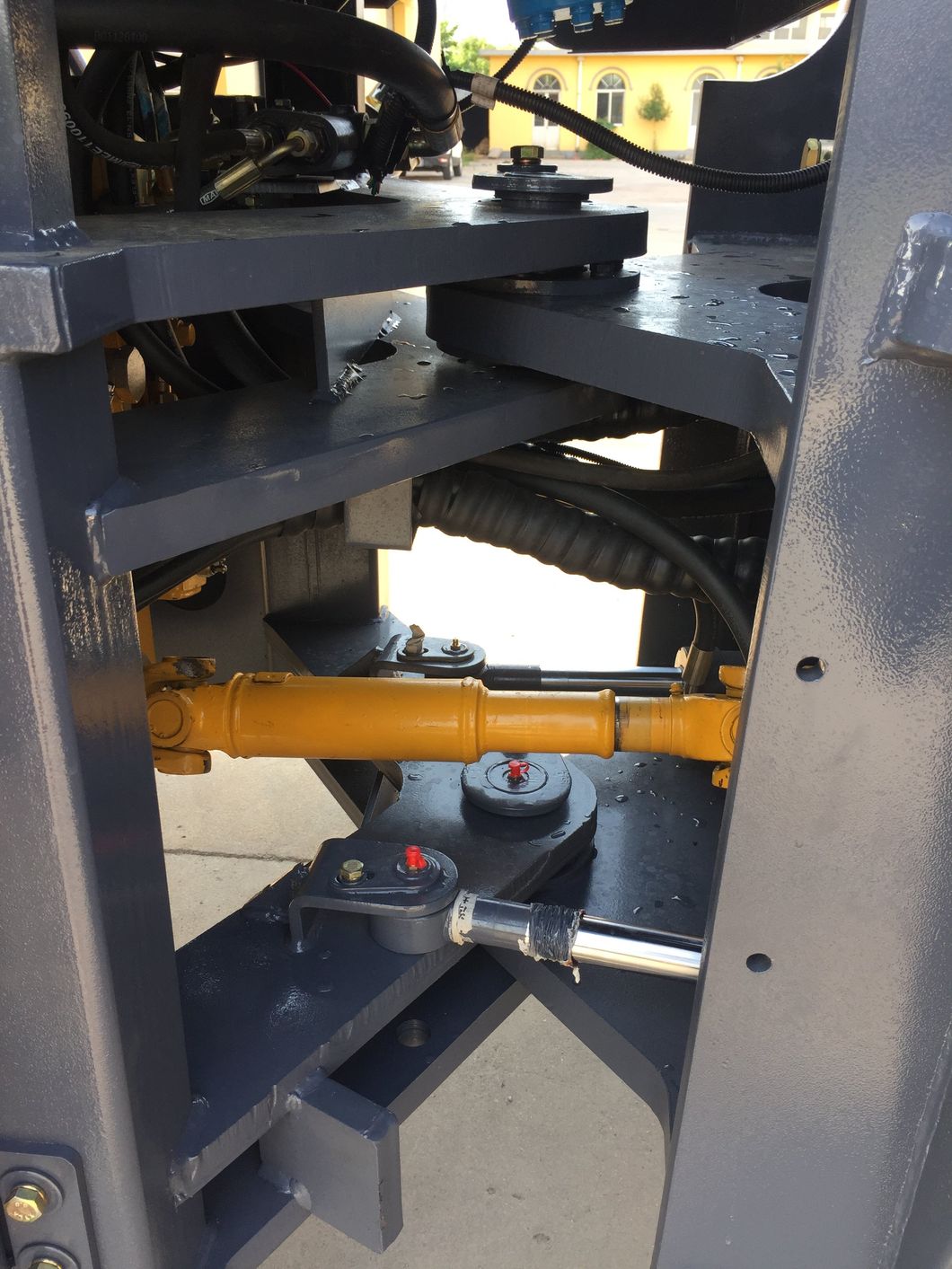

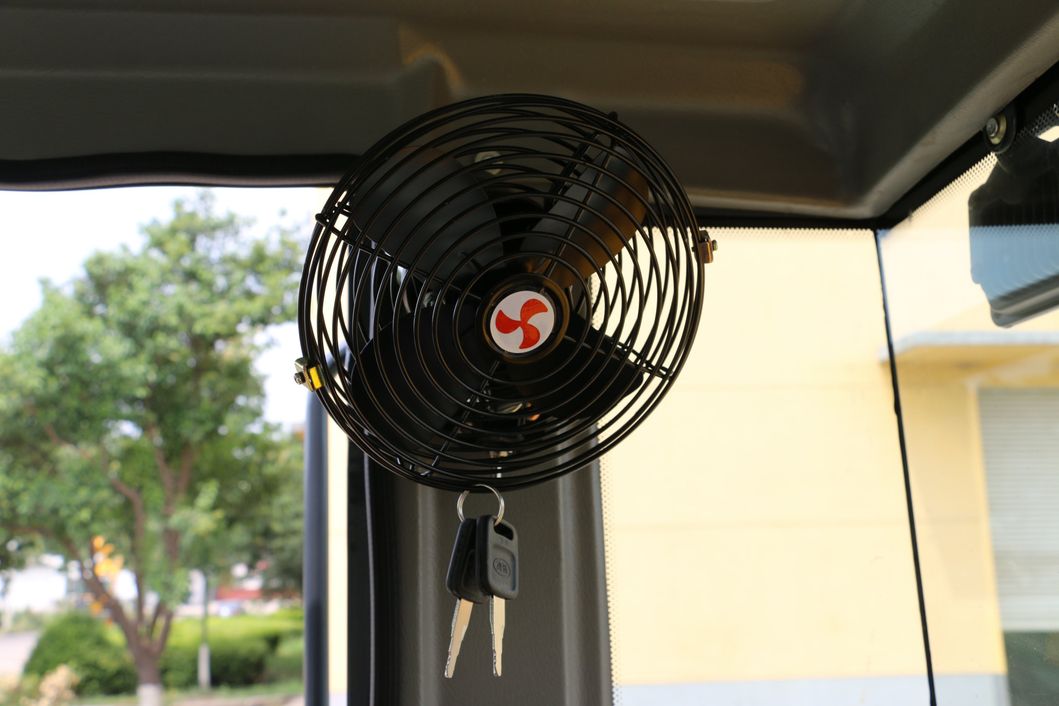

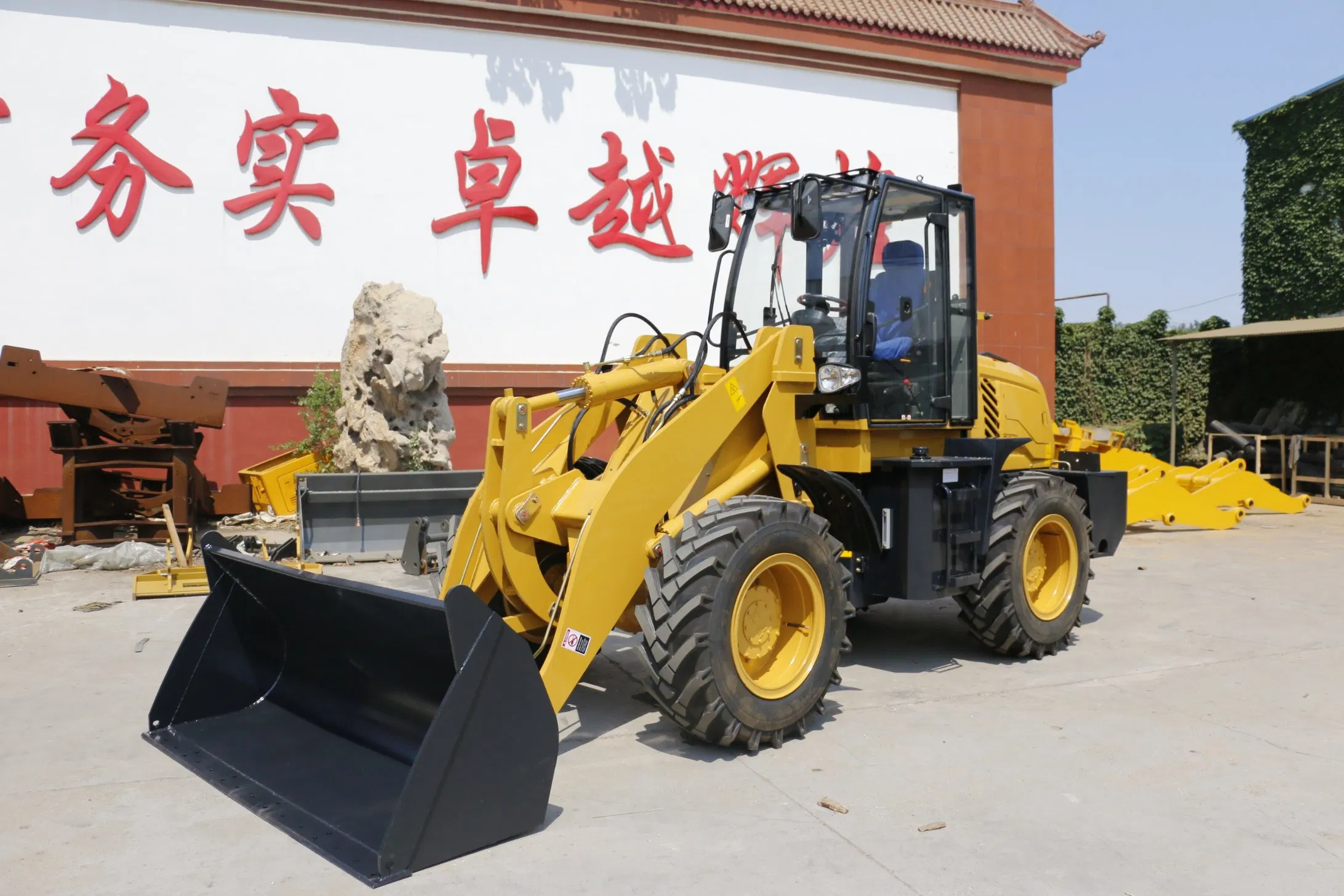

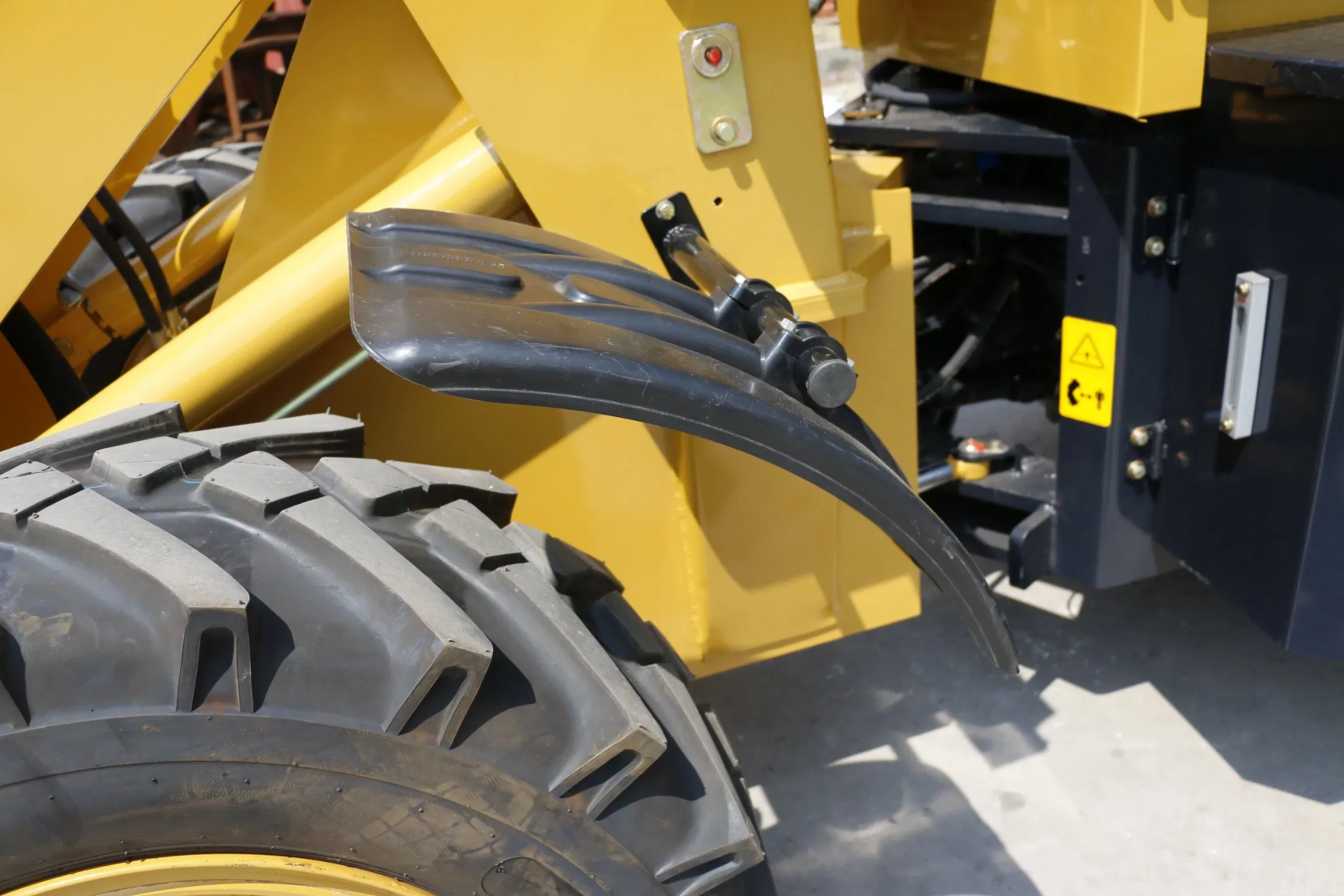

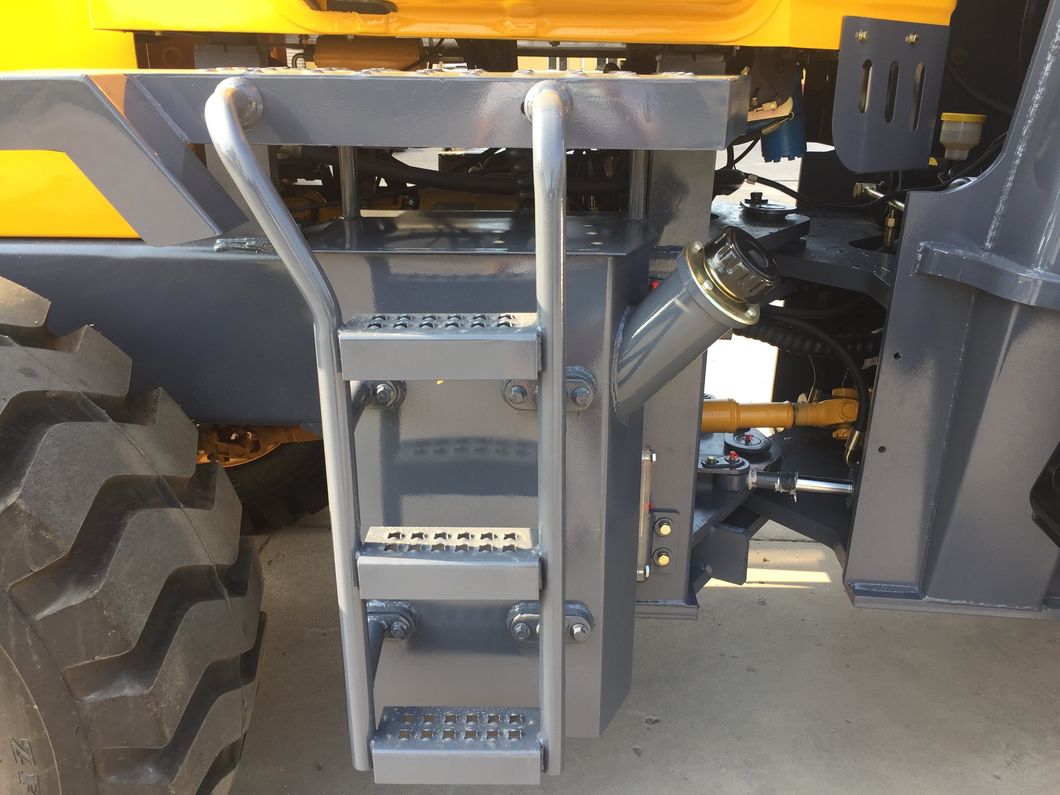

Detailed photos:
