Bean Coating Treating Machine (5BY- 5B )

Product Description

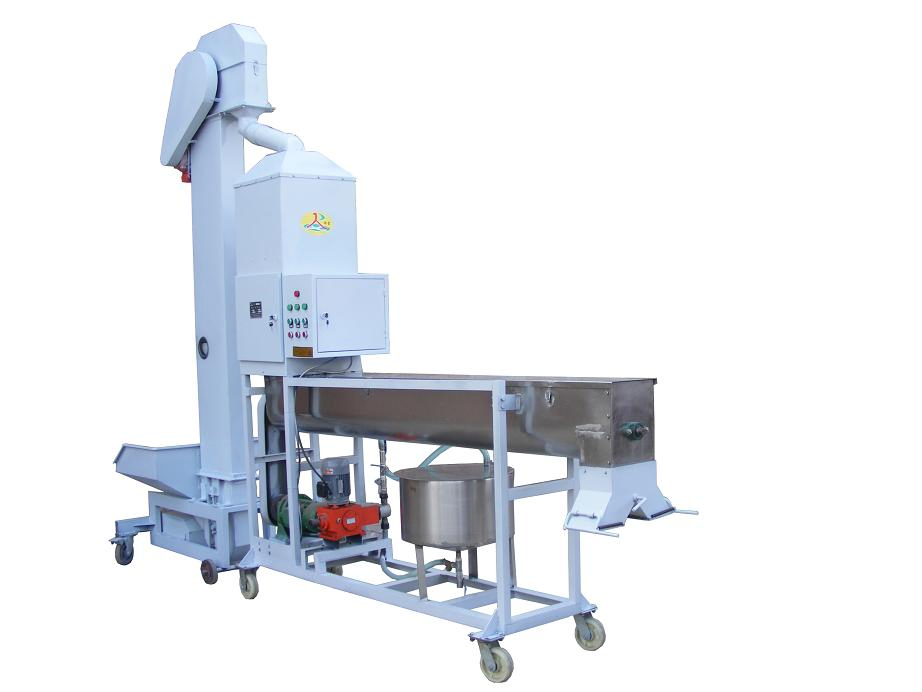

5BY-5B Bean Coating Treating Machine

Introduction 5BY-5B Bean Coating Treating Machine
The 5BY-5B Bean Coating Treating Machine is very good for coating vegetable seed and grain seed, such as seeds of wheat, barley, maize, sorghum, soybeans, cotton, chili, grass, etc.

Principle of 5BY-5B Bean Coating Treating Machine
Seeds can be continuously fed into mixing cylinder through feeding bucket elevator, at the same time quantitative medicine liquid will be supplied by dosing pump, and then atomized by the high speed centrifugal rotary disk, following adhere to the surface of seeds, at the end completely mixed by the auger in the cylinder.

High speed centrifugal rotary disk (for atomizing the liquid medicine) and large stainless steel cylinder (for mixing by auger rolling), can have a good coating effect.

Features of 5BY-5B Bean Coating Treating Machine
-Centrifugal rotary disk for atomizing
-Overload and overheat protection
-Dosing pump for quantitative medicine supply

Model	Capacity(T/H)	Power(KW)	Weight(KG)	Dimension L× W× H(mm)	Agent Supply Model
5BY-2	2	1.47	200	1600× 800× 1500	Spoon
5BY-5A	5	6	800	2200× 900× 2500	Spoon
5BY-5B	5	2.3	700	2150× 800× 2400	Dosing Pump
