3tpd High Quality Screw Oil Press Yzyx90 Guangxin Brand
Best price Cold Press Palm Kernel Oil Extraction Machine for Sale30YEARS FACTORY OF OIL PRESS MACHINE ---GUANGXINOil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster MachineOIL MAKING PROCESSSPIRAL OIL PRESS YZYX90Processing Capacity (t/24h) 3Tons Per DayGua......
Send Inquiry
Product Description
Best price Cold Press Palm Kernel Oil Extraction Machine for Sale
30YEARS FACTORY OF OIL PRESS MACHINE ---GUANGXINOil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine

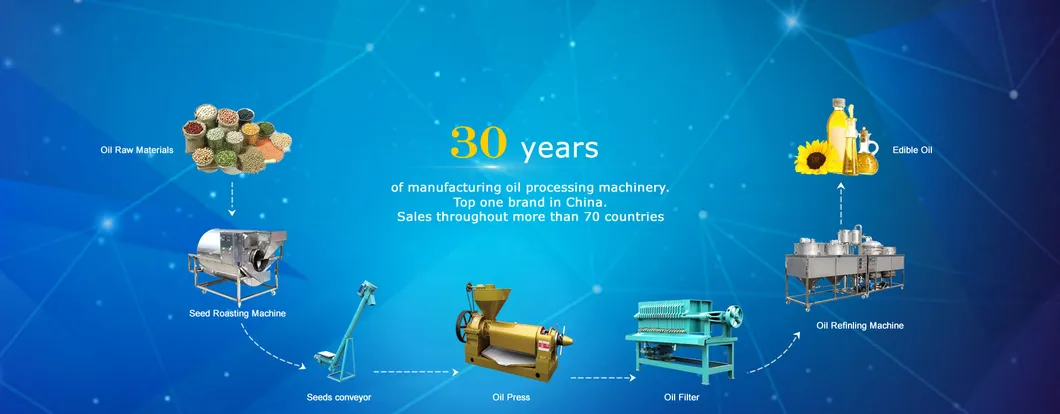

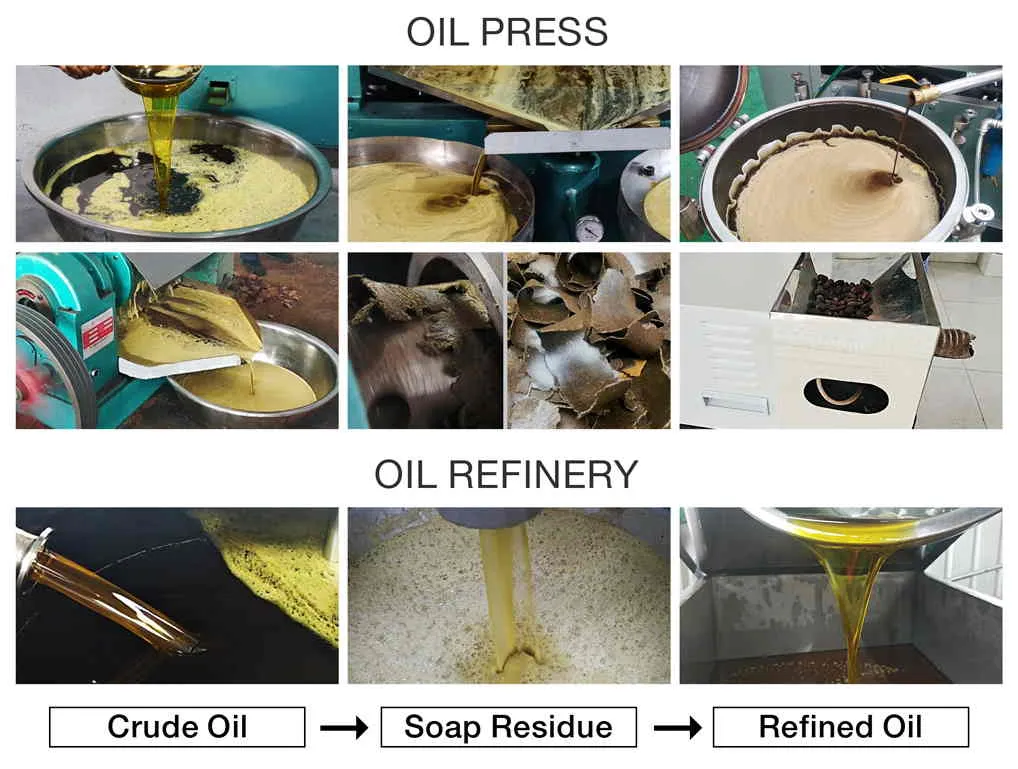

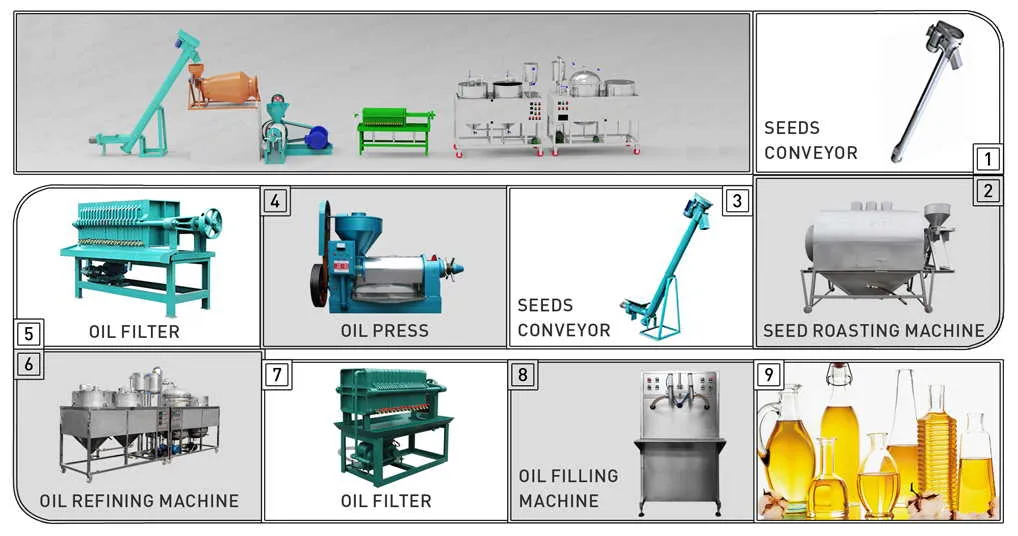

OIL MAKING PROCESS

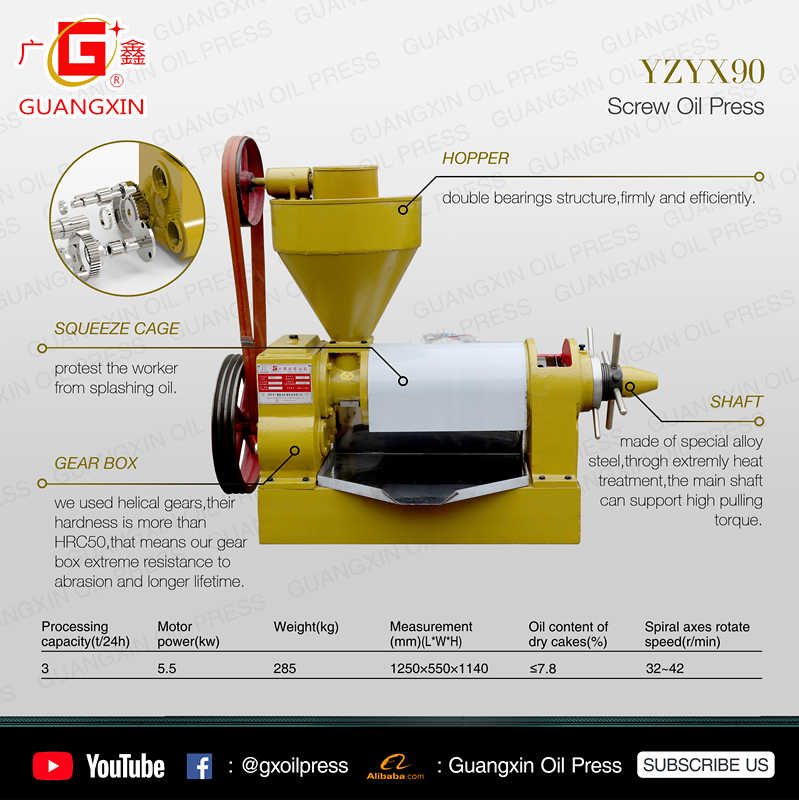

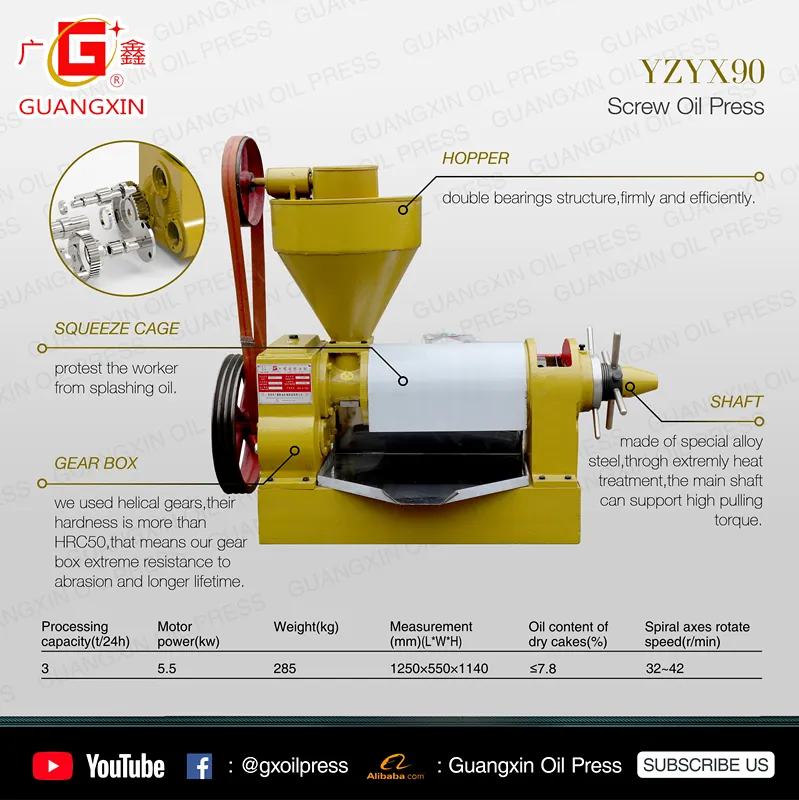

SPIRAL OIL PRESS YZYX90
Processing Capacity (t/24h) 3Tons Per Day
Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)
| Model | Processing Capacity (t/24h) | Motor Power (kw) | Weight (kg) | Measurement(mm)(L*W*H) | Oil Content of Dry cakes (%) | Spiral Axes Rotate Speed (r/min) |
| YZYX70 | 1.3 | 4 | 195 | 1180*405*1120 | ≤7.8 | 33-42 |
| YZYX90 | 3 | 5.5 | 285 | 1250*550*1140 | ≤7.8 | 32-42 |
| YZYX10(95) | 3.5-4 | 7.5 or 11 | 528 | 1650*730*1340 | ≤7.8 | 32-40 |
| YZYX10-6/8/9 | 4.5 | 11 | 590 | 1760*730*1340 | ≤7.8 | 32-40 |
| YZYX10J-2 | 4.5 | 11 | 600 | 1770*730*1340 | ≤6.0 | 32-40 |
| YZYX120 | 6.5 | 11 or 15 | 680 | 1860*740*1275 | ≤7.0 | 28-40 |
| YZYX130 | 8 | 15 or 18.5 | 825 | 2020*742*1420 | ≤7.6 | 32-40 |
| YZYX140 | 9-11 | 18.5 or 22 | 806 | 2010*750*1430 | ≤7.6 | 32-40 |
| YZYX120J | 7 | 11 or 15 | 718 | 2110*780*1350 | ≤6.0 | 35-40 |
| YZYX130GX | 8-10 | 18.5 | 998 | 2100*820*1400 | ≤7.8 | 30-40 |
| YZYX140GX | 9-11 | 18.5 or 22 | 1000 | 2150*820*1420 | ≤7.8 | 30-40 |
| YZYX140CJ | 9-11 | 22 | 980 | 2220*750*1420 | ≤7.8 | 32-40 |
| YZYX140CJGX | 9-11 | 22 | 1100 | 2300*820*1420 | ≤7.8 | 30-40 |
| YZYX168 | 20 | 37 or 45 | 1820 | 2750*1100*1830 | ≤7.4 | 36-44 |

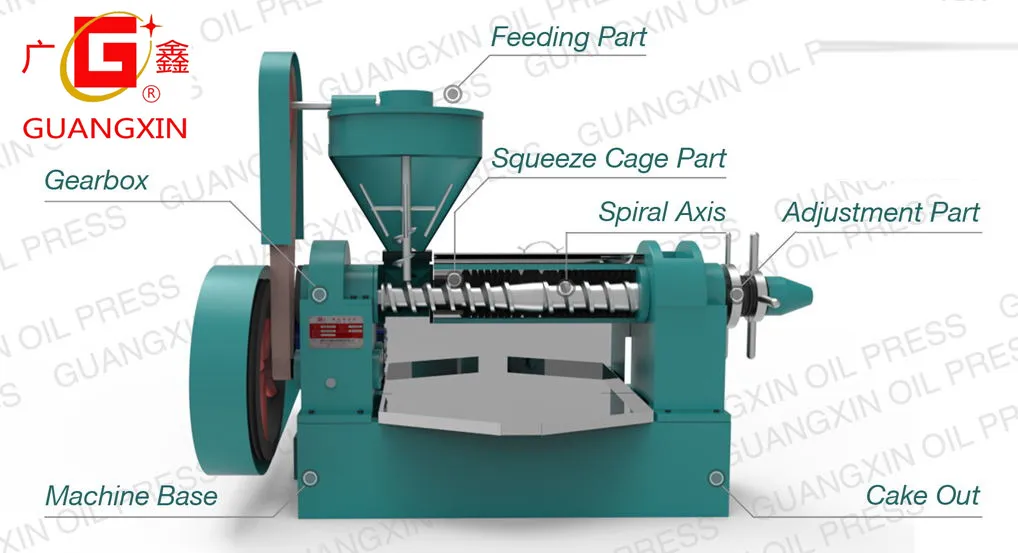

INTERNAL STRUCTURE OF PRESSING CHAMBER
Main Features:
Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.
1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.
| Oil Plants | Processing Capacity (t/24h) | Oil content of Dry cakes (%) | Oil yield efficiency (%) | Electric power consumption (kw.h/t) |
| Rapeseed | ≥3.0 | ≤8.0 | ≥80 | ≤35 |
| Cotton seeds | ≥3.0 | ≤7.5 | ≥75 | ≤55 |
| Soybean | ≥2.6 | ≤7.0 | ≥65 | ≤52 |
| Peanut | ≥3.0 | ≤8.0 | ≥91 | ≤35 |
1. Healthy! Physical squeezing craft maximally keeps the nutrients such as the protein, fatty acids and minerals, etc.
2. High working efficiency! The spiral squeezing structure can achieve high oil output, thus the oil content of the residue cake is low.
3. Long durability! All the parts are made of the most suitable material and treated with refined crafts to ensure the long term runing, such as cemented quenching and tempering to increase the hardness, consequently the durability.
4. Cost-effective! The wearing parts on the machine such as the squeeze loop, squeeze spiral and squeeze bar are designed to be dismountable. When they are out of service period, users only need to replace them and no need to displace the whole machine.

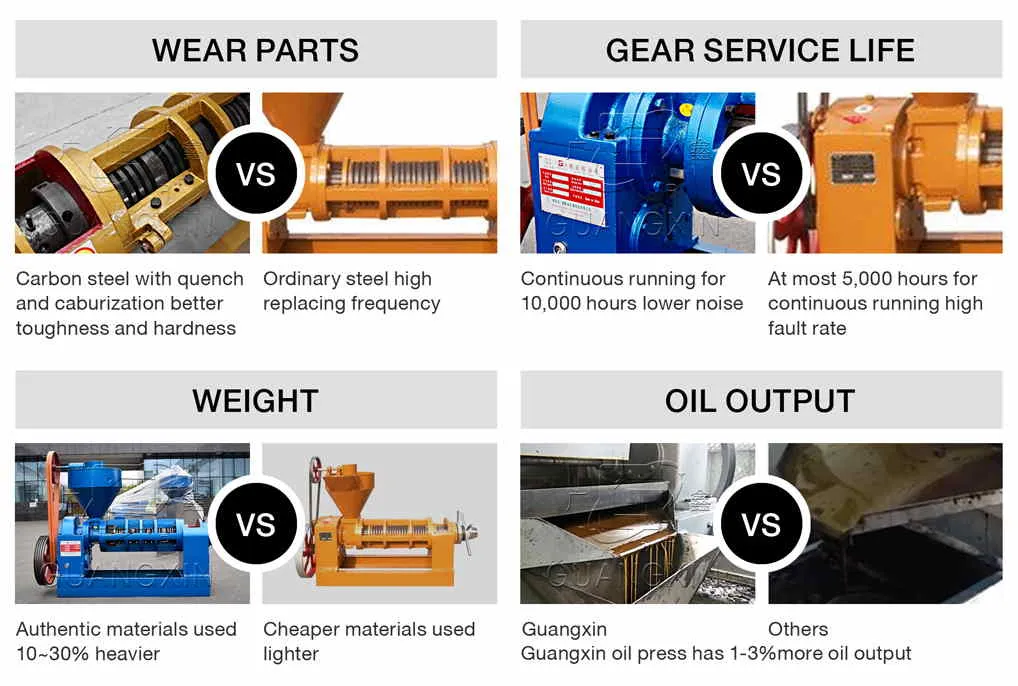

COMPARED WITH PEER
Company Information
Company Information
FAQ
Q: Are you a factory or trading company ?
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)
Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry.
Tips1.The raw material is:_______
Tips2.The capacity of the machine you need is:______
Thank you and looking forward to your inquiry,we will response immediately.
Make order right now! And why?
One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!
30YEARS FACTORY ---------- your honest partner
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company . our main products including :screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: How can we verify that you are a factory ?
A: You can add our contact information and we will show our factory to you online.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our machine has been tested ok and fully assembled before shipping, customer just needs to make 2-4hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 tims to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (we produce seeds roaster heated by economical fuel.)
Q:What serivice do you provide?
A: (1) 1year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can i become a distributor of Guangxin?
A: Contact us immediately for further details by sending us an inquiry.
We will appreciated if these following 2 tips contained in your inquiry.
Tips1.The raw material is:_______
Tips2.The capacity of the machine you need is:______
Thank you and looking forward to your inquiry,we will response immediately.
Make order right now! And why?
One of our clients called us for buying wearing parts and he told us that his machine bought from us in 1990s. Its really! So, don't worry about the quality. Its beter than your think!
30YEARS FACTORY ---------- your honest partner
