20tpd Sunflower Oil Processing Machine Yzyx168

Product Description

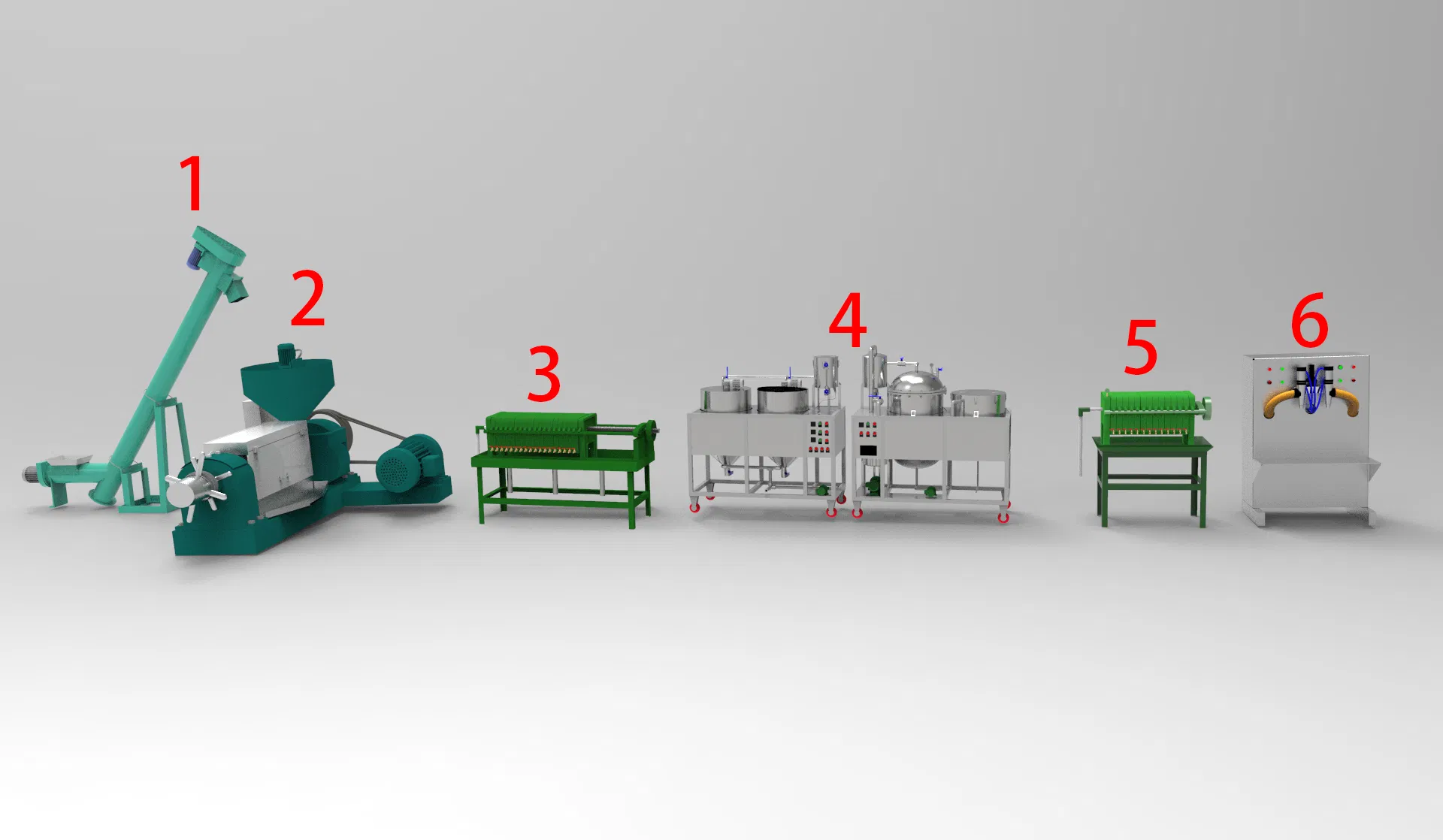

High capacity of YZYX168 oil press machine vegetable oil produce line

Advangages

1. More than 30 years of experience in manufacturing oil press.
2. 7 patents of oil press technology.
3. Full inspection before delivery, quality pass rate more than 98%.
4. More than 300 professional workers. 10% of them are mechanical engineers technicians.
5. Widely used in our life, have been exported to more than 70 countries.

Products show detail:

20tpd Sunflower Oil Processing Machine Yzyx168

20tpd Sunflower Oil Processing Machine Yzyx168

In order to meet the demand of the rapid development of oil & fat industry, our factory developed YZYX168 recently.
YZYX168 produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
YZYX168 has strong squeeze power. The pressure in its chest is powerful. Users can obtain very good squeezing result when operate properly.
Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Main technique features

Items Oil Plants	Processing Capacity	Oil content of Dry cakes (%)	Oil Yield Efficiency (t/24h)	Electricity Consumption (kw.h/t)
Rapeseed	≥20	≤8.0	≥80	≤35
Cotton seeds	≥20	≤7.5	≥75	≤55
Soybean	≥17	≤7.0	≥65	≤52
Peanut	≥20	≤8.0	≤91	≤35
sunflower	≥20	≤8.0	≤88	≤35

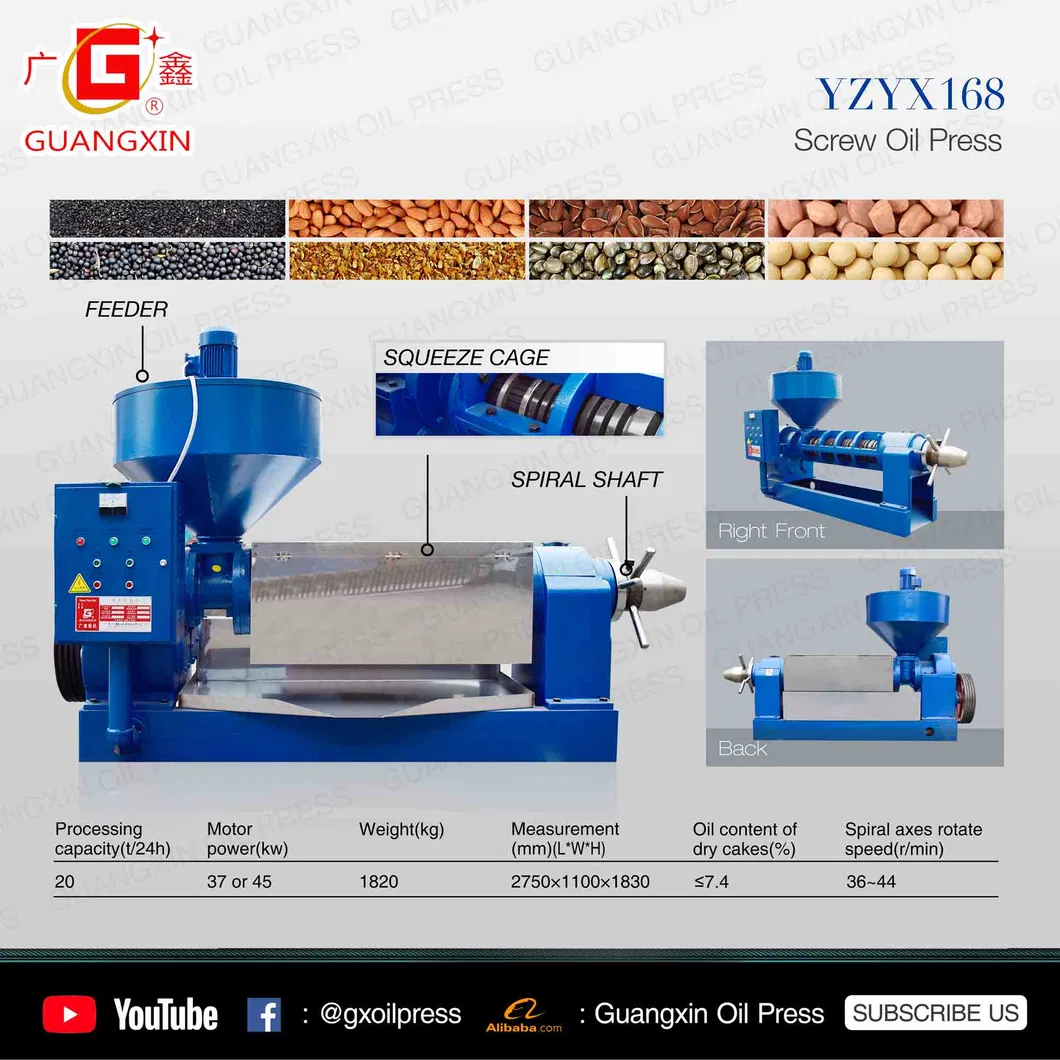

The series YZYX168 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.


Working principle:
1.  Transferred by the triangle belt, the electromotor drives the spiral shaft.
2.  Oil plants being carried toward to the end of the machine by rotating squeeze spirals.
3.  With the space between spirals and loops becoming smaller,the pressure in the chest is bigger.
4.  During this process, oil plants are smashed and the tissue cells are destroyed, then oil is separated from oil plants.
5.  After extracted, oil plants turns to be cakes containing low oil and is discharged in thin slices from the end.

YZYX168 FOUR stage oil press from Guangxin is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
The product conforms to the "Technology Standard of Agricultur
20tpd Sunflower Oil Processing Machine Yzyx168

Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Main technique features

Items Oil Plants	Processing Capacity	Oil content of Dry cakes (%)	Oil Yield Efficiency (t/24h)	Electricity Consumption (kw.h/t)
Rapeseed	≥20	≤8.0	≥80	≤35
Cotton seeds	≥20	≤7.5	≥75	≤55
Soybean	≥17	≤7.0	≥65	≤52
Peanut	≥20	≤8.0	≤91	≤35
sunflower	≥20	≤8.0	≤88	≤35

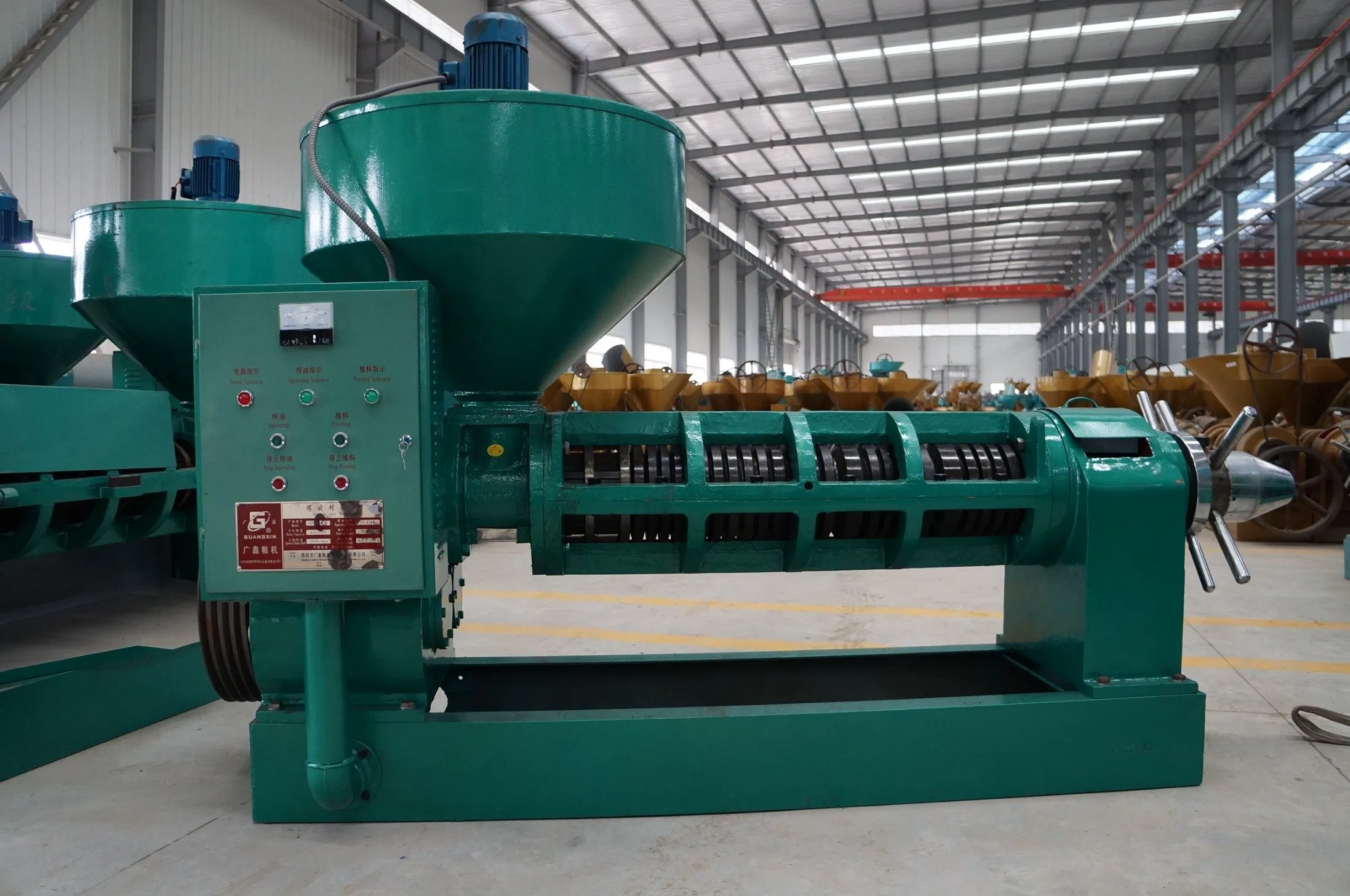

Working state

Company Information

FAQ

1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.

4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.)
