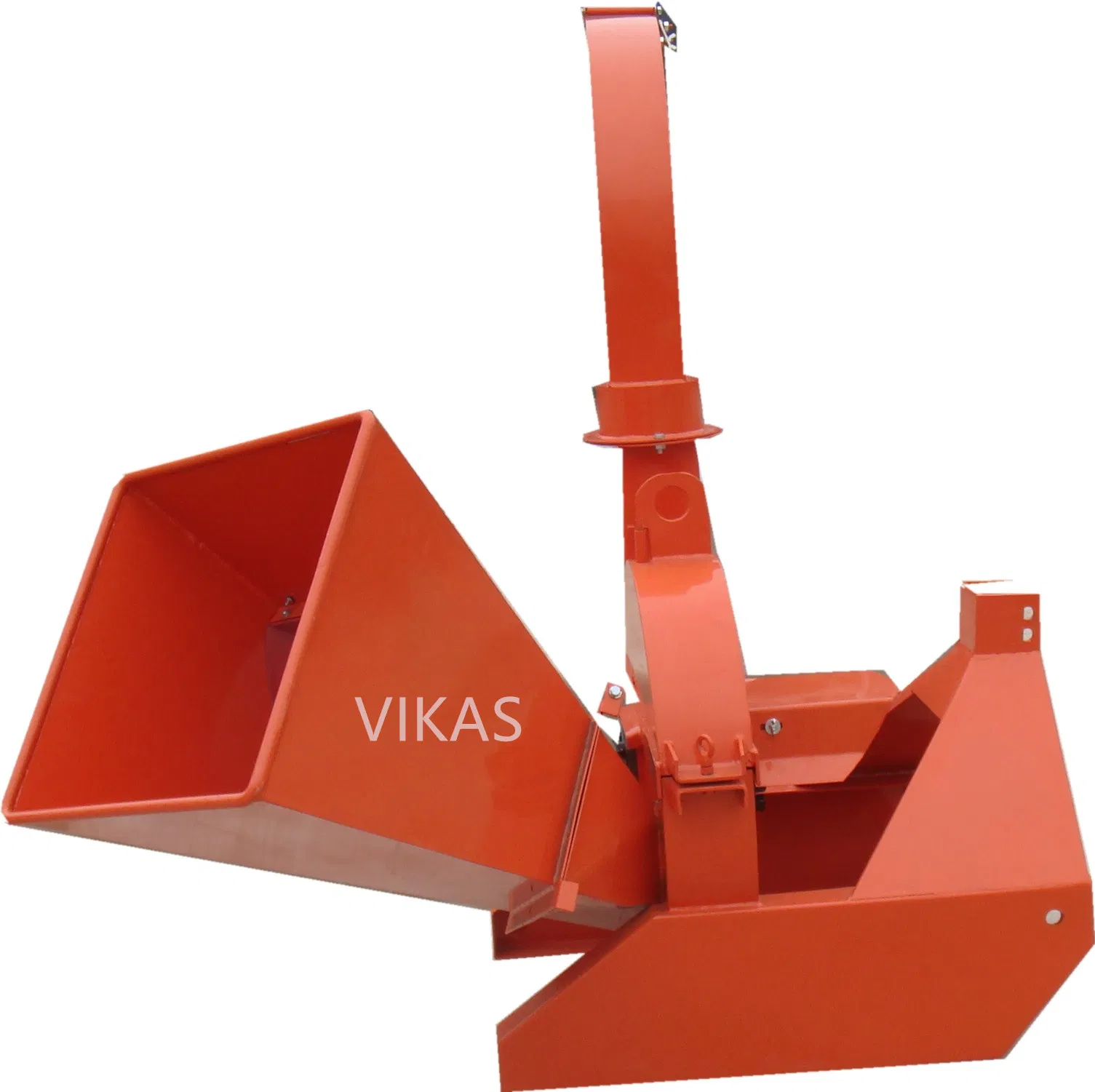

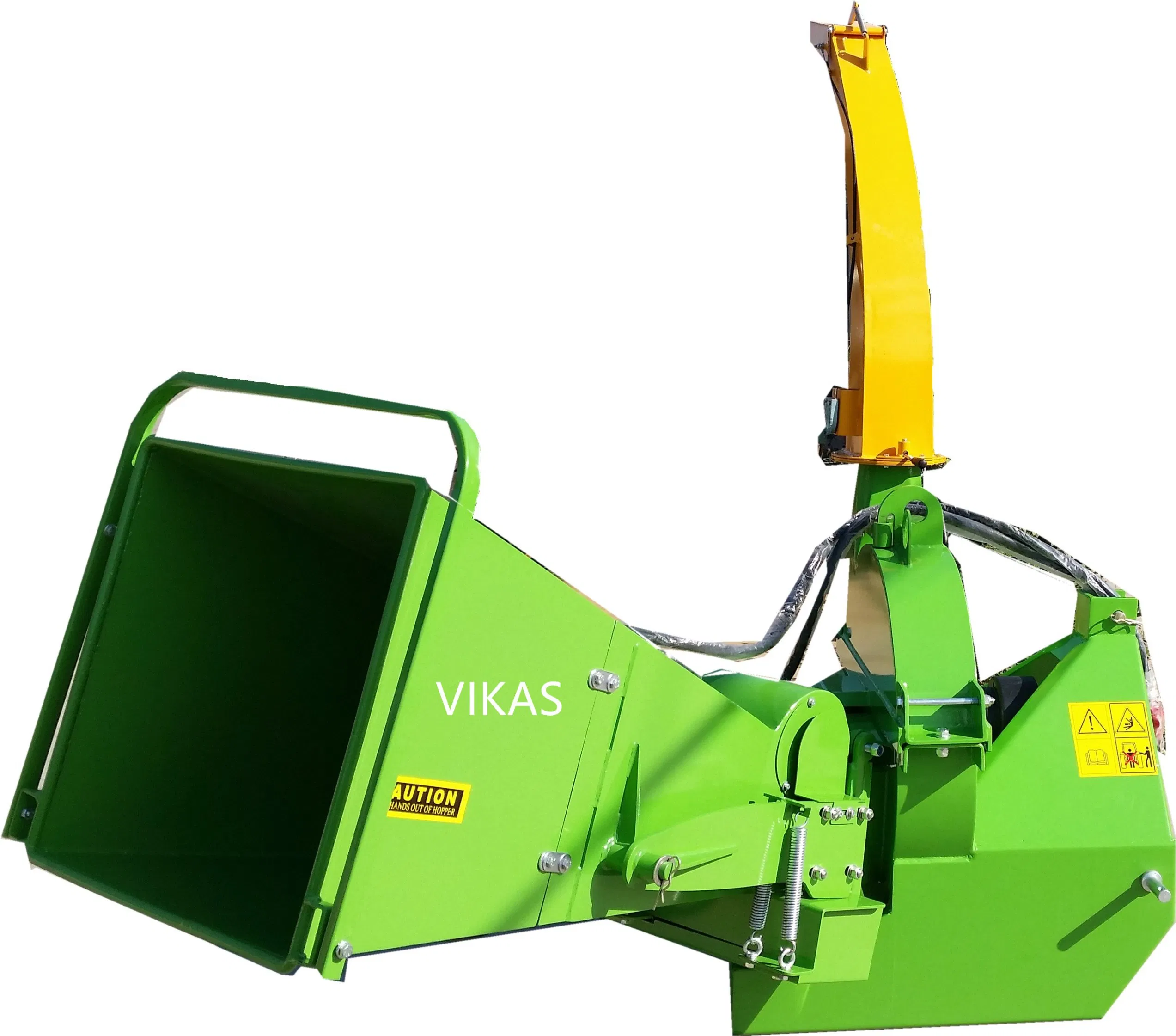

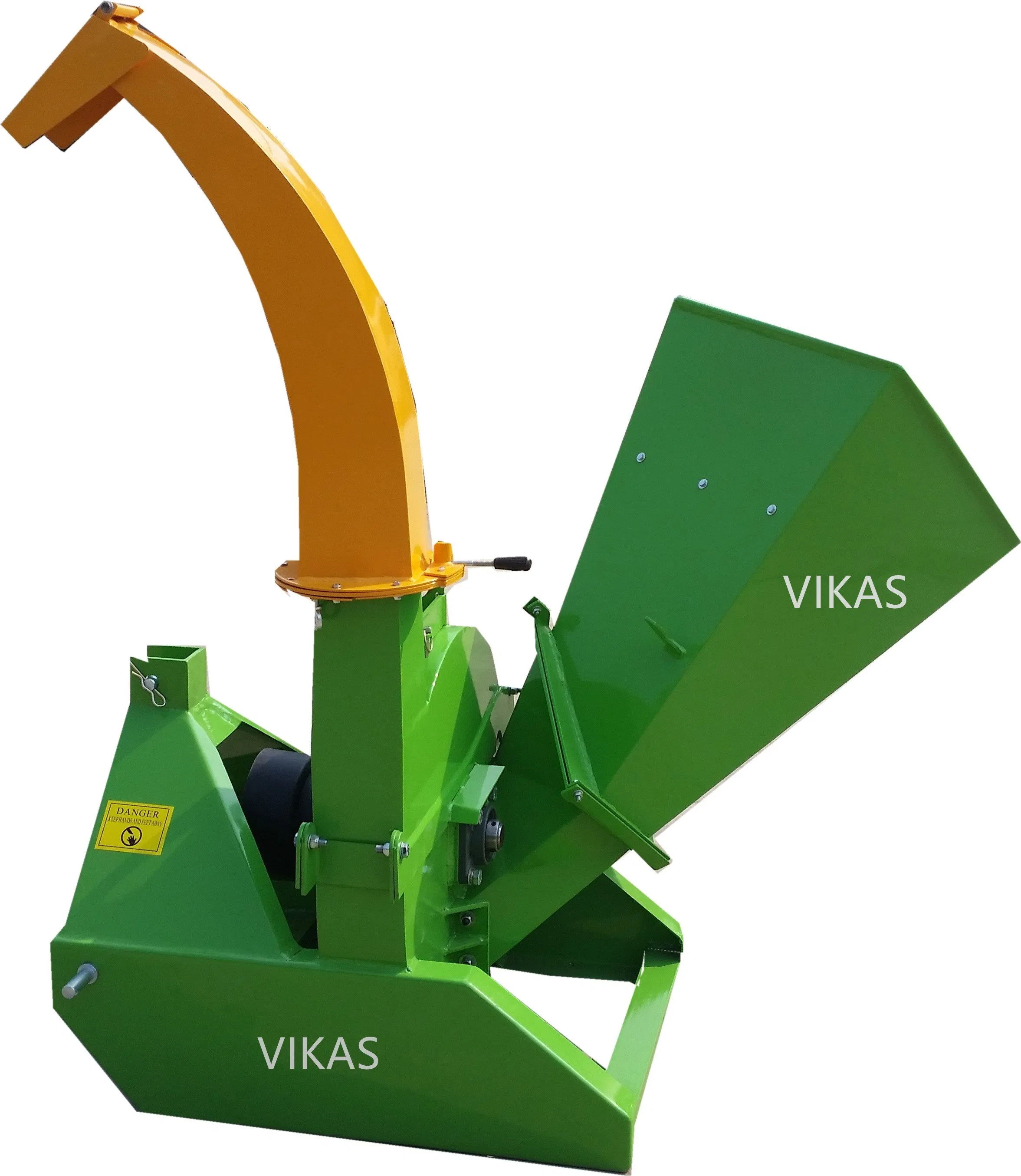

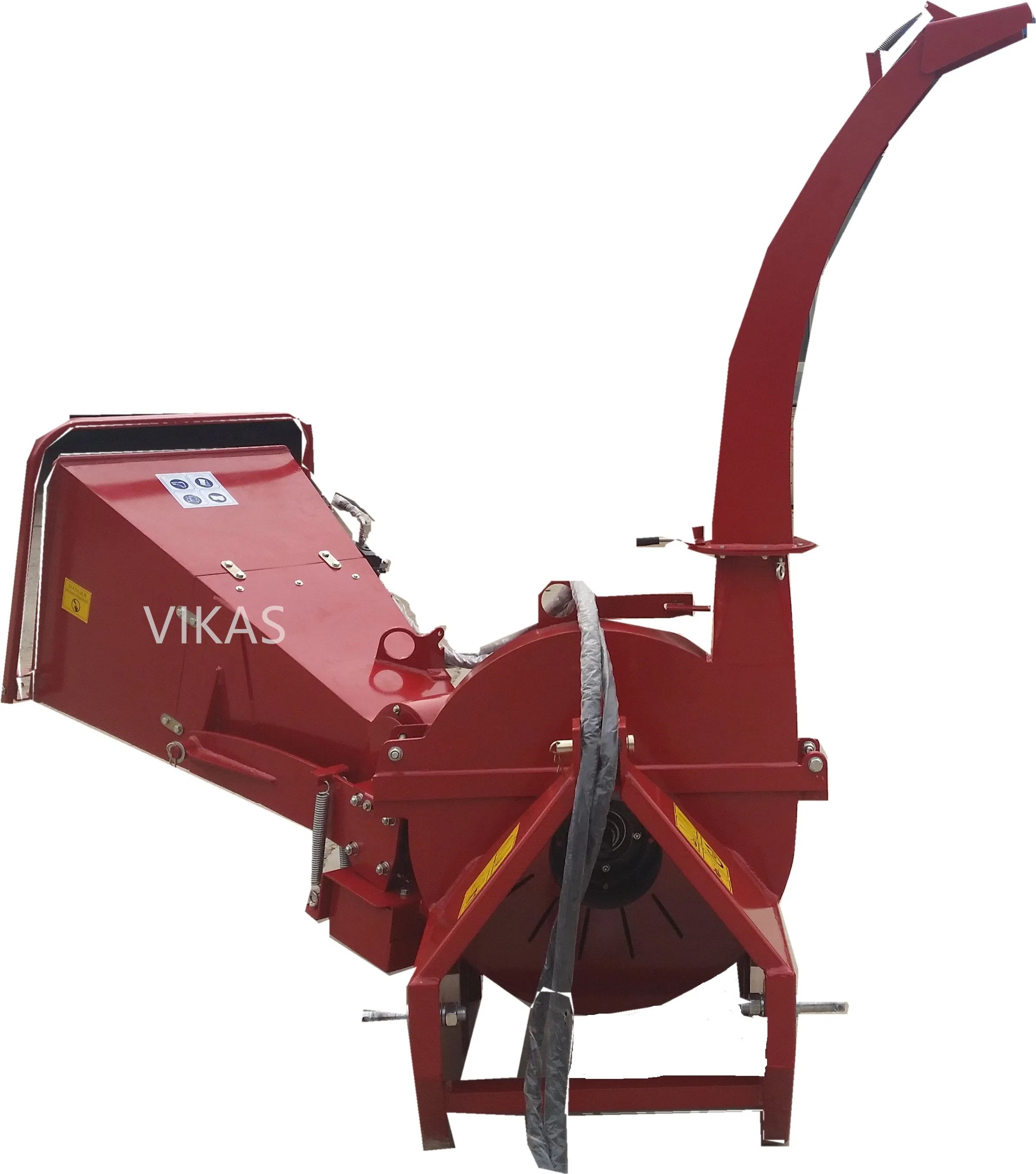

Pto Tractor Towing Wood Chips Making Machine with Chipping Capacity (10cm-22cm)
Product DescriptionThe wood chipper crusher shredder manufactured by Qingdao Vikas Industry is used to cut wood, logs, timbers, branches and bamboo, straw etc. The clients can choose suitable model based on their own requirements. The cutting size of wood chips can be adjustable.The wood chipper is ......
Send Inquiry
Product Description
Product Description
The wood chipper crusher shredder manufactured by Qingdao Vikas Industry is used to cut wood, logs, timbers, branches and bamboo, straw etc. The clients can choose suitable model based on their own requirements. The cutting size of wood chips can be adjustable.

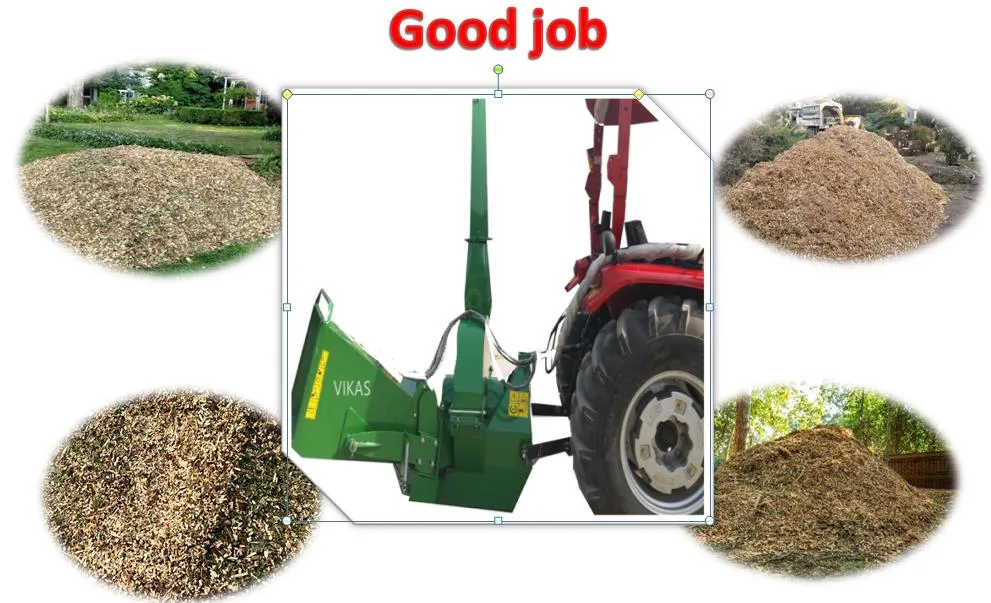

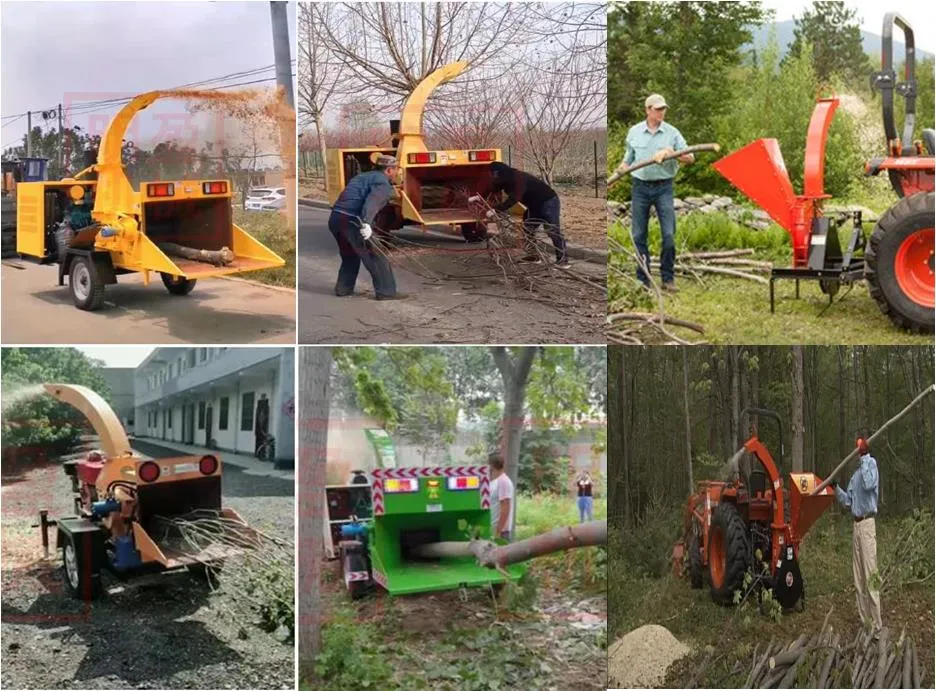

The wood chipper is widely used in organic fertilizer, soil mulch, animal feeds, mushroom planting, paper mills, wood-based panels of factories. It is a very good choice for the production of MDF, and other furniture board industries.
The application of the wood chipper truly realized the concept of returning to nature from nature, protecting natural environment, and meanwhile promoting the development of sustainable economy, and reached WIN-WIN.
Unique Selling
(1) 20HP-50HP Powerful diesel engines ,4 cylinder , 4 stroke, movable, easy to take anywhere .
(2) Electric start and stop, More convenient and Manganese Carbon Steel safety.
(3) Strong and durable blades , raw material 65mn manganese carbon Steel.
(4) Max. chip capacity, 9 inch(220mm) ,chip size (10-50mm) adjustable.
(5) ATV Trailer Mounted, high-speed tire can be towed on road.
(6) Flywheel cutter, easy to change blades.
(7) 360 degrees feeding outlet rotation angle.
(8) Automatic hydraulic feeding.
(9) A pair of knives for free.
(10) high efficiency,6-10m³/h.
(11) Wide feed port, more convenient.
Products Configurations
The wood chipper includes support wheels for ATV, oil tank & oil level display, diesel engine, double hydraulic motors, long material discharge outlet, big chamber for easy material feeding, double hydraulic feeding rollers etc.
Products Applications

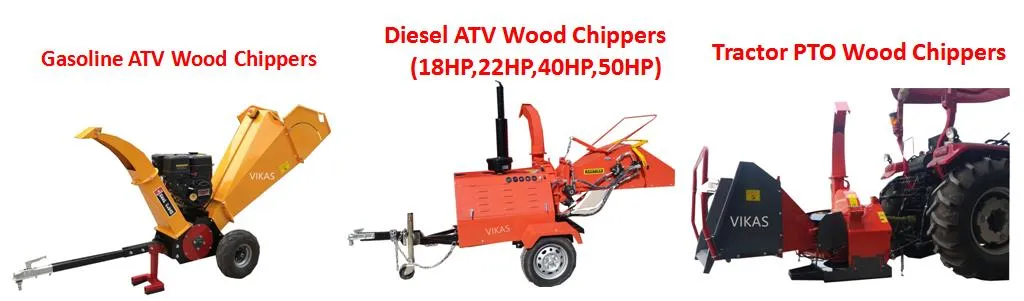

VIKAS totally have 3types of wood chippers:
1.Gasoline ATV Wood Chipper 2.Diesel ATV Wood Chippers (18HP,22HP,40HP,50HP) 3.Tractor PTO Wood Chippers(BX42S,BX42R,BX62S,BX62R,BX92R)
Theses are yours!
The wood chipper crusher shredder manufactured by Qingdao Vikas Industry is used to cut wood, logs, timbers, branches and bamboo, straw etc. The clients can choose suitable model based on their own requirements. The cutting size of wood chips can be adjustable.
The wood chipper is widely used in organic fertilizer, soil mulch, animal feeds, mushroom planting, paper mills, wood-based panels of factories. It is a very good choice for the production of MDF, and other furniture board industries.
The application of the wood chipper truly realized the concept of returning to nature from nature, protecting natural environment, and meanwhile promoting the development of sustainable economy, and reached WIN-WIN.
Unique Selling
(1) 20HP-50HP Powerful diesel engines ,4 cylinder , 4 stroke, movable, easy to take anywhere .
(2) Electric start and stop, More convenient and Manganese Carbon Steel safety.
(3) Strong and durable blades , raw material 65mn manganese carbon Steel.
(4) Max. chip capacity, 9 inch(220mm) ,chip size (10-50mm) adjustable.
(5) ATV Trailer Mounted, high-speed tire can be towed on road.
(6) Flywheel cutter, easy to change blades.
(7) 360 degrees feeding outlet rotation angle.
(8) Automatic hydraulic feeding.
(9) A pair of knives for free.
(10) high efficiency,6-10m³/h.
(11) Wide feed port, more convenient.
Products Configurations
The wood chipper includes support wheels for ATV, oil tank & oil level display, diesel engine, double hydraulic motors, long material discharge outlet, big chamber for easy material feeding, double hydraulic feeding rollers etc.
| Model | BX42S | BX42R | BX62S | BX62R | BX92R |
| Chipping capacity | 10cm | 10cm | 15cm | 15cm | 22cm |
| Flywheel diameter | 630mm | 630mm | 740mm | 740mm | 940mm |
| Flywheel thickness | 18mm | 18mm | 25mm | 25mm | 32mm |
| Flywheel weight | 50kg | 50kg | 94.5kg | 94.5kg | 171kg |
| Number of blades | 4 | 4 | 4 | 4 | 4 |
| Number of blades | 65mn (High-strengt steel) | 65mn (High-strengt steel) | 65mn (High-strengt steel) | 65mn (High-strengt steel) | 65mn (High-strengt steel) |
| Blades size | 210*60*9 mm | 210*60*9 mm | 240*60*9 mm | 240*60*9 mm | 320*100*17 mm |
| In-feeding size | 500*500 mm | 500*500 mm | 580*580 mm | 580*580 mm | 620*620 mm |
| Sawdust size | ≤6mm | ≤6mm | ≤6mm | ≤6mm | ≤9mm |
| Packing size | 1140*910*1260 | 1130*810*1800 | 980*920*1950 | 1220*910*2100 | 1300*1150*2150 |
| Machine size | 1470*1260*1650 | 1670*1300*1800 | 1720*1300*2200 | 2100*1680*2100 | 2000*1980*2520 |
| Packing weight | 250kg | 340kg | 360kg | 544kg | 720kg |
| PTO power | 35-60 | 35-60 | 35-60 | 60-100 | 75-120 |
VIKAS totally have 3types of wood chippers:1.Gasoline ATV Wood Chipper 2.Diesel ATV Wood Chippers (18HP,22HP,40HP,50HP) 3.Tractor PTO Wood Chippers(BX42S,BX42R,BX62S,BX62R,BX92R)
