New Hydraulic Skidder for Lumber and Timber

Product Description

SINOWAY skidders deliver wood to roadside at the lowest cost in a variety of terrain conditions, tree sizes and species. Build quality, durability and operator ergonomics are unmatched.

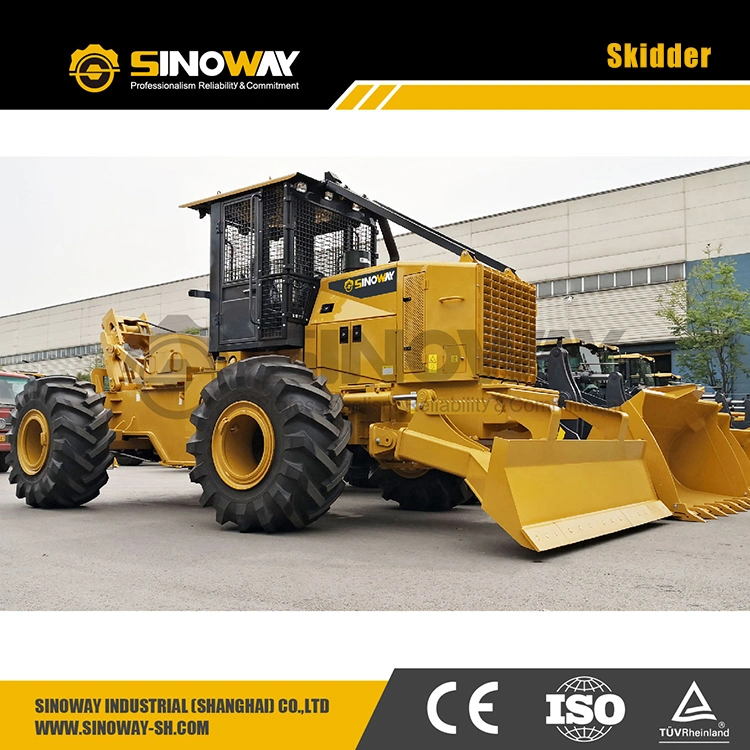

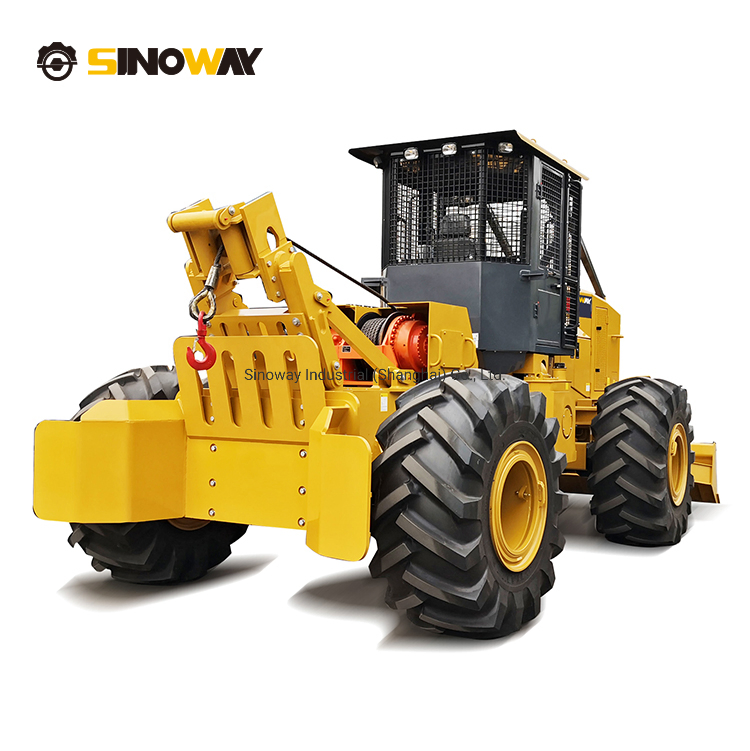

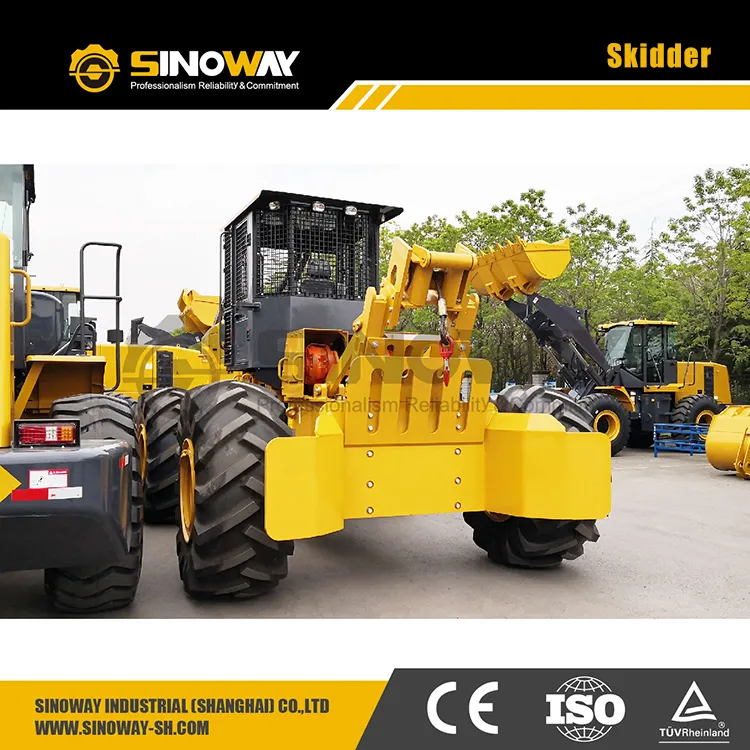

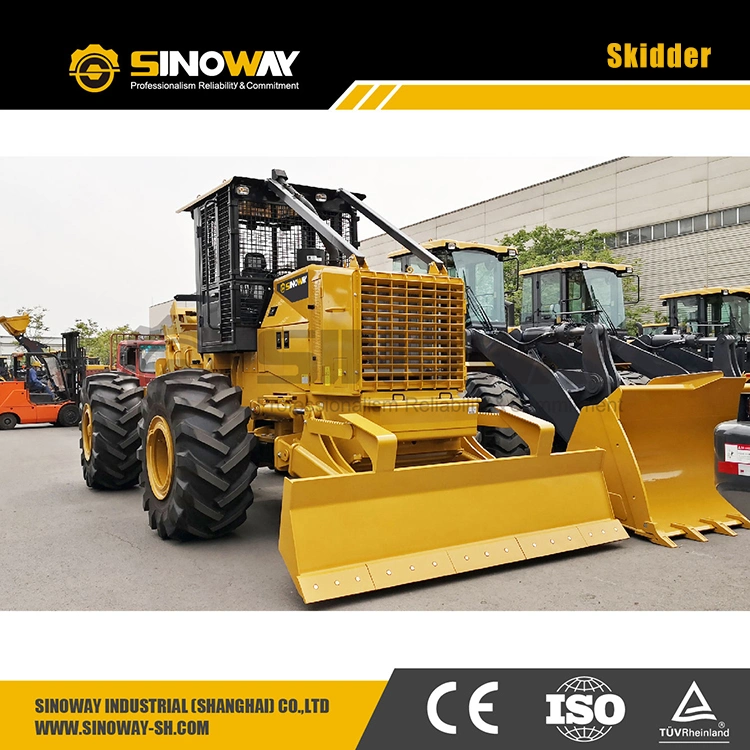

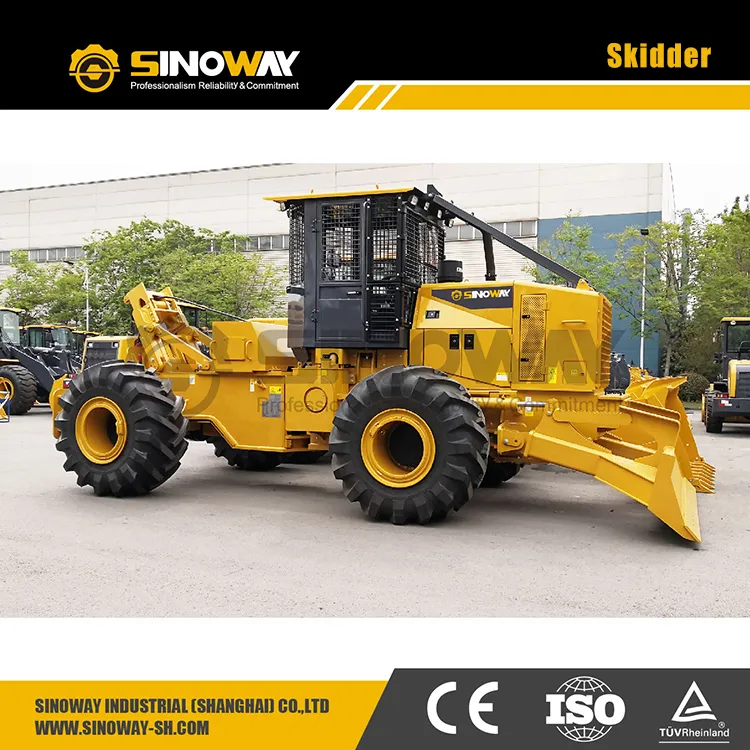

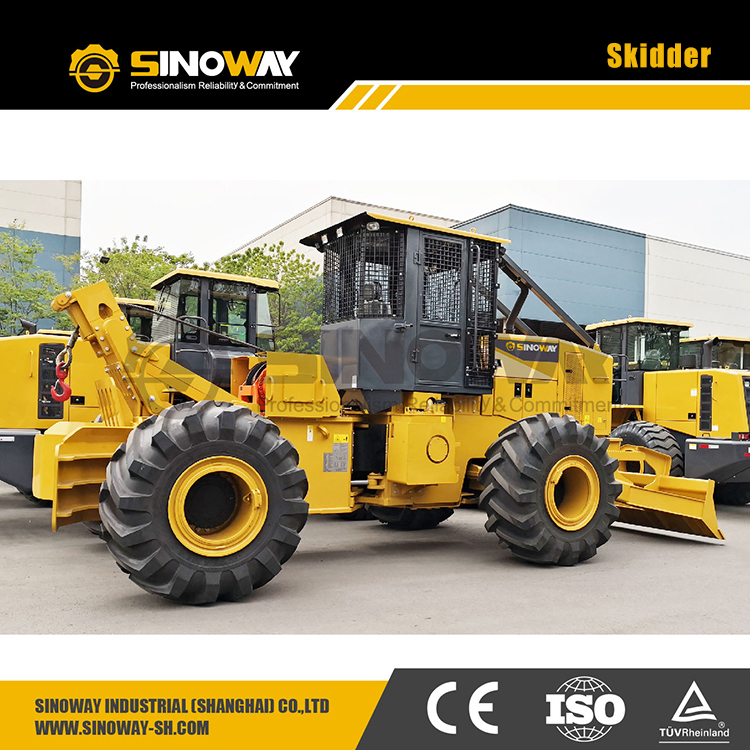

Machine Show
New Hydraulic Skidder for Lumber and Timber

New Hydraulic Skidder for Lumber and Timber

Specifications

Item		Unit	Standard configuration

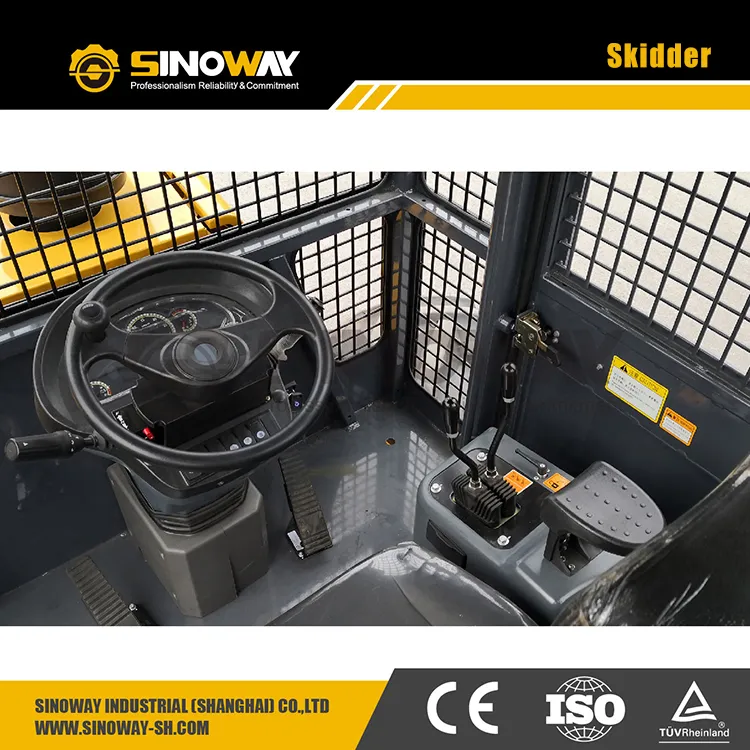

Purpose			Integral cab equipped with reinforced frame , safe and reliable. The rear axle is equipped with limited slip differential to avoid slipping of the tire. The new generation of SINOWAY skidder is widely used in the collection & transportation of various kinds of wood under the working condition of primitive forest.
Winch drive form			Driven by hydraulic motor
Operation form of rope laying			External control of the whole machine, manual control	Control in the cab, electrohydraulic control
Maximum traction force of wire rope		KN	204	250
Maximum speed of wire rope		m/min	10
Drum capacity (diameter x length)		mm/mm	Ф 22 x 33	Ф 28 x 30
Winch drum diameter (type of rope winding)		mm	273	295
Winch drum width		mm	230	245
Lifting height of push plate		mm	1381
Cutting depth of push plate		mm	456
Operating weight		Kg	19700
Engine power		Kw	178
Wheelbase		mm	3680
Tread		mm	2622
Speed	F1 / R1	Km/h	6/6
	F2 / R2	Km/h	11/11
	F3 / R3	Km/h	22/22
	F4 / R4	Km/h	38/38
Tire type and pattern			23.5-25 Herringbone
Swing angle of front axle		°	±12
Turning radius (outside of tire)		mm	6370
Overall dimension (length x width x height)		mm	7700 x 3220 x 3550
