Industrial Wood Chipping Machine Bx Drum Chipper Price
industrial wood chipping machine BX drum chipper price Instruction of JLBX drum chipper JLBX drum chipper suitable for chipping particle board, density beaverboard, wood fiber board, widely used in paper-making factory, power plant and industrial boileretc. Application:This machine chip the raw mate......
Send Inquiry
Product Description
industrial wood chipping machine BX drum chipper price

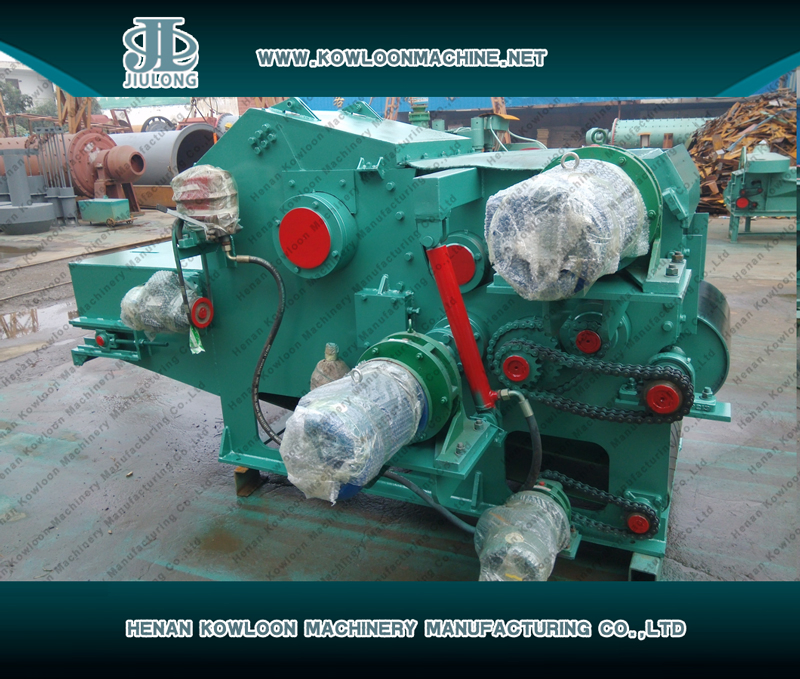

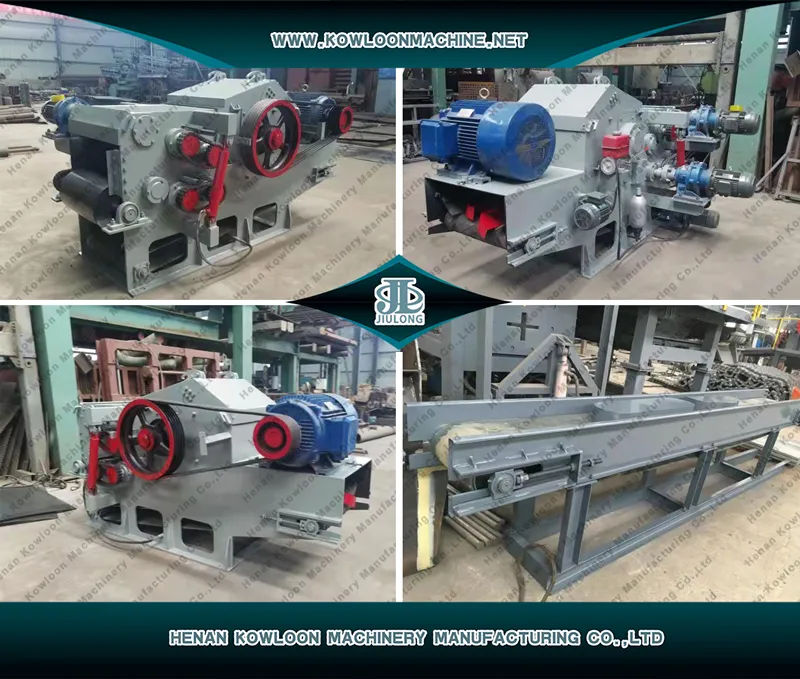

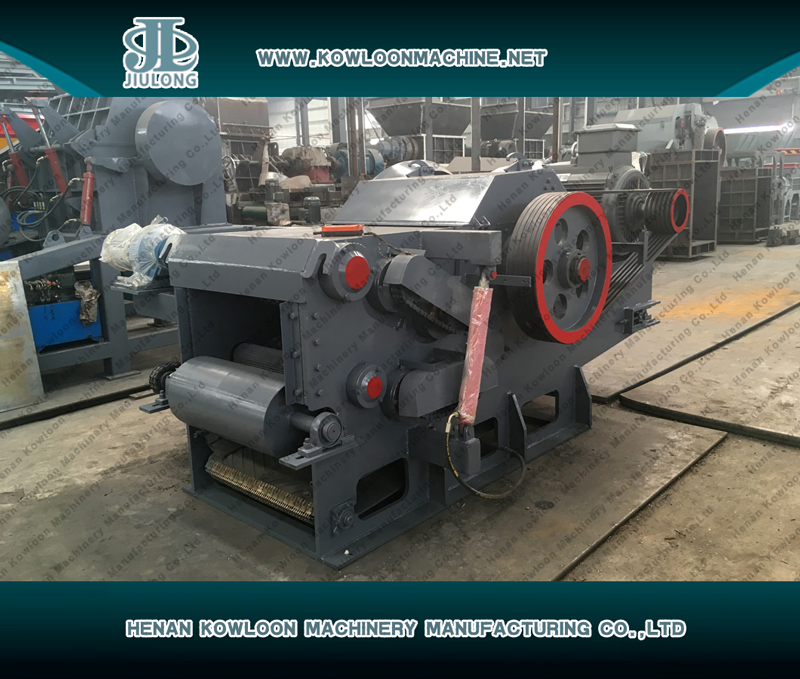

Instruction of JLBX drum chipper
JLBX drum chipper suitable for chipping particle board, density beaverboard, wood fiber board, widely used in paper-making factory, power plant and industrial boiler…etc.
Application:
This machine chip the raw material into small chips, these chips are raw material of chipboard, density beaverboard and wood fiber board, also could be burning material as sort of fuel.
Structure:
Drum chipper consists of body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system and other parts.
Moving knives fixed on the roller by special bolts which special designed, according to the different thickness of raw material, the top feed mechanism could be adjusted automatically; the small chips drop through screen, the large size material will stay inside machine and get chipped again.
The hydraulic system designed to be refill by manual operation, so that the cover shell of machine could be opened, easier for user to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.
Technical parameters
Kowloon Service
1. Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers' working area, also provide technical support 24 hours service online.
2. After sales:
Kowloon skilled technicians are experienced at oversea installation; therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
3. Wearing parts support
Kowloon has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.
Company Introduction
Henan Kowloon, located in industrial hub of China Zhengzhou city, is one professional manufacturer of various wood crushers and other recycling machinery. We were established since 2006, and it′ S been 14 years since we started exporting. By 2014, Kowloon machines were approved by CE, BV, SGS and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, such as Turkey, Spain, Romania, Italy, America, Mexico, Costa Rica, Saudi Arabia, Israel, Libya, Egypt, Uganda, South Africa, Kenya, Venezuela, Ecuador, Peru, Russia, India, Malaysia, Philippines, Indonesia, Australia, etc. Besides, Kowloon has owned two oversea distributors and after-sale service center and now are still growing continuously.
Henan Kowloon adopts advanced technology parts, design and craft, united technology from USA, Germany, Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries. Main machines are as follows: Double-shaft shredder, drum wood chipper, multi-functional wood chipper, disc wood chipper, heavy-duty sawdust machine, hammer grinder, mobile shredder, mobile wood chipper, mobile sawdust machine, chaff cutter, fiber crusher, wood powder machine, rotary dryer, air-flow dryer, dust collector, cyclone, etc.
Kowloon support team has 4 professional engineers to provide clients professional solutions, facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, Kowloon keep growing and now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour production line in China or abroad, under the support of internal business department, Kowloon is able to take "Turn-Key" projects in China or abroad.
Kowloon never stop on improving and researching, in past 19years, 80% traditional products get improved and various of new products were developed based on traditional technology, such mobile type, diesel wood chippers, heavy-duty shredders, wood pallet crusher… etc, more and more machines become popular in Chinese and abroad market, won a good reputation and corporate image, for better meets the worldwide market, Kowloon accept requests to customize machines according to users' demand, welcome to inquiry us with detailed requirements, all Kowloon people would offer best and all possibility!
FAQ for double shaft shredder
You May Have Following Questions:
1: Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2: What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary
3: How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4: What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service; if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5: Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
Contact Person
Jackie Zhang | Director Manager
Mobile: +86-13733817580

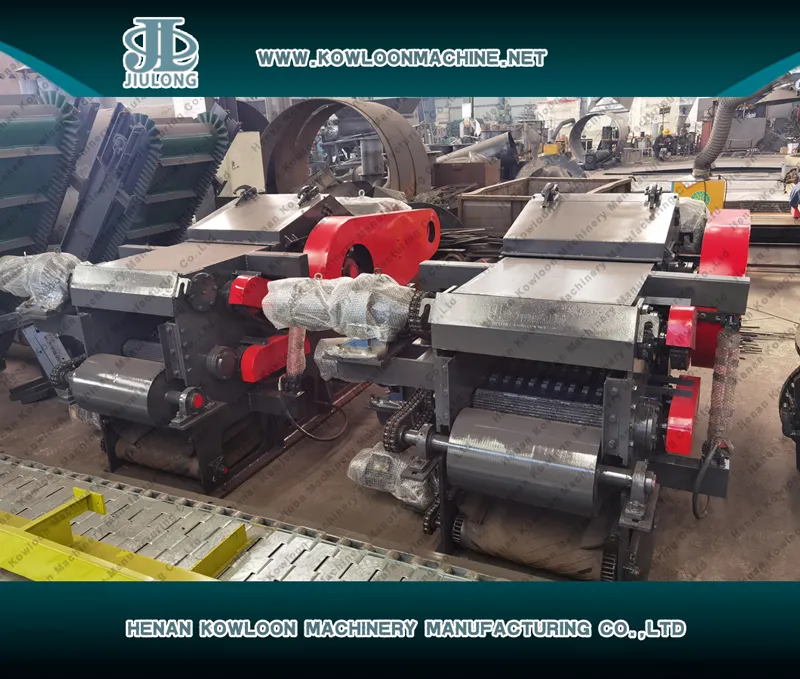

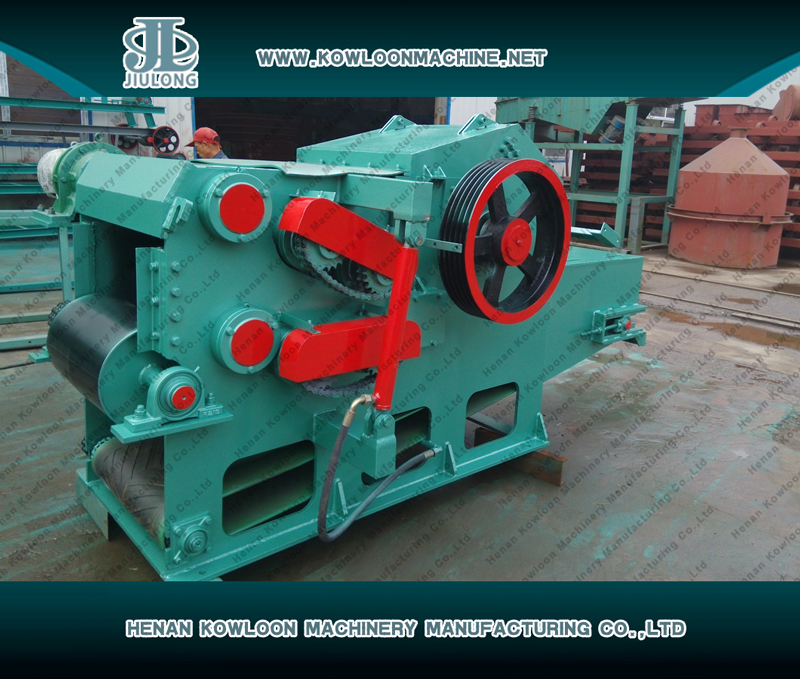

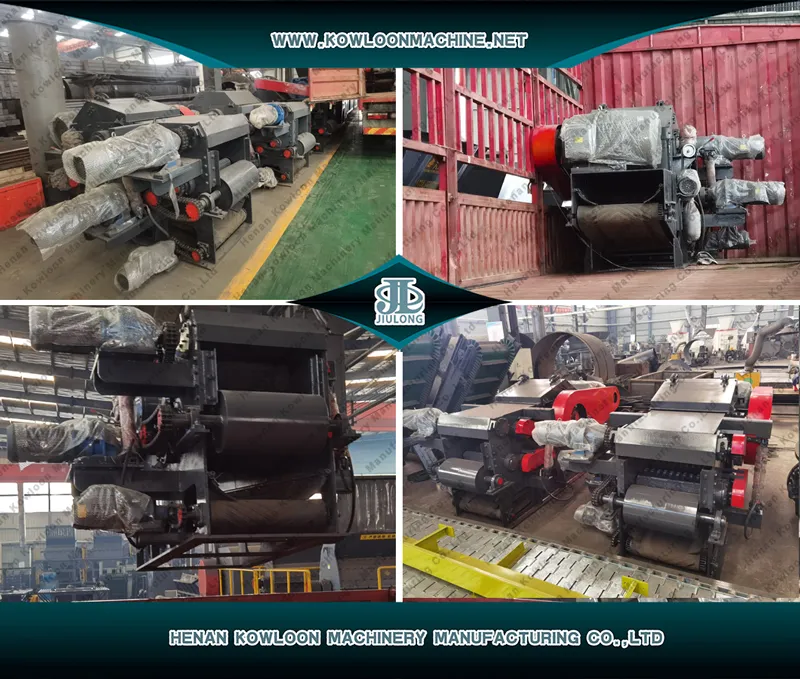

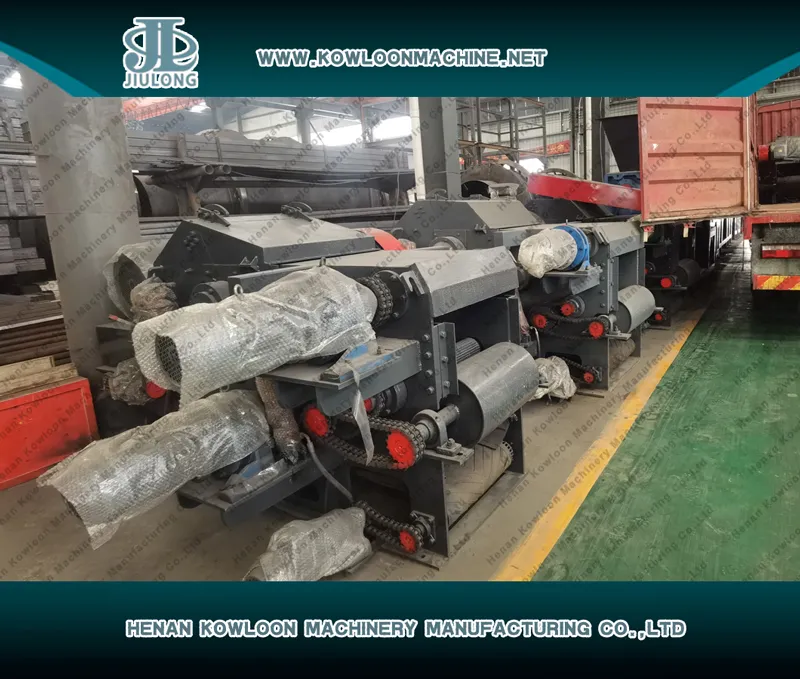

Instruction of JLBX drum chipper
JLBX drum chipper suitable for chipping particle board, density beaverboard, wood fiber board, widely used in paper-making factory, power plant and industrial boiler…etc.
Application:
This machine chip the raw material into small chips, these chips are raw material of chipboard, density beaverboard and wood fiber board, also could be burning material as sort of fuel.
Structure:

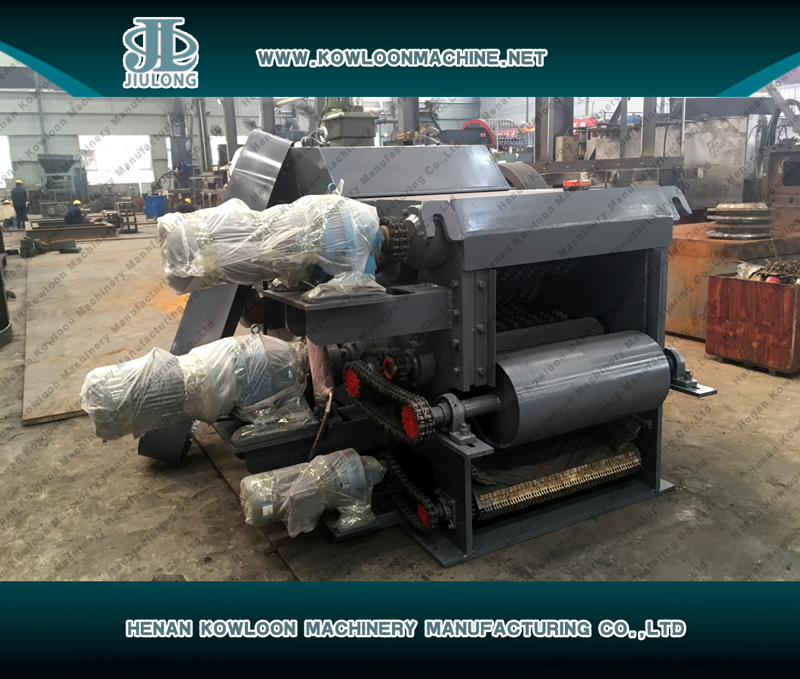

Drum chipper consists of body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system and other parts.
Moving knives fixed on the roller by special bolts which special designed, according to the different thickness of raw material, the top feed mechanism could be adjusted automatically; the small chips drop through screen, the large size material will stay inside machine and get chipped again.
The hydraulic system designed to be refill by manual operation, so that the cover shell of machine could be opened, easier for user to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.
Technical parameters
| Model | JLBX215 | JLBX216 | JLBX218 | JLBX2113 |
| Infeed size (H*W) | 160x400mm | 230x590mm | 300x680mm | 450x700mm |
| Process range | ≤φ160mm | ≤φ230mm | ≤φ300mm | ≤φ450mm |
| Moving blade | 3 blades | 3 blades | 3 blades | 3 blades |
| Rotary speed | 592rpm | 590 rpm | 650 rpm | 500 rpm |
| Capacity | 3-5t/h | 8-10t/h | 14-18t/h | 15-30t/h |
| Main motor | 45kw | 55kw | 90-110kw | 200-250kw |
| Feeder motor | 3kw+3kw | 4kw+4kw | 5.5kw+5.5kw | 7.5kw+7.5kw |
| Hydraulic motor | 1.5kw | 1.5kw | 1.5kw | 3kw |
| Feeding conveyor motor | 3kw | 3kw | 4kw | 4kw |
| Weight | 2990kg | 5030kg | 7000kg | 11840kg |
| Dimensions | 1470*1550*970mm | 1800*1900*1210mm | 2200*2150*1500mm | 3670*2517*2050mm |
Kowloon Service
1. Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers' working area, also provide technical support 24 hours service online.
2. After sales:
Kowloon skilled technicians are experienced at oversea installation; therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.
3. Wearing parts support
Kowloon has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.
Company Introduction
Henan Kowloon, located in industrial hub of China Zhengzhou city, is one professional manufacturer of various wood crushers and other recycling machinery. We were established since 2006, and it′ S been 14 years since we started exporting. By 2014, Kowloon machines were approved by CE, BV, SGS and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, such as Turkey, Spain, Romania, Italy, America, Mexico, Costa Rica, Saudi Arabia, Israel, Libya, Egypt, Uganda, South Africa, Kenya, Venezuela, Ecuador, Peru, Russia, India, Malaysia, Philippines, Indonesia, Australia, etc. Besides, Kowloon has owned two oversea distributors and after-sale service center and now are still growing continuously.
Henan Kowloon adopts advanced technology parts, design and craft, united technology from USA, Germany, Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries. Main machines are as follows: Double-shaft shredder, drum wood chipper, multi-functional wood chipper, disc wood chipper, heavy-duty sawdust machine, hammer grinder, mobile shredder, mobile wood chipper, mobile sawdust machine, chaff cutter, fiber crusher, wood powder machine, rotary dryer, air-flow dryer, dust collector, cyclone, etc.
Kowloon support team has 4 professional engineers to provide clients professional solutions, facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible, to ensure every users have all security while running our machines, in this way, Kowloon keep growing and now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour production line in China or abroad, under the support of internal business department, Kowloon is able to take "Turn-Key" projects in China or abroad.
Kowloon never stop on improving and researching, in past 19years, 80% traditional products get improved and various of new products were developed based on traditional technology, such mobile type, diesel wood chippers, heavy-duty shredders, wood pallet crusher… etc, more and more machines become popular in Chinese and abroad market, won a good reputation and corporate image, for better meets the worldwide market, Kowloon accept requests to customize machines according to users' demand, welcome to inquiry us with detailed requirements, all Kowloon people would offer best and all possibility!
FAQ for double shaft shredder
You May Have Following Questions:
1: Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2: What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary
3: How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4: What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service; if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5: Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
Contact Person
Jackie Zhang | Director Manager
Mobile: +86-13733817580
