High Quality Wood Chipper Wood Chipping Machine
High quality wood chipper wood chipping machineIntroduction of Disk Timber Chipping Machine: Effort wood chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chippi......
Send Inquiry
Product Description
Introduction of Disk Timber Chipping Machine:

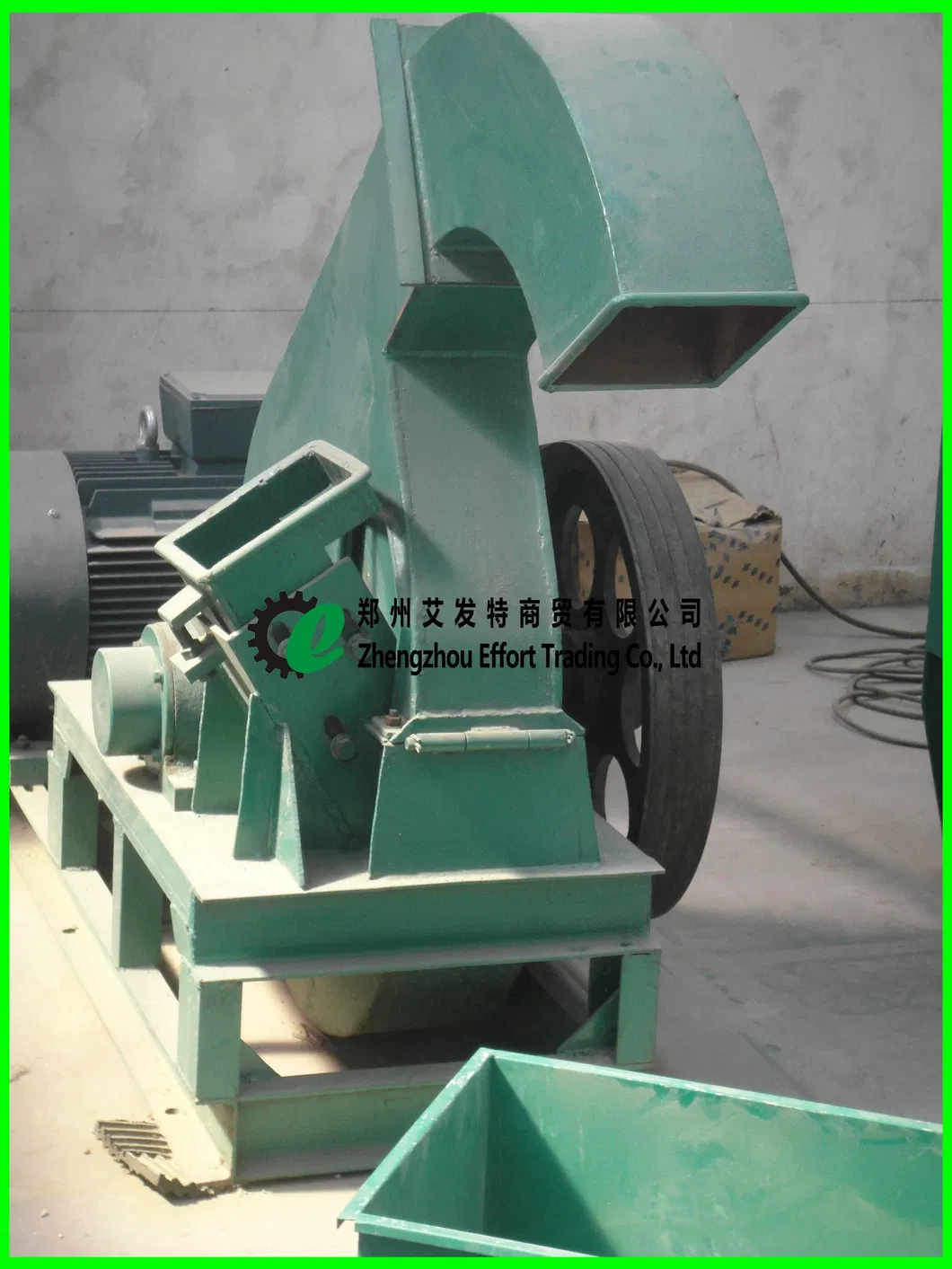

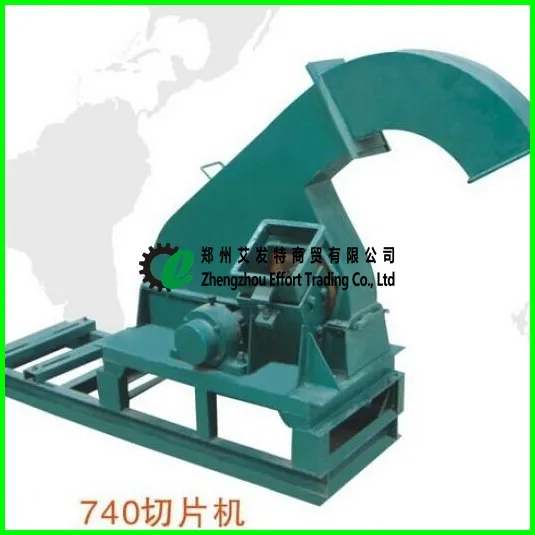

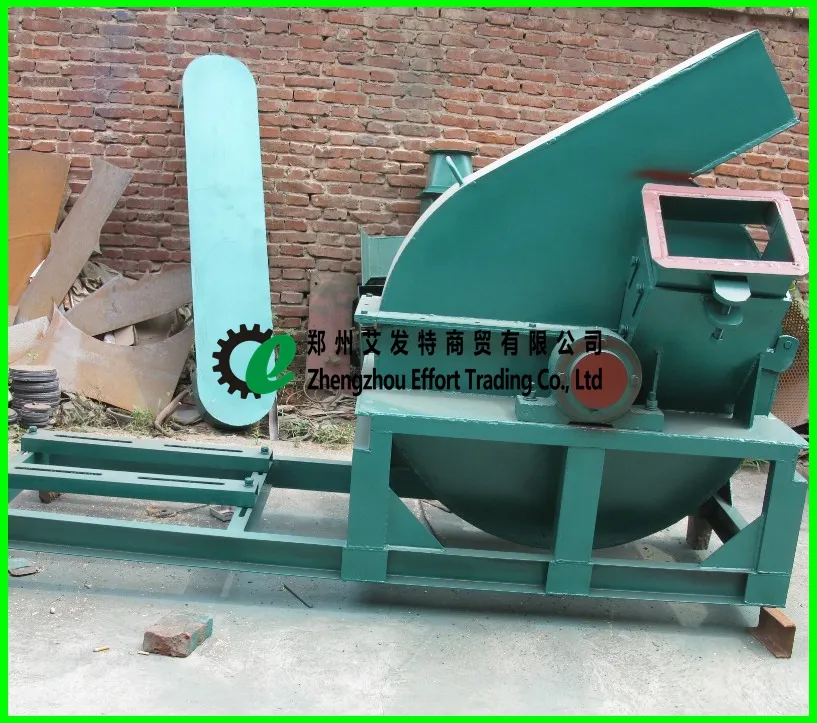

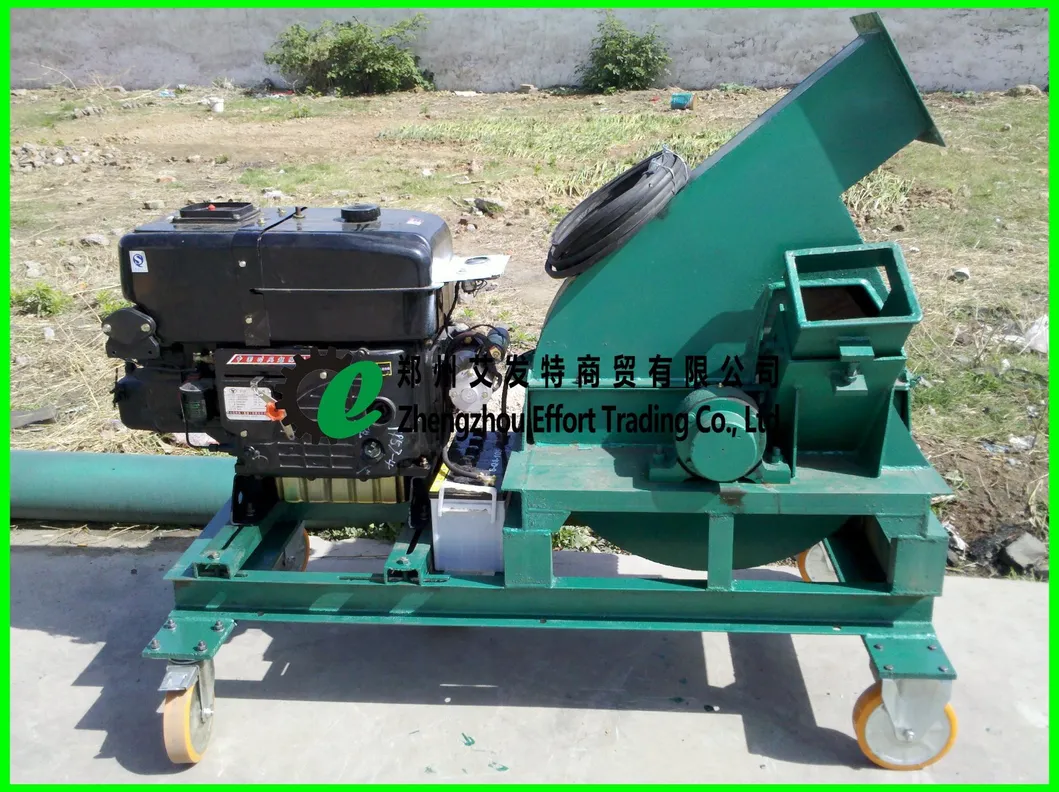

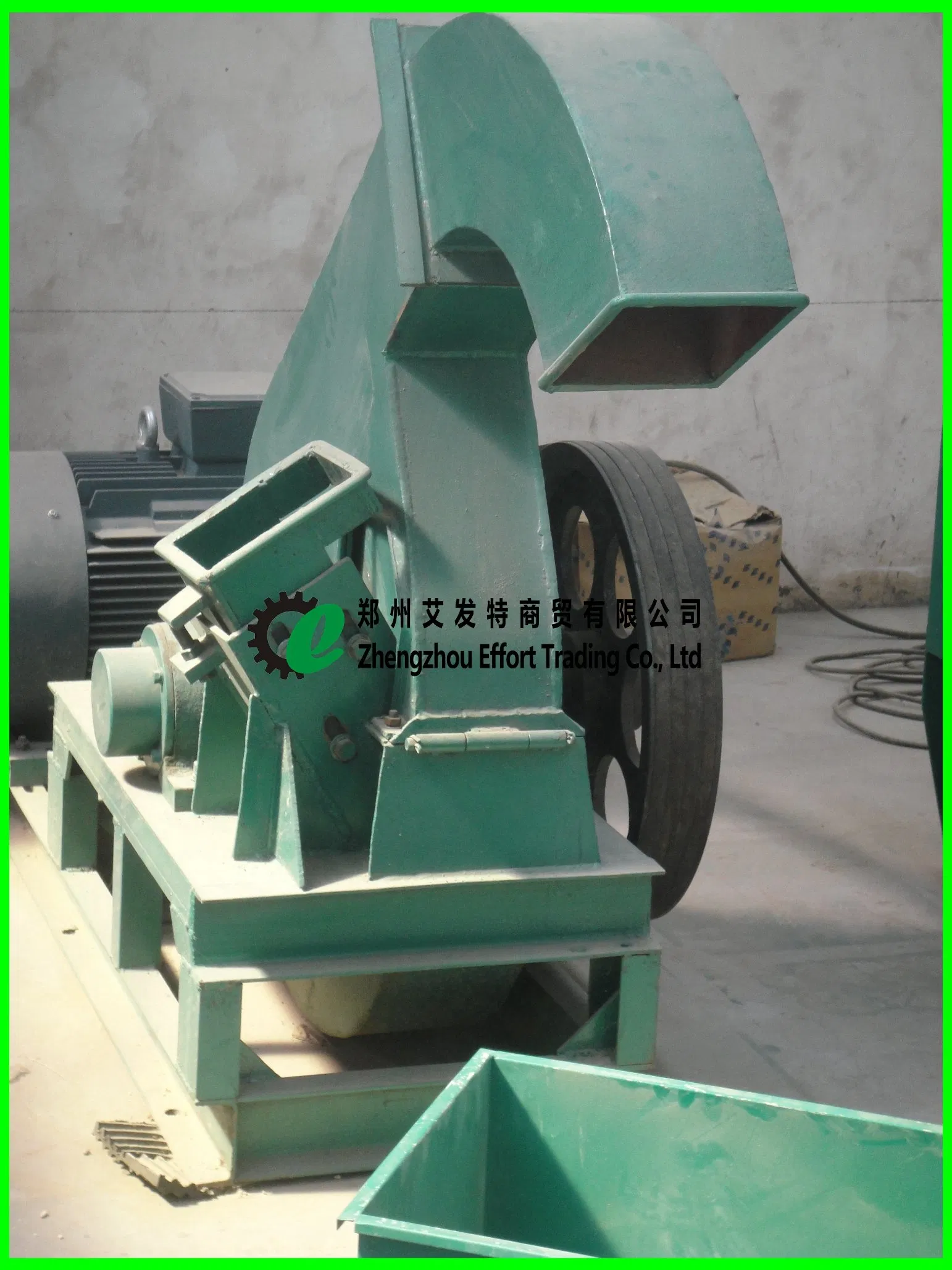

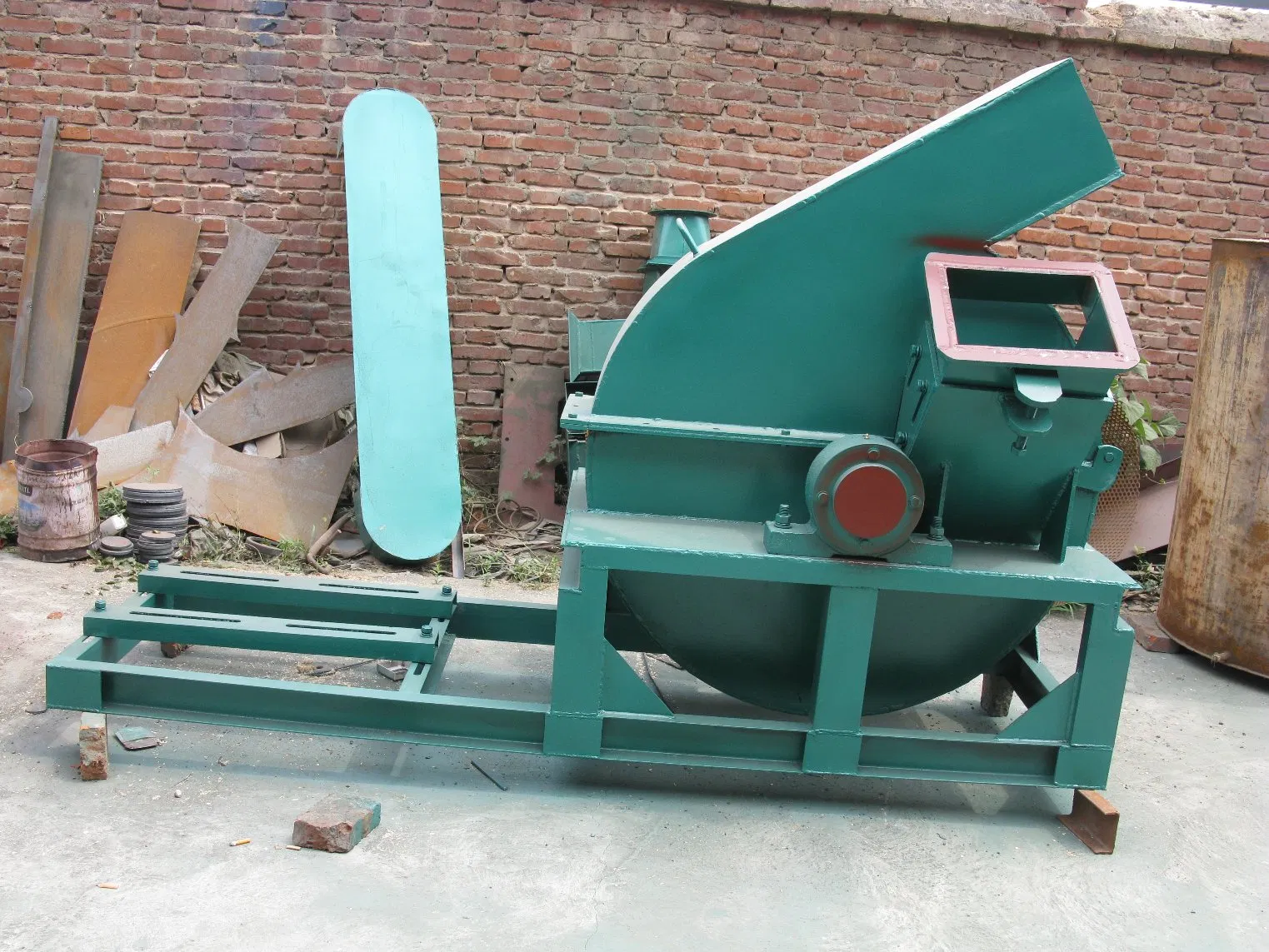

Effort wood chipping machine can cut log and small-diameter log with less than 200mm diameter and is applicable to paper pulp factory, forest tree factory, paper mill, thermal power plant, etc. Timber Chipping machine is mainly composed of four parts such as principal machine, coupling, bottom frame and motor, etc, in which the principal machine of chipping machine is composed of cutter head, upper and lower covers, feed inlet and outlet, etc.
1. Application:
It is the ideal chips making machine which suitable for paper-making production, fiberboard plant, shaving board factory, etc. Chips processing factory, raw material processing for mushroom, and also for park fertilizer.
2. Features:
Horizontal Chipper Machine Horizontal feed openings it is our popular and new-developed machine,it can processing log,wood slab,veneer,bamboo,wood branches,corn stalk,cotton stalk,reeds,or other non-wood fiber material into uniform chips.
Final chips size can adjustable according to your requirement.
Model | EFT-745 | EFT-1150 | EFT-1410 |
Cutter disk diameter(mm) | 745 | 1150 | 1410 |
Blades quantity( pcs) | 4 | 4 | 4 |
Motor power( Kw) | 30 | 55 | 90 |
Rotating speed(r/m) | 550 | 800 | 500 |
Feed opening diameter( mm) | 200 | 320 | 450 |
Feeding conveyor length(m) | 3 | 3 | 3 |
Output conveyor length (m) | 3 | 3 | 3 |
Final chips size (mm) | 2-5 | 2-5 | 2-5 |
Production capacity( T/H) | 3-8 | 6-12 | 8-15 |
