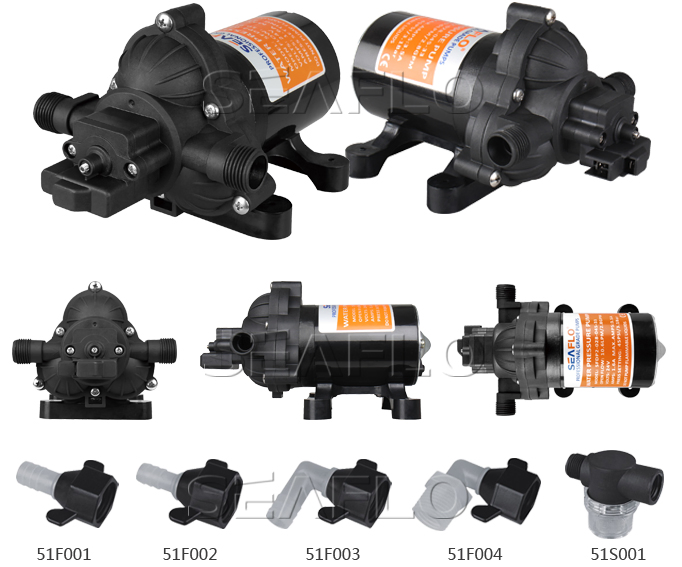

Seaflo 12V DC Electric Mini Diaphragm Pump
SEAFLO 12v DC Electric Mini Diaphragm Pump13.2LPM/3.5GPM 45PSIPUMPType3 Chamber positive displacement diaphragm pump, self priming, capable of being run dryControl TypePressure switchMax Recommended Temperature60° C(140° F)Priming Capabilities6 feet (1.8 m) suction liftRe-start Press......
Send Inquiry
Product Description
SEAFLO 12v DC Electric Mini Diaphragm Pump
13.2LPM/3.5GPM 45PSI
| PUMP | |
| Type | 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C(140° F) |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 45PSI : 35 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 1/2"-14 MNPT |
| Weight | 4.2 lbs (1.9 kg) |
| MOTOR | |
| Leads | 16 AWG, 13" (33cm) long with 2-Pin connector/Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 8.0 A |
| Fuse | 12.0 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow (GPM/LPM) | Control Type | Max Draw | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
| SFDP1-030-045-33 | 12V | 3.0 / 11.6 | Switch | 8.0A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP2-030-045-33 | 24V | 3.0 / 11.6 | Switch | 4.0A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP1-028-045-33 | 12V | 2.8 / 10.6 | Switch | 6.0A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
| SFDP2-028-045-33 | 24V | 2.8 / 10.6 | Switch | 3.5A | 45 / 3.1 | EPDM | Santoprene | 1/2"-14 MNPT | 2-Pin/Leads |
Consult factory for other available models.

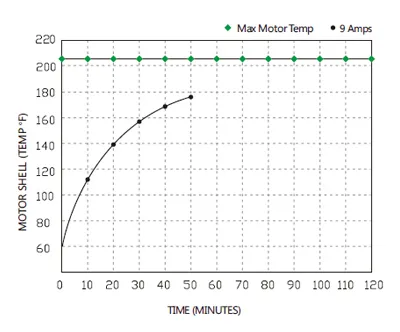

PERFORMANCE
2.8 GPM
| ||||||||||||||||||||||||||||||||||||||||

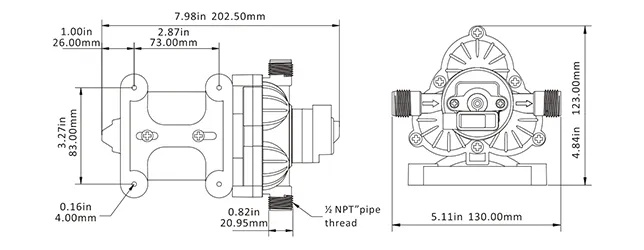

DIMENSIONS

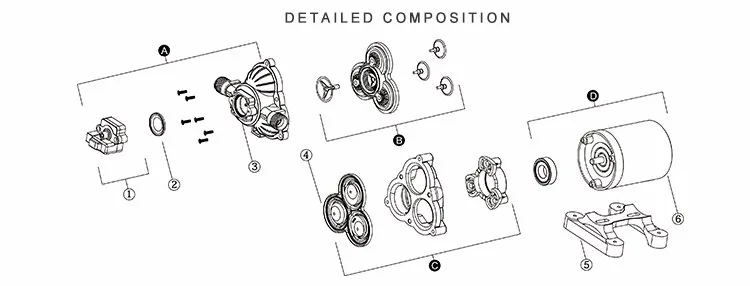

| Key | Description | Quantity |
| A | Pump Head Assembly | 1 |
| B | Valve Assembly | 1 |
| C | Diaphragm Assembly | 1 |
| D | Motor Assembly | 1 |
| Key | Description | Quantity |
| 1 | Pressure switch | 1 |
| 2 | Diaphragm of Pressure Switch | 1 |
| 3 | Pump Head | 1 |
| 4 | Diaphragm | 1 |
| 5 | Rubber Feet | 1 |
| 6 | Motor | 1 |
Unit Pump Weight | 4.24 lbs (1.92 kg) |
Selling Unit Size (L x W x H) | 8.5"x 5.63"x 5.12 |
Selling Unit Weight | 4.77 lbs (2.16 kg) |
Master Carton Size (L x W x H) | 23.62"x 10.83"x 11.5" |
Master Carton Qty | 8 pcs |
Master Carton Weight | 38.1 lbs (17.28 kg) |
