Product Description

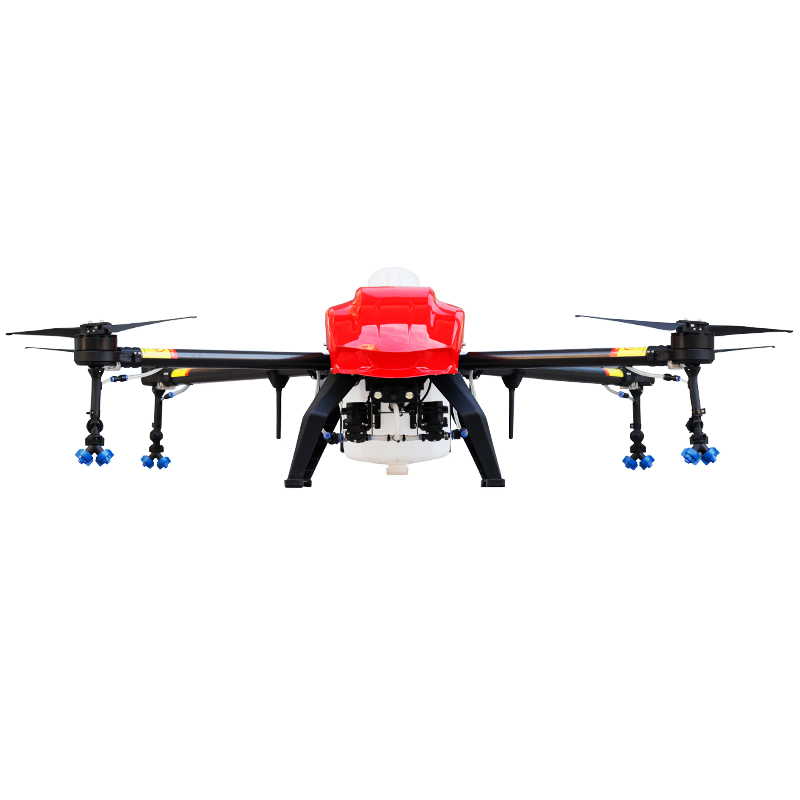

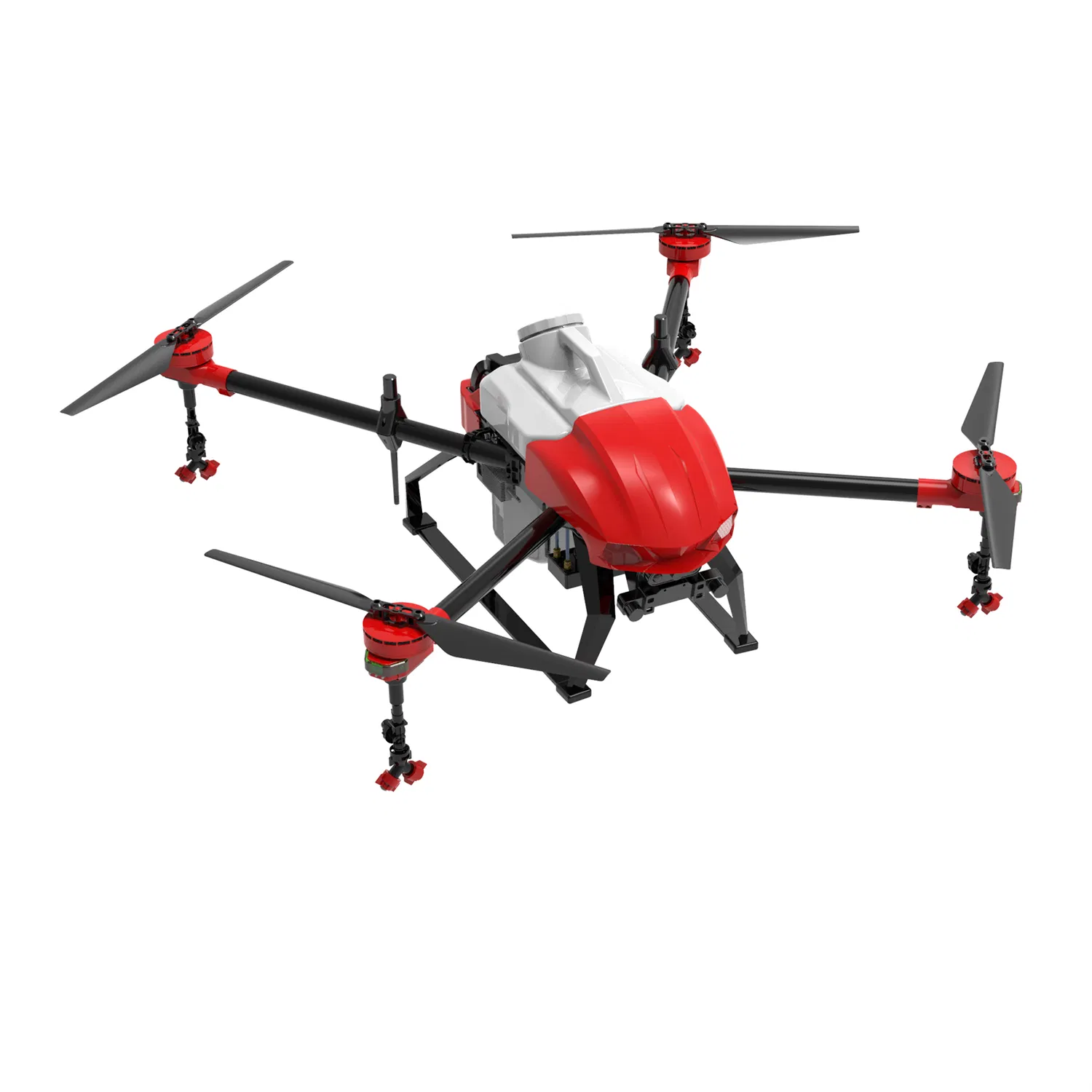

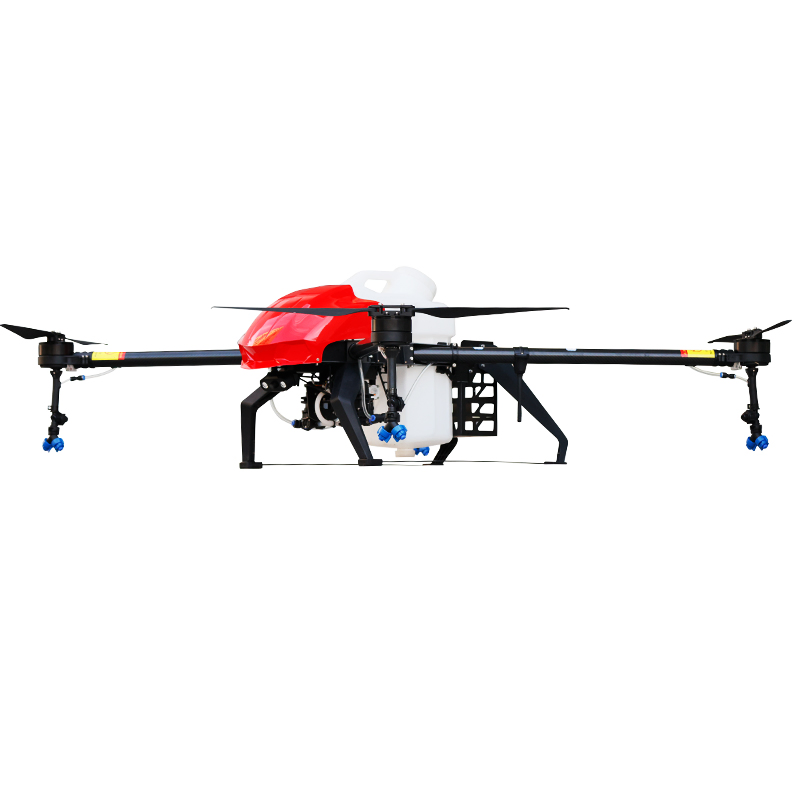

UNID agriculture drone sprayer low price drone quadcopter crop sprayer
- OEM & ODM Service -

Flight performance
Stable and reliable operation.
U16L-4 series plant protection aircraft has eight-axis power redundancy design, with adaptive power protection algorithm and robust control algorithm, which can maintain safe flight even if one of the shafts fails in flight.The motor drive system supports double backup communication mechanism, and automatically switches to the backup link when the signal link is abnormal, ensuring flight safety.U16L-4 can realize the pump without calibration and automatic one-button exhaust despite the passage of air, more worry and labor saving daily use.

Model	U16L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	1840mm1840mm530mm
Product folding size	740mm370mm530mm
Packaging size	900450600mm
Maximum takeoff weight	34KG
Aircraft weight	12.4KG
Pesticide Barrel	16L(standard a bucket)
Flight altitude	≤30 meters
Fly time(unloaded)	20~25 minutes
Fly time(loaded)	10~13 minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-8L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	5~6hectares/hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	16000mAh*1
