Product Description

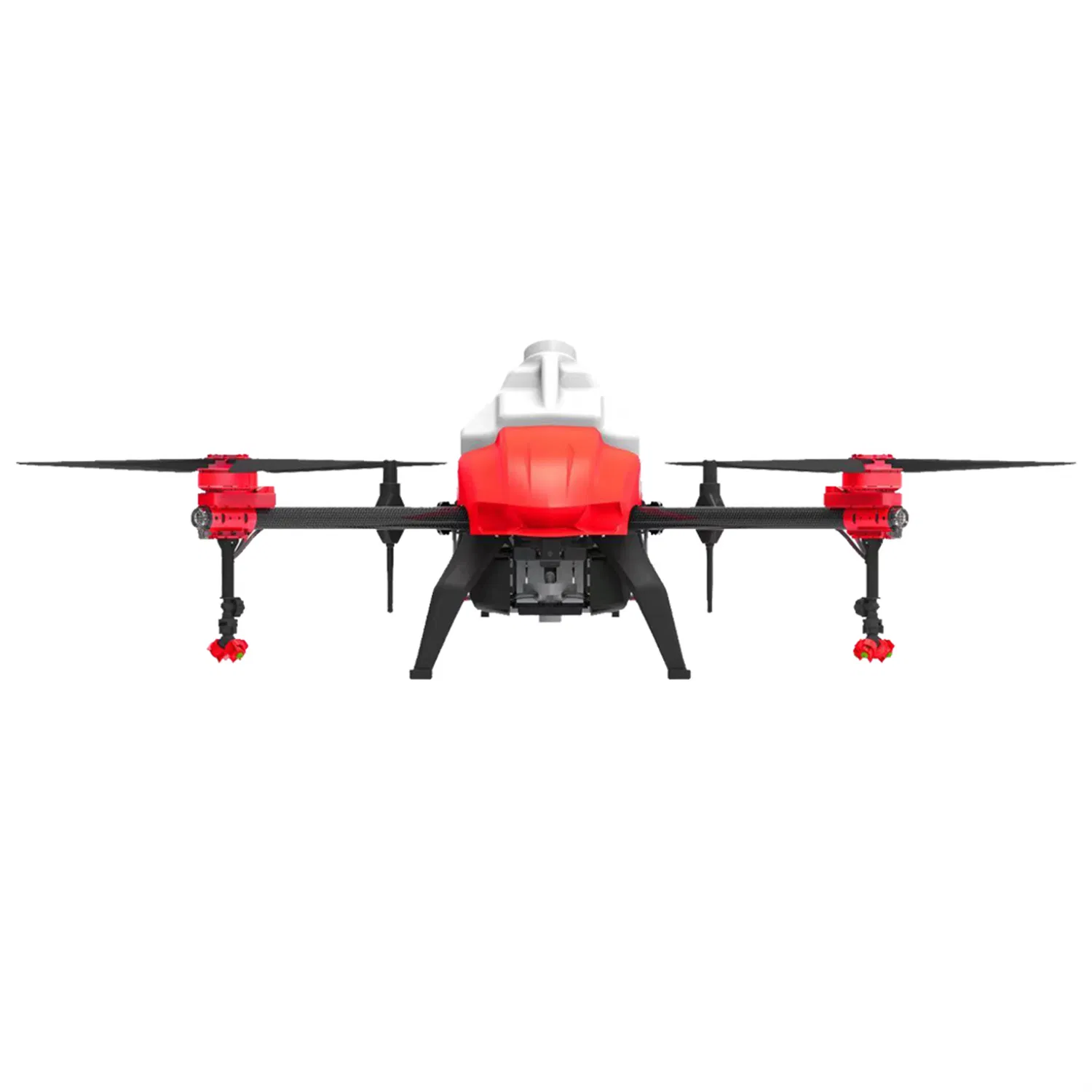

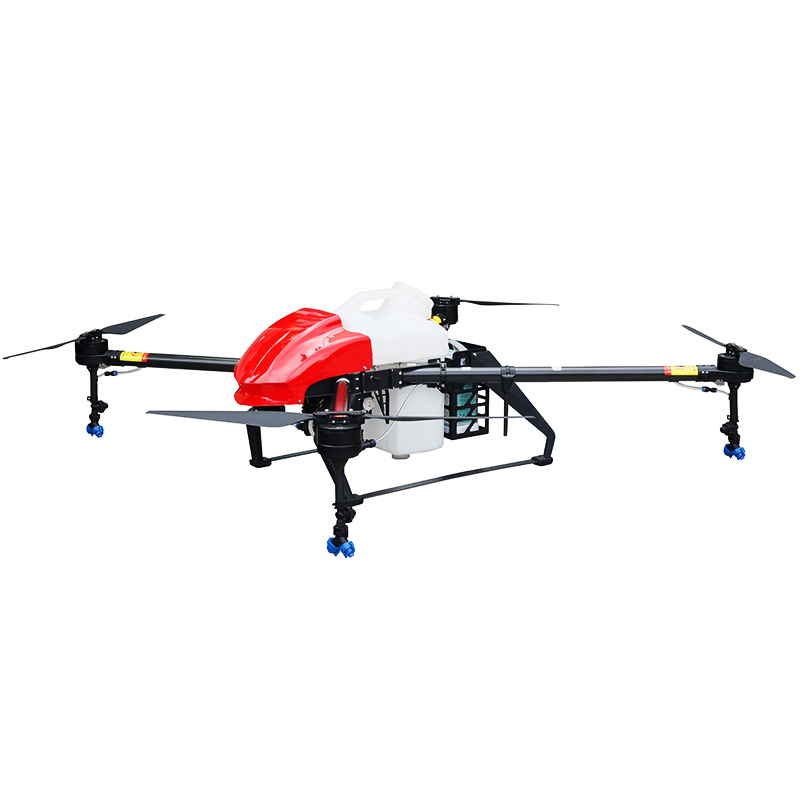

2021 hot sale 25L drone agricultural sprayer with intelligent spraying, drone sprayer in agriculture
- OEM & ODM Service -

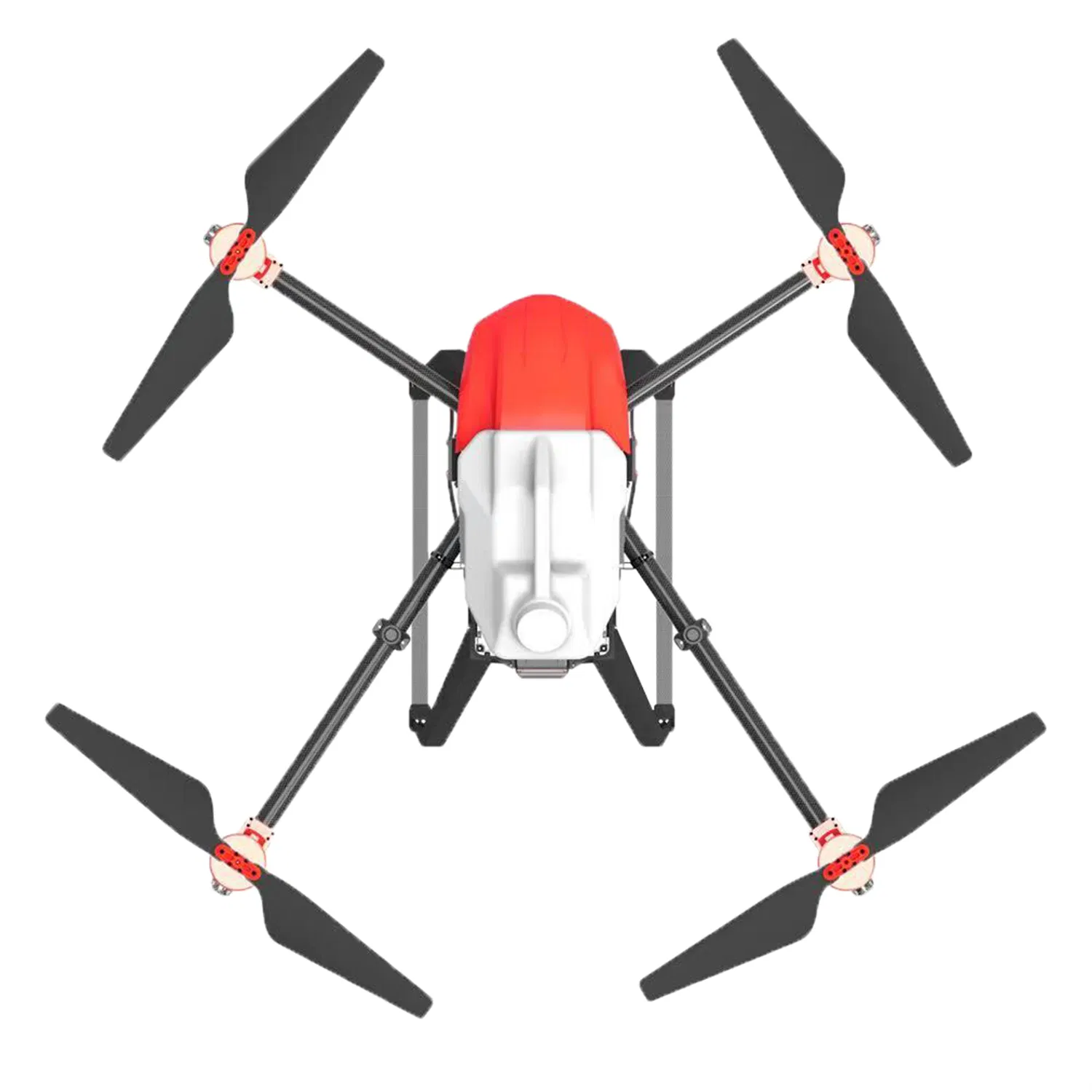

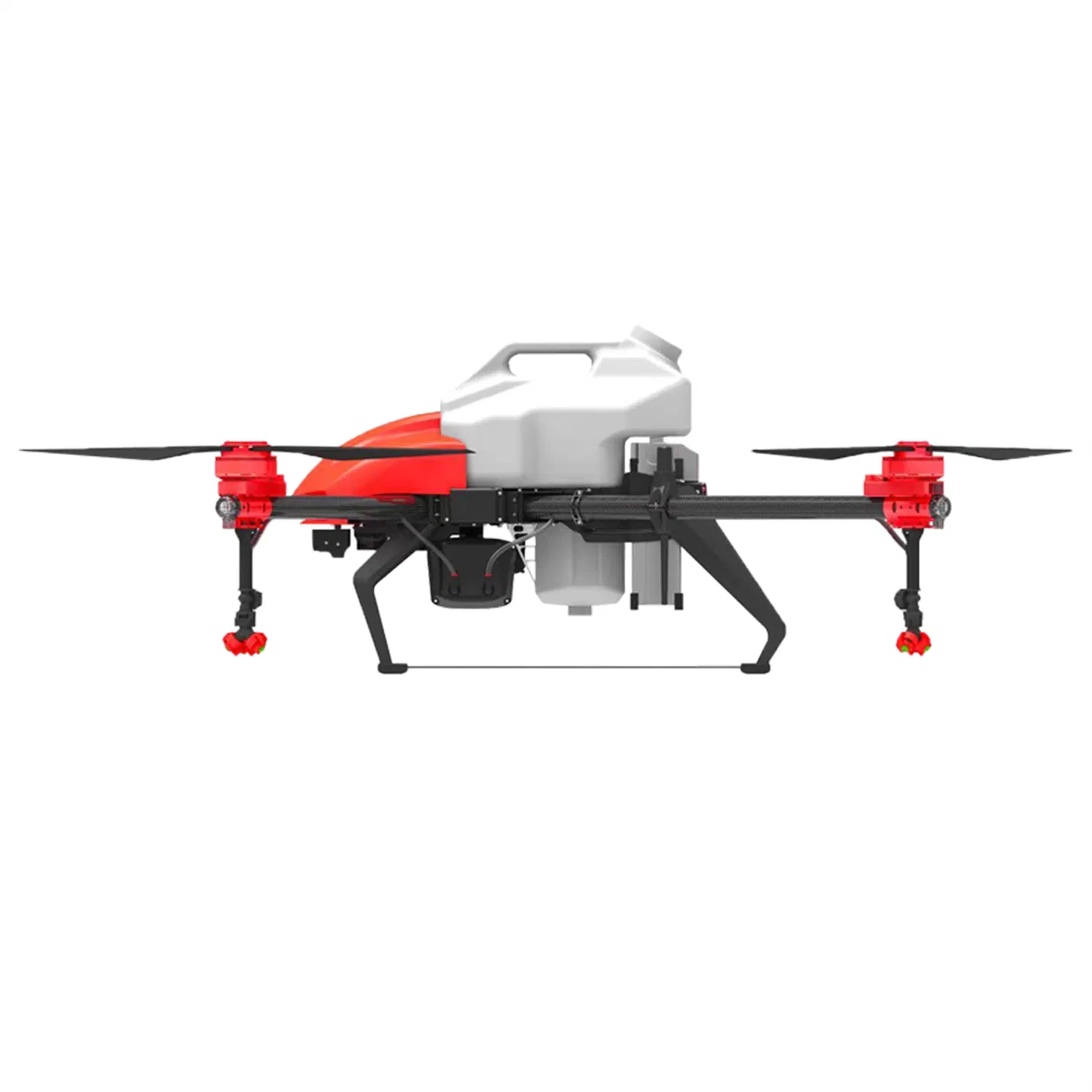

U25L-4 Independent Research and Development Product, Exclusive Design by UNID. Special shaped structure,stable and durable.This pesticide spraying drone can be converted into fertilizer Applicable crops species including rice, cotton, maize, wheat, etc. Suitable for large-scale farm operations. Reduce working labor costs effectively and improve the working efficiency.

Self-designed fuselage: composite material and metal structure, simple structure, light weight, high strength.Autonomous design of flight control system: manual, automatic two modes, one-button operation, simple and convenient, completely autonomous navigation, terrain following flight function, super interference ability.The new battery needs to be activated when it is used, and the charging current cannot be too high when the new battery is used for the first few times.

Function
1. Automatic line-feeding spray (recyclable spraying);
2. Automatic flight spraying at point AB (plant protection aircraft can fly autonomously and record automatically after spraying);
3. Fully autonomous spraying of plots (the area and terrain of the selected plots of the ground station are determined, and the aircraft can be autonomously sprayed);
4. One-click record of medicine break point (automatically record the main point after pesticide spraying in the spraying process and return to take-off point to change medicine);
5. One-click return to the medicine break point (after spraying pesticides, the main points are automatically recorded after spraying, and then return to the take-off point to change the coloring medicine. After changing the medicine, the machine will automatically return to the medicine break-off point. spray);

Model	U25L-4
Product Material	Aviation carbon fiber + aviation aluminum
Airframe Dimensions(Incl. propellers)	2150mm2100mm620mm
Airframe Dimensions(folded)	840mm480mm620mm
Transport Dimensions	1000550750mm
Maximum takeoff weight	52KG
Aircraft weight	19KG
Maximum Capacity(spraying system)	25L
Flight altitude	≤20m
Flight Time (Unloaded)	15~25 minutes
Flight Time (Full Loaded)	Full load 5~13 minutes
Flight speed	≤15m/s
Spray width	4-8m
Spray flow	3-10L/min 5L double pump adjustable
Nozzle Type	Imported high pressure anti-floating atomizing nozzle
Droplet Size	60~90μm
Flight Controller	Professional industrial version flight controller
Operating Efficiency	≥10 hectares / hour
Safe takeoff and landing wind speed	≤8 m/s
Motor speed	5000rpm
Battery Voltage	58.8V power polymer computer battery
Battery Capacity	14S, 20000mAh*2
Battery Lifespan(Cycle)	≥500
Intelligent Charger	AC Input 100-240V
