Product Description

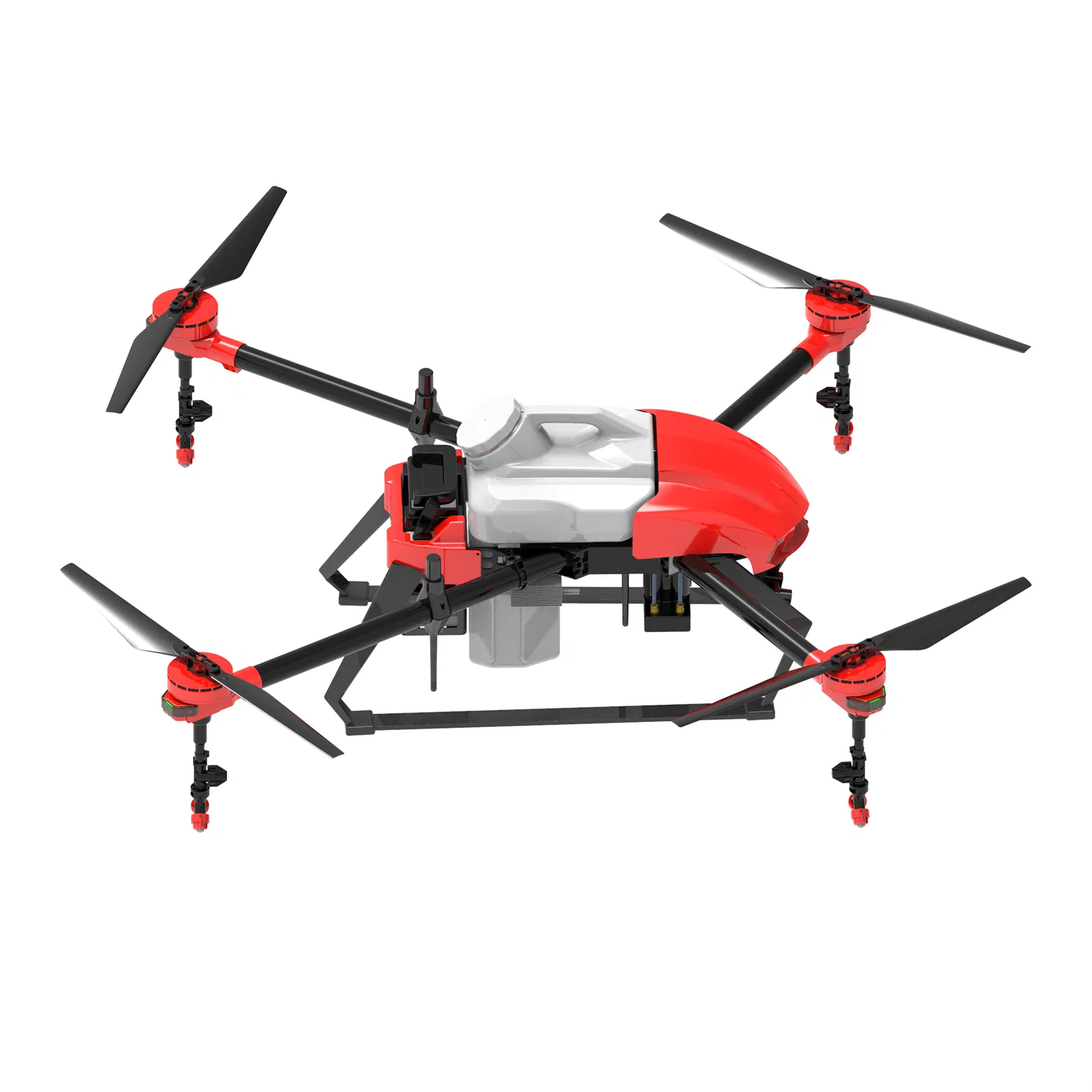

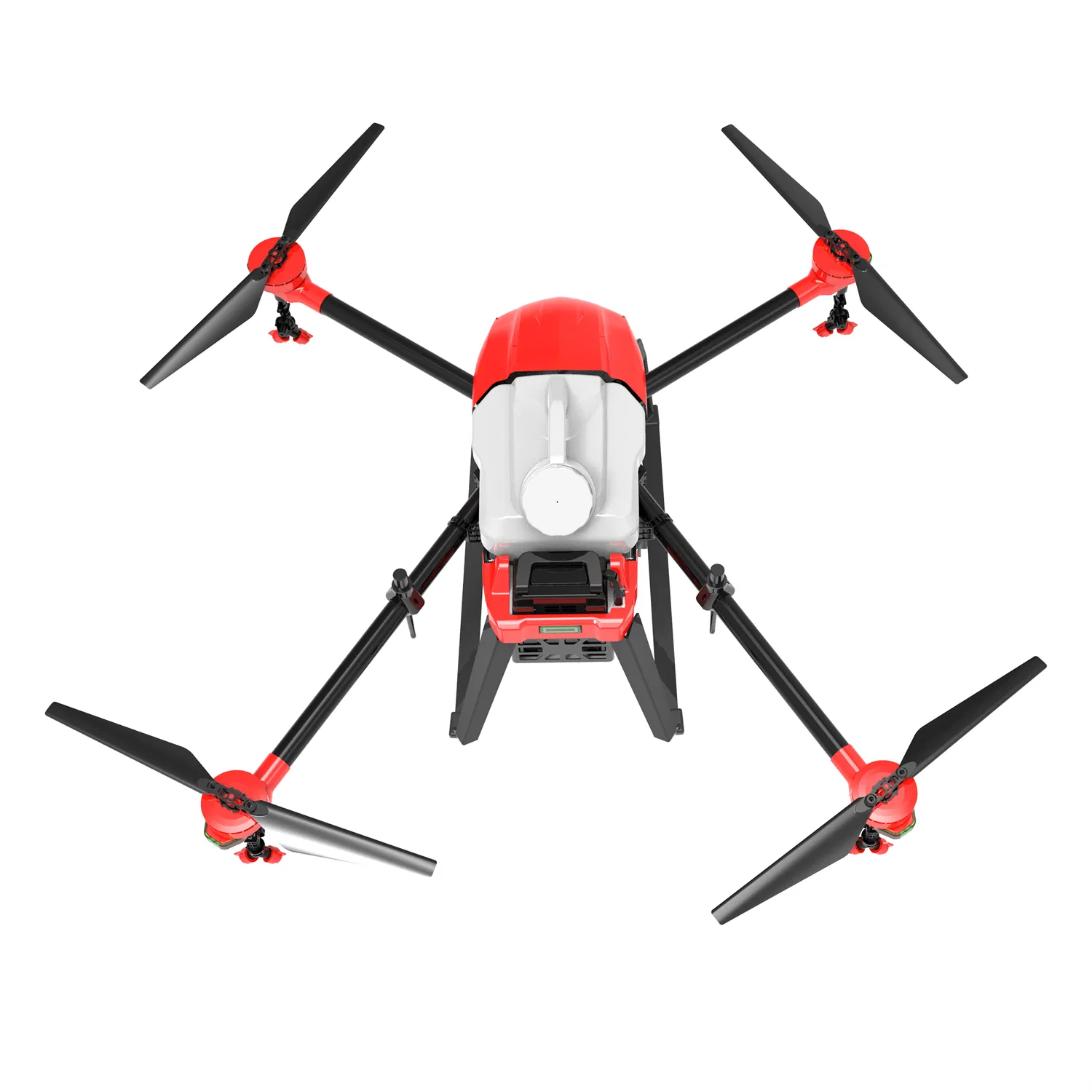

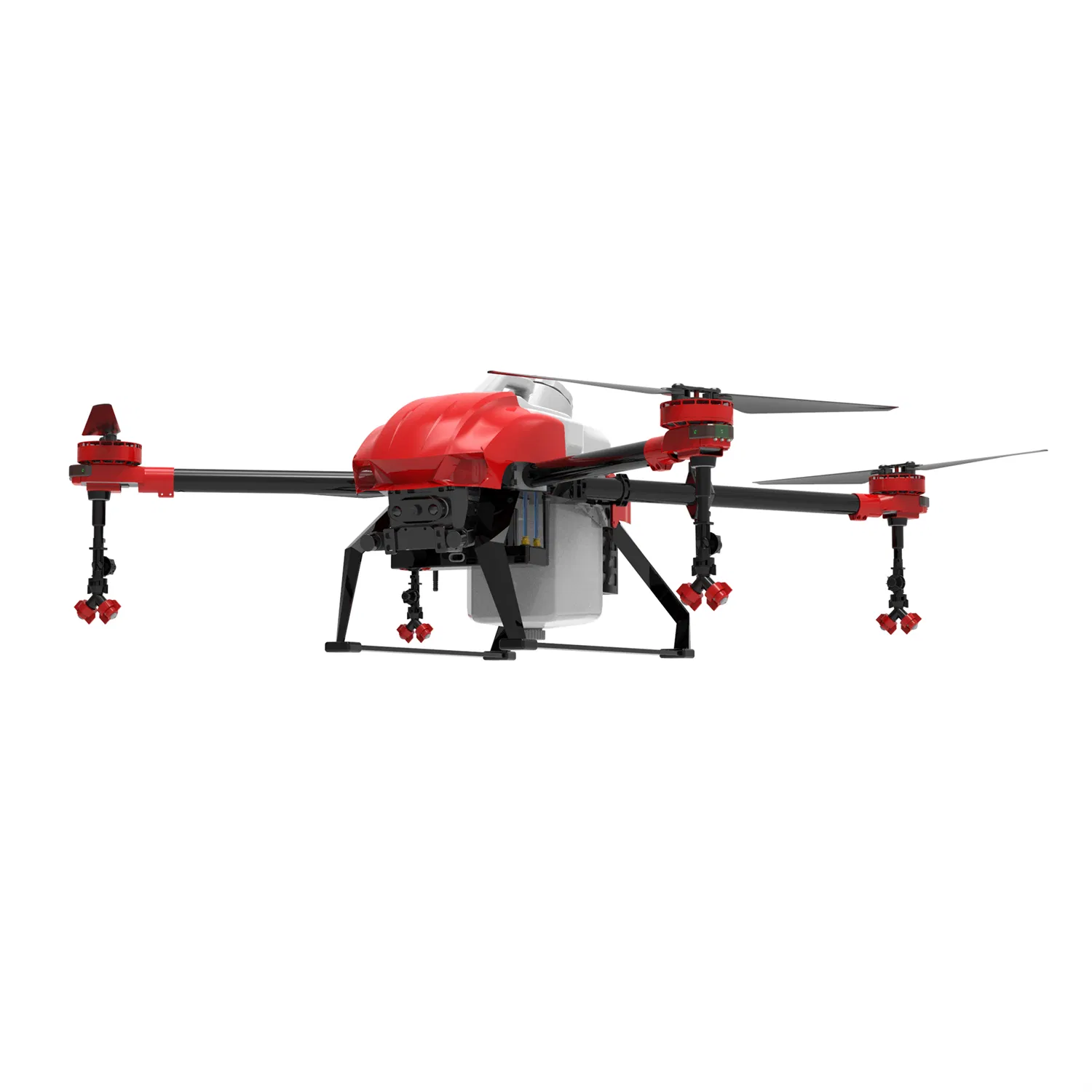

Easy operation 12l 16l payload precision agriculture spraying drone
- OEM & ODM Service -

Capacity up to 16,000mAh, reduce current loss.Adopt all-metal shell design, protection grade up to IP54, heat dissipation efficiency increased by 140%.Combined with the cell self-balancing management technology, the number of battery charging and discharging cycles is increased to 500 , which is 100% higher than the previous generation of products and can significantly reduce the operating cost.The U16L-4 is also equipped with real-time image monitoring system and night searchlight, so that you can easily monitor the operating environment of the equipment.

Model	U16L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	1840mm1840mm530mm
Product folding size	740mm370mm530mm
Packaging size	900450600mm
Maximum takeoff weight	34KG
Aircraft weight	12.4KG
Pesticide Barrel	16L(standard a bucket)
Flight altitude	≤30 meters
Fly time(unloaded)	20~25 minutes
Fly time(loaded)	10~13 minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-8L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	5~6hectares/hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*1
