Automatically Control Agricultural Uav Drone, Crop Dusting Helicopter for Sale

Product Description

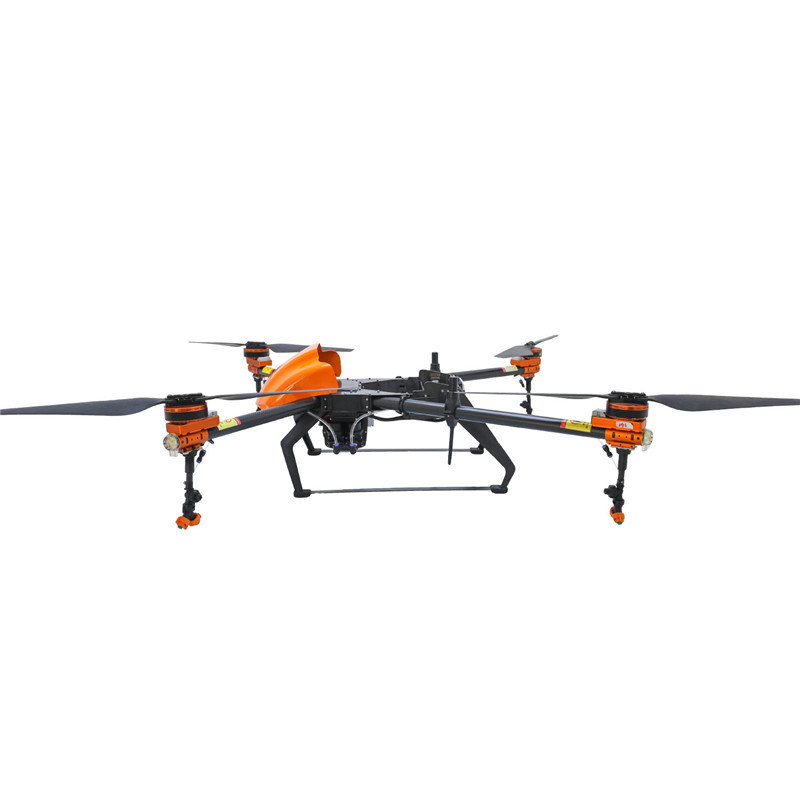

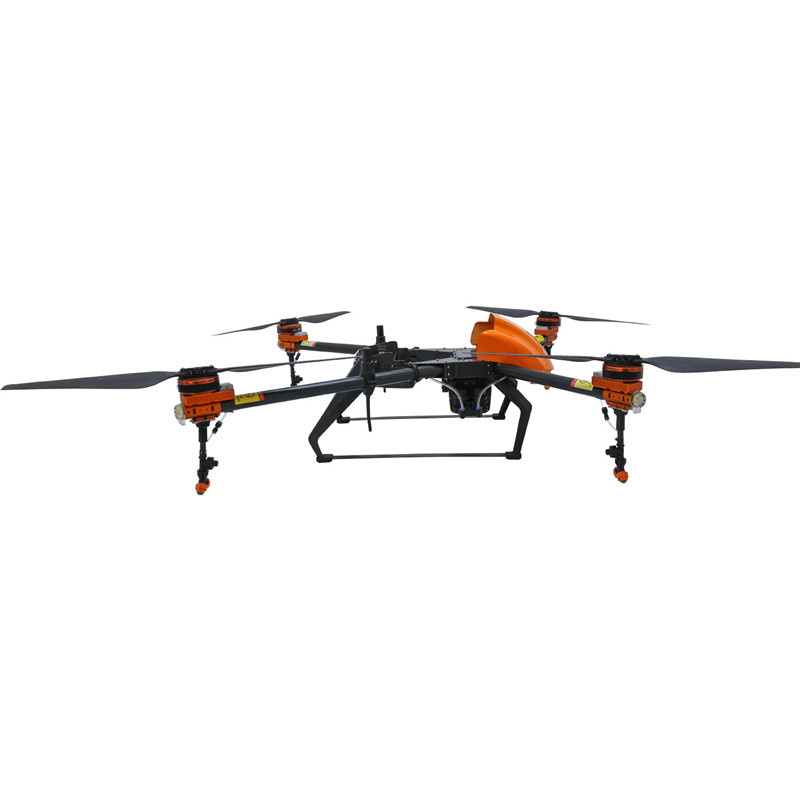

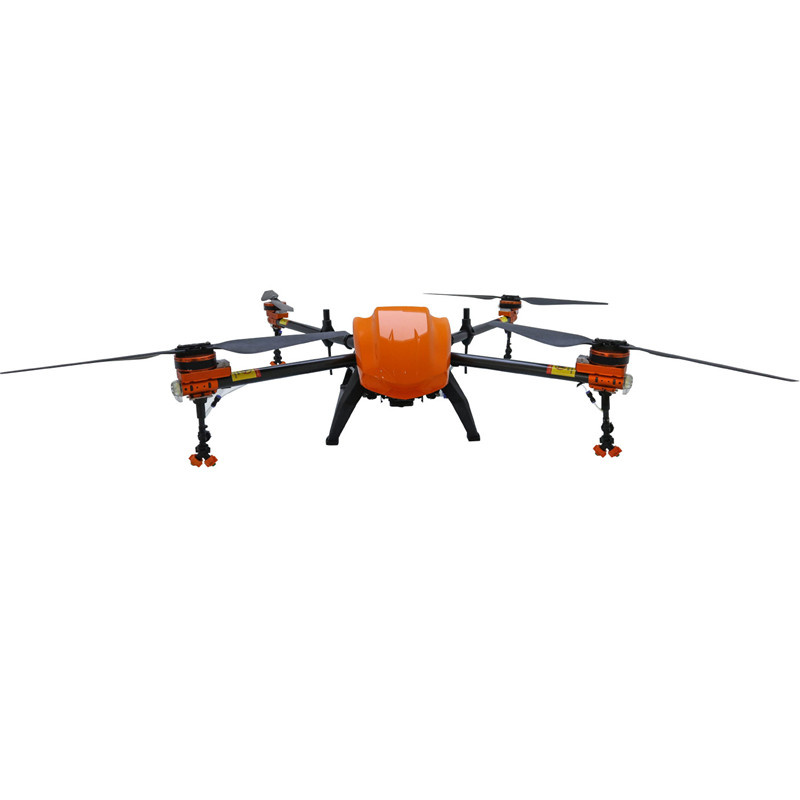

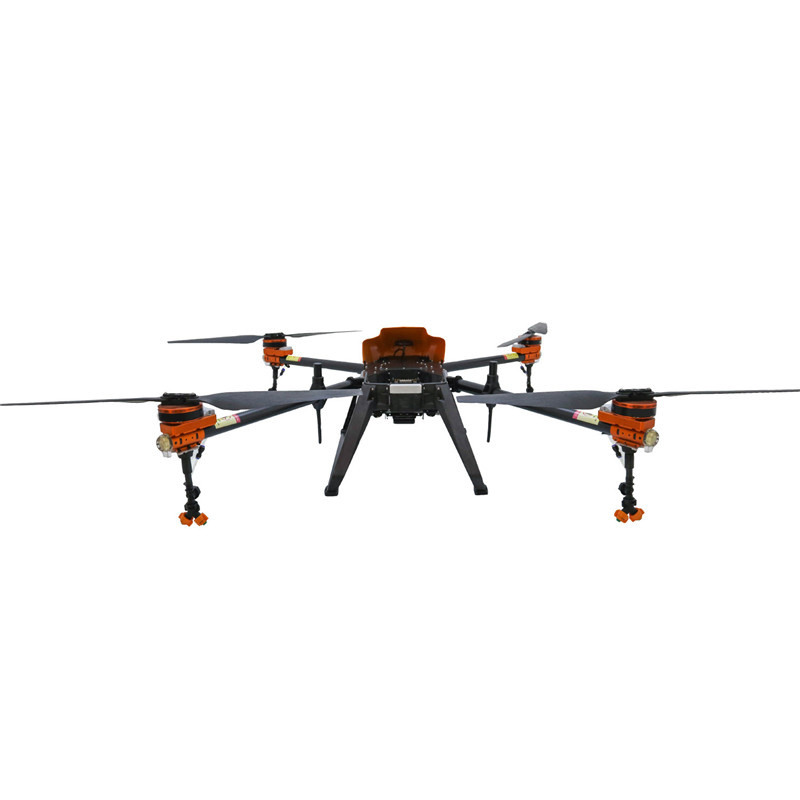

25L drone spraying farm / agriculture drone for spraying trees
- OEM & ODM Service -

Our products and services are all over the world, and we are committed to promoting the development of global agricultural automation.At present, more and more countries and regions begin to contact and use our agriculture drone(uav)for spraying and sowing operations.While improving the work efficiency, it greatly reduces the cost of agricultural operations and reduces the working time.We will solve problems for you with our mature technical support and products and services.

- Features -

1.The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation.
2.Modular design of functional components, easy maintenance and upgrade.
3.Using intelligent plug-in battery
4.Use quick-plug medicine barrel
5.The arm can be quickly disassembled.
6.7075 aviation aluminum (high grade) is used for the folding part.
7.Wear the case, optimize the whole machine, and hide the medicine circuit.
8.High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
9.The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation.
10.The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good automization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration.
11.Alternating spraying function, the spray head can be switched independently.

- Product Parameter -

Model	U25L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	2150mm2100mm620mm
Product folding size	840mm480mm620mm
Maximum takeoff weight	52KG
Aircraft weight	19KG
Aircraft medicine box capacity	25L
Flight altitude	≤20 meters
Fly time(unloaded)	15~25 minutes
Fly time(loaded)	5~13 minutes when fully loaded
Flight speed	≤15 m / sec
Structrue life span	≥10 years
Spray width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-10L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥10 hectares/hour
Motor speed	5000 rpm
Safe takeoff and landing wind speed	≤5
Power system	58.8V power polymer computer battery
Charger	AC Input100-240V
Lithium-polymer battery	14S 19000mAh*1
