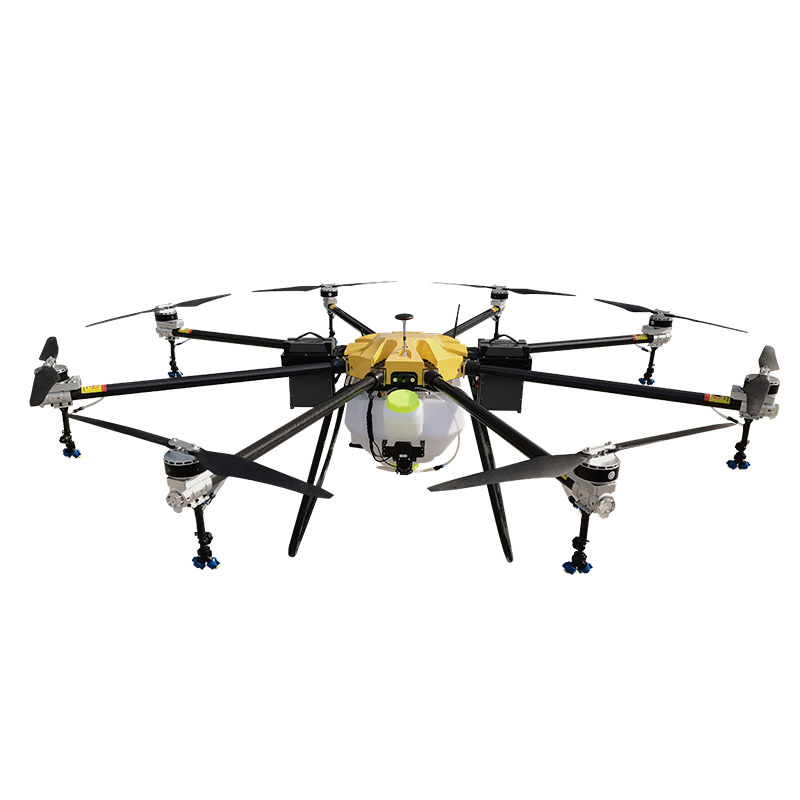

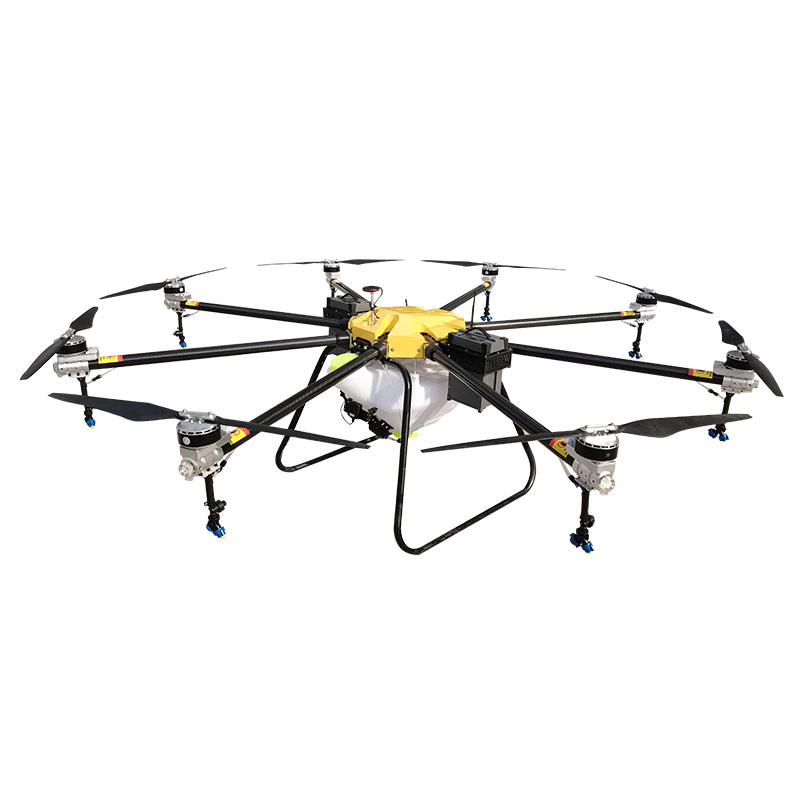

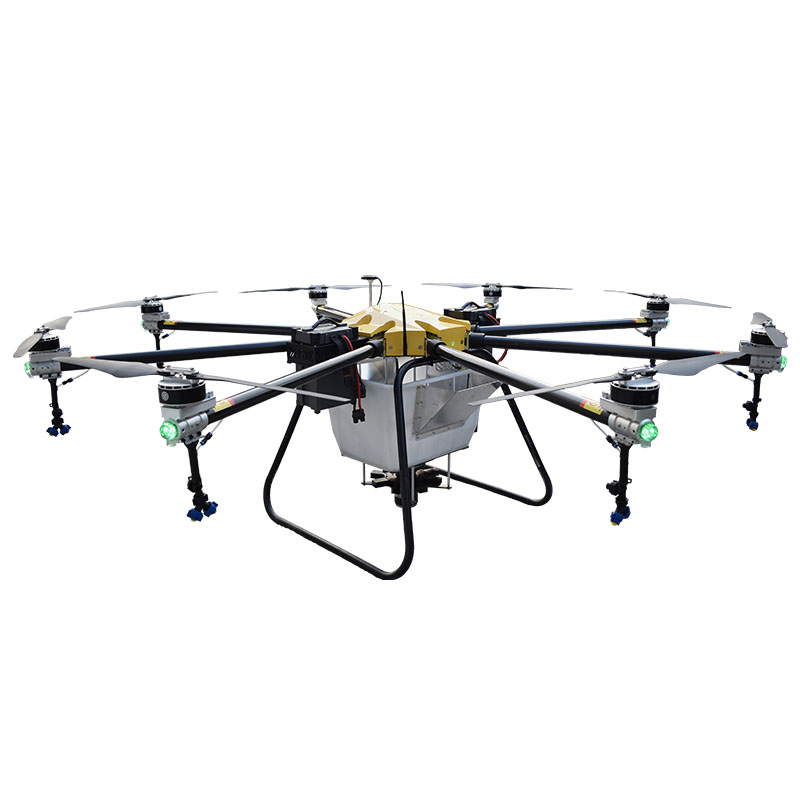

52L Payload Insecticide Pesticide Farm Sprayer Machine Agricultural Drone with Radar

Product Description

52L payload insecticide pesticide farm sprayer machine agricultural drone with radar
- OEM & ODM Service -

Model	D52L-8
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	3550mm3550mm850mm
Product folding size	2760mm2760mm850mm
Packaging size	1950mm1100mm950mm
Maximum takeoff weight	107KG
Aircraft weight	30KG
Pesticide Barrel	52L
Flight altitude	≤30 meters
Fly time(unloaded)	25~30 minutes
Fly time(loaded)	10~13minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	15 meters
Hovering in the air	Hovering in any direction
Spray flow	8-20L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥21hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V

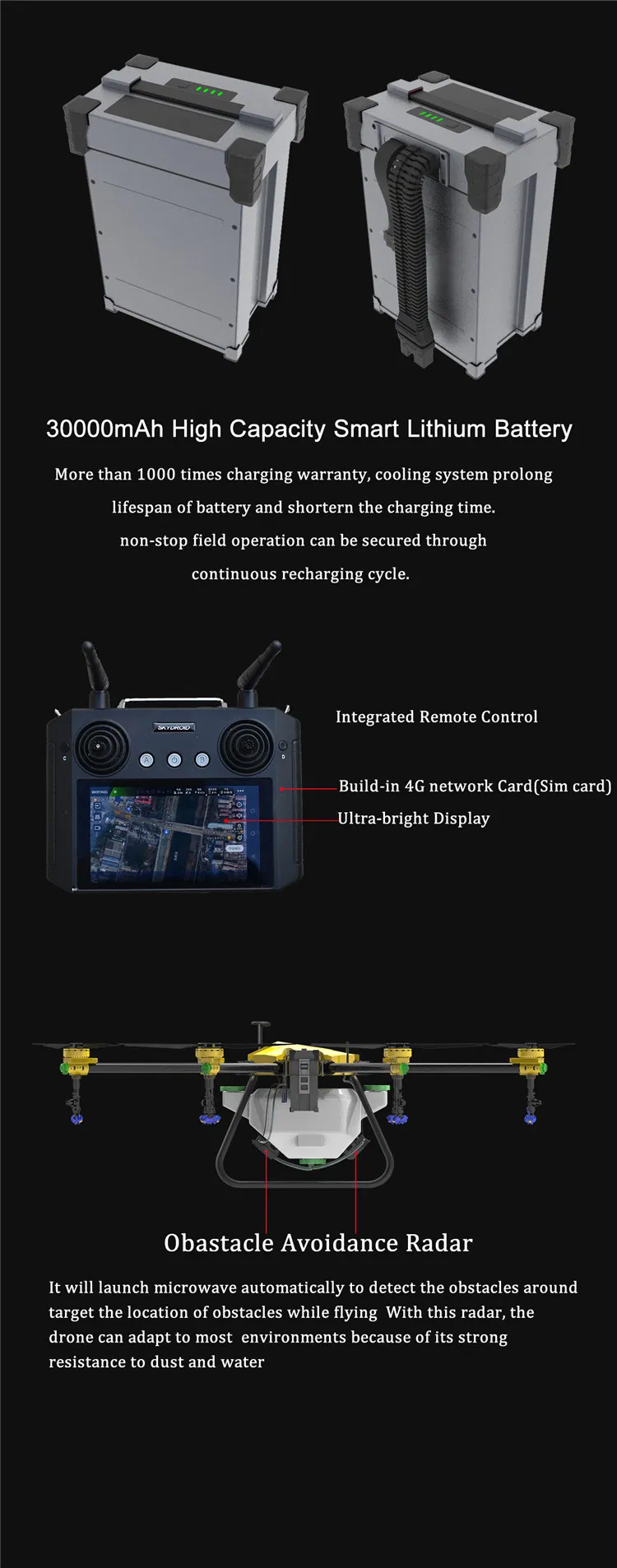

Lithium-polymer battery	30000mAh*2

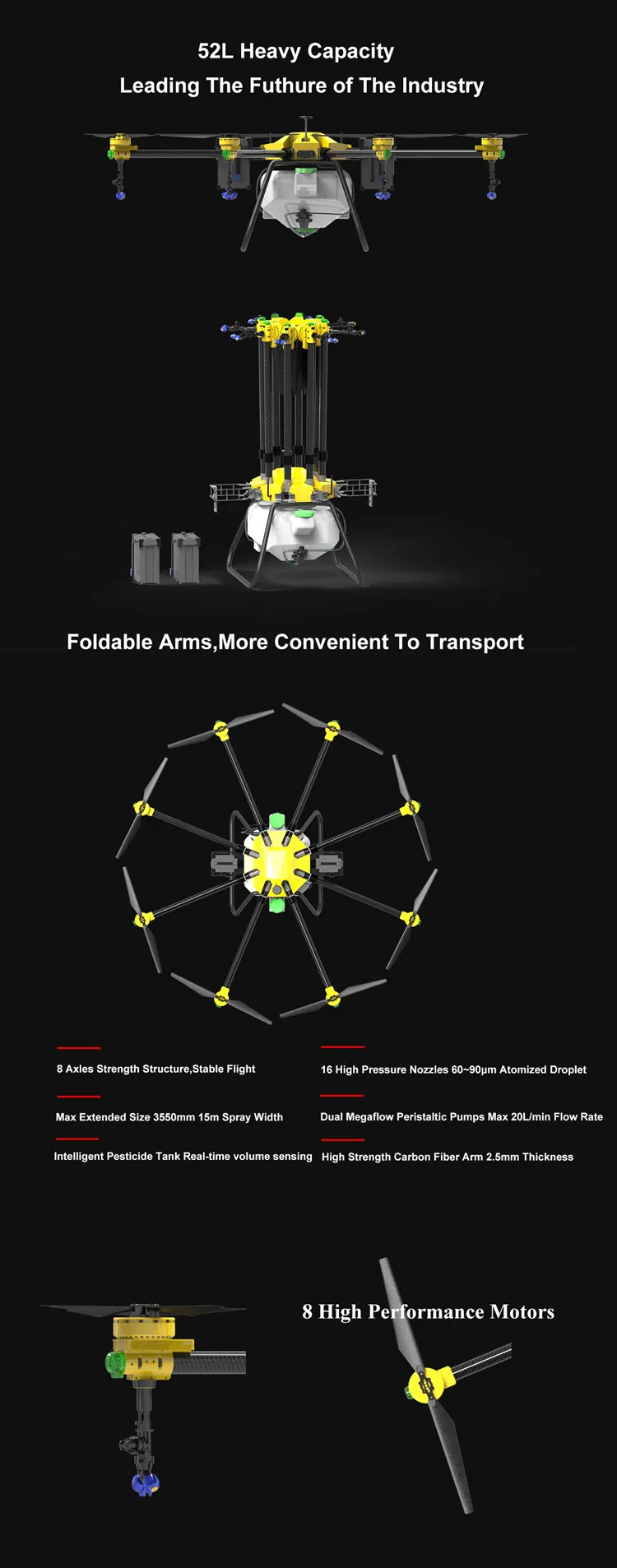

Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery
6. Use quick-plug medicine barrel
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.
These features make our drones more efficient.
