Product Description

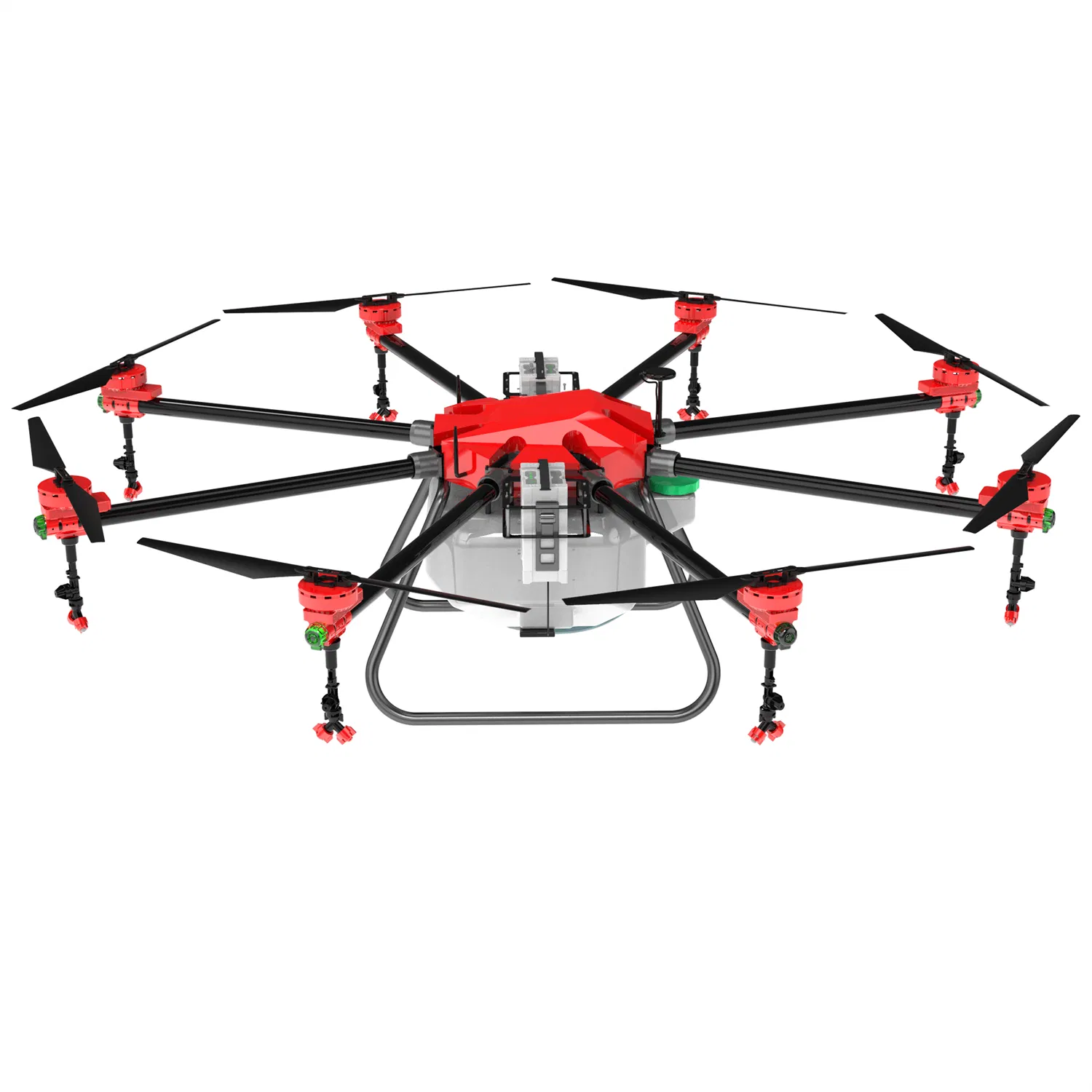

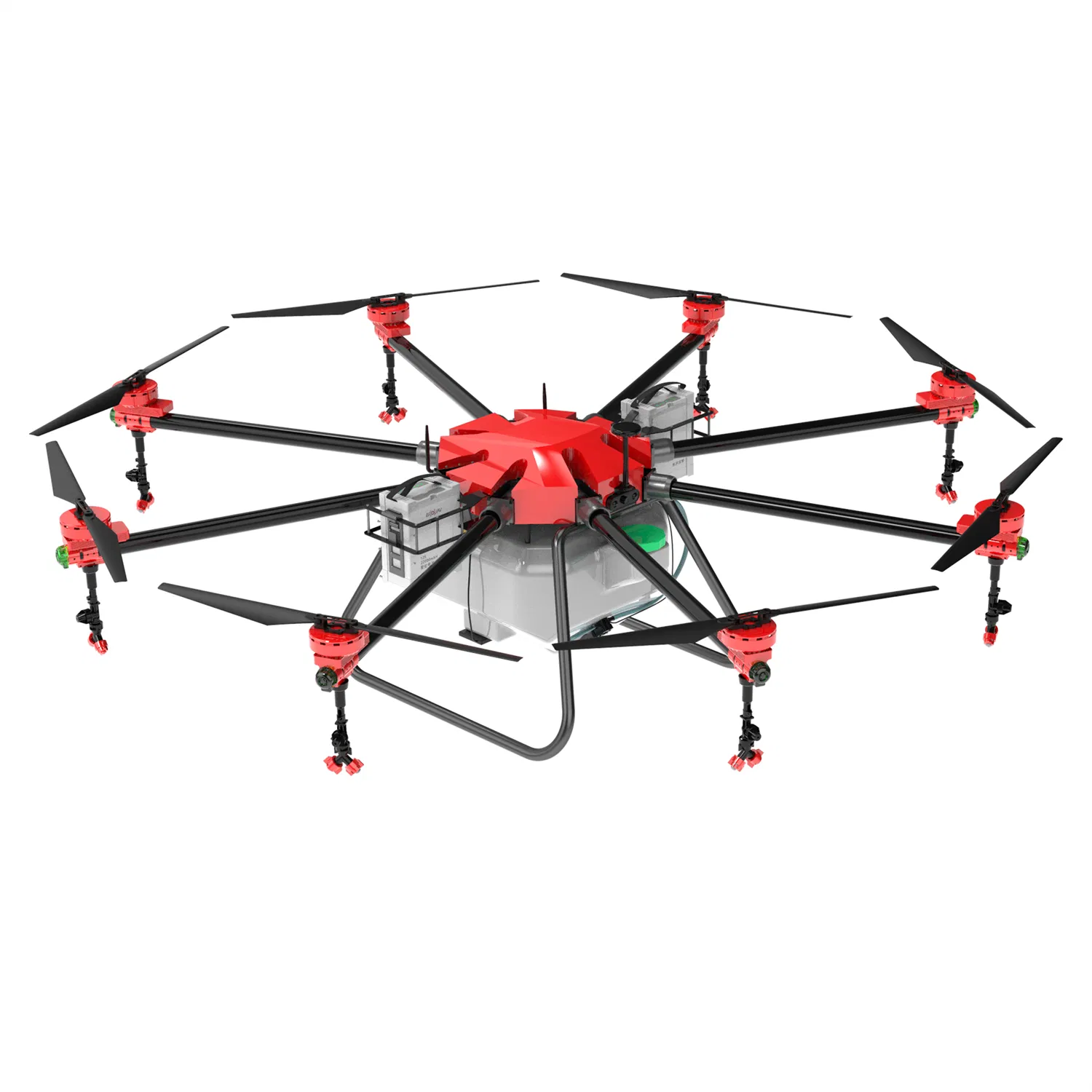

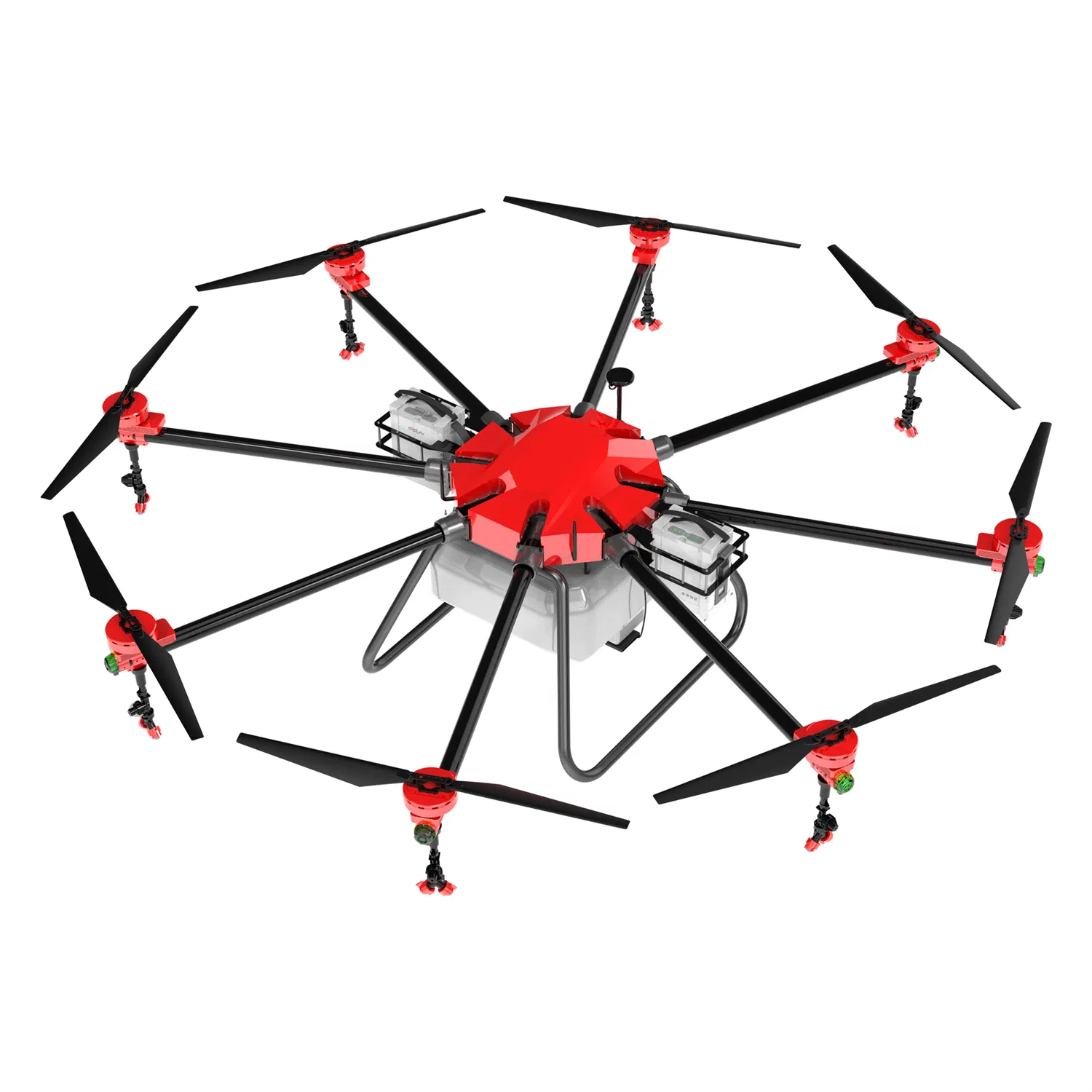

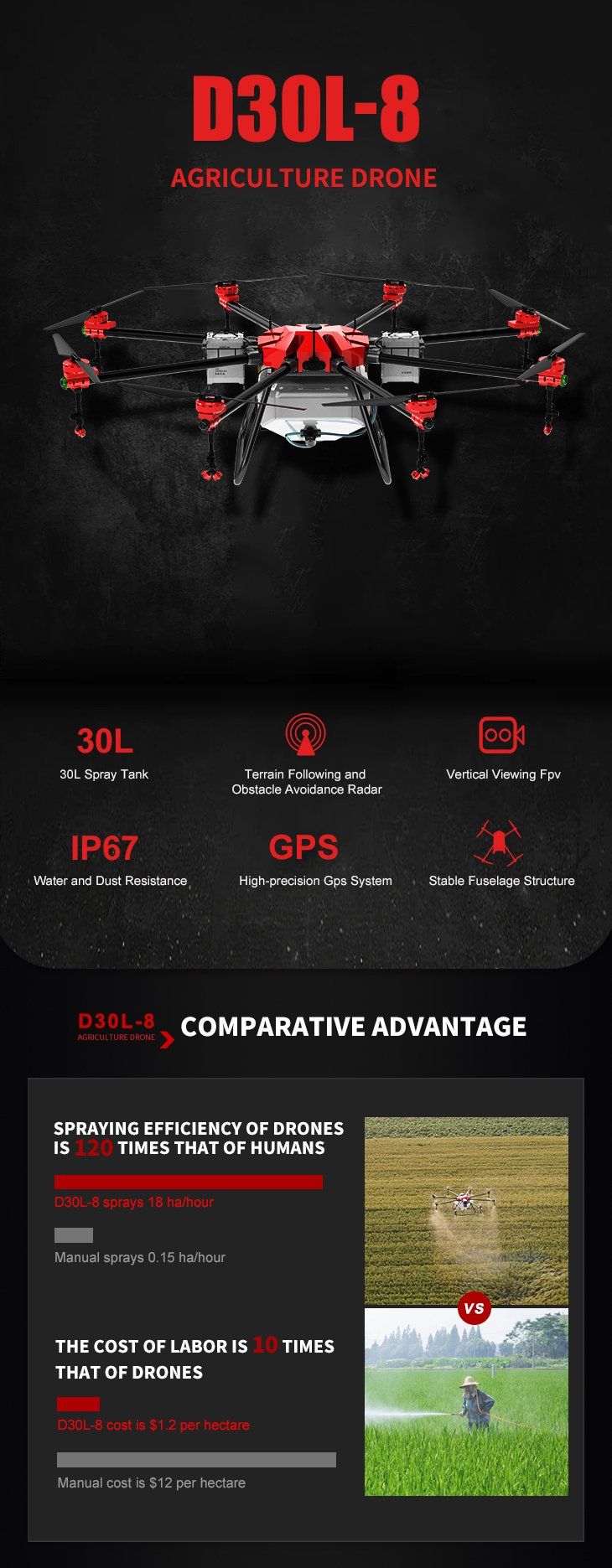

30kg payload agricultural plant protection machine sprayer drone
- OEM & ODM Service -

Product Description

Large capacity, large size, great success

The capacity is increased to 30kg and the flight time reaches 25 minutes in no-load mode.In payload mode, it travels at 10 meters per second.Spray at a rate of 10L/min.
The control system adopts agricultural professional controller, the specialized system provides excellent performance support.Can be selected with fertilizer kit, a machine multi-purpose, reduce the cost of use.
The performance of the whole machine is optimized, and the hidden circuit is designed to prolong the service life of components and reduce after-sales problems.

Product Specifications

Model	D30L-8
Product material	Aviation carbon fiber + aviation aluminum
Product extended size	3090mm3090mm910mm
Product folding size	900mm730mm1760mm
Packaging size	1730mm1200mm790mm
Maximum takeoff weight	75KG
Aircraft weight	20-21KG
Pesticide Barrel	30L
Flight altitude	≤30 meters
Fly time(unloaded)	20~30 minutes
Fly time(loaded)	10~13minutes
Aircraft life span	≥10 years
Spray width	6-12 meters
Flight speed	1-10 m / sec
Hovering in the air	Hovering in any direction
Spray flow	8-10L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥12hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charger	AC Input 100-240V
Lithium-polymer battery	20000mAh*2
