Product Description

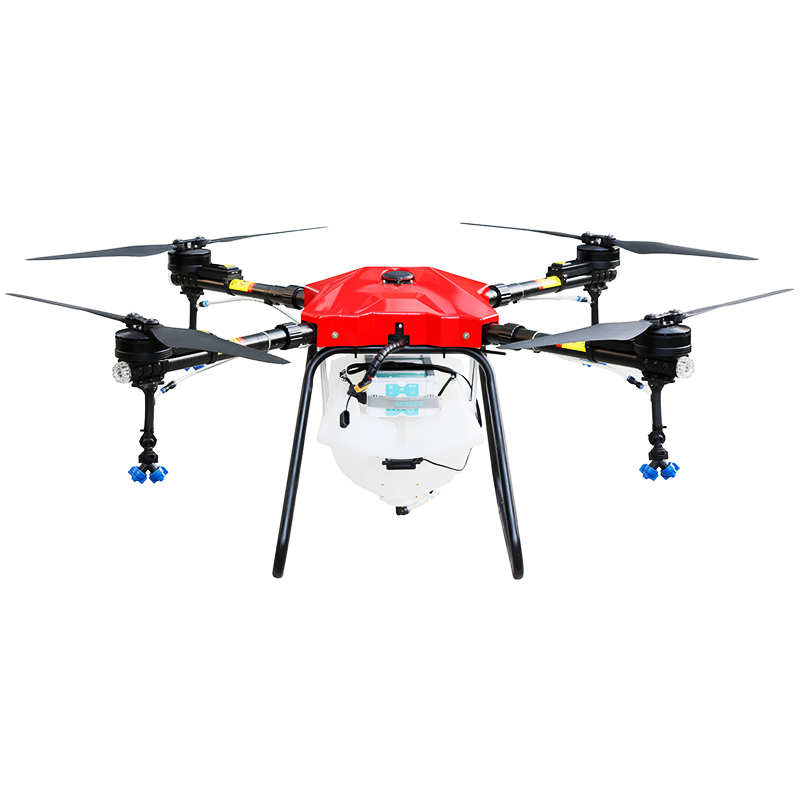

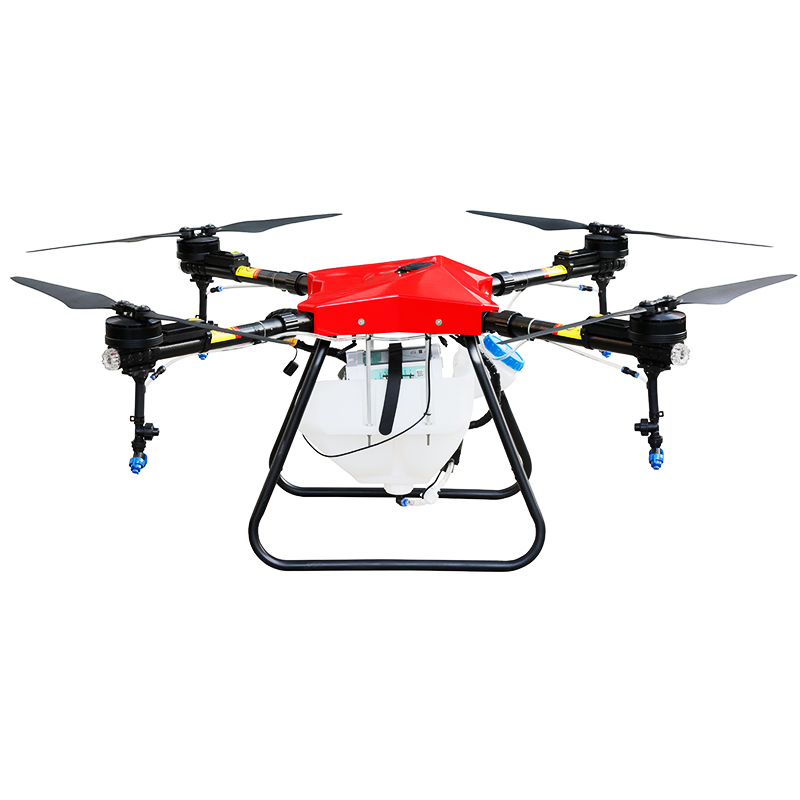

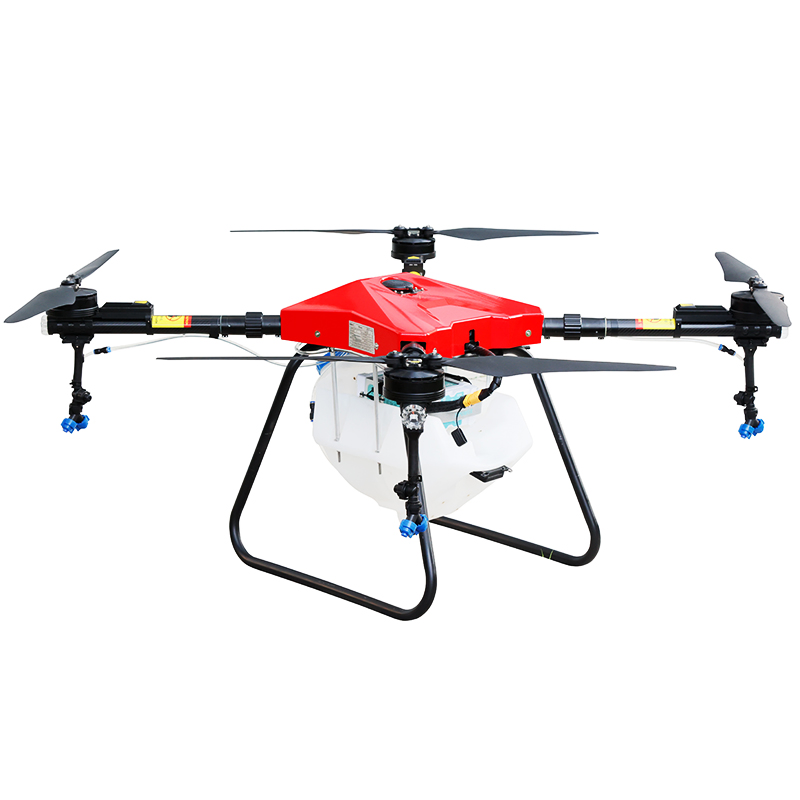

2020 New Design 20L agricultural spraying drone Fertilizer Drone for pesticide spraying
- OEM & ODM Service -

Model	D20L-4
Product Material	Aviation carbon fiber + aviation aluminum
Product Extended Size	1860mm1860mm545mm
Product folding size	1080mm1080mm545mm
Maximum takeoff weight	45KG
Aircraft weight	14KG
Pesticide Barrel	20L-22L
Flight altitude	≤30m
Fly time (unloaded)	20~25 minutes
Fly time (Loaded)	Full load 10~13 minutes
Flight speed	0-10m/s
Spray width	4-6m
Hovering in the air	Hovering in any direction
Spray flow	3-8L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly Control	Industrial Version GPS and Controller
Spray efficiency	7hectares / hour
Safe takeoff and landing wind speed	≤5 Level
Motor speed	5000rpm
Power system	48V power polymer computer battery
Intelligent Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*1

Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery
6. Use quick-plug medicine barrel
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.
Fully autonomous spraying of plots (the area and terrain of the selected plots of the ground station are determined, and the aircraft can be autonomously sprayed);
