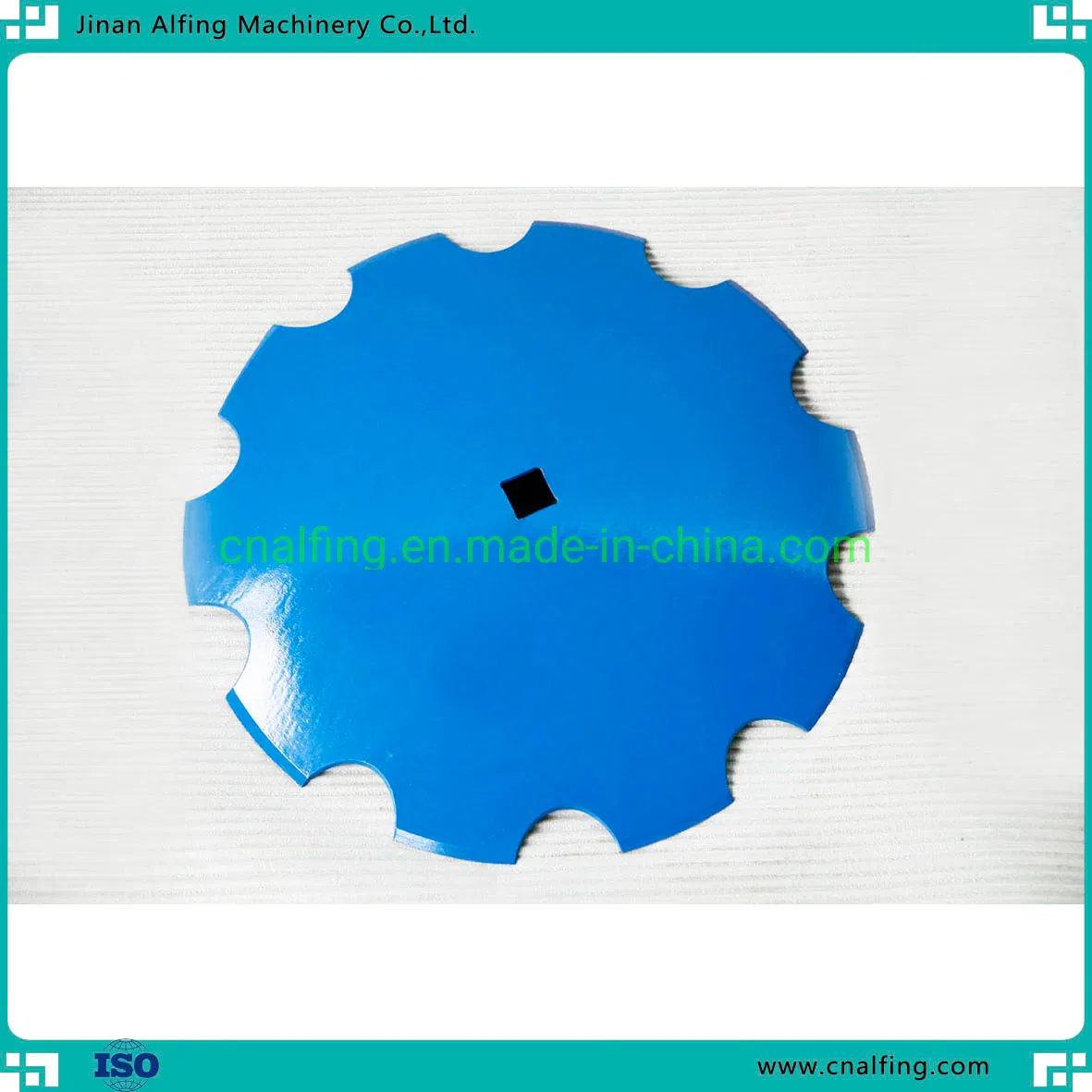

China High Quality Plow Disc Harrow Blades Notched Plough Disc

Product Description

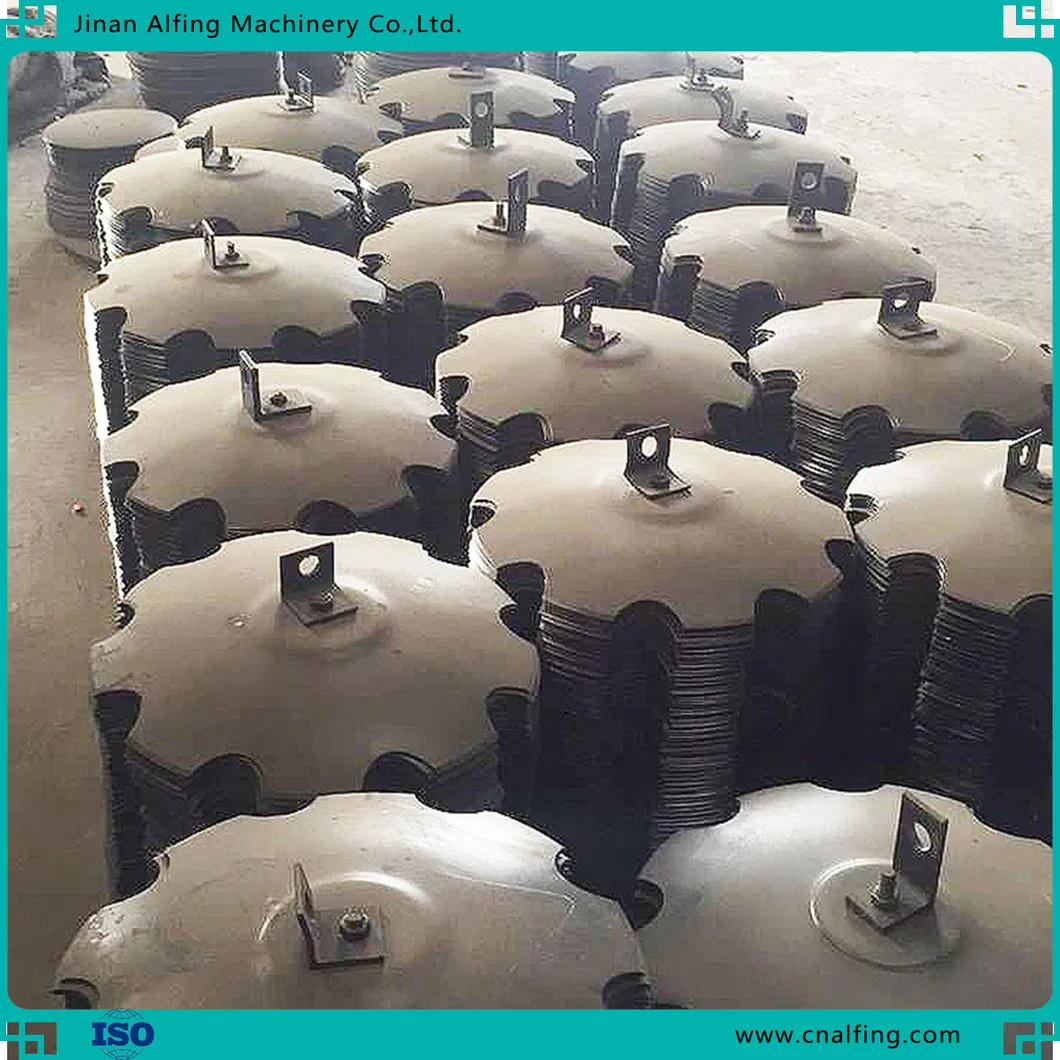

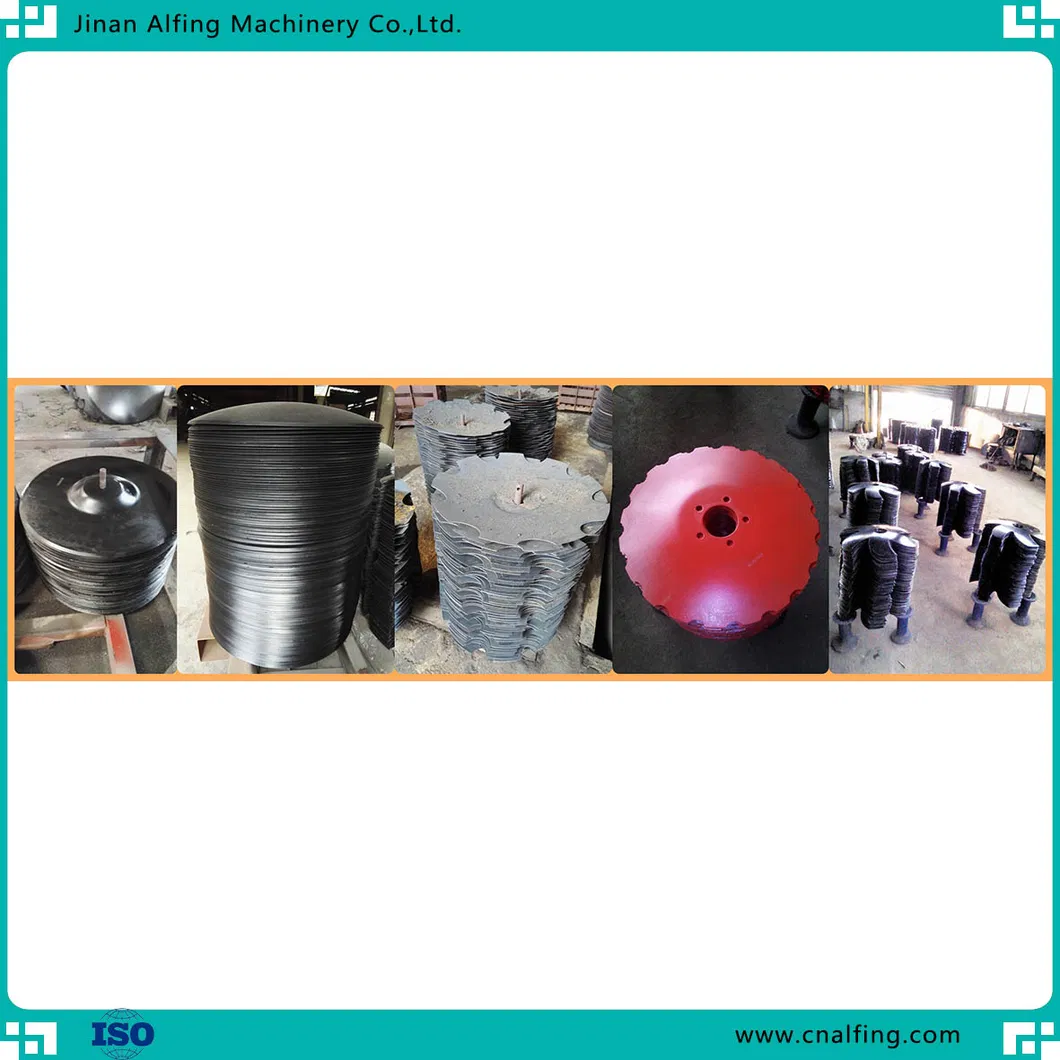

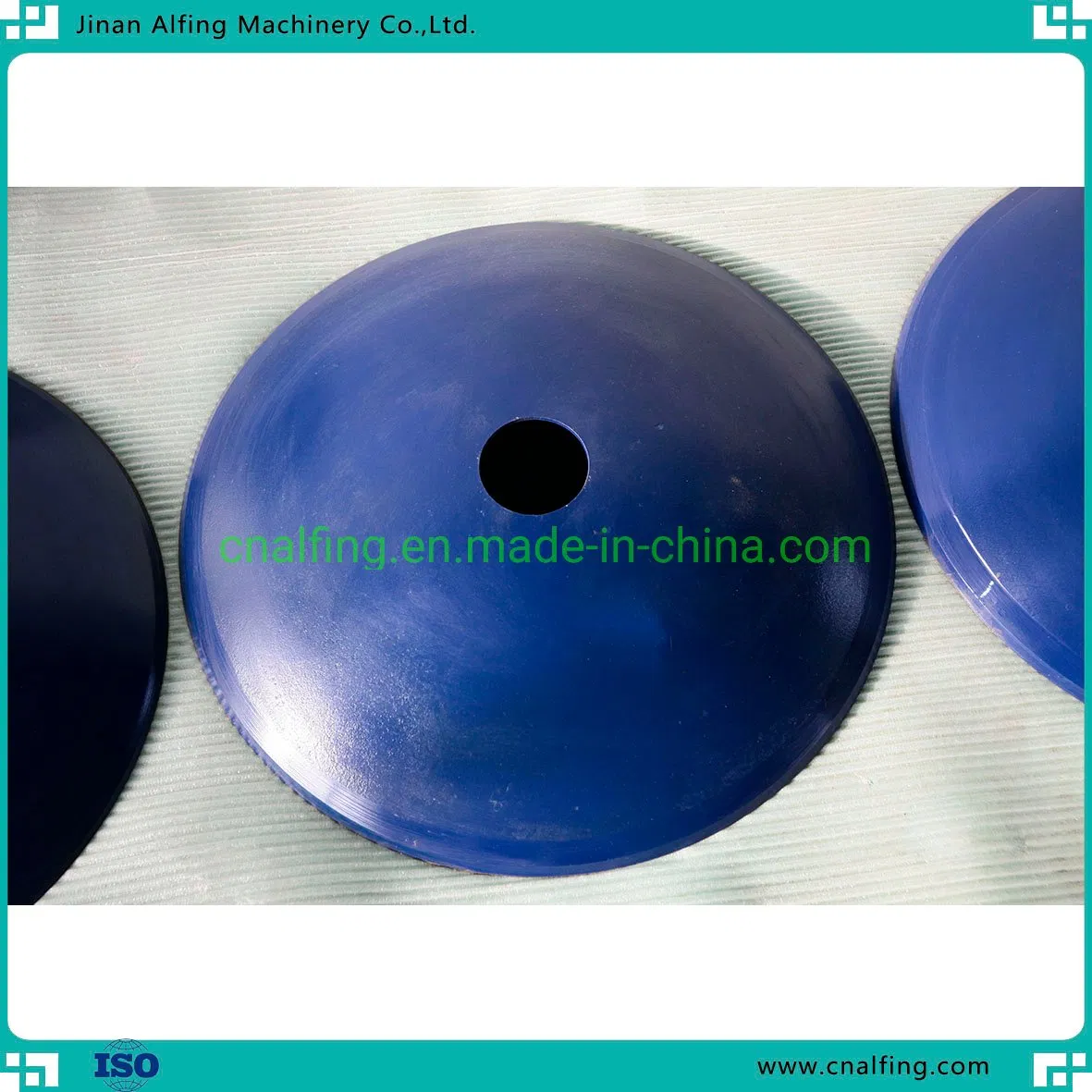

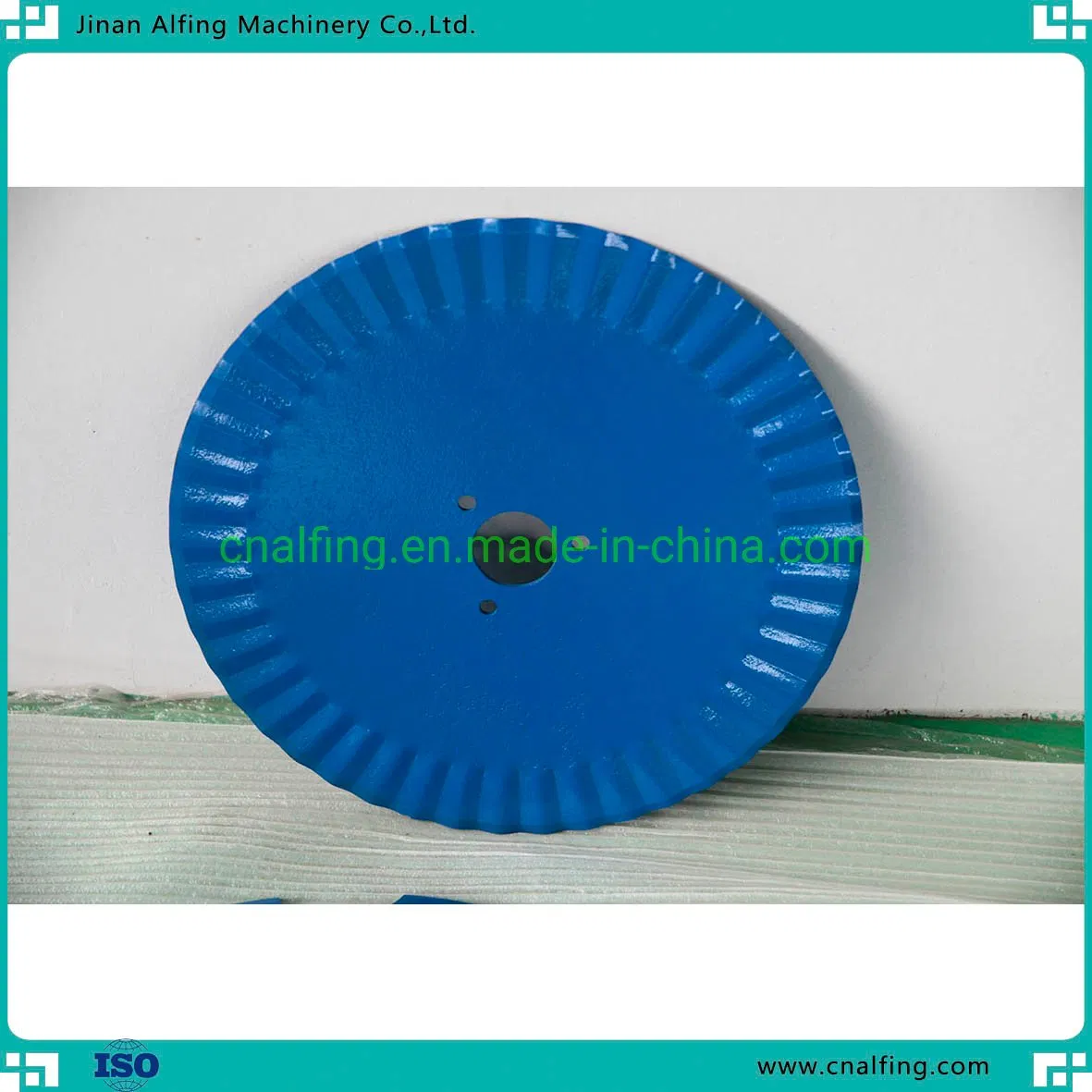

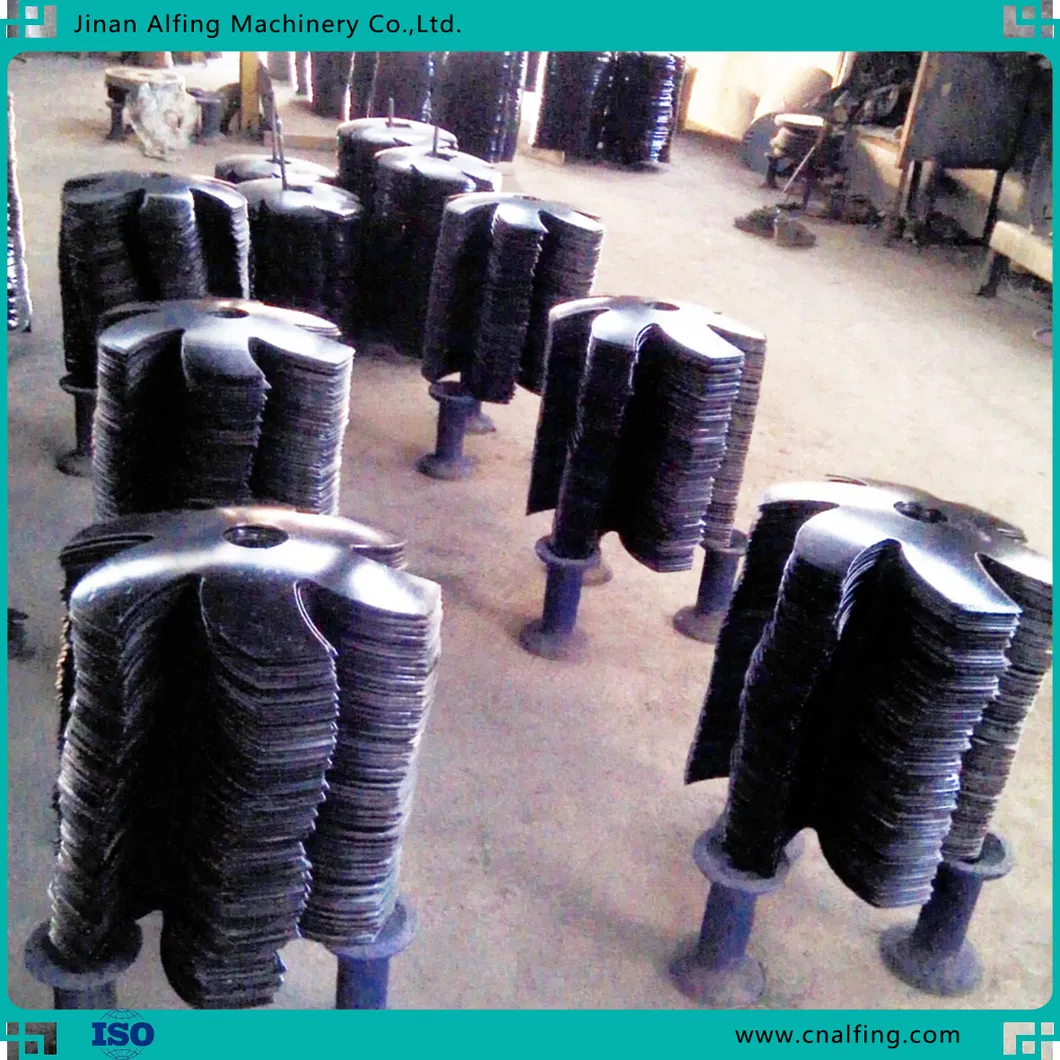

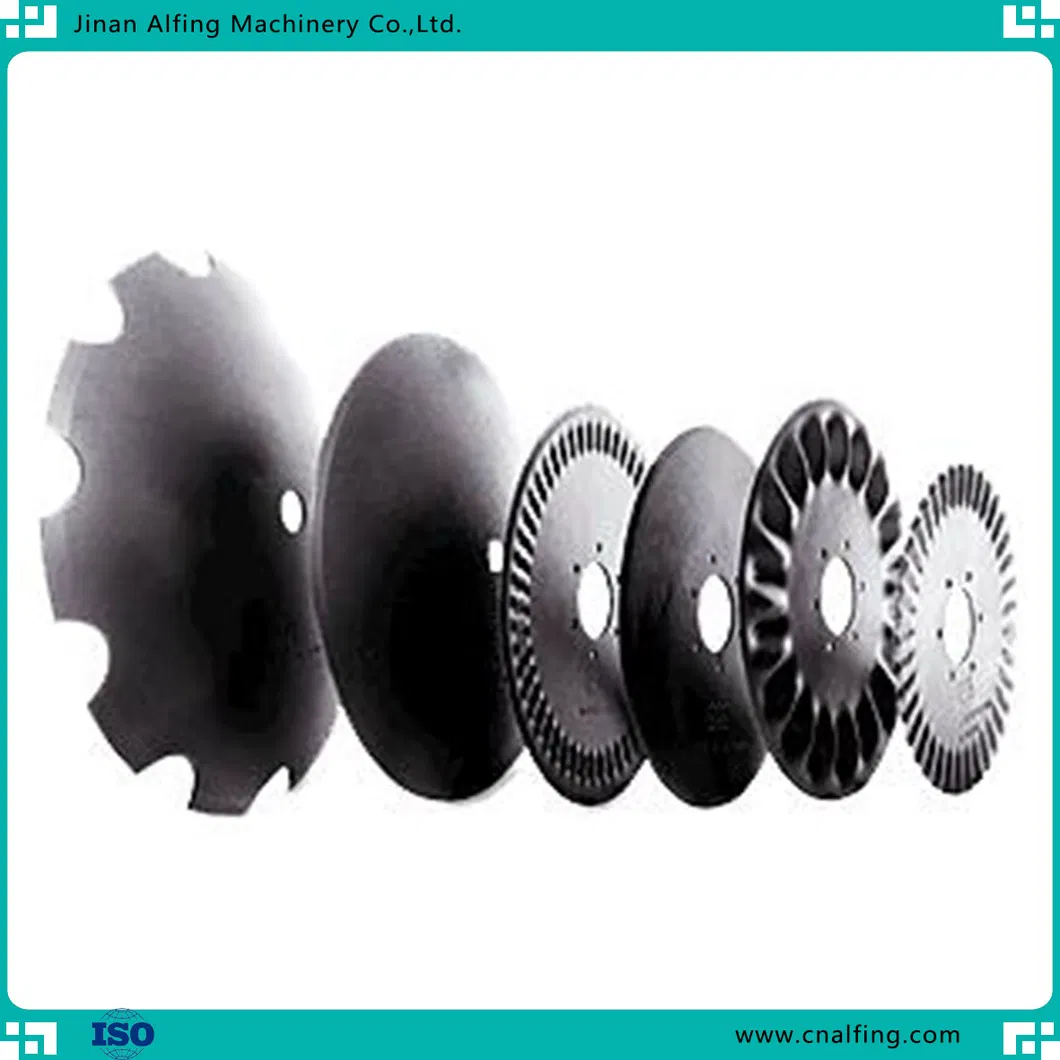

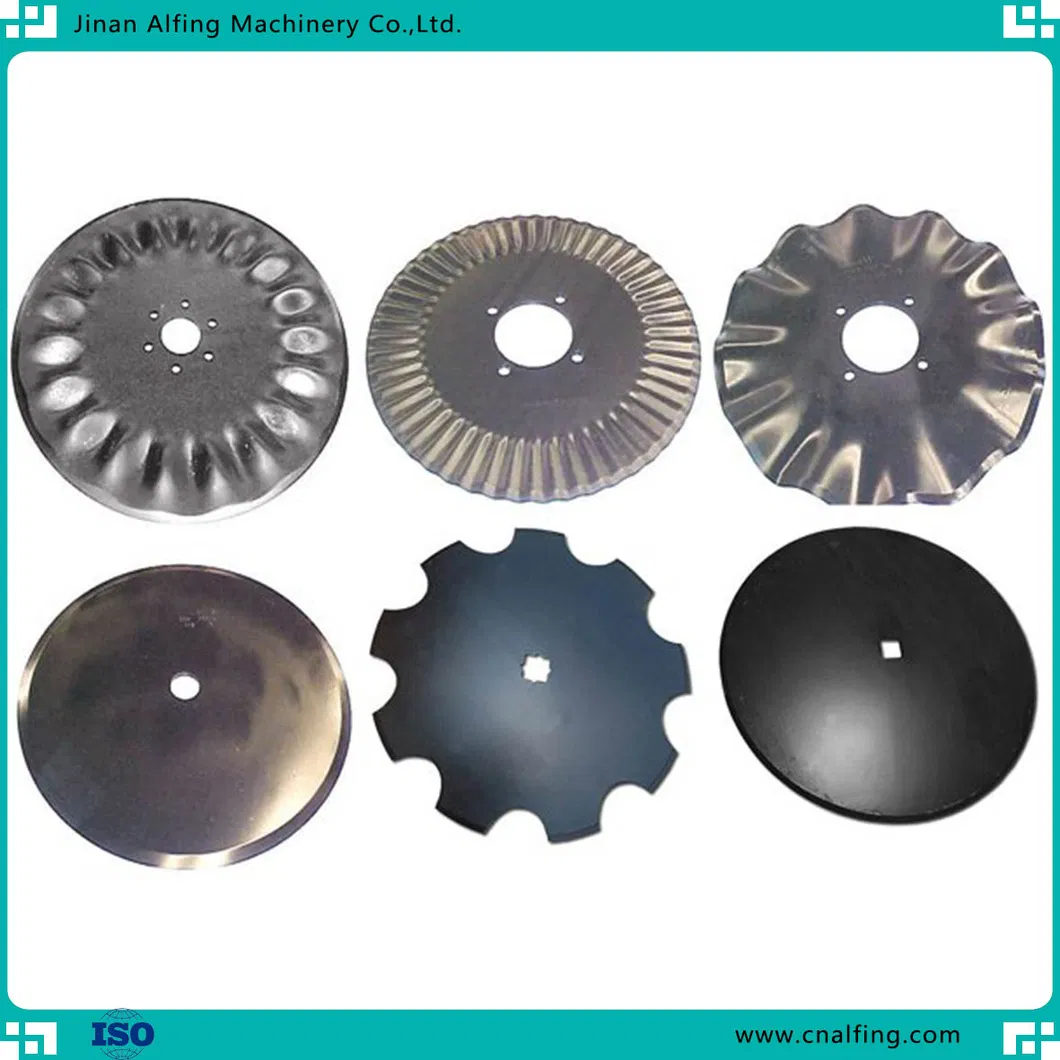

Types of disc: Notched/Plain/Smooth/Flat
Material: 65 Manganese Steel
Diameter: 12"-32"
Thickness: 3-12 mm
Hardness: 38 to 45 HRC

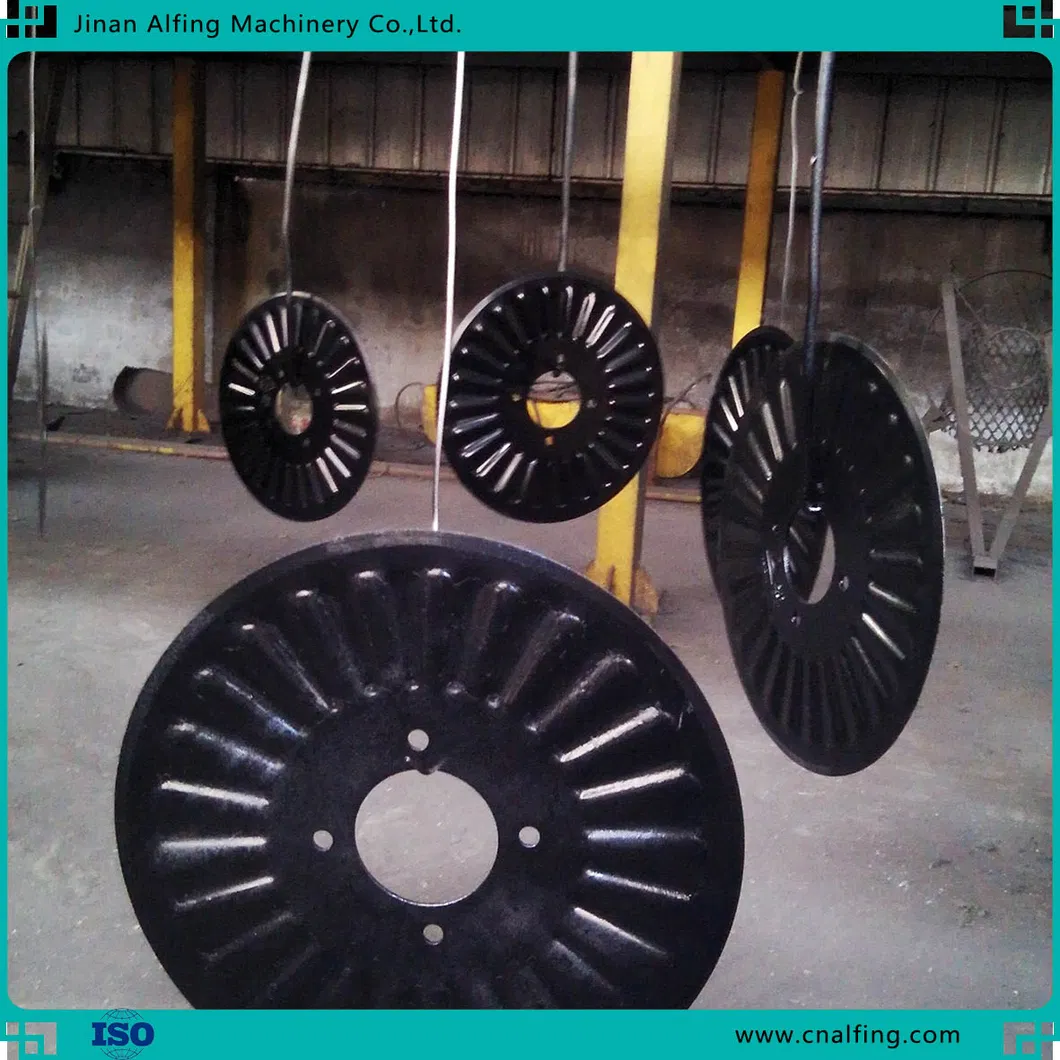

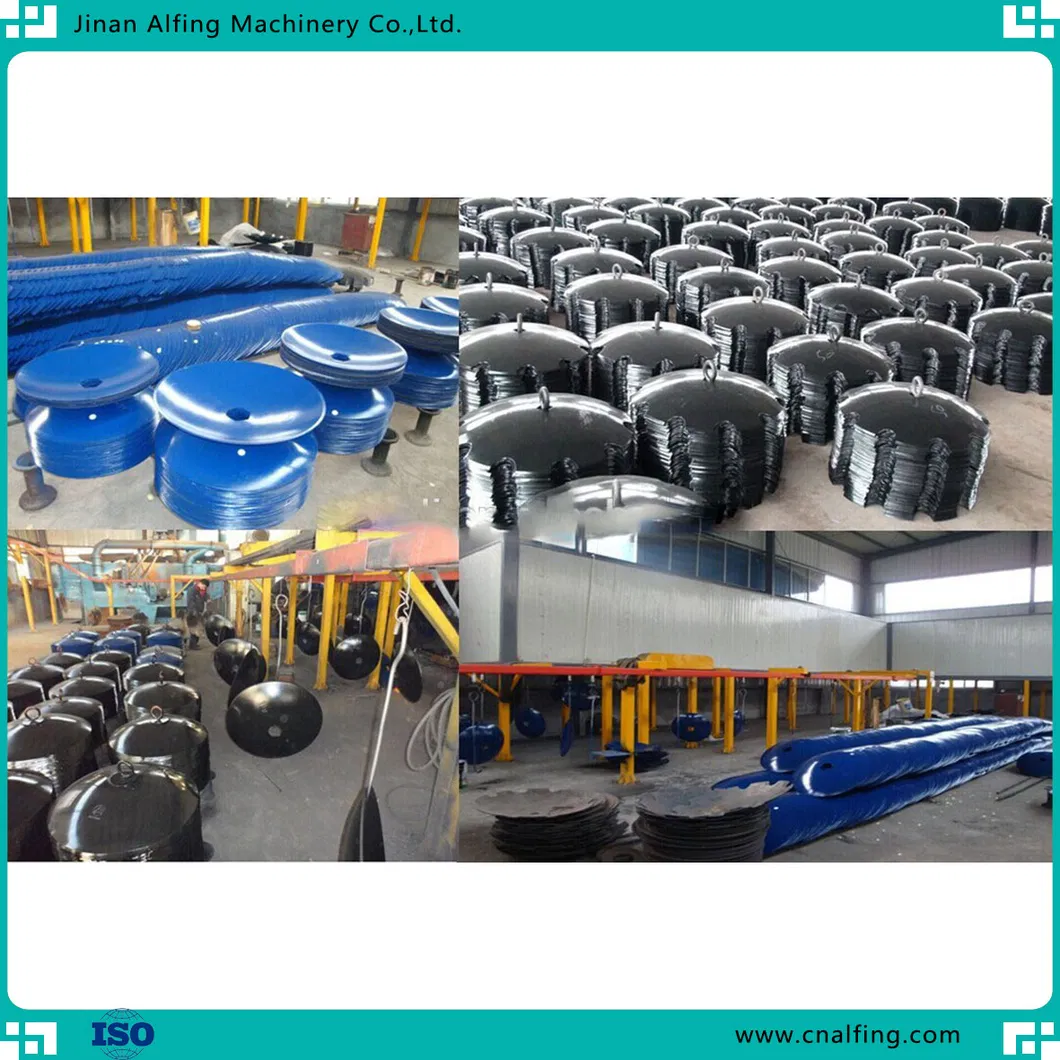

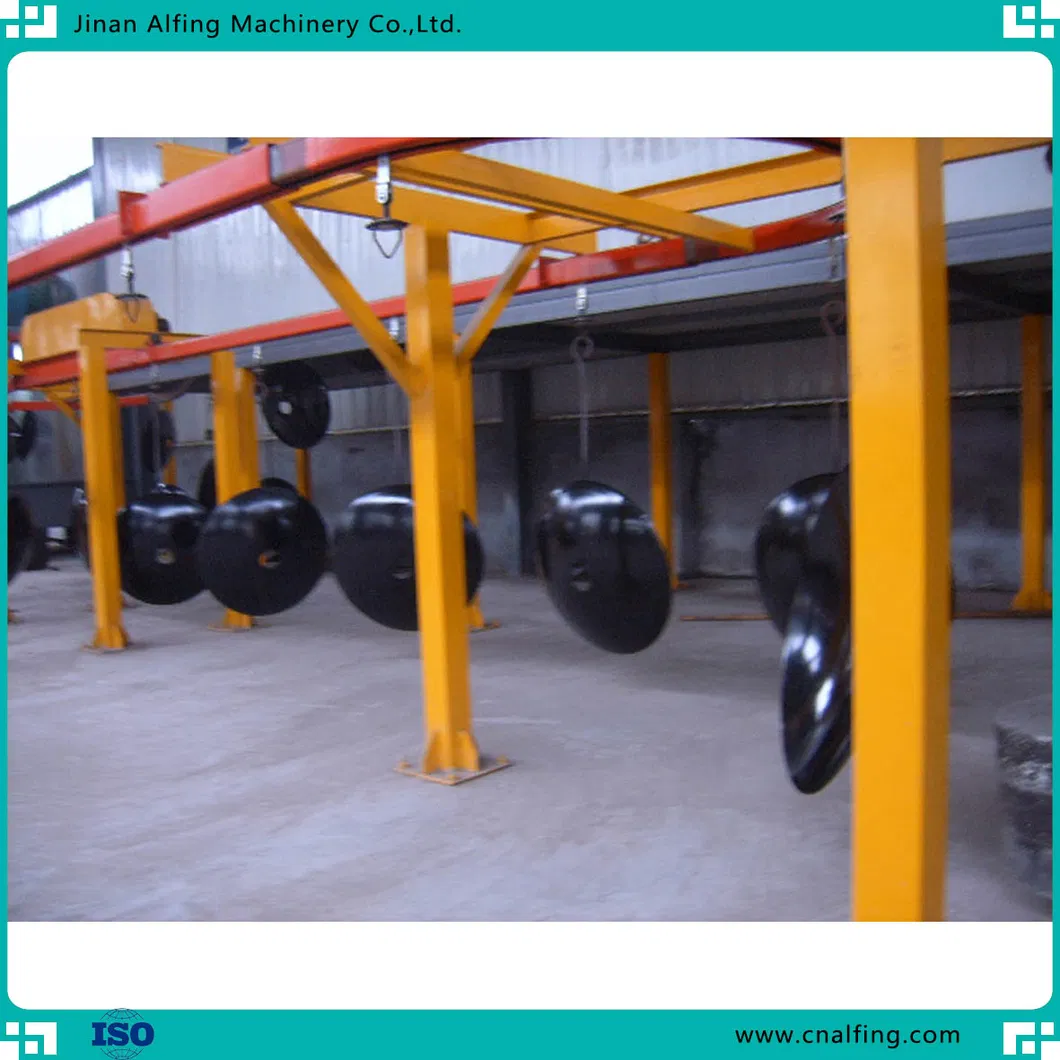

Our company is a professional manufacturer of plough and harrow disc blades. We have a production line for farming discs producing, cleaning and painting.

We can produce discs made of 65 Manganese Steel from in 12"-32"

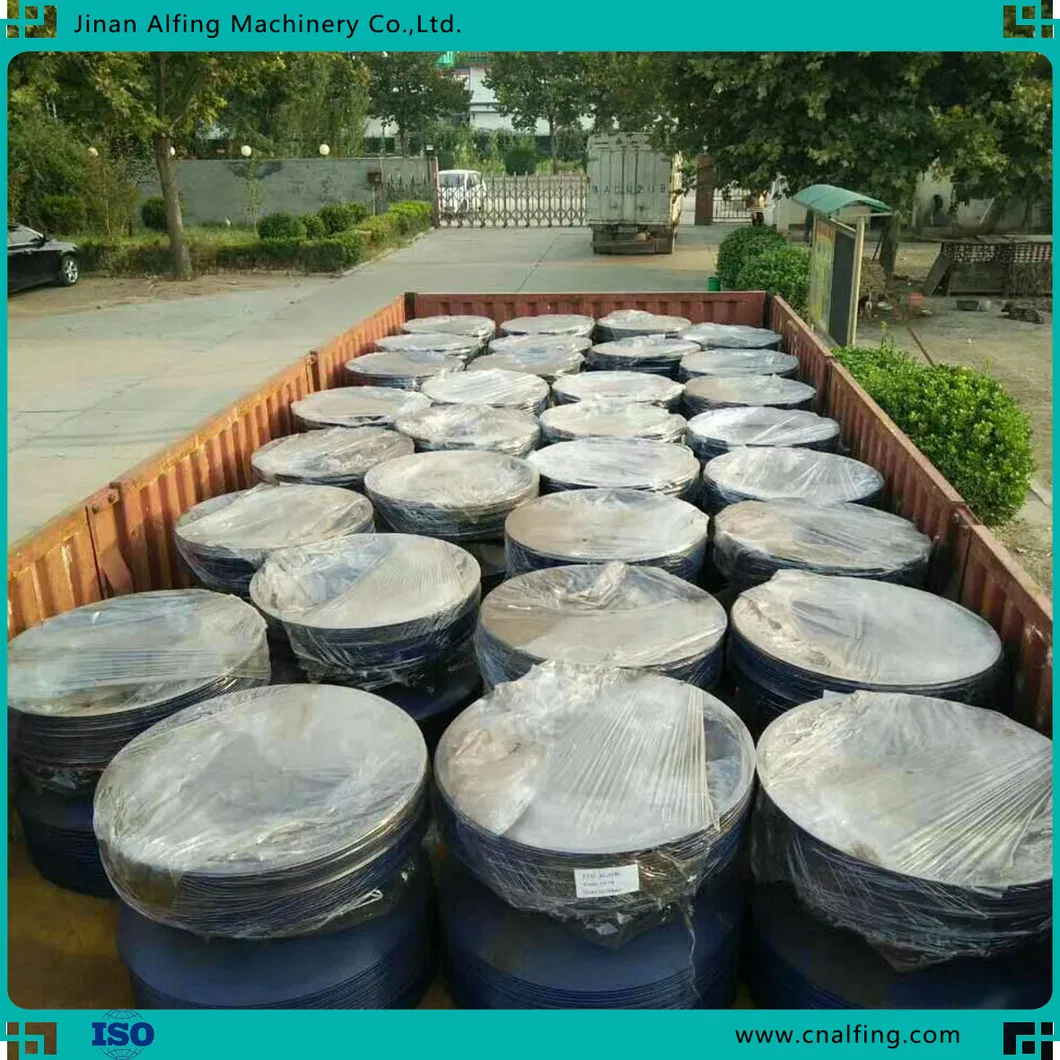

Diameter and from 3 to 12mm in thickness. Annually output is 300, 000 PCS. The products exported to UK, USA, France, Australia and South Africa, etc. More than 60 countries and districts.

We can supply all various of discs according to customers drawings and samples.

Diameter		Overall dimension	Thickness
mm	inch	mm	mm
305	12	19	3
330	13	25	3
355	14	38	3
410	15	38~50	3
430	17	57	3; 4
460	18	38~60	3; 4
480	19	57	3; 4
510	20	44~63	3; 4; 5
535	21	63	3; 4; 5
560	22	60~85	4; 5; 6
585	23	75~90	4; 5; 6
610	24	75~95	4; 5; 6
660	26	86~115	5; 6; 7; 8
710	28	100~130	5; 6; 7; 8
760	30	120~135	6; 7; 8; 10; 12
810	32	120~140	8; 10; 12
