Agricultural Machinery Parts Power Tiller Blade Disc Plough Disc Blade for Farm
Yucheng Hongri Machinery FactoryProduct Technical ParameterProduct description:Material:65Mn,Boron steelHardness:HRC38-45, HRC43-48Thickness:3.0-12.5mmSize/dimension:12"-44"(300mm-1120mm)Edge of Disc Blade:Round or Notched.Shape:Flat,Concave or WavyMOQ:100 pcsProduction Capacity:7 Million ......
Send Inquiry
Product Description
Yucheng Hongri Machinery Factory
Product Technical Parameter
Product description:
| Material: | 65Mn,Boron steel |
| Hardness: | HRC38-45, HRC43-48 |
| Thickness: | 3.0-12.5mm |
| Size/dimension: | 12"-44"(300mm-1120mm) |
| Edge of Disc Blade: | Round or Notched. |
| Shape: | Flat,Concave or Wavy |
| MOQ: | 100 pcs |
| Production Capacity: | 7 Million pcs annually |
| Surface treatment: | Painting |
| Colors: | Blue or black ( matt or bright), Made to your order |
| Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
| Hole Size: | 27x27mm, 42x42mm, optional |
| Working Depth: | 200mm, 300mm |
| Working Width: | 3.4M ~ 6.2M |
| Packing: | Non-fumigation wooden case, metal case according policy of different regions |
| Feature /Characteristic: | Highest wear life due to special edge making process |
Disc blade are suitable for disc harrow and agricultural machine, as usual the material is 65Mn spring steel and 40MnB steel. As usual 65Mn spring steel hardness is 40-45HRC, 40MnB steel hardness is 43-48HRC. We are able to producting a lot of kinddisc blade, max diameter is 46inch(1170mm).
| Common Specifications of Disc | |||
| Dia. | Concavity | Thickness | |
| mm | inch | mm | mm |
| 255 | 10 | 12 | 3 |
| 305 | 12 | 19 | 3 |
| 330 | 13 | 25 | 3 |
| 355 | 14 | 38 | 3 |
| 410 | 15 | 38~50 | 3 |
| 430 | 17 | 57 | 3,4 |
| 460 | 18 | 38~60 | 3,4 |
| 480 | 19 | 57 | 3,4 |
| 510 | 20 | 44~63 | 3,4,5 |
| 535 | 21 | 63 | 3,4,5 |
| 560 | 22 | 60~85 | 4,5,6 |
| 585 | 23 | 75~90 | 4,5.6 |
| 610 | 24 | 75~95 | 4,5,6 |
| 660 | 26 | 86~115 | 5,6,7,8 |
| 710 | 28 | 100~130 | 5,6,7,8 |
| 760 | 30 | 120~135 | 6,7,8,10,12 |
| 810 | 32 | 120~140 | 8,10,12 |
| 910 | 36 | 120-200 | 8,10,12 |
| 960 | 38 | 120-200 | 8,10,12 |
Note: We can produce according to the size, size and shape of the disc blades you need.

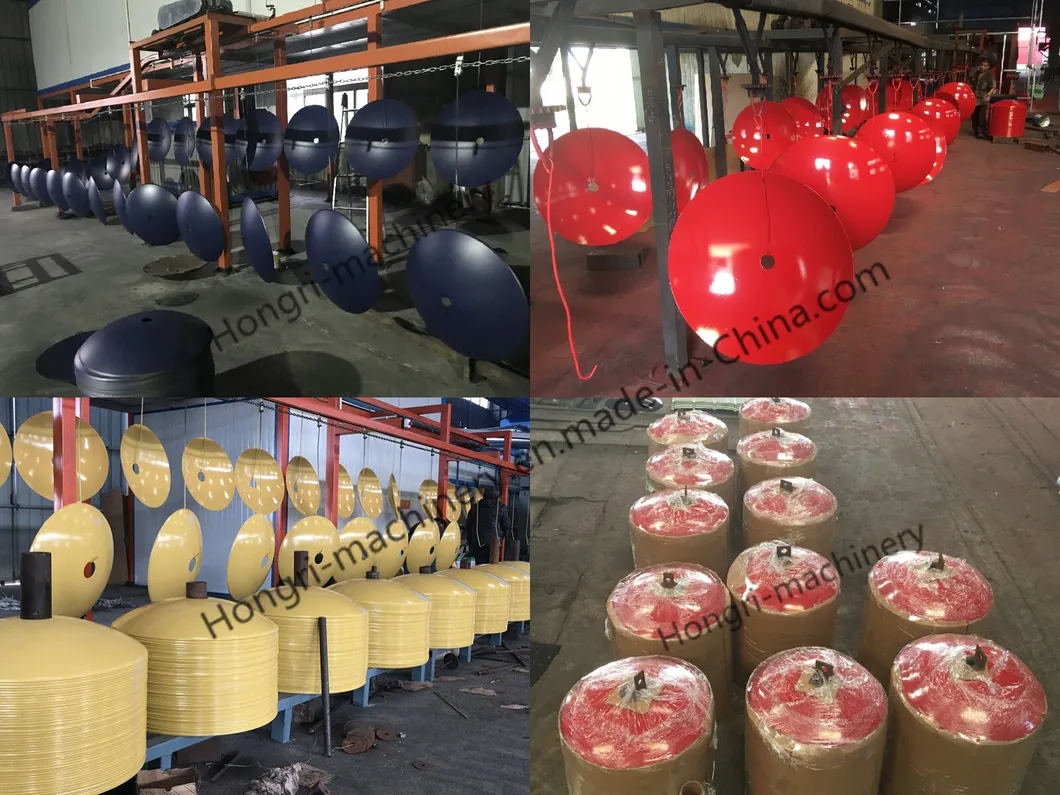

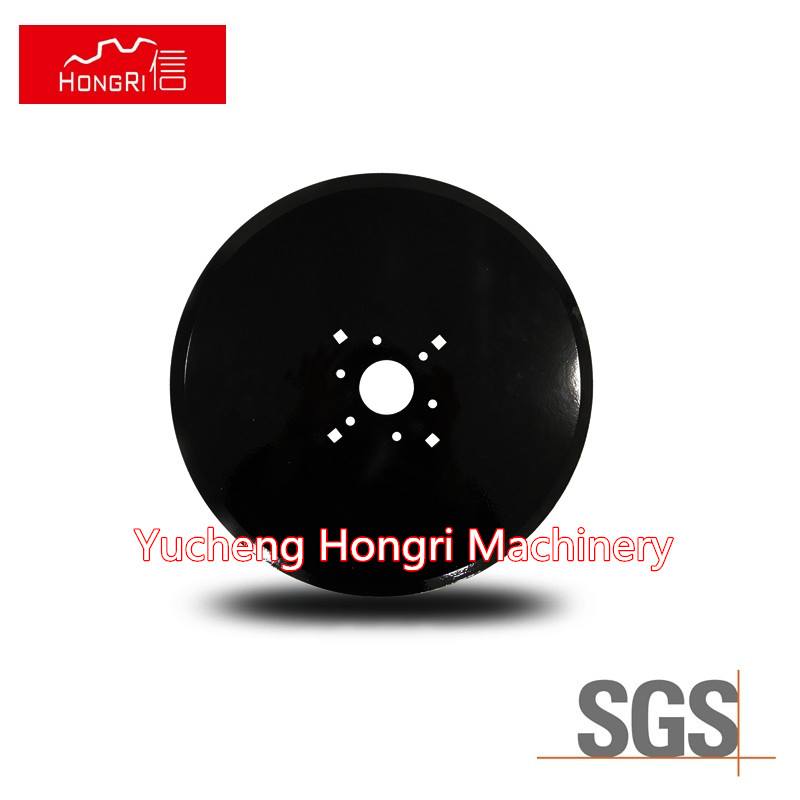

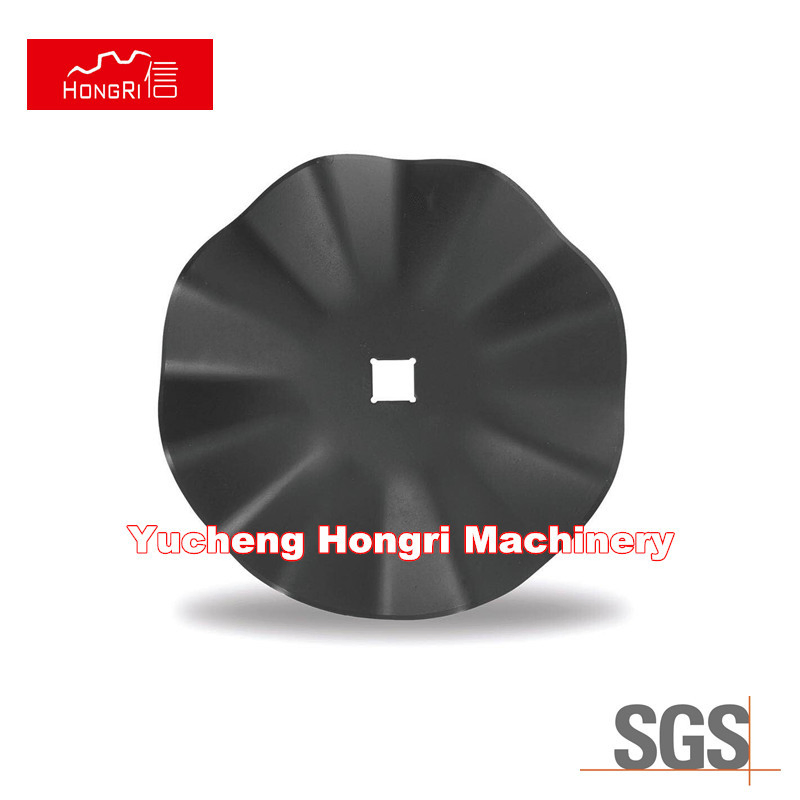

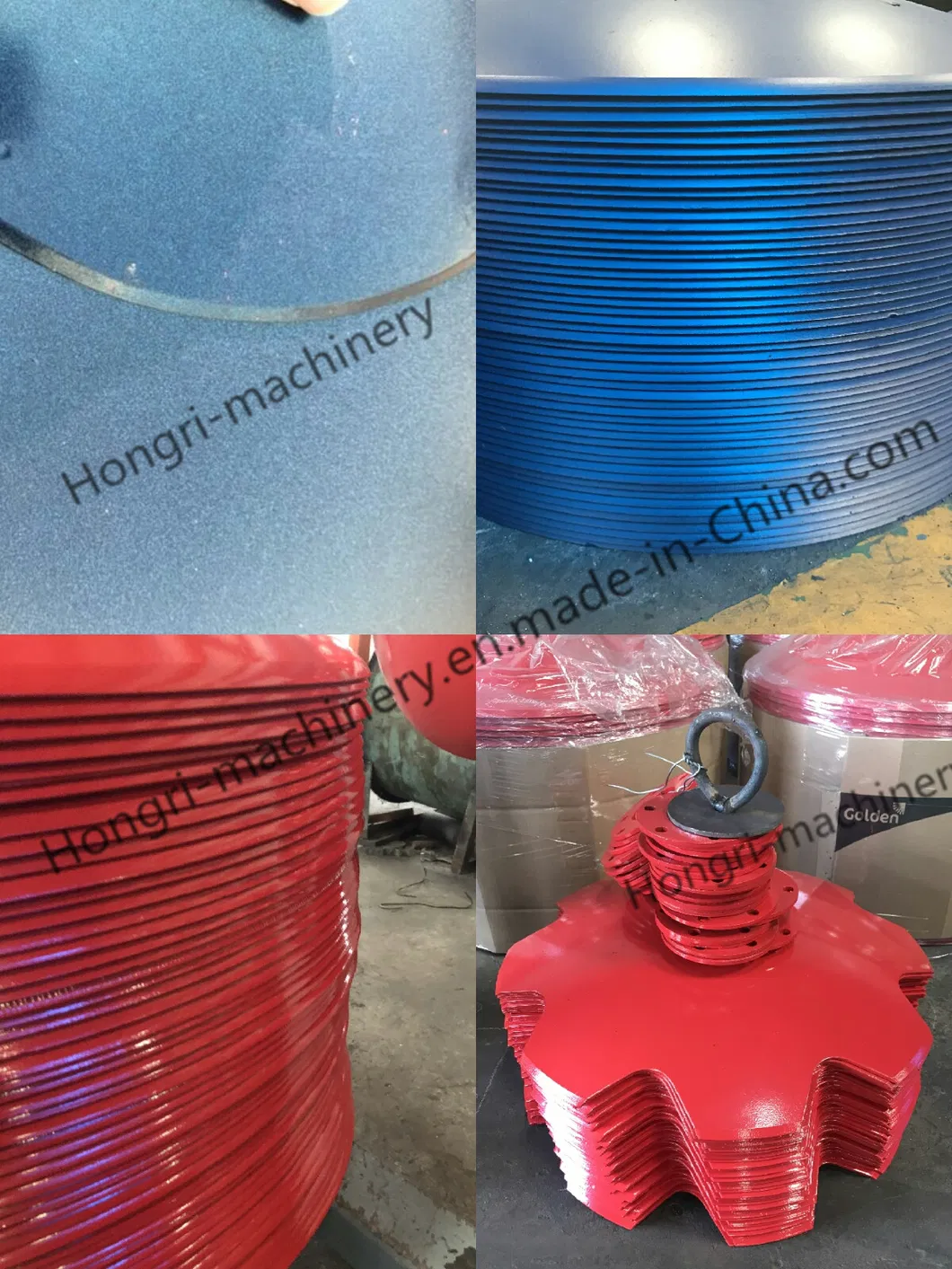

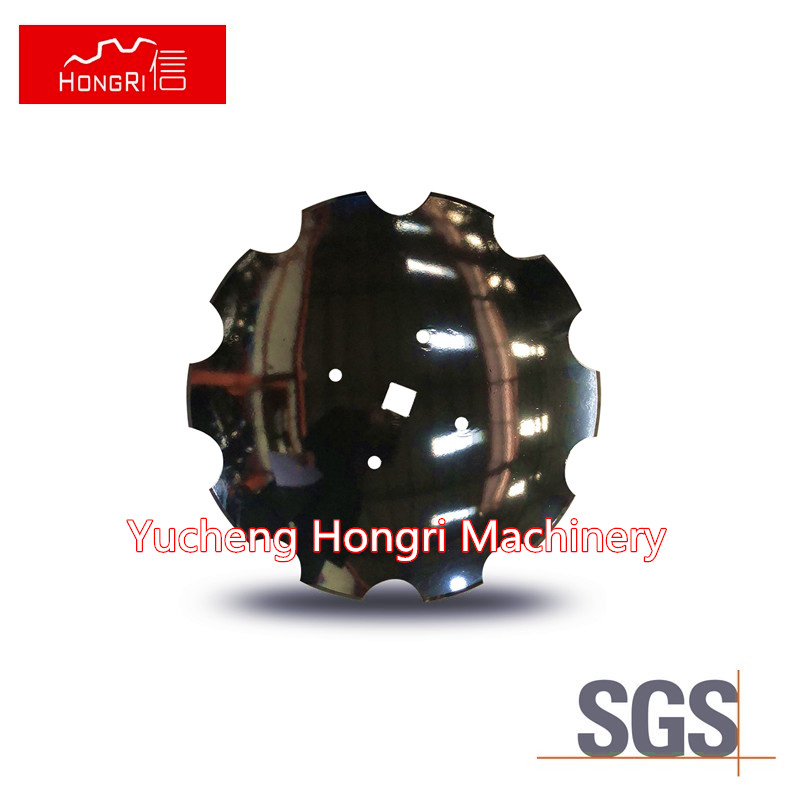

Product Images:

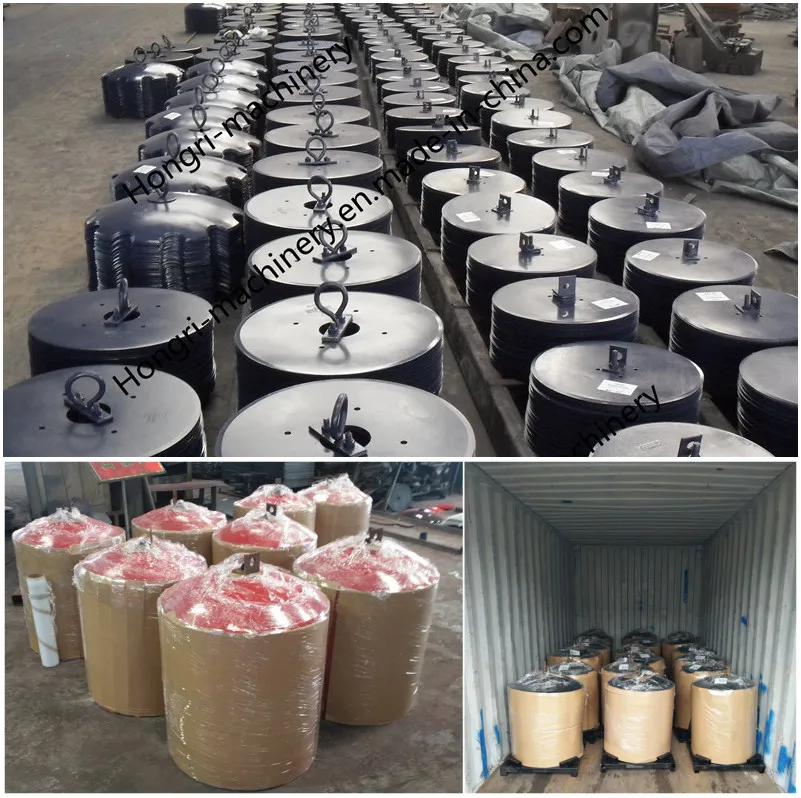

Packing & shipping:
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
Our Company :
| Business type | Manufacture/OEM |
| Location | Shiliwang Industrial Zone of Yucheng, Shandong,China |
| Year Established | 2003 |
| Occupied area | 50 Acres |
| Company certification | CE, ISO9001 |
| Main product | disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter, plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust. |
FAQ:
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Hongri for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 30years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. Obtained SGS and CE certificates.
11. Lower repair rate and bad review rate.
12. We have American Branch to show our main products. We can give customers best service.
Please feel free to contact me if you have any questions.
Thanks. Have a nice day!
