Agricultural Insecticide Machine Sprayer Boom Tractor Implement
3WPQ-2000 type tractor boom sprayer3WPQ-2000 series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1000L-3000L, the spraying width could be 10m-25m.Advantages:This kind of boom spr......
Send Inquiry
Product Description

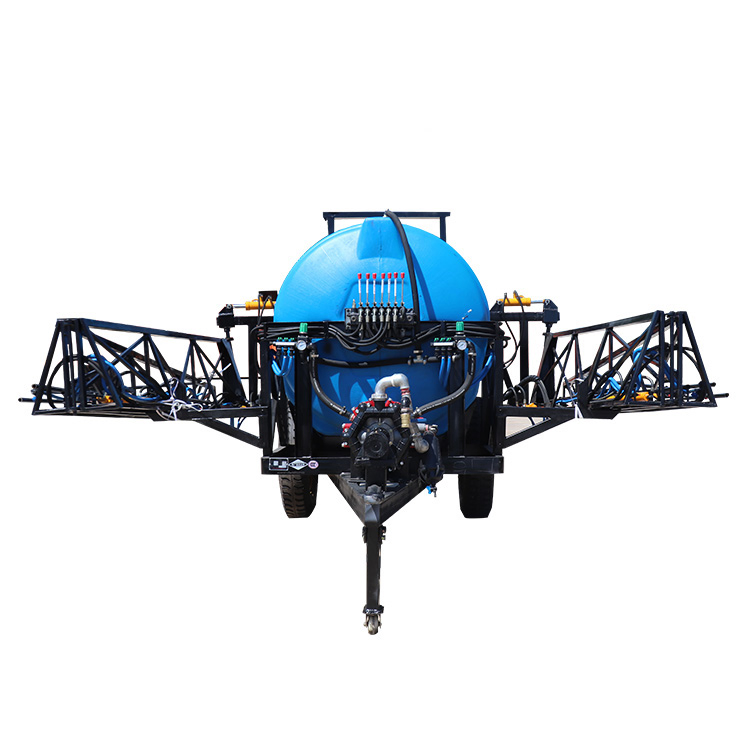

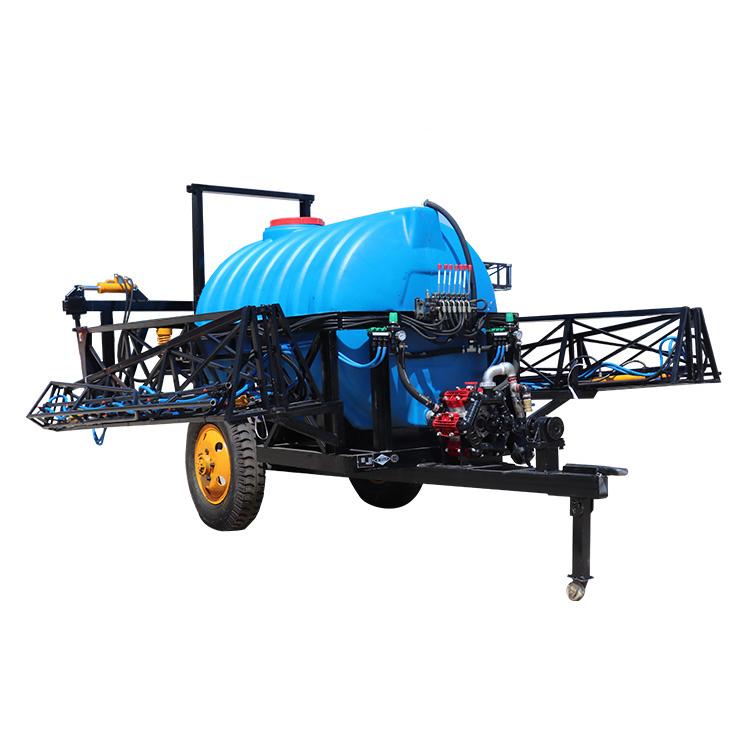

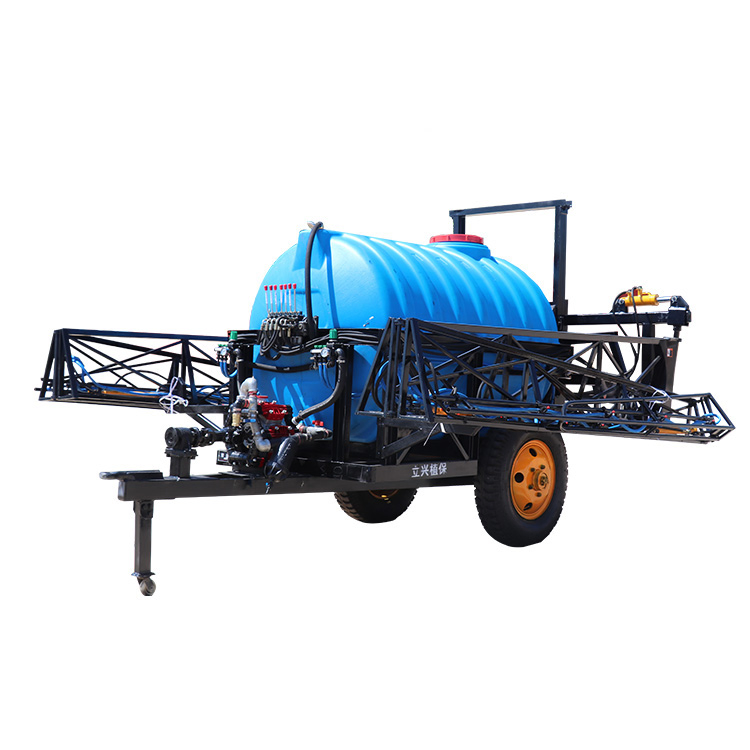

3WPQ-2000 type tractor boom sprayer
3WPQ-2000 series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1000L-3000L, the spraying width could be 10m-25m.
Advantages:
•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying with to be 25m max.and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.
| Model | 3WPQ-2000 type tractor sprayer | Pump Type | Diaphragm pump |
| Power | 54HP-200HP | Pump Pressure | 20-45 kgf / cm² |
| Mixing Way | Circulating water mixing | Pump Model | MB6360 |
| Folding Way | Hydraulic folding | Pump Flow | 360L / min |
| Ground clearance | 0.5m | Pump Speed | 600-800r / min |
| Wheel Track | 1.3-1.4m (adjustable) | Tank Capacity | 2000L |
| Operating Efficiency | 13-16 acres / hour | Boom | 21m (10m-25m customizable) |
| 3 Filtration System | Tank inlet, pump inlet, nozzle | Spray Height | 0.5m |
| System Work Pressure | 0.3-0.5Mpa | Nozzle Model | No.3 |
| Walking Speed | 4-20km / h | Spray Angle | 110 ° |
| Tire Specifications | 7.5-16 (2000 L) | Nozzle Flow | 1.2L / min |
| Overall Dimension | 3900 x 3100 x 2500 mm | Water Tank | 15L |
| Weight | 1350kg |
Q:Are you a factory or trading company?
A:We are a factory.
Q:How does your factory do regarding quality control?
A:Quality is priority. we always say great importance to quality controlling from the very beginning to the very end.
Q:Do you have a product accessory?
A:Yes, we have the accessories of the product.
Q:Can you customize the product?
A:We can customize the product.
Q:What's your payment terms?
A:Payment terms is T/T or L/C,We accept all reasonable payment.
Q:How about delivery time of your machine?
A:The delivery time is in 60 working days. It depending your quantity.
